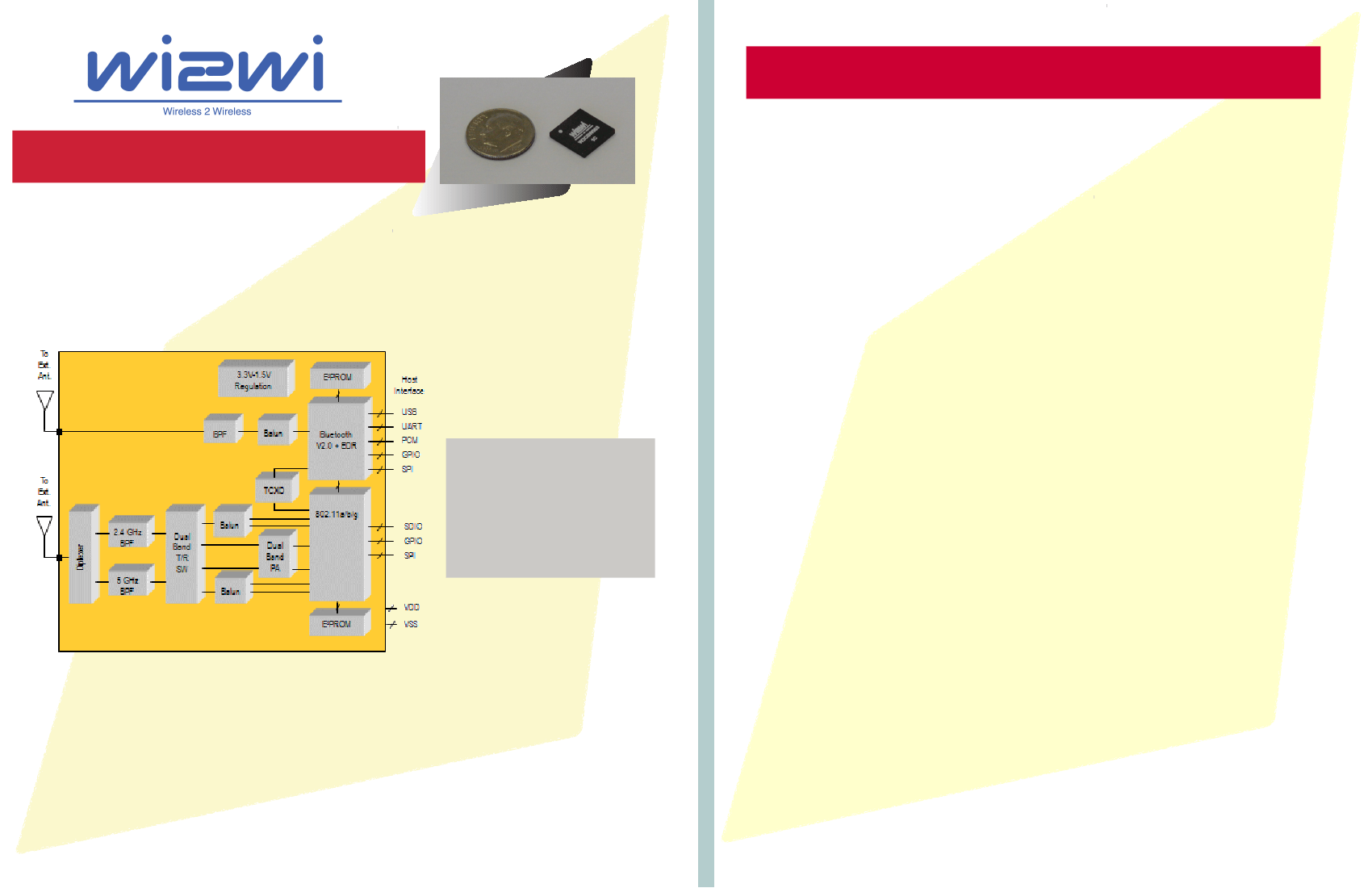

W2CBW003 - Specifications
TM
Package Dimensions
System-in-Package
- 12mm (L) x 12mm(W) x 1.4mm(H)
W2CBW003 - 802.11 b/g +Bluetooth
Security
- WEP,TKIP, WPA and WPA2, AES/CCMP per 802.11 i
- CCX upon request
The W2SW0001 is a complete 802.11 b/g plus Bluetooth v2.0 + EDR radio solution
based on the industry standard Marvell 8686 and Cambridge Silicon Radio
architectures. Designed for handheld or portable warehousing/logistics, medical,
and industrial applications, it is a complete WiFi /BTsolution that includes an LDO for
single rail operation, all crystals,all ltering, local memory for MAC address storage,
and diagnostics capability. A full array of certi cations have been performed on this
device, making the certi cation process for the nal systems design much easier
and less costly. Full driver support is available for most OSs for the Marvell PXA
family processors, as well as many other ARM-9 based processors using a Linux OS.
Package Type
Applications
- Warehousing and logistics handhelds
- Automotive aftermarket
- Medical equipment
- Industrial handhelds
- M2M applications
- POS terminals
- Internet-enabled consumer devices
- VoFi and other smartphones
- WiFi enabled security cameras
- 100-pin BGA, 1 mm pitch
Baseband Modulation - WiFi
- 802.11g: OFDM
- 802.11b: DSSS/CCK
Power Ratings
- Supply Voltage : 3.3VDC, regulated to 1.5V
- Peak Current: 275 mA
(continuous transmit, 802.11g and BT)
- IEEE Power Save Mode: 10 mA
- Standby mode (both radios): 30 mA
- Deep Sleep Mode: 2mA
Baseband Modulation - BT
- v2.0: GFSK
- Bluetooth EDR: ∏/4 DQPSK,8DPSK
Receiver Sensitivity - BT
- 1 Mb/s @ -84 dBm GFSK
- 2 Mb/s @ -87 dBm ∏/4 DQPSK
- 3 Mb/s @ -80 dBm 8DPSK
Temperature Range
Ordering Information
W2CBW003-TR -WiFi/BT SiP, Tape and Reel
W2CBW003-T - WiFi /BT SiP, Tray
W2CBW003-001: Designates UART BT Int
W2CBW003-SAM - WiFi/BT SiP Sample Pack
W2CBW003-DEV - WiF/BT SiP Evaluation Kit(
- Operating: -20˚ C to + 75˚ C
- Storage: -40˚ C to + 85˚ C
- Humidity: 5% to 95%, Non-condensing
Receiver Sensitivity - WiFI
- 54 Mb/s @ -74 dBm OFDM
- 6Mb/s @ -90 dBm OFDM
- 11Mb/s @ -88 dBm CCK
- 1Mb/s @ -90 dBm DSSS
Data Rates
-CCK: 1,2,5.5, and 11Mb/s
-OFDM: 6,9,12,18,24,36,48,and 54 Mb/s
- BT v2.0: up to 1Mbps
- BT EDR: 2,3 Mbps
Quality of Service
- 802.11 e EDCF
Interfaces - WiFi
- Small form factor SiP solution, 12mm x 12mm x1.4mm, 100 Pin LGA, 1mm pitch
- Low power consumption and power save mode
- Full support for 802.11 e(QOS) and 802.11i (Security)
- Integrated RF-friendly LDO for single rail operation
- Integrated PA, EEPROM, Balun, and clocking
- Optimized front-end design for receive sensitivity, plus full coexistence support
- Full driver support for popular OSs for the Marvell PXA processor family,
Linux support for many other ARM-9 based processors
- Includes both an SDIO and a GSPI interface for WiFi,
and a UBS and UART interface for BT
- RoHS compliant
- 7 GPIOs for WiFi, 2 GPIOs for BT
Wi2Wi Inc. 2107 N First Street Ste 540, San Jose, CA 95131
USA Tel: +1 408 416 4000 FAX: +1 408 416 4201
www.wi2wi.com
- SDIO 1 bit and 4 bit, GSPI
Features
Interfaces - BT
- USB (default) or UART
Host Processors/OS
With Driver Support
- Marvell PXA Family - most OSs
- Freescale i.MX21 and 31 - Linux OS, SDIO
- Samsung SC2443, 2412 - Linux (SDIO), WinCE
Transmit Power
- +15dBm typical for both 802.11 b and g
- BT v 2.0: +3dBm, EDR: -1dBm
Copyright 2008, Wi2Wi Inc.
Copyright 2007, Wi2Wi Inc.
Wi2Wi Inc. 2107 N First Street Ste 540, San Jose, CA 95131
USA Tel: +1 408 416 4000 FAX: +1 408 416 4201
www.wi2wi.com
