P230-3FA25BR1K Overview

Panel mount potentiometer 24mm rotary panel potentiometer

Preview

Download Datasheet

View All

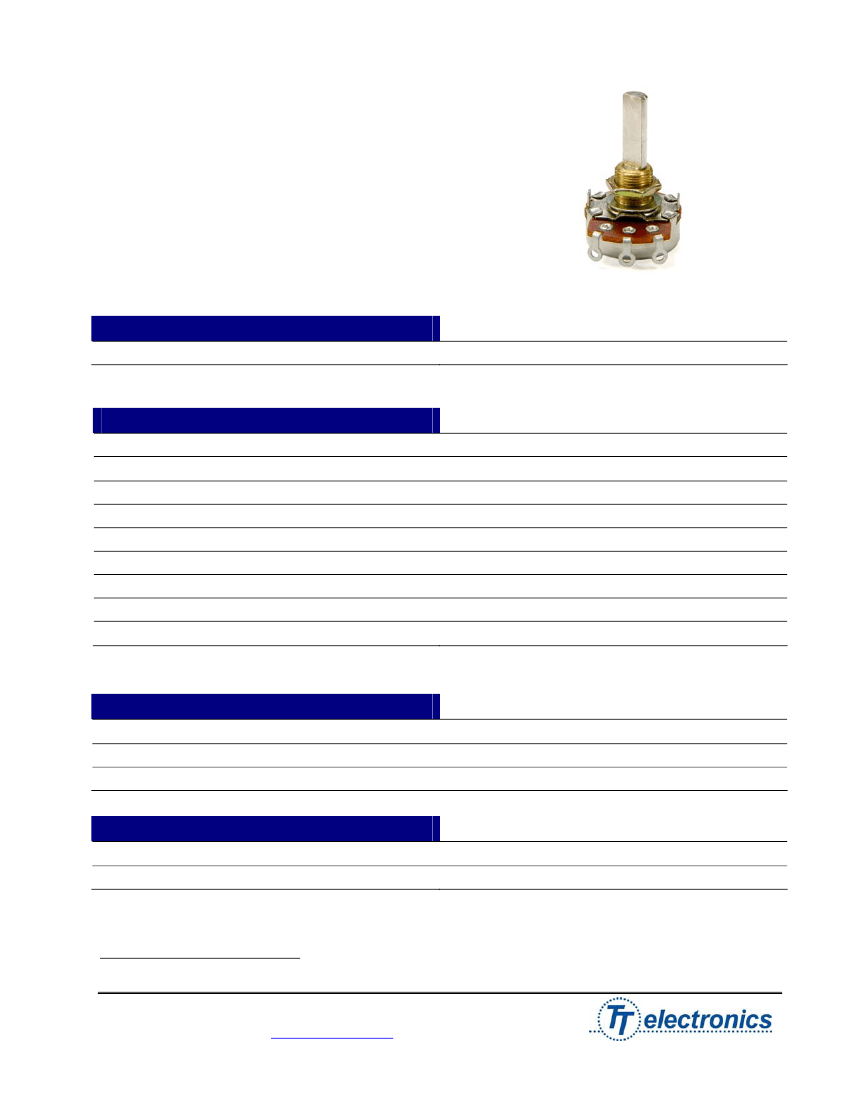

Model P230

24mm Rotary Potentiometer

Conductive Plastic Element

500,000 Cycle Life

Metal Shaft

Brass Bushing

RoHS Compliant

MODEL STYLE

Side Adjust , Solder Lugs

P230

ELECTRICAL

1

Resistance Range, Ohms

Standard Resistance Tolerance

Residual Resistance

Input Voltage, maximum

Power rating, Watts

Dielectric Strength

Insulation Resistance, Minimum

Sliding Noise

Actual Electrical Travel, Nominal

500-1M

±

20%

20 ohms max.

500 Vac max.

0.5W- B taper, 0.25W-others

500Vac, I minute

100M ohms at 250Vdc

100mV max.

260°

MECHANICAL

Total Mechanical Travel

Static Stop Strength

Rotational Torque

300°± 10°

70 oz-in

0.5 to 1.25 oz-in

ENVIRONMENTAL

Operating Temperature Range

Rotational Life

-20°C to +70°C

500,000 cycles

1

Specifications subject to change without notice.

BI Technologies Corporation

4200 Bonita Place, Fullerton, CA 92835 USA

Phone: 714 447 2345

January 21, 2010

Website:

www.bitechnologies.com

page 1 of 3

BI technologies
