M SERIES INPUT MODULES
•
•
•
•
•
•
Plug into mounting boards for M Series modules
AC Inputs (Yellow Case) for 24 V, 120 V, 240 V
DC Inputs (White Case) for 3.3 to 32 V, 10 to 48 V
4kV Optical isolation
Open-collector Output
Industry standard packaging
SPECIFICATIONS (1)
Input
Part Number
Voltage Range
Maximum Current [mA](4)
Resistance [Ohms](2)(3)
Drop-out Current [mA](5)
Voltage for No Output [VAC/VDC](6)
Allowable Current [mA]
M-IAC5
90-140 VAC/DC
6
28 k
2
50
2.5
M- IAC5A
180-280 VAC/DC
5
75 k
1.5
50
2
M- IAC24
90-140 VAC/DC
6
28 k
2
50
2.5
M- IAC24A
180-280 VAC/DC
5
75 k
1.5
50
2
M-IDC5
3.3-32 VDC/AC
34
500
1.0
2.0
1.5
Output
Maximum Voltage[VDC](9)
Maximum Voltage Drop [VDC](12)
Nominal Logic Supply Voltage [VDC]
Logic Supply Voltage Range [VDC]
Maximum Current [mA](10)
Maximum Logic Supply Current [mA](7)
Maximum Logic Supply Leakage Current [µA](8)
Maximum Leakage Current [µA](11)
Maximum Turn-On Time [msec] (13)
Maximum Turn-Off Time [msec] (13)
30
0.2
5.0
3.0-6.0
50
16.0
10.0
10.0
20
20
30
0.2
5.0
3.0-6.0
50
16.0
10.0
10.0
20
20
30
0.2
24
20-30
50
16.0
10.0
10.0
20
20
30
0.2
24
20-30
50
16.0
10.0
10.0
20
20
30
0.2
5.0
3.0-6.0
50
16.0
10.0
10.0
1.0
1.0
SPECIFICATIONS (1)
Input
Part Number
Voltage Range
Maximum Current [mA](4)
Resistance [Ohms](2)(3)
Drop-out Current [mA](5)
Voltage for No Output [VAC/VDC](6)
Allowable Current [mA]
M-IDC24
3.3-32 VDC/AC
34
1k
1
2
1.5
M-IDC5F
4-32 V
68
500
1
2
1.5
M-IDC5N
10-48 VDC/AC
34
1k
1
4
1.5
Output
Maximum Voltage[VDC](9)
Maximum Voltage Drop [VDC](12)
Nominal Logic Supply Voltage [VDC]
Logic Supply Voltage Range [VDC]
Maximum Current [mA](10)
Maximum Logic Supply Current [mA](7)
Maximum Logic Supply Leakage Current [µA](8)
Maximum Leakage Current [µA](11)
Maximum Turn-On Time [msec] (13)
Maximum Turn-Off Time [msec] (13)
30
0.2
24
20-30
50
16.0
10.0
10.0
1.0
1.0
30
0.2
5.0
3.0-6.0
50
16.0
10.0
10.0
0.05
0.10
30
0.2
5.0
3.0-6.0
50
16.0
10.0
10.0
8.0
7.0
GENERAL SPECIFICATIONS
Description
Input/Output Isolation Voltage (14)
Input/Output Capacitance
Operating Temperature Range
Storage Temperature Range
Line Frequency Range
Weight
4000
8
-30 to 80°C
-40 to 80°C
47 to 63
1.1 oz. (31.2g)
GENERAL NOTES:
(1)
(2)
(3)
(4)
(5)
Specifications apply t o an ambient temperature of -30 t o 80 °C unl ess otherwise noted.
Resistance v alues f or I AC modules are effectiv e impedance v alues at 25 °C.
Resistance v alues are +/-10% at 25 °C.
Measured at maximum s pecif ied input voltage, 25°C.
Defined as the maximum current allowed through the module's input to guarantee that
the out put will switc h from "on" to "off". Higher c urrent s may result in the output remaining
in the "on" s tate.
Defined as the maximum current allowed through the module's input that will not s witch
the module's output state f rom "off: to "on".
With external LED status indicator at maximum specified logic supply vol tage and 25°C.
18mA without external LED.
At maximum specified logic voltage and 25°C.
Applied acros s open collector output trans istor.
Sinking c urrent through the open c ollector output transistor.
At maximum output voltage and 25°C.
At maximum output current and 25°C .
At nominal logic supply voltage, 25mA output sinking current, nominal input vol tage
and 25°C
At 25°C for 1 second maxi mum duration.
(6)
(7)
(8)
(9)
(10)
(11)
(12)
(13)
(14)
MECHANICAL SPECIFICATIONS
AGENCY APPROVALS
UL E46203
CSA 38595
Rev. 040609

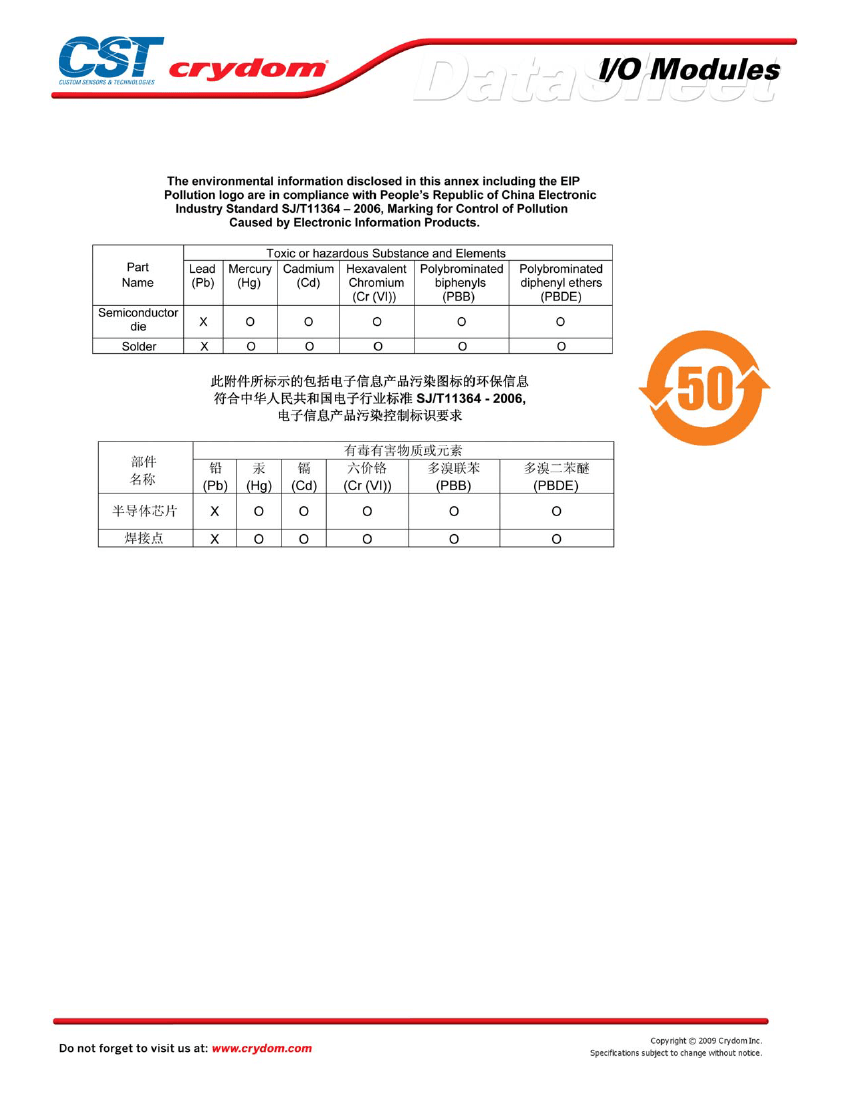

ANNEX - ENVIROMENTAL INFORMATION
