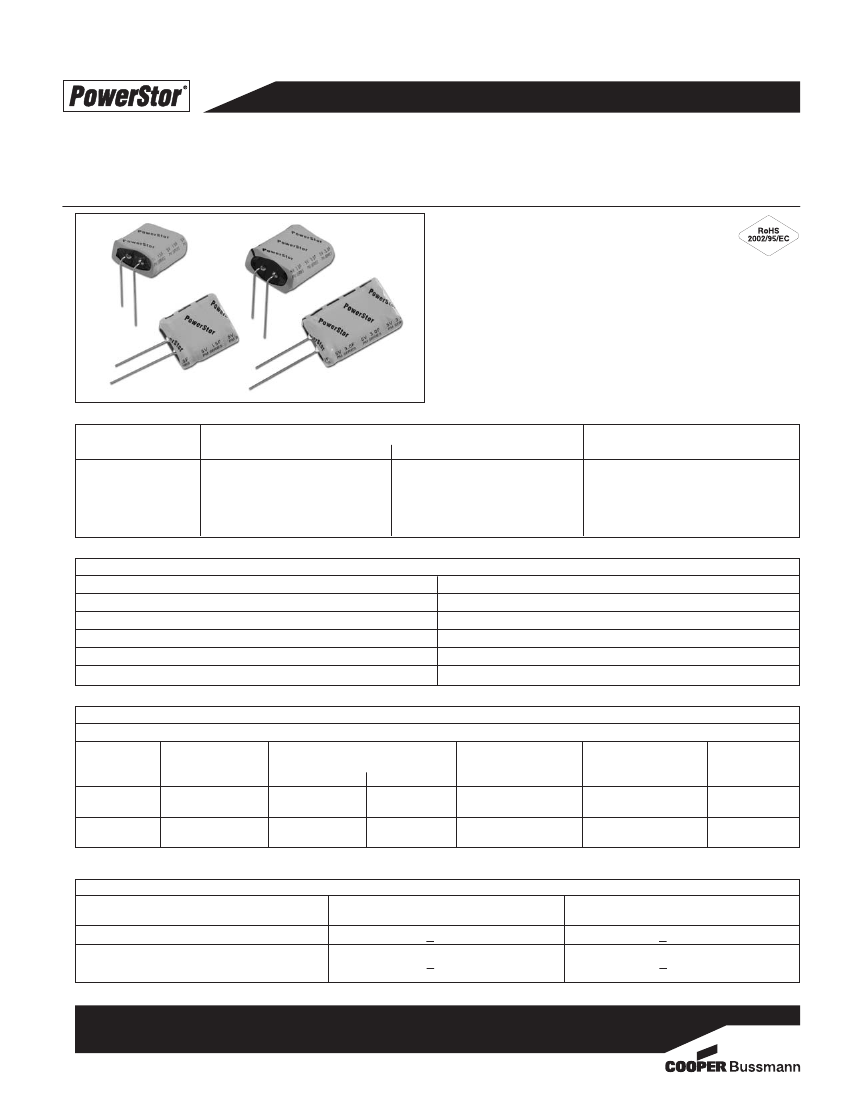

Supercapacitors
PM Series
Description
Cooper Bussmann
®
PowerStor
®
supercapacitors are unique, ultra-high
capacitance devices utilizing electrochemical double
layer capacitor (EDLC) construction combined with
new, high performance materials. This combination of
advanced technologies allows Cooper Bussmann to
offer a wide variety of capacitor solutions tailored to
specific applications that range from a few micro-amps
for several days to several amps for milliseconds.
Leaded Device
Series
Features and Benefits
Generic
5.0 volts
Low ESR
High capacitance
Long cycle life
Low leakage currents
Specific
Ultra low ESR
High energy density
Applications
Hybrid battery packs
Pulse power
Bridge or hold-up power
Valve and solenoid actuation
PM
Specifications
Working Voltage (maximum)
Surge Voltage Rating
Nominal Capacitance Range
Capacitance Tolerance
Operating Temperature Range
Extended Operating Temperature Range
5.0V
5.5V
1.5F to 3F
-20% to +80% (20°C)
-40°C to 60°C
-40°C to 85°C (max. working voltage: 3.9V)
Standard Products
High Energy Density & Ultra-Low ESR (PM Series)
Nominal
Capacitance
(F)
1.5
3.0
Part
Number
PM-5R0V155-R
PM-5R0H155-R
PM-5R0V305-R
PM-5R0H305-R
Ω
Nominal ESR (Ω)
(Equivalent Series Resistance)
Measured @ 1kHz
Measured @ DC
0.07
0.1
0.05
0.07
Nominal Leakage
Nominal
Current (µA) after
Dimensions
100 Hours @ 5.0V, 20°C
15
10.5 x 20.8 x 22.5 mm
20
10.5 x 20.8 x 32 mm
Typical Mass
(grams/piece)
5.4
7.8
Performance
Parameter
Life (1000 hrs @ +60°C @ 5.0Vdc)
Storage - Low and High Temperature
(1000 hrs @ -40°C and +60°C)
Capacitance Change
(% of initial specified value)
< 30%
< 30%
ESR
(% of initial specified value)
< 200%
< 200%
0208
BU-SB07468
Page 1 of 2
Data Sheet 4308
Dimensions (mm)
Part Number
PM-5R0V155-R
PM-5R0H155-R
PM-5R0V305-R
PM-5R0H305-R
Tolerances
A
11.0
11.0
B
21.3
21.3
Maximum
C
23.0
32.5
d’
0.6
0.6
+ 0.02
D
20
20
D’
15
15
E
25
25
E’
20
20
F
2.0
2.0
+ 0.5
P
5.3
5.3
Minimum
B
C
A
d'
B
F
C
A
d'
C
A
C
A
F
D'
P
D
E
Positive lead
P
P
E'
Positive lead
Vertical
Part Numbering System
P
Series
Code
P = Pack
M
Version
Ultra-low ESR /
Wide Temperature Range
-
5
R
0
Voltage (V)
R is decimal
5R0 = 5.0V
Horizontal
-
Configuration
V = Vertical
- or -
H = Horizontal
Capacitance (µF)
Multiplier
Example:
474 = 47 x 10
4
µ F or 0.47F
Value
R
RoHS
Compliant
Packaging Information
Standard packaging: Bulk, 100 units per package.
Larger bulk packages available upon request.
Part Marking
Manufacturer
Capacitance (F)
Max. Operating Voltage (V)
Series Code (or part number)
Polarity
North America
Cooper Bussmann
1225 Broken Sound Parkway NW
Suite F
Boca Raton, FL 33487-3533
Tel: 1-561-998-4100
Fax: 1-561-241-6640
Toll Free: 1-888-414-2645
Cooper Bussmann
P.O. Box 14460
St. Louis, MO 63178-4460
Tel: 1-636-394-2877
Fax: 1-636-527-1607
Europe
Cooper Bussmann
Cooper (UK) Limited
Burton-on-the-Wolds
Leicestershire • LE12 5TH UK
Tel: +44 (0) 1509 882 737
Fax: +44 (0) 1509 882 786
Cooper Bussmann
Avda. Santa Eulalia, 290
08223
Terrassa, (Barcelona), Spain
Tel: +34 937 362 812
+34 937 362 813
Fax: +34 937 362 719
Asia Pacific
Cooper Bussmann
1 Jalan Kilang Timor
#06-01 Pacific Tech Centre
Singapore 159303
Tel: +65 278 6151
Fax: +65 270 4160
This bulletin is intended to present product design solutions and technical information that will help the end user with design applications. Cooper Bussmann reserves the right, without notice,
to change design or construction of any products and to discontinue or limit distribution of any products. Cooper Bussmann also reserves the right to change or update, without notice, any
technical information contained in this bulletin. Once a product has been selected, it should be tested by the user in all possible applications.
Life Support Policy: Cooper Bussmann does not authorize the use of any of its products for use in life support devices or systems without the express written approval of an officer of the
Company. Life support systems are devices which support or sustain life, and whose failure to perform, when properly used in accordance with instructions for use provided in the labeling,
can be reasonably expected to result in significant injury to the user.
© 2008 Cooper Bussmann
St. Louis, MO 63178
www.cooperbussmann.com
0208
BU-SB07468
Page 2 of 2
Data Sheet 4308
