lcd graphic display module and accessories I/O simulator board

Preview

Download Datasheet

View All

Amulet Easy GUI

™

I/O Simulator Board

For Rapidly Evaluating and Testing Your Easy GUI

™

Serial Comm.

Indicator

POWER

9V BATTERY

(part number IO3001)

Graphical User Interface (GUI) Designs

byteValue(3)

(bit 3) (bit 2)

SW5

(bit 1)

(bit 0)

SW2

SW4

SW3

DB9

byteValue(6)

byteValue(5)

POT1

SP1

POT2

POT3

SW6

POT4

POT5

• Allows testing of your UI

independent of your embedded

micro

• RS232 interface to Easy GUI

display products

• Useful debugging tool

• Includes AVR Micro, switches,

potentiometers, LED’s and audio

circuit

• Atmel AVR is programmed and

ready to go

• Great educational tool!

SW7

byteValue(7)

NOTES: For syntax see /help/Protocol.htm

byteValue(8)

Volume Control

Component locations L5, J2, J3 and J4 not used; reserved for AVR programming circuit

Component locations U4 and SW7 not used; reserved for dataflash circuit

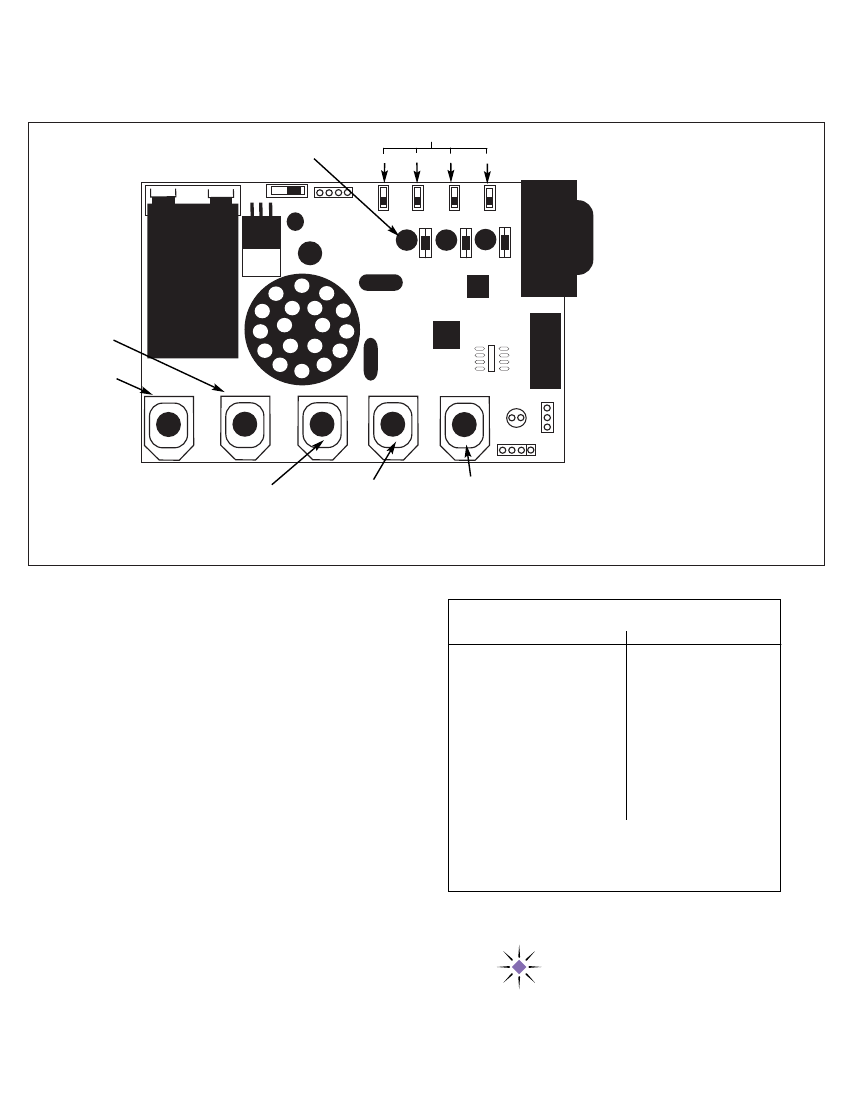

The I/O Simulator Board can be used to simu-

late the interaction between your Amulet GUI

and your embedded microprocessor. The

potentiometers and slide switches on the board

can interact with the following Amulet View

Widgets:

•

Bargraph

Image Bar

Image Sequence

Line Plot

Numeric Field

String Field

Amulet Function Definitions (numbers are decimal)

funcTable

led2Off

led2On

led3Off

led3On

playAllNotes

PlayPot

setTone

setDuration

PlayTone

PlayLoC

PlayCSharp

InvokeRPC (xx)

07 (note 1)

09 (note 2)

funcTable

PlayD

PlayDSharp

PlayE

PlayF

PlayFSharp

PlayG

PlayGSharp

PlayA

PlayASharp

PlayB

PlayHiC

InvokeRPC (xx)

The LED’s and the speaker on the board can

respond to the following Amulet Control

Widgets:

•

Function Button

Checkbox

Radio Button

List

NOTES: 1 = Reads pot 1 to play a note.

2 = Pot 2 read for duration; adjustable from 0 - 2.55 seconds

See line drawing above for component byte values.

Amulet Technologies

GUI Engines For Embedded Systems

www.AmuletTechnolgies.com

(408) 244-0363
