74HC194DB-T datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> 74HC194DB-T

74HC194DB-T: DescriptionCounter shift register 4bit bidirctionl S/R; Categorylogic logic; File Size76KB，10 Pages; ManufacturerNXP; Websitehttps://www.nxp.com; Environmental Compliance

Download Datasheet Parametric View All

74HC194DB-T Overview

Counter shift register 4bit bidirctionl S/R

74HC194DB-T Parametric

Parameter Name	Attribute value
Source Url Status Check Date	2013-06-14 00:00:00
Is it Rohs certified?	conform to
Maker	NXP
Parts packaging code	SSOP2
package instruction	SSOP,
Contacts	16
Reach Compliance Code	unknown
Other features	HOLD MODE
Counting direction	BIDIRECTIONAL
series	HC/UH
JESD-30 code	R-PDSO-G16
JESD-609 code	e4
length	6.2 mm
Load capacitance (CL)	50 pF
Logic integrated circuit type	PARALLEL IN PARALLEL OUT
Humidity sensitivity level	1
Number of digits	4
Number of functions	1
Number of terminals	16
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Output polarity	TRUE
Package body material	PLASTIC/EPOXY
encapsulated code	SSOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, SHRINK PITCH
Peak Reflow Temperature (Celsius)	260
propagation delay (tpd)	44 ns
Certification status	Not Qualified
Maximum seat height	2 mm
Maximum supply voltage (Vsup)	6 V
Minimum supply voltage (Vsup)	2 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	AUTOMOTIVE
Terminal surface	NICKEL PALLADIUM GOLD
Terminal form	GULL WING
Terminal pitch	0.65 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	30
Trigger type	POSITIVE EDGE
width	5.3 mm
minfmax	20 MHz
Base Number Matches	1

Preview

Download Datasheet

View All

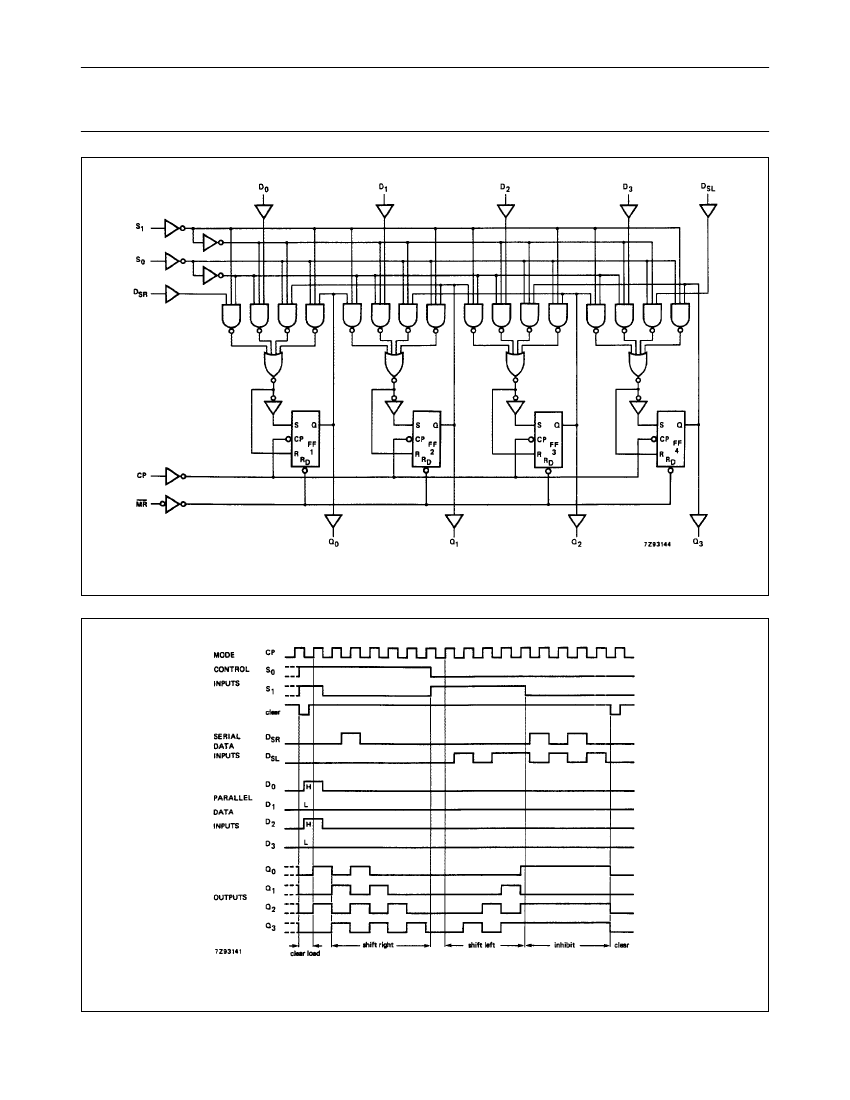

INTEGRATED CIRCUITS

DATA SHEET

For a complete data sheet, please also download:

•

The IC06 74HC/HCT/HCU/HCMOS Logic Family Specifications

•

The IC06 74HC/HCT/HCU/HCMOS Logic Package Information

•

The IC06 74HC/HCT/HCU/HCMOS Logic Package Outlines

74HC/HCT194

4-bit bidirectional universal shift

Product speciﬁcation

File under Integrated Circuits, IC06

December 1990
