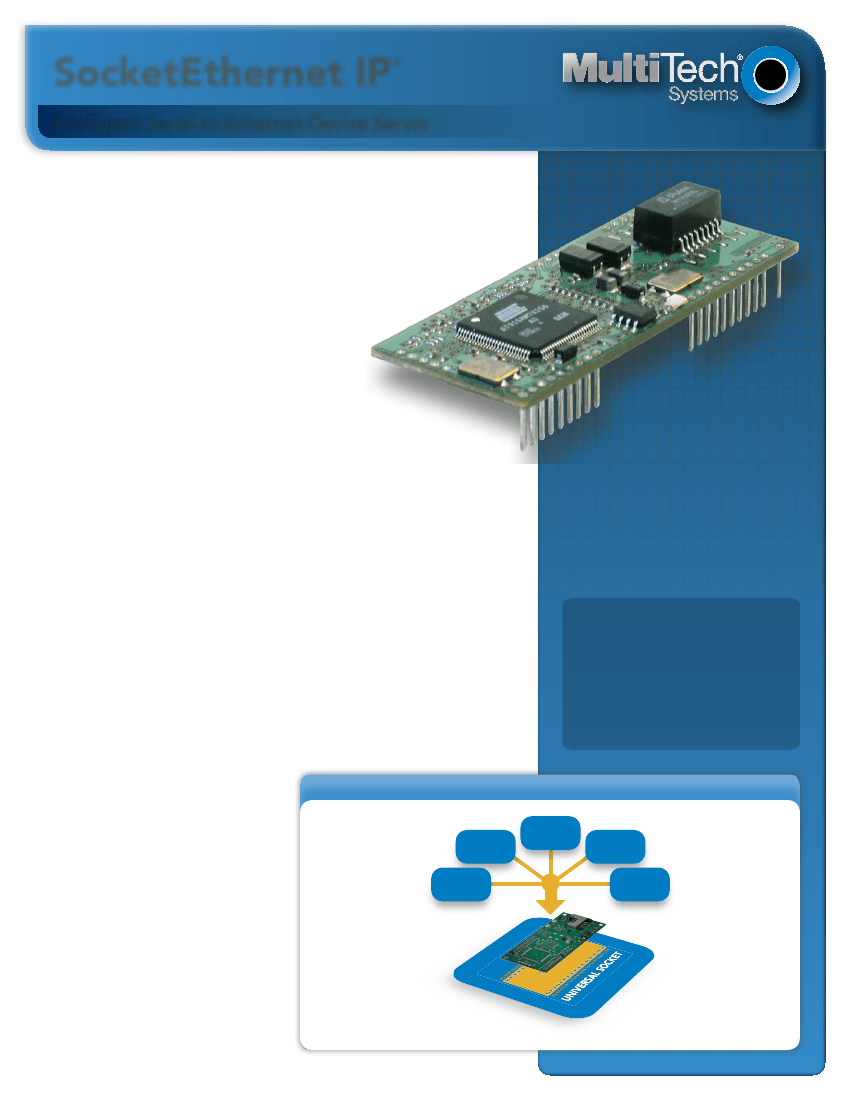

SocketEthernet IP
®
Intelligent Serial-to-Ethernet Device Server
The SocketEthernet IP
®
intelligent device server connects serial
devices to an IP network via a 10/100BaseT Ethernet interface.
It enables you to build IP networking into virtually any device
allowing for remote monitoring, control and configuration.
The space efficient communications device (1" x 2.5")
integrates Multi-Tech’s intelligent Universal IP
®
stack, and can make your existing and next
generation device, machine or system,
IP-ready while you focus on developing
its core features.
Features
·
Complete serial-to-Ethernet connectivity solution including network
processor, media access controller and physical interface
·
Serial interface supports DTE speeds to 230K bps
·
Universal Socket connectivity
·
Intelligent Universal IP stack for enhanced M2M functionality
·
LED driver outputs for visual monitoring of speed, link, activity, collision and
duplex mode
·
10/100BaseT auto-sensing Ethernet or configurable for 10MB, 100MB, half-
duplex or full-duplex
·
Models with medical/high voltage isolation (EN60601)
·
AT command compatible
·
Flash memory to update firmware with the latest enhancements
·
Developer’s kit available for testing, programming and evaluation
·
Two year warranty
Universal Socket Benefits
• Interchangeable
communications devices
• Intelligent Universal IP stack
• Quick-to-market
• Easy migration to future
Ethernet
Cellular
Future
Network
PSTN
Bluetooth
®
M2M Simplified.
™
Innovative Designs, Innovative Solutions.

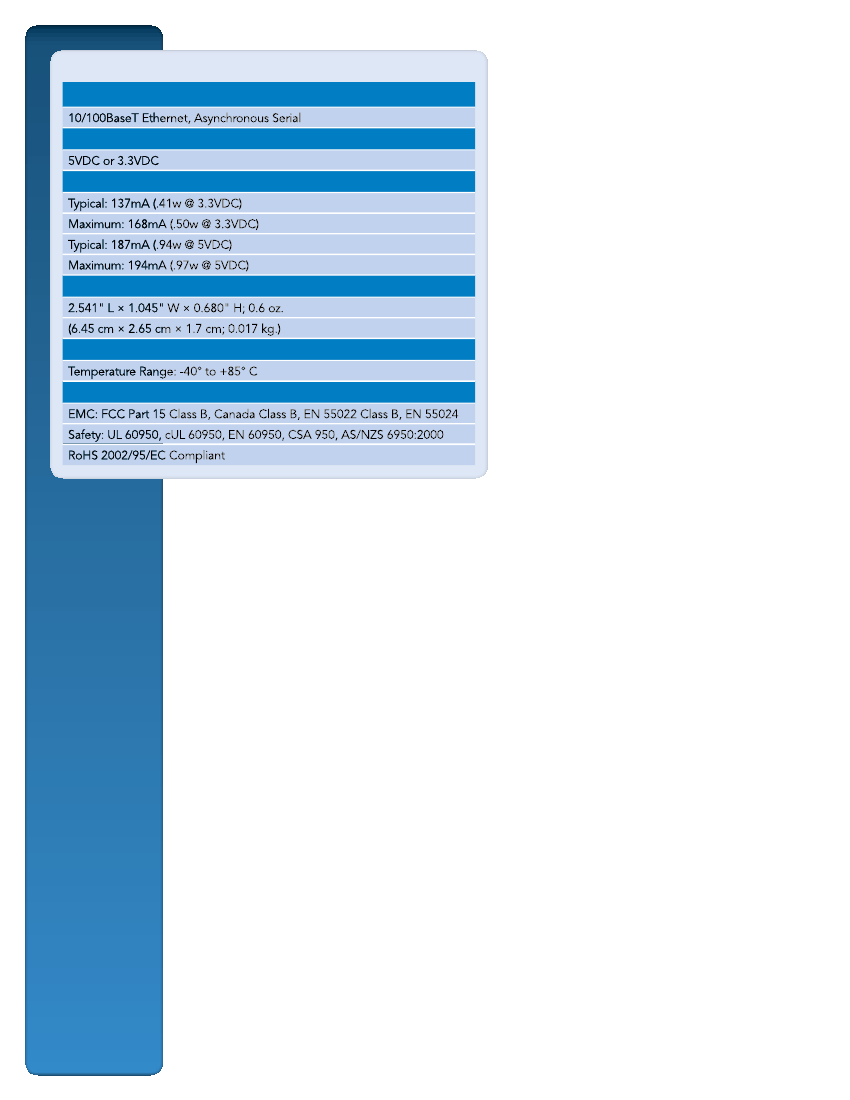

Specifications
Interfaces
Power Requirements
Power Usage
Serial-to-Ethernet Technology.
The SocketEthernet IP device server provides
the powerful ability to IP-enable serial devices
allowing more options for data acquisition, device
management, and industrial control than would
otherwise be available. The communications device
integrates a processor, operating system, Universal
IP stack and a network connection to provide a
complete serial-to-Ethernet connectivity solution.
Universal Socket Connectivity.
Multi-Tech’s Universal Socket is a flexible, comm-
port architecture that provides cellular, Ethernet,
PSTN or Wi-Fi network access with interchangeable
communications devices. This means you can
utilize one system design and populate it with
your connectivity device of choice accommodating
multiple connectivity requirements. In addition,
you are assured a seamless migration to future
technologies.
Physical Description
Operating Environment
Approvals
Universal IP for Enhanced M2M Connectivity
Multi-Tech’s Universal IP
®
stack consists of a common
set of TCP/IP and other common modem functions
that are implemented using a standard set of AT
commands. The result for customers is reduced
development time when using more than one cellular
technology or when a cellular module/radio goes
end-of-life. Multi-Tech products with Universal IP are
designed for applications needing enhanced M2M
communications connectivity, including:
·
Auto Connect/Persistent Connectivity – Allows a
modem to connect and stay connected without
being managed by an intelligent device. It can also
work with remote wake up to start a connection,
as well as ping and TCP keep alive to keep the
connection active.
·
Device Monitoring – Acts as a watchdog to monitor
and manage the connection. If the device becomes
unresponsive, the device monitor can perform a
reset to get it back to a known state.
·
Event Monitoring and Reporting via GPIO – Uses
general purpose input/outputs to monitor the
state of a connected device. Universal IP can be
configured to send status updates when the state
of the connected device has passed pre-configured
thresholds.
Highlights
Applications.
The SocketEthernet IP device server will IP-enable
any serial device to provide remote monitoring,
control and configuration of any system. It is ideal for:
·
Appliances
·
ATM terminals
·
Credit card and check
verification systems
·
Data collection
·
Gas pumps
·
Industrial and medical
remote monitoring
systems
·
Point-of-sale terminals
·
Remote diagnostics
·
Remote metering
·
Security systems
·
Television set-top
boxes
·
Ticketing machines
·
Vending/gaming
machines

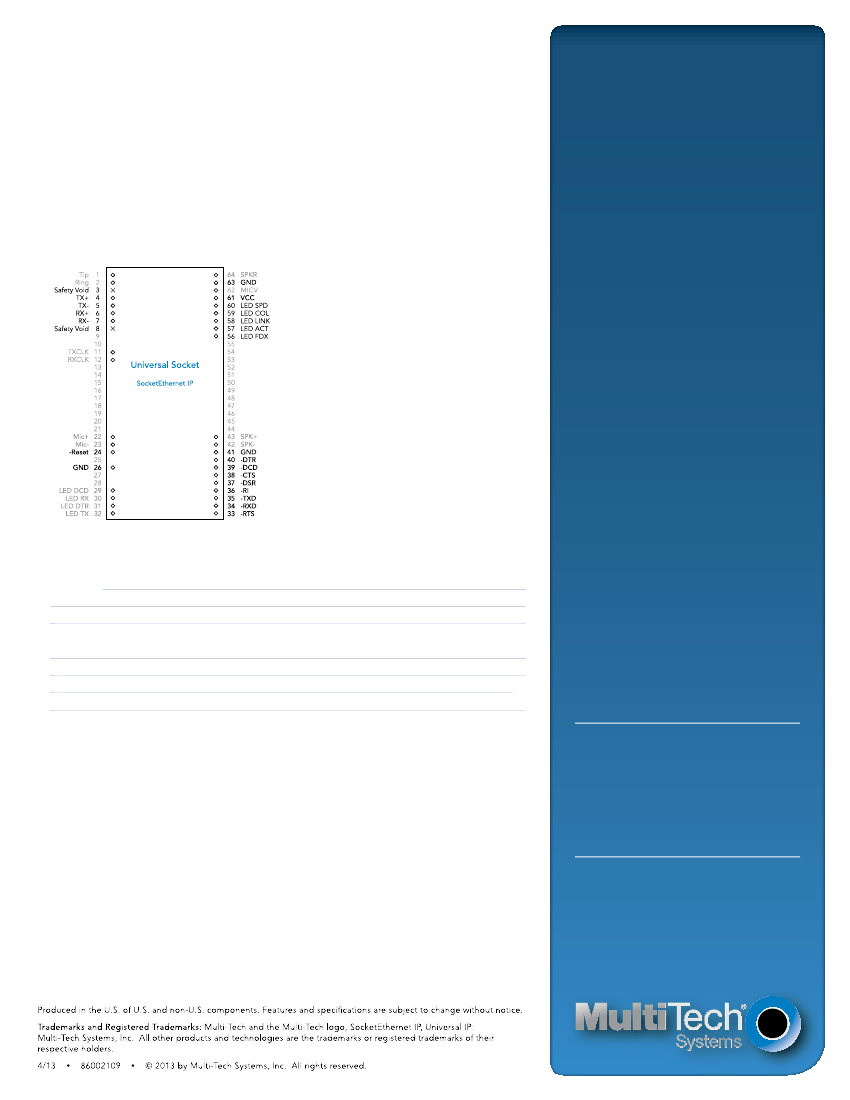

SocketEthernet IP Pin-Out.
The SocketEthernet IP device
server interfaces easily with existing
products through a standard serial
communication channel. The serial DTE
channel is capable of transfer speeds
to 230.4K bps and can be interfaced
directly to a UART or microcontroller.
The SocketEthernet IP device server
also provides LED driver outputs for
visual monitoring of speed, link, activity,
collision and duplex mode.
Developer’s Kit.
The Developer’s Kit allows you to
plug in the communications device
and use it for testing, programming
and evaluation. The kit includes one
development board with RS-232 DB-25
connector, universal power supply,
RJ-45 jack and RS-232 cable.
Services & Warranty
Multi-Tech’s comprehensive Support
Services programs offer a full array of
options to suit your specific needs.
These services are aimed at protecting
your investment, extending the life of
your solution or product, and reducing
total cost of ownership. Our seasoned
technical experts, with an average
tenure of more than 10 years, can
walk you through smooth installations,
troubleshoot issues and help you with
configurations. Products include a 2-year
warranty.
Installation Support
Multi-Tech’s Installation Support Service
delivers priority service with the ability
to work one-on-one with an experienced
Multi-Tech technical support engineer,
to guide you through the installation
process for our products.
Technical Support Services
At Multi-Tech, we’re committed to
providing you personalized attention
and quality service while providing you a
quick response to your product support
needs. We have several options of
support for you to choose from.
Ordering Information
Product
MT100SEM-IP
MT100SEM-L-IP
MT100SEM-L-HV-IP
Ordering Codes
-IP
-L
-HV
.Rx
Description
Intelligent Device Server
Intelligent Device Server
Intelligent Device Server
Embedded Universal IP Stack
3.3V Power Input (Default is 5V)
High Voltage Dielectric Isolation (EN60601)
Version control
Region
Global
Global
Global
For additional information on Support
Services as well as other service
offerings, please contact your Multi-Tech
representative or visit
www.multitech.com/support.go.
World Headquarters
Multi-Tech Systems, Inc.
2205 Woodale Drive
Mounds View, MN 55112 U.S.A.
Tel: 763-785-3500
Toll-Free: 800-328-9717
Email: sales@multitech.com
www.multitech.com
EMEA Headquarters
Multi-Tech Systems (EMEA)
Unit 1, Thames Court
2 Richfield Avenue
Reading, Berkshire RG1 8EQ
United Kingdom
Tel: +(44) 118 959 7774
Email: sales@multitech.co.uk
