WIRELESS MADE SIMPLE

OEM COMPACT HANDHELD TRANSMITTER DATA GUIDE

DESCRIPTION

The CMD-HHCP-***-xxx Compact Handheld

transmitter is ideal for general remote control

and command applications. As a part of our

Holtek encoder-based OEM family, it has

been pre-certified for FCC Part 15, Industry

Canada, and European CE (433MHz only)

compliance, reducing development costs and

time to market. Available in 315, 418

(standard), or 433.92MHz, this compact

remote has a transmission range of up to 750

feet when combined with the LR Series

receiver. The transmitter unit can be

configured with 1 to 8 buttons and the keypad

and labeling can be modified to meet specific

OEM customer requirements. Selectable

addressing provides security and allows the

creation of up to 1,024 distinct transmitter-

receiver relationships. The address can be

easily changed via an externally accessible

DIP switch. The transmission can be

decoded using a matching Linx Function

Module, KH2 Series receiver / decoder, or a

Linx LR or LT Series receiver paired with a

decoder IC or microcontroller. The unit uses

a single 3V CR2032 lithium button cell.

R 0.2"

2.00"

2.81"

1.35"

1.62"

0.20"

0.60"

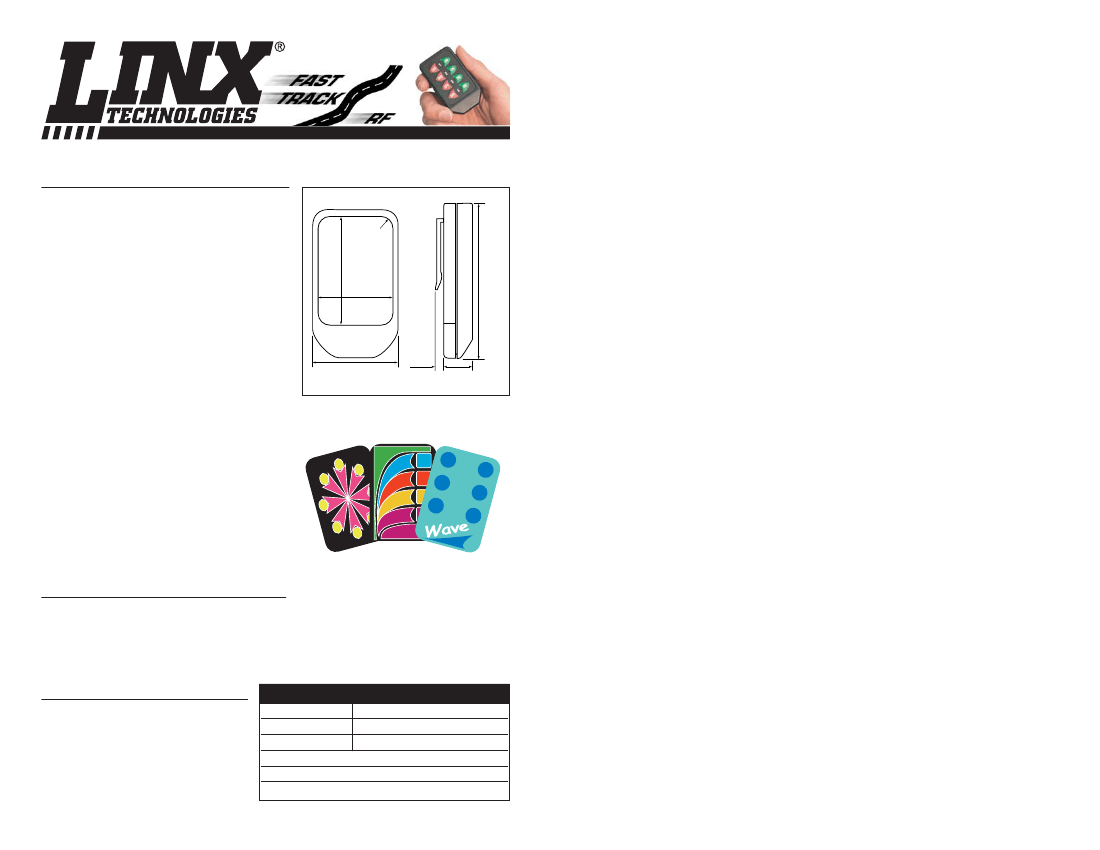

Figure 1: Package Dimensions

Ligh

Poo

Spa

FASCO

OEM Configurations

With a one-time NRE and minimum

order, Linx can configure the keypad

and label areas to meet your specific

requirements. Contact Linx for details.

FEATURES

FCC, Canada, and CE pre-certified

1 to 8 buttons

Small package

Customizable keypad

APPLICATIONS INCLUDE

General Remote Control

Keyless Entry

Garage / Gate Openers

Lighting Control

Call Systems

Home / Industrial Automation

ORDERING INFORMATION

PART #

DESCRIPTION

CMD-HHCP-***-xxx

Compact Handheld Transmitter

EVAL-***-HHCP

HHCP Basic Evaluation Kit

*** = 315, 418 (Standard), 433.92 MHz

xxx = Custom color Leave blank for standard Black

Add -MD to the end of the part number for Metal Dome buttons

Revised 1/19/10
