SMSC EVB-USB2514Q36-BAS Revision C
USER MANUAL
Revision 0.3 (08-12-10)

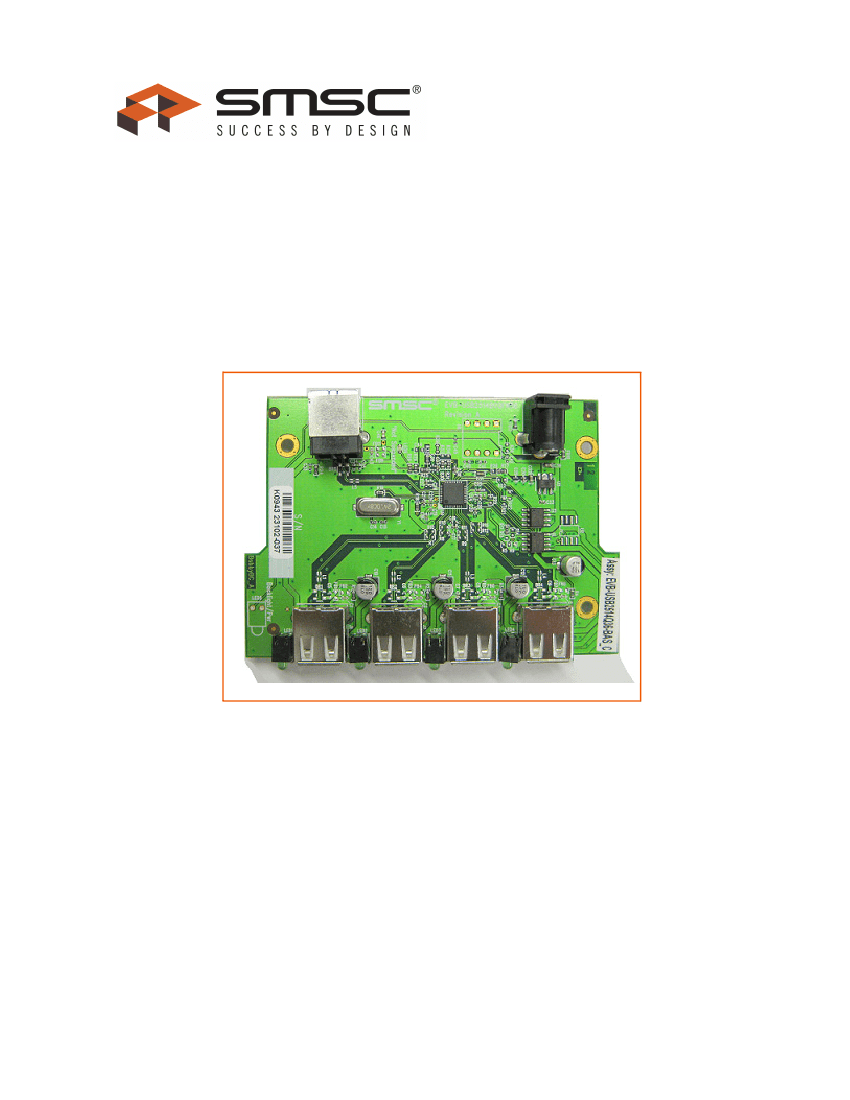

EVB-USB2514Q36-BAS, USB2513 and USB2512 36-Pin QFN Evaluation Board, Revision C User Manual
1 Overview
The SMSC USB2514 MultiTRAK™ is a Low-Power, full featured Hi-Speed USB 2.0 compliant hub with
four down-stream ports. The EVB-USB2514Q36-BAS Evaluation Board demonstrates a stand alone
application for the hub with all the features listed below and demonstrates the advanced power saving
options and configurable port assignments. Two other versions of the evaluation board are available
using the same printed circuit board (PCB) populated with either the USB2512, 2-port hub or the
USB2513, 3-port hub with part numbers EVB-USB2512Q36-BAS and EVB-USB2513Q36-BAS. The
PCB is labeled EVB-USB2514BCQFN36, Revision A for all assembly versions.
