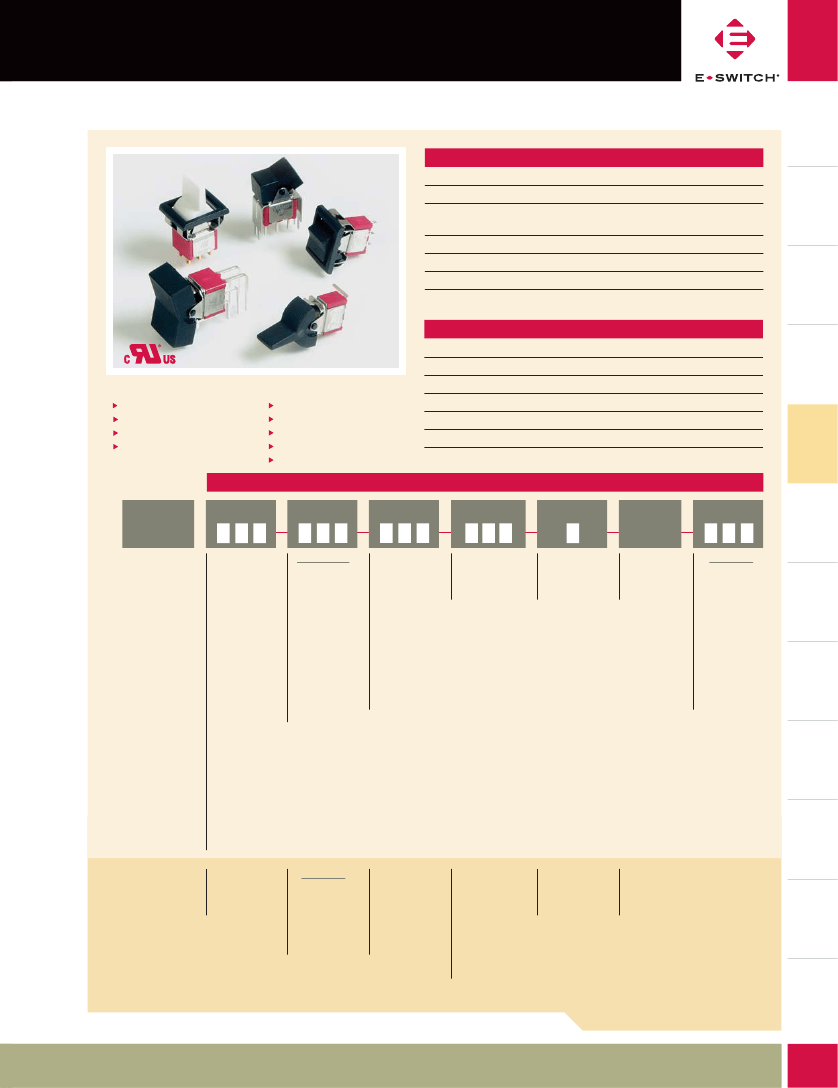

SERIES 300 SWITCHES
SPECIFICATIONS
Life Expectancy:
Contact Resistance:
Insulation Resistance:
Dielectric Strength:
50,000 make-and-break cycles at full load
10 mΩ max. initial @ 2-4 VDC
100 mA for both silver and gold plated contacts
1,000 MΩ min.
1,000 V RMS @ sea level
PUSHBUTTON
SWITCHES
FRAME
**
COLOR
(R6, R7 Only)
BLK= Black
WHT=White
RED= Red
YEL = Yellow
GRY= Gray
PUR= Purple
**Contact
E-Switch for
additional
colors
CAP
OPTIONS
DETECTOR
SWITCHES
ROTARY
SWITCHES
P.C. Mount:
J1
J2
J3
J4
J5
J6
BLK =Black
WHT=White
RED =Red
YEL =Yellow
GRY =Gray
PUR =Purple
M2
M6
M7
VS2
VS3
VS4
VS5
M61
VS21
Q = Silver
R = Gold
E = Epoxy
Sealed at
Base of
Terminal
Specifications subject to change without notice.
Operating Temperature: -30° C to 85° C
MATERIALS
Case:
Rockers:
Bushing:
Housing:
Contacts/Terminals:
Diallyl Phthalate (DAP)
Nylon
Brass, nickel plated
Stainless steel
Silver or gold plated copper alloy
ROCKER
SWITCHES
KEYLOCK
SWITCHES
DIP
SWITCHES
SNAP-ACTION
SWITCHES
SLIDE
SWITCHES
TOGGLE
SWITCHES
FEATURES & BENEFITS
Multiple rocker & paddle options
Up to 4 poles
Multiple termination options
Snap-in panel mount option
available
APPLICATIONS/MARKETS
Telecommunications
Instrumentation
Test equipment
Networking
Computer peripherals
Terminal/Switch Support: Brass, steel, electrotin plated
HOW TO ORDER
MODEL NO.
ACTUATOR
ACTUATOR
**
COLOR
TERMINATION
CONTACT
MATERIAL
SEAL
SERIES
300

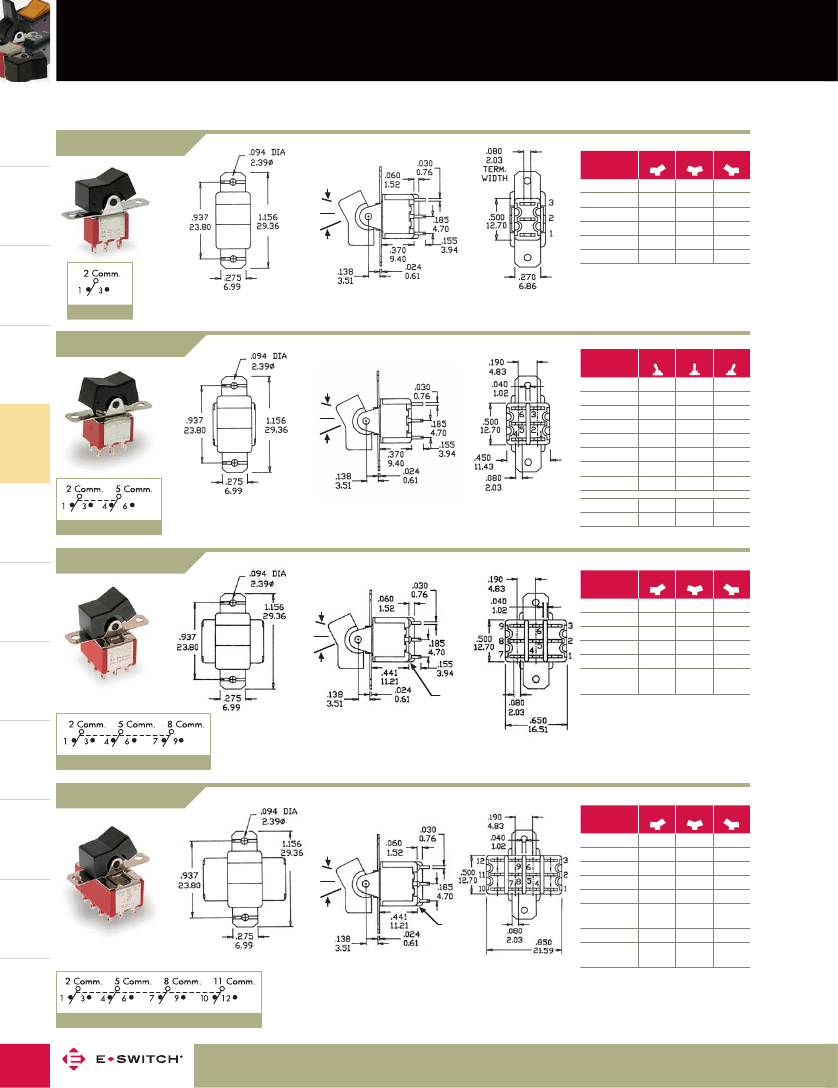

SP1
SP2
SP3
SP4
SP5
DP1
DP2
DP3
DP4
DP5
DP6
DP7
DP8
3P1
3P2
3P3
3P4
3P5
4P1
4P2
4P3
4P4
4P5
4P6
(See Above
Model No.
Options)
Panel Mount:
R1
R2
R3
R4
R6*
R7*
R8*
R9*
R11
R16
*Snap in panel
mount
E
NONE = Black
WHT= White
RED = Red
YEL = Yellow
GRY = Gray
PUR = Purple
M1
M3
M5
Q = Silver
R = Gold
E = Epoxy
Sealed at
Base of
Terminal
**Contact
E-Switch for
additional
colors
Example Ordering Number
300_ SP1_ R6_ RED_ M1_ R_ E_ RED
www.e-switch.com
info
@
e-switch.com
NAVIGATION
SWITCHES
Contact Rating:
Dependent upon contact material
TACT
SWITCHES
ROCKER AND PADDLE SWITCHES - MINIATURE
▲
▲
▲
▲
▲
▲
137
SERIES 300 SWITCHES
TACT
SWITCHES
ROCKER AND PADDLE SWITCHES - MINIATURE
R16
PUSHBUTTON
SWITCHES
NAVIGATION
SWITCHES

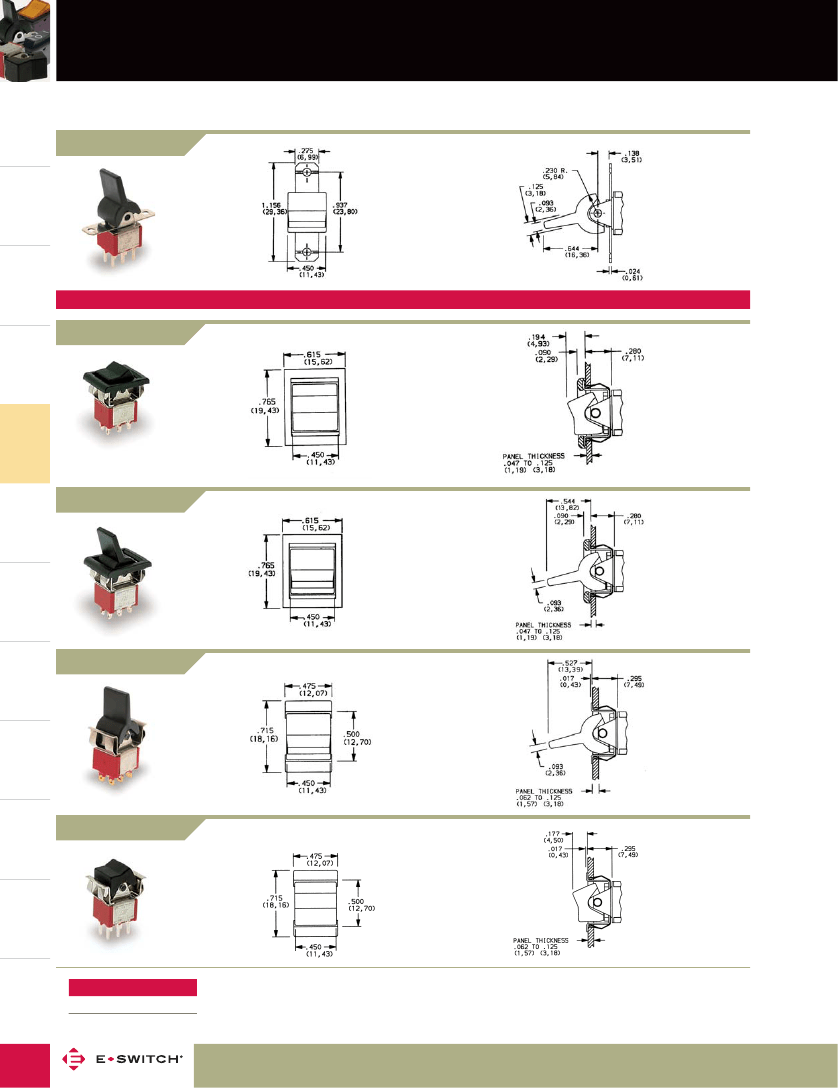

ACTUATOR OPTIONS – SNAP-IN FRONT MOUNT
ROCKER
SWITCHES
TOGGLE
SWITCHES
R6
SNAP-ACTION
SWITCHES
SLIDE
SWITCHES
R7
ROTARY
SWITCHES
KEYLOCK
SWITCHES
DIP
SWITCHES
R8
R9
CAP
OPTIONS
DETECTOR
SWITCHES
Actuator & Frame Colors:
Black, White, Red
Consult E-Switch for other colors and custom actuator marking.
140
Phone: 800-867-2717
Fax: 763-531-8235

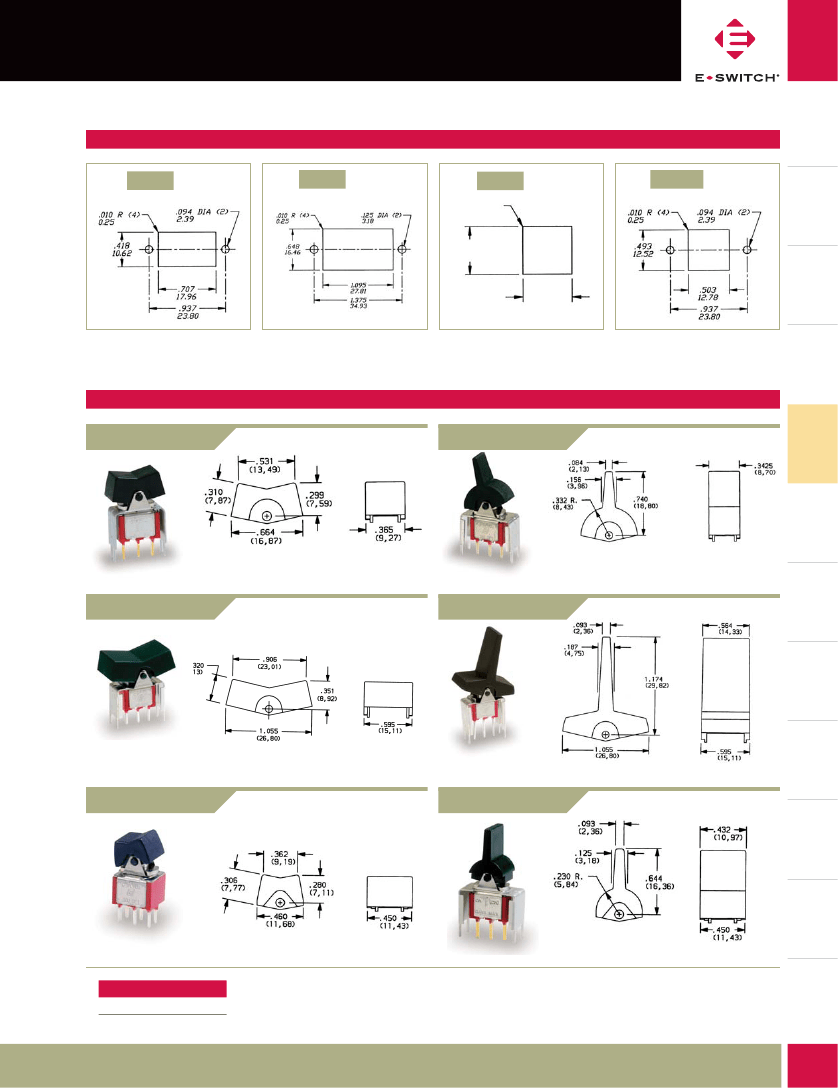

RECOMMENDED PANEL MOUNTING
FOR
R1-R2
FOR
R2-R3
FOR
R6-R9
FOR
R11-R16
.005 R (4)
0.13
.500
12.7
* .600
15.24
* For R8 and R9: Increase this dim. to .620/.625 (15.75/15.88) for .091/.125 (2.31/3.18) thk. panels.
* For R6 and R7: Increase this dim. to .620/.625 (15.75/15.88) for .060/.125 (1.52/3.18) thk. panels.

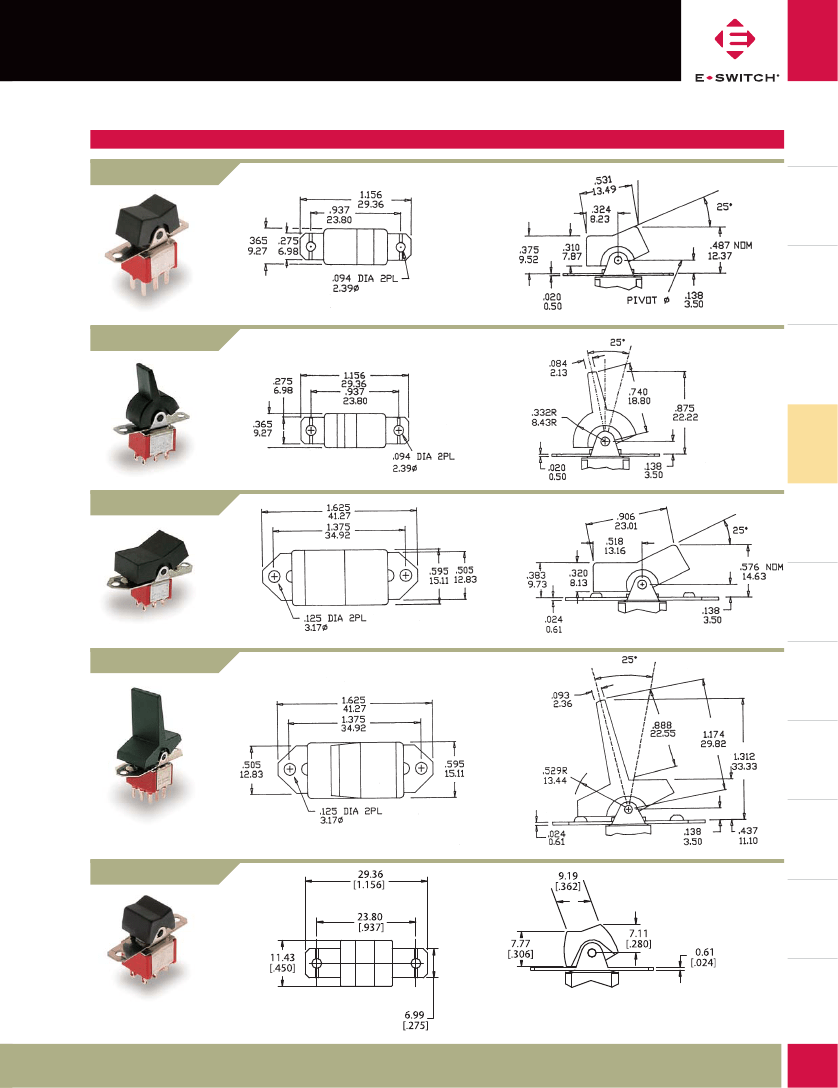

ACTUATOR OPTIONS – P.C. MOUNT
