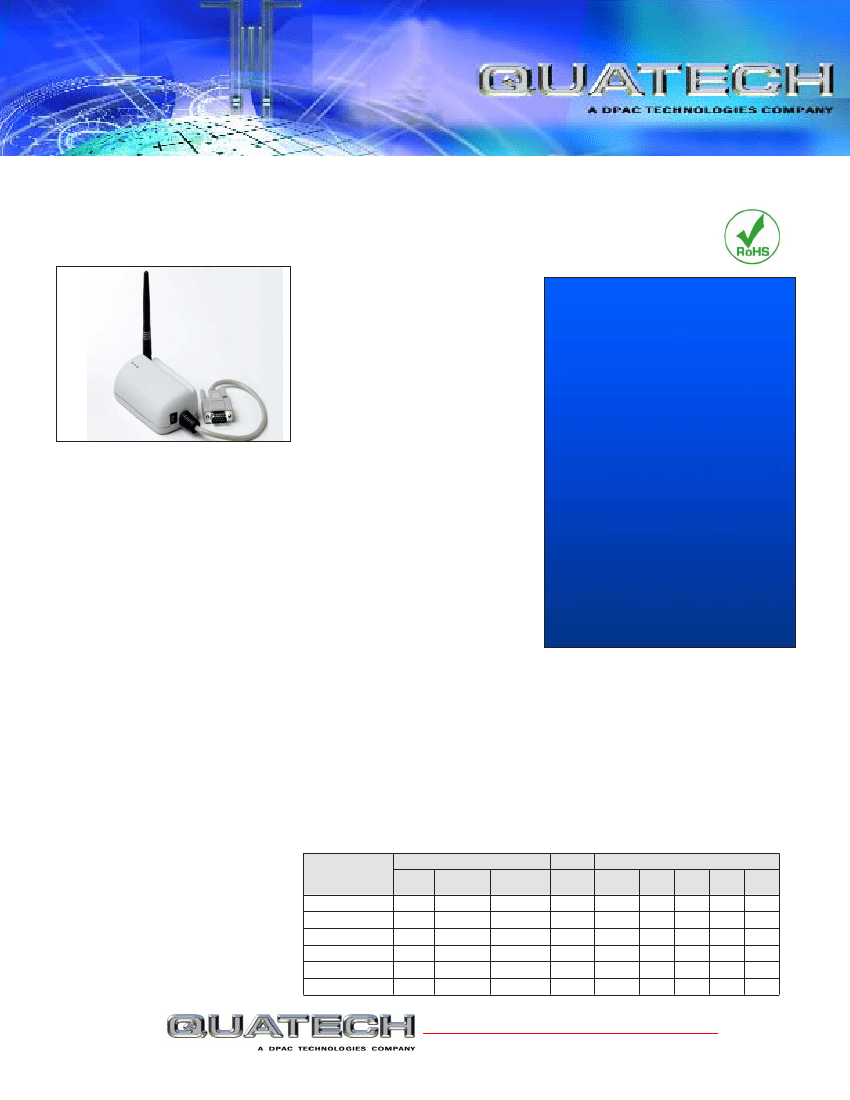

Airborne Enterprise Wireless Device Server
Serial to 802.11b/g Wireless LAN
ABDG-SE-DPxxx Enterprise Series
Airborne supports the most flexible certificate
delivery and management available in the
wireless device market, along with WEP,
WPA, WPA2, 802.11i and Pre-shared Key
(PSK), no other wireless solution provides a
more comprehensive security solution.
KEY FEATURES
Extended operating temperature range
(-40°C to +85°C) and environmental
specifications
Plug-n-Play Serial to 802.11 Connectivity
Enterprise Class wireless security (WPA-2
Enterprise, WPA2-PSK, WPA-PSK, WEP,
EAP) with Certificates
Compact Package Outline
Integrated External Antenna
Software-configurable 802.11b interface
Advanced utilities for discovery,
configuration, and management of
Airborne Serial device
Worldwide Certification Support- FCC Part
15 Class B Sub C Modular Approval, IIOC,
CE, ETSI, ROHS, WEEE
Five year warranty
Reliability
Designed by Quatech specifically to meet the
demands of the industrial, automotive and
medical markets, the Airborne Device Server
has the widest operating temperature range
and highest level of reliability available, all
backed by a five year limited warranty.
Quatech also provides FCC Modular
certification, minimizing requirements for
further regulatory testing by original
equipment manufacturers.
Airborne
TM
is a line of highly integrated 802.11
radios and device servers, designed to address
the demands of complex machine-to-machine
(M2M) applications. Utilizing the latest 802.11
microprocessor and network technologies, the
Airborne family of products provide a broad
encompassing
solution
for
wireless
applications requiring performance, reliability
and
advanced
security.
The Airborne Device Server bridge family
allows a serial device to connect to a high
performance wireless 802.11 network. The
integrated Network Address Translation (NAT)
functionality provides plug and play
connectivity and simple integration to any
system with a serial port. The serial interface
supports auto rate detection up to 100Mb/s.
The Serial Device Servers includes a full
featured 802.11b/g radio and a high
performance ARM9 MCU running embedded
Linux
Applications
Previous generations of Airborne Wireless
Device Server have been integrated and
deployed into a wide range of applications
across
various
industries
including:
Medical equipment
Vehicle telematics & diagnostics
Material handling & logistics
Industrial Automation
Test & measurement
Security & access control
Quatech’s Airborne Enterprise Wireless
Device Server extends the reputation of the
family further by drawing on experience of
Quatech application engineers across
hundreds of wireless M2M deployments.
The advanced technologies implemented in the
Quatech Enterprise 802.11 Device Server
provide an industry-leading solution with
breakthrough performance and security for M2M
applications and drop in replacements for existing
802.11b and 802.11b/g networking modules.
Enterprise Class Security
WPA2-Enterprise is the leading wireless
security standard for enterprise networks and is
fully supported by the Airborne Enterprise
products. The integrated supplicant supports a
wide range of EAP processes including:
EAP-TLS/MSCHAPv2
EAP-TLS/MD5
EAP-TTLS/MSCHAPv2
PEAPv0/MSCHAPv2
LEAP
Model Selection Guide
Interface
Model No.
WiFi
POC
802.11b
(64 & 128 bit)
Security
WEP
WPA
WPA2 LEAP
EAP
RS-232 RS-422/485
(power over cable)
ABDG-SE-DP101
ABDG-SE-DP104
ABDG-SE-DP107
ABDG-SE-DP501
ABDG-SE-DP504
ABDG-SE-DP507
5675 Hudson Industrial Parkway Hudson, OH 44236
1.800.553.1170
www.quatech.com

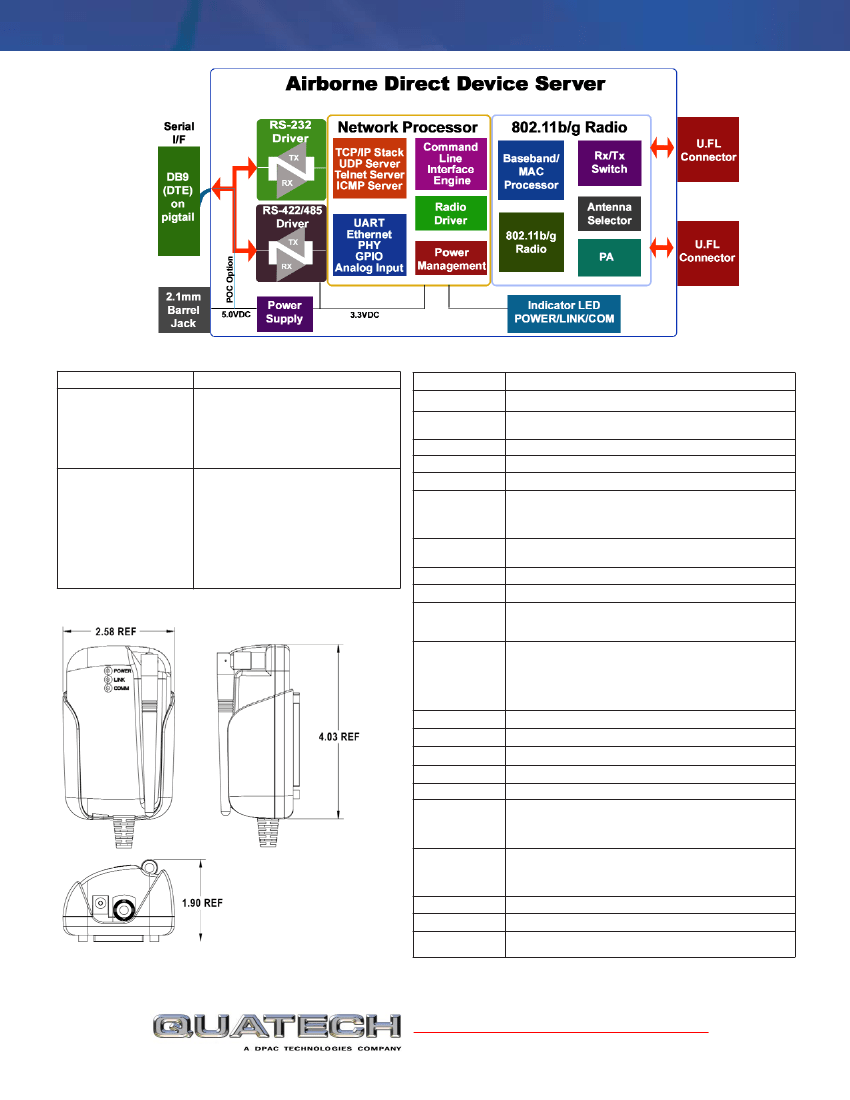

Block Diagram
Package Contents
Model No.
ABDG-SE-DP101
ABDG-SE-DP104
ABDG-SE-DP107
(DP107 does not include power supply)
Specifications
Package Includes:
Technology
Wired Interface
Frequency
Modulation Technology
IEEE 802.11b/g, WiFi compliant
Airborne Enterprise Wireless Device Server
Omni-directional Wand Antenna
Power Supply
Mounting Bracket
Airborne Enterprise Wireless Device Server
Omni-directional Wand Antenna
Power Supply
Mounting Bracket
RS-232, RS-422 or RS-485 (2 wire
2.4 ~ 2.4835 GHz (US/Canada/Europe)
2.4 ~ 2.497 GHz (Japan)
DSSS, CCK, OFDM
DBPSK, DQPSK, CCK, BPSK, QPSK, 16QAM, 64QAM
USA/Canada: 11 channels
Europe: 13 channels
France: 4 channels
Japan: 14 channels (13 channels for 802.11g)
802.11b = 11, 5.5, 2, 1 Mbps
802.11g = 54, 48, 36, 24, 18, 12, 9, 6 Mbps
CSMA/CA with ACK, RTS, CTS
TCP/IP, ARP, ICMP, DHCP, DHS, UDAP, TFTP, UDP, PING
54Mb/s
6 Mb/s
1Mb/s
= -69dBm
= -86dBm
= -86dBm
Modulation Type
ABDG-SE-DP501
ABDG-SE-DP504
ABDG-SE-DP507
(DP507 does not include power supply)
Network Access Modes Infrastructure, Ad Hoc
Channels
Wireless Data Rate
MAC
Mechanical Outline
Network Protocols
Receive Sensitivity
Security Protocols
Disabled, WEP 64 & 128bit, WPA (TKIP), WPA (AES), WPA2
(AES), 802.1x (EAP) Supplicant
Supports WPA & WPA2 Enterprise supplicants EAP-TLS/MSCHAPV2, EAP-
TTLS/MSCHAPv2, EAP-TTLS(MD5), EAP-PEAPv0/MSCHAPv2, LEAP
Zero host security footprint
Supports Certificate, delivery and management
Integrated RP-SMA Omni-directional 3dBi Antenna
5.0VDC+/-5%, 500mA
3000mA (MAX) for 20ms
2.5W @5VDC
2.1mm Barrel Jack
Operating Current (Tx, 802.11g) = 500mA Typ.
Operating Current (Rx, 802.11g) = 530mA Typ.
Power Save (Snooze) = 10mA Typ.
Power Down (Sleep) = 1mA Typ.
Operating Temperature: -40
°
C - +85
O
C, Storage: -55
O
C - +150
O
C
Relative humidity: 5% - 95% (non-condensing)
Vibration: 20G peak-to-peak, 20Hz-2KHz swept
Shock: 1500G peak-to-peak, 0.5mS duration
Nylon (Gray)
3 Indicator LED (POST, LINK, COMM)
Worldwide Certificate Support- FCC Part 15 Class B Sub C Modular Approval,
IOC, CE, ETSI EN300 328, ETSI 60950-1, ROHS and WEEE Compliant
Antenna
Supply
Supply In-rush Current
Power Consumption
Power Connector
DC Characteristics
Environmental
Enclosure
LED Indicators
Agency Approvals
Quatech, Inc.
®2009
5675 Hudson Industrial Parkway Hudson, OH 44236
1.800.553.1170
www.quatech.com
Rev. C 5/2009
