DC430-14T-T datasheet, PDF - EEWORLD Datasheet

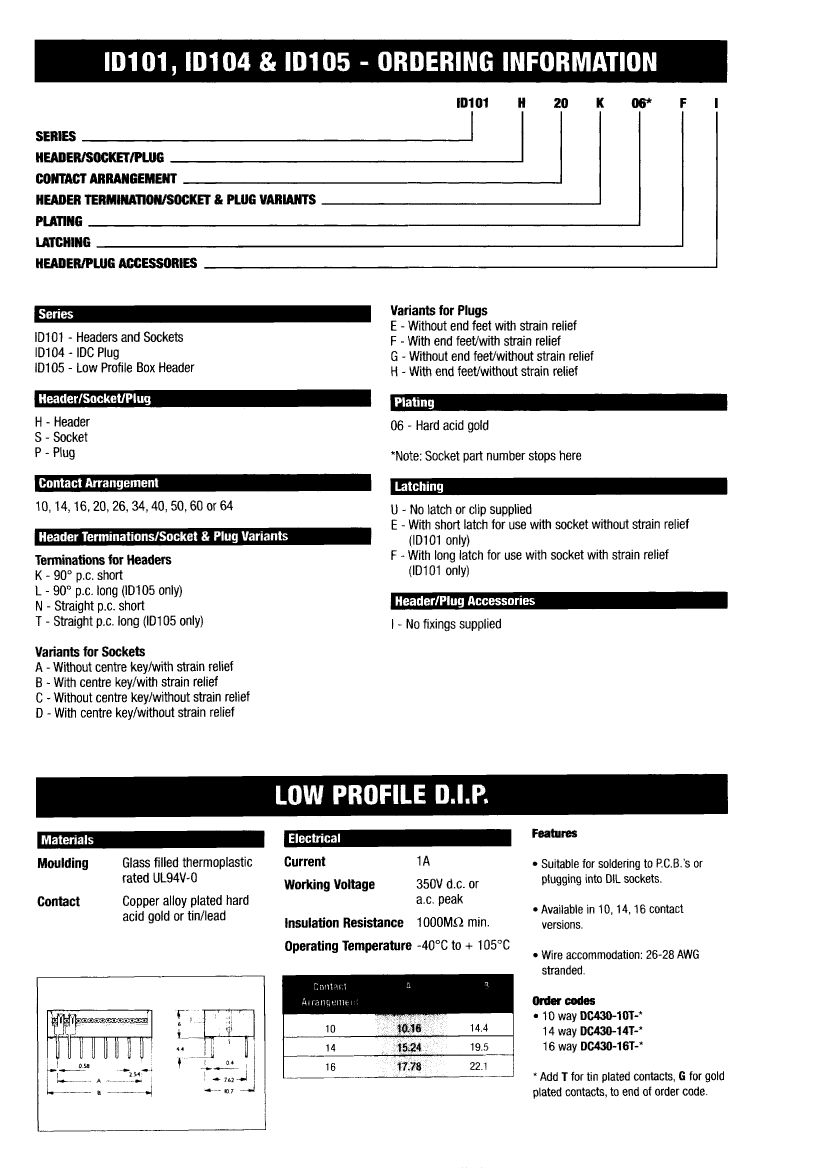

DC430-14T-T: DescriptionDIP Connector, 14 Contact(s), 2 Row(s), Male, IDC Terminal,; CategoryThe connector The connector; File Size47KB，1 Pages; ManufacturerITW Switches

Download Datasheet Parametric Compare View All

DC430-14T-T Overview

DIP Connector, 14 Contact(s), 2 Row(s), Male, IDC Terminal,

Parameter Name	Attribute value
Maker	ITW Switches
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	SOLDERED DIRECTLY TO THE BOARD, LOW PROFILE
Connector type	DIP CONNECTOR
Contact point gender	MALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	DC430
Mixed contacts	NO
Installation type	CABLE
Number of rows loaded	2
Terminal pitch	2.54 mm
Termination type	IDC
Total number of contacts	14
UL Flammability Code	94V-0
Base Number Matches	1

	DC430-14T-T	DC430-10T-T	DC430-16T-G	DC430-10T-G	DC430-14T-G	DC430-16T-T
Description	DIP Connector, 14 Contact(s), 2 Row(s), Male, IDC Terminal,	DIP Connector, 10 Contact(s), 2 Row(s), Male, IDC Terminal,	DIP Connector, 16 Contact(s), 2 Row(s), Male, IDC Terminal,	DIP Connector, 10 Contact(s), 2 Row(s), Male, IDC Terminal,	DIP Connector, 14 Contact(s), 2 Row(s), Male, IDC Terminal,	DIP Connector, 16 Contact(s), 2 Row(s), Male, IDC Terminal,
Maker	ITW Switches	ITW Switches	ITW Switches	ITW Switches	ITW Switches	ITW Switches
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	SOLDERED DIRECTLY TO THE BOARD, LOW PROFILE	SOLDERED DIRECTLY TO THE BOARD, LOW PROFILE	SOLDERED DIRECTLY TO THE BOARD, LOW PROFILE	SOLDERED DIRECTLY TO THE BOARD, LOW PROFILE	SOLDERED DIRECTLY TO THE BOARD, LOW PROFILE	SOLDERED DIRECTLY TO THE BOARD, LOW PROFILE
Connector type	DIP CONNECTOR	DIP CONNECTOR	DIP CONNECTOR	DIP CONNECTOR	DIP CONNECTOR	DIP CONNECTOR
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE
DIN compliance	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO
MIL compliance	NO	NO	NO	NO	NO	NO
Manufacturer's serial number	DC430	DC430	DC430	DC430	DC430	DC430
Mixed contacts	NO	NO	NO	NO	NO	NO
Installation type	CABLE	CABLE	CABLE	CABLE	CABLE	CABLE
Number of rows loaded	2	2	2	2	2	2
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Termination type	IDC	IDC	IDC	IDC	IDC	IDC
Total number of contacts	14	10	16	10	14	16
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
Base Number Matches	1	1	1	1	1	1
