BX2125AT: DescriptionTelecom Filter; CategoryAnalog mixed-signal IC filter; File Size427KB，2 Pages; ManufacturerPulse Electronics Power

Download Datasheet Parametric View All

BX2125AT Overview

Telecom Filter

BX2125AT Parametric

Parameter Name	Attribute value
Objectid	1221531417
Reach Compliance Code	compliant
ECCN code	EAR99
filter type	TELECOM FILTER

Preview

Download Datasheet

View All

ADSL Frequency

Filter Inductors

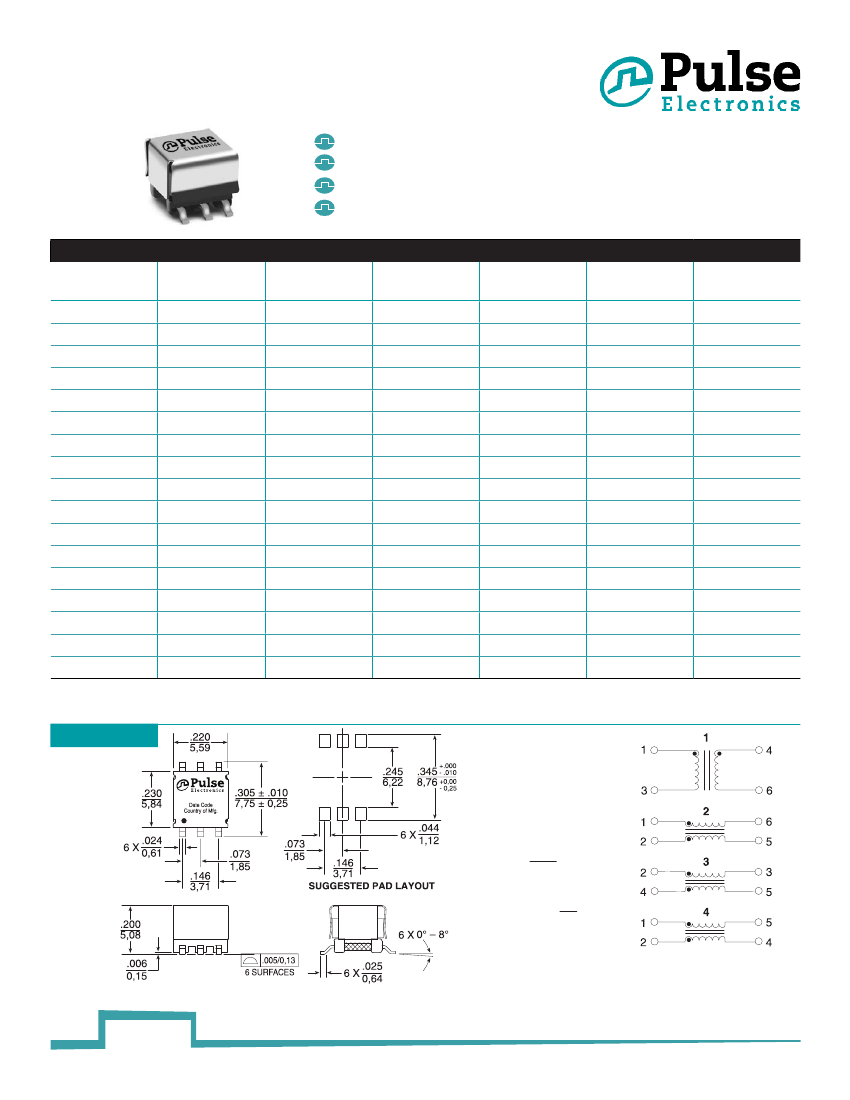

Excellent THD performance in a small footprint

Used exclusively for frequency filtering

SMT compact footprint

Matched to various manufacturers’ ADSL chipsets

Electrical Specifications @ 25°C - Operating Temperature -40°C to +85°C

Part

Number

BX8153

BX2125A

BX2198

BX2184

BX8195

BX8254W

BX8082

B2126A

B2208

BX8253W

B2155

BX8118

B2209

B2127A

B2210

BX2128

BX8115

Application

CPE

CO

CPE

CO

CPE

CO

CPE

CO

CPE

CO

Turns Ratio

(±2%)

(1-3)/(4:6) 1:1

(1-3)/(2-5) 1:1

(2-3)/(4-5) 1:1

(1-5)/(2-5) 1:1

(1-6)/(2-5) 1:1

(1-3)/(4-6) 1:1

(1-6)/(2-5) 1:1

(1-3)/(4:6) 1:1

(1-6)/(2-5) 1:1

(1-3)/(4:6) 1:1

(1-6)/(2-5) 1:1

(1-3)/(4:6) 1:1

Inductance

(μH MAX

±7%)

(1-3) = (4-6) = 5.0

(1-6) = (2-5) = 50

(2-3) = (4-5) = 74

(1-5) = (2-4) = 91

(1-6) = (2-5) = 102.5

(1-3) = (4:6) = 110

(1-6) = (2-5) = 140

(1-6) = (2-5) = 170

(1-6) = (2-5) = 500

(1-3) = (4:6) = 282

(1-6) = (2-5) = 300

(1-6) = (2-5) = 340

(1-6) = (2-5) = 455

(1-6) = (2-5) = 500

(1-3) = (4-6) = 500

DC Resistance

(Ω MAX)

(1-3) = (4-6) 0.7

(1-6) = (2-5) 2.0

(2-3) = (4-5) 5.0

(1-5) = (2-4) 3.5

(1-6) = (2-5) 6.0

(1-3) = (4:6) = 2.5

(1-6) = (2-5) = 6.0

(1-6) = (2-5) = 6.5

(1-6) = (2-5) = 4.0

(1-3) = (4:6) = 4.8

(1-6) = (2-5) = 6.0

(1-3) = (4:6) = 9.0

(1-6) = (2-5) = 7.0

(1-6) = (2-5) = 7.5

(1-6) = (2-5) = 9.0

(1-6) = (2-5) = 12.0

(1-3) = (4:6) = 9.0

Isolation Voltage

(Vrms)

500

Schematic

1

2

3

4

2

1

2

1

2

1

2

1

Notes:

Transformers are shipped in trays, unless Tape & Reel packaging is specified by adding the suffix “T” to this part number (i.e. BX8153T).

Mechanical

BXXXX / BXXXXX

Schematic

BXXXX / BXXXXX

Weight

......................0.38 grams

Tape & Reel

.................1000/reel

Tray

.................................80/tray

Inches

Dimensions:

mm

Unless otherwise specified,

all tolerances are

±

.010

0,25

(See page two for ADSL Frequency Inductor Selection Guide)

USA 858 674 8100

1

Germany 49 7032 7806 0

Singapore 65 6287 8998

Shanghai 86 21 62787060

China 86 755 33966678

Taiwan 886 3 4356768

B843.A (02/12)
