Noise Suppression Products/EMI Suppression Filters > EMIFILr (Inductor type) > Chip Ferrite Bead
Data Sheet
1
EMIFILr (Inductor type)
I
Dimensions
0.25±0.1
Chip Ferrite Bead
BLM15AG_SN Series (0402 Size)
I
Equivalent Circuit
1.0±0.05
0.5±0.05
0.5±0.05
(Resistance element becomes dominant
at high frequencies.)
: Electrode
(in mm)
I
Packaging
Code
D
J
B
Packaging
180mm Paper Tape
330mm Paper Tape
Bulk(Bag)
Minimum Quantity
10000
50000
1000
I
Rated Value (p: packaging code)
Part Number
BLM15AG100SN1p
BLM15AG700SN1p
BLM15AG121SN1p
BLM15AG221SN1p
BLM15AG601SN1p
BLM15AG102SN1p
Number of Circuits: 1
Continued on the following page.
Impedance
(at 100MHz/20°C)
10ohm(Typ.)
70ohm(Typ.)
120ohm±25%
220ohm±25%
600ohm±25%
1000ohm±25%
Impedance
(at 1GHz/20°C)
-
-
-
-
-
-
Rated Current
1000mA
500mA
500mA
300mA
300mA
200mA
DC Resistance (max.)
0.05ohm
0.15ohm
0.25ohm
0.35ohm
0.6ohm
1.0ohm
Operating
Temperature Range
-55 to +125°C
-55 to +125°C
-55 to +125°C
-55 to +125°C
-55 to +125°C
-55 to +125°C
o
This data sheet is applied for CHIP FERRITE BEAD used for General Electronics equipment for your design.
!
Note:
1. This datasheet is downloaded from the website of Murata Manufacturing co., ltd. Therefore, it’s specifications are subject to change or our
products in it may be discontinued without advance notice. Please check with our sales representatives or product engineers before ordering.
2. This datasheet has only typical specifications because there is no space for detailed specifications. Therefore, please approve our product
specifications or transact the approval sheet for product specifications before ordering.
2010.3.4
http://www.murata.com/
Noise Suppression Products/EMI Suppression Filters > EMIFILr (Inductor type) > Chip Ferrite Bead
Data Sheet
Continued from the preceding page.
2
I

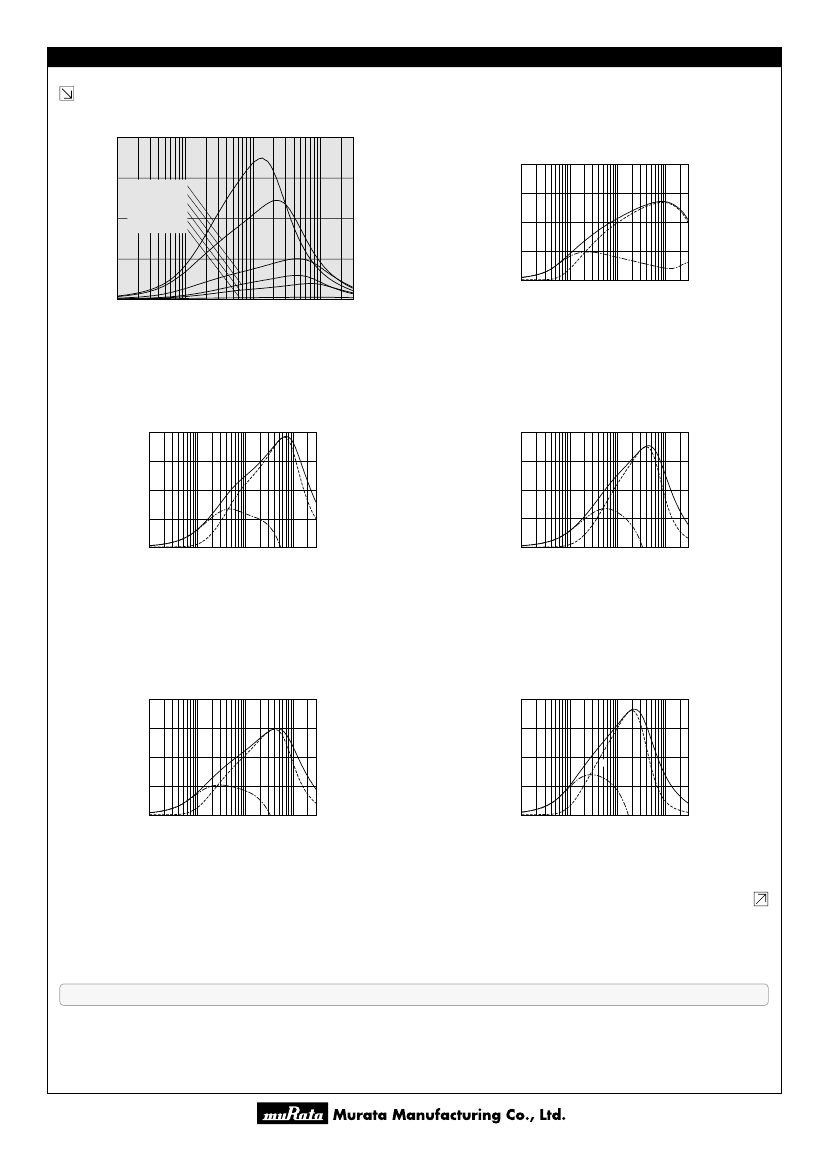

Impedance-Frequency Characteristics (Main Items)
1200
I
Impedance-Frequency Characteristics
BLM15AG100SN1
20
900
Impedance (Ω)
Impedance (Ω)
BLM15AG102SN1
BLM15AG601SN1
BLM15AG221SN1
BLM15AG121SN1
BLM15AG700SN1
BLM15AG100SN1
15
Z
10
R
600
5
300
0
0
1
10
100
Frequency (MHz)
1000
3000
X
1
10
100
Frequency (MHz)
1000
3000
I
Impedance-Frequency Characteristics
BLM15AG700SN1
120
I
Impedance-Frequency Characteristics
BLM15AG121SN1
200
90
Impedance (Ω)
60
R
Impedance (Ω)
Z
150
Z
R
100
30
X
50
X
0
1
10
100
Frequency (MHz)
1000
3000
0
1
10
100
Frequency (MHz)
1000
3000
I
Impedance-Frequency Characteristics
BLM15AG221SN1
400
I
Impedance-Frequency Characteristics
BLM15AG601SN1
800
300
Impedance (Ω)
Z
200
R
Impedance (Ω)
600
Z
400
R
100
X
0
200
X
0
1
10
100
Frequency (MHz)
1000
3000
1
10
100
Frequency (MHz)
1000
3000
Continued on the following page.
o
This data sheet is applied for CHIP FERRITE BEAD used for General Electronics equipment for your design.
!
Note:
1. This datasheet is downloaded from the website of Murata Manufacturing co., ltd. Therefore, it’s specifications are subject to change or our
products in it may be discontinued without advance notice. Please check with our sales representatives or product engineers before ordering.
2. This datasheet has only typical specifications because there is no space for detailed specifications. Therefore, please approve our product
specifications or transact the approval sheet for product specifications before ordering.
2010.3.4
http://www.murata.com/
Noise Suppression Products/EMI Suppression Filters > EMIFILr (Inductor type) > Chip Ferrite Bead
Data Sheet
Continued from the preceding page.
3
I
Impedance-Frequency Characteristics
BLM15AG102SN1
1200
900
Impedance (Ω)
Z
600
R
300
X
0
1
10
100
Frequency (MHz)
1000
3000
I
!Caution/Notice
!Caution
(Rating)
Do not use products beyond the rated current as
this may create excessive heat and deteriorate
the insulation resistance.
Notice
Solderability of Tin plating termination chip might be
deteriorated when low temperature soldering profile
where peak solder temperature is below the Tin melting
point is used. Please confirm the solderability of Tin
plating termination chip before use.
o
This data sheet is applied for CHIP FERRITE BEAD used for General Electronics equipment for your design.
!
Note:
1. This datasheet is downloaded from the website of Murata Manufacturing co., ltd. Therefore, it’s specifications are subject to change or our
products in it may be discontinued without advance notice. Please check with our sales representatives or product engineers before ordering.
2. This datasheet has only typical specifications because there is no space for detailed specifications. Therefore, please approve our product
specifications or transact the approval sheet for product specifications before ordering.
2010.3.4
http://www.murata.com/
