SWT-S126-2-017-KEY: DescriptionKeylock Switch, 2 Positions, Off-on, Solder Lug Terminal, Keylock Actuator, Panel Mount; CategoryMechanical and electronic products switch; File Size211KB，1 Pages; ManufacturerCentral Semiconductor; Environmental Compliance

Download Datasheet Parametric View All

SWT-S126-2-017-KEY Overview

Keylock Switch, 2 Positions, Off-on, Solder Lug Terminal, Keylock Actuator, Panel Mount

SWT-S126-2-017-KEY Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	1294440243
Reach Compliance Code	unknown
ECCN code	EAR99
Actuator type	KEYLOCK
Other features	ROHS COMPLIANT
body height	16.129 mm
Body length or diameter	9.398 mm
Casing type	M12P1
Center contact plating	SILVER
Contact function	OFF-ON
End contact plating	SILVER
Shell material	ZINC DIE CAST
Graduation angle	90 deg
JESD-609 code	e4
Installation features	PANEL MOUNT
Number of positions	2
surface mount	NO
Switch type	KEYLOCK SWITCH
Terminal surface	Silver (Ag)
Terminal length	0.176 inch
Termination type	SOLDER LUG

Preview

Download Datasheet

View All

1

2

3

4

5

6

7

8

9

A

B

C

D

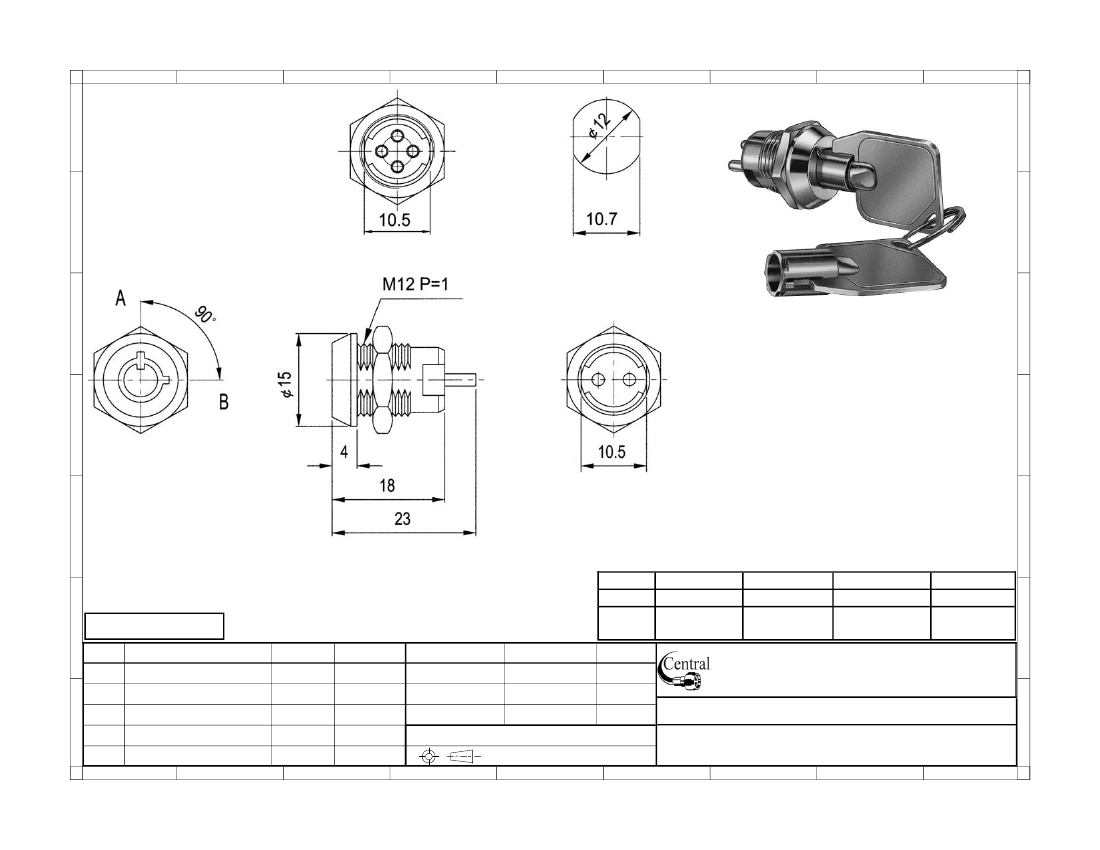

SPECIFICATIONS

•

Zinc alloy die cast housing and cylinder

•

Bright chrome plated

•

4 pin tumbler mechanism

•

Key withdrawal in on and off positions

•

Steel tubular keys, nickel plated

•

Silver plated contacts and terminals

•

2 position (off-on) 2 terminals

•

Hex nut mounted

•

200 key combinations available

D

E

F

RoHS compliant

Rev.

Description

Date

Approved

Drawing

Name

Approved Howard

Checked Lizzy

Drawn Tina

0.0 ± 0.35

1

2

3

4

Series

SWT

Key lock

switch

Style

Key Withdrawal Key Combination

Options

S126

2

XXX

KEY

12mm cylinder 2=Off and on

001 to 200

KEY=With key

F

Date

08/10/02

08/10/02 Part No.:

Central Components Manufacturing

440 Lincoln Blvd., Middlesex, New Jersey 08846

Phone 732 469-5720 888 288-5152 Fax 732 469-1919

G

SWT-S126-2-XXX-KEY

7

8

9

0.00 ± 0.20 Angles ± 3’

UNIT: mm

5

6

Description: Key lock switch, 12mm diameter

G
