Serial Device Servers
High Performance Serial-to-Ethernet with PowerPC®, Low Latency and Easy Installation
100 Series: RS-232 to Ethernet (LAN)
400 Series: RS-232/422/485 (MEI) to Ethernet (LAN)
Available in 1, 2, 4 and 8-port
configurations, options include +5V
at pin 9 to power external devices
and industrial surge suppression.
Every model is designed to use the
same drivers, simplifying the process
to add to or upgrade your system.
Overcome the limitations of serial
protocols by network-enabling your
devices
Serial (RS-232/422/485) devices are
used in diverse industries such as:
KEY FEATURES
Includes the fastest and easiest
Installation Wizard available
A built-in Web server makes configuration
and support available via Web browser
Freescale™ architecture is the industry
standard in networking solutions
PowerPC® processor eliminates data
bottlenecks and common latency issues
Serial baud rates to 921 kbps and auto-
negotiating 10/100 Ethernet support
means fast serial and network data
transfers
Operating modes such as serial
tunneling, IP multicast, virtual COM ports
and other protocols provide true flexibility
and easy integration
SNMP support for simple network
management
Surge suppression and +5V out options
802.11 Wireless Device Servers also
available
Industrial grade AirborneDirect models
also available
Backed by a 5 year limited warranty
Quatech, the performance leader
in device networking, makes it
easy to get started
When
you
need
unmatched
performance, ease of use and reliability,
ask for Quatech. Quatech’s Serial Device
Servers feature the highest throughput
and lowest latency available in device
server technology.
An intuitive Installation Wizard gets you
up and running quickly, automatically
searching local and remote subnets for
installed device servers within seconds of
inserting the installation CD-ROM.
Network settings automatically assigned
by DHCP networks are displayed for
confirmation, or change to a static IP
address easily using the Installation
Wizard - you won’t have to bother with
telnet sessions, MAC address data entry
or special cables.
Quatech Device Servers may be
managed through the Windows® Device
Manager interface or a Web browser, so
you can count on trouble-free
configuration and maintenance long after
the initial installation is completed.
-
-
-
-
-
-
CNC/DNC Applications
Energy Management
Security & Access Control
Government & Defense
Material Handling & Logistics
Intelligent Traffic Systems
Yet while serial protocols have proven to
be reliable and robust, there are
drawbacks - cable lengths are limited and
expensive, COM ports are often in short
supply on the host PC and the attached
serial devices are not remotely
accessible for monitoring or support.
A Quatech Device Server overcomes
these limitations. Its hardware and
drivers are invisible to connected serial
devices and their software applications,
routing data through an IP network to
“virtual” COM ports installed on the host
by the Installation Wizard.
The 400 Series Device Server models
introduce the software-selectable RS-
232/422/485 Multi-Electrical Interface
(MEI). Unlike many competing device
servers in the marketplace, Quatech
offers MEI capabilities on all ports at the
click of a mouse. LEDs tell you which
ports are using which protocol, so go
ahead, mix and match.
Embedded Device Servers for custom
enclosures
Embed a high performance ethernet to
serial converter in your product. Ideal for
OEM solutions, custom enclosures and
other situations where the external shell is
not needed, Quatech Embedded Device
Servers offer all the industry leading
features as our external line.
Rev 1.0,
10/06
5675 Hudson Industrial Parkway * Hudson, OH 44236
1.800.553.1170 * +1 330.655.9000 * www.quatech.com

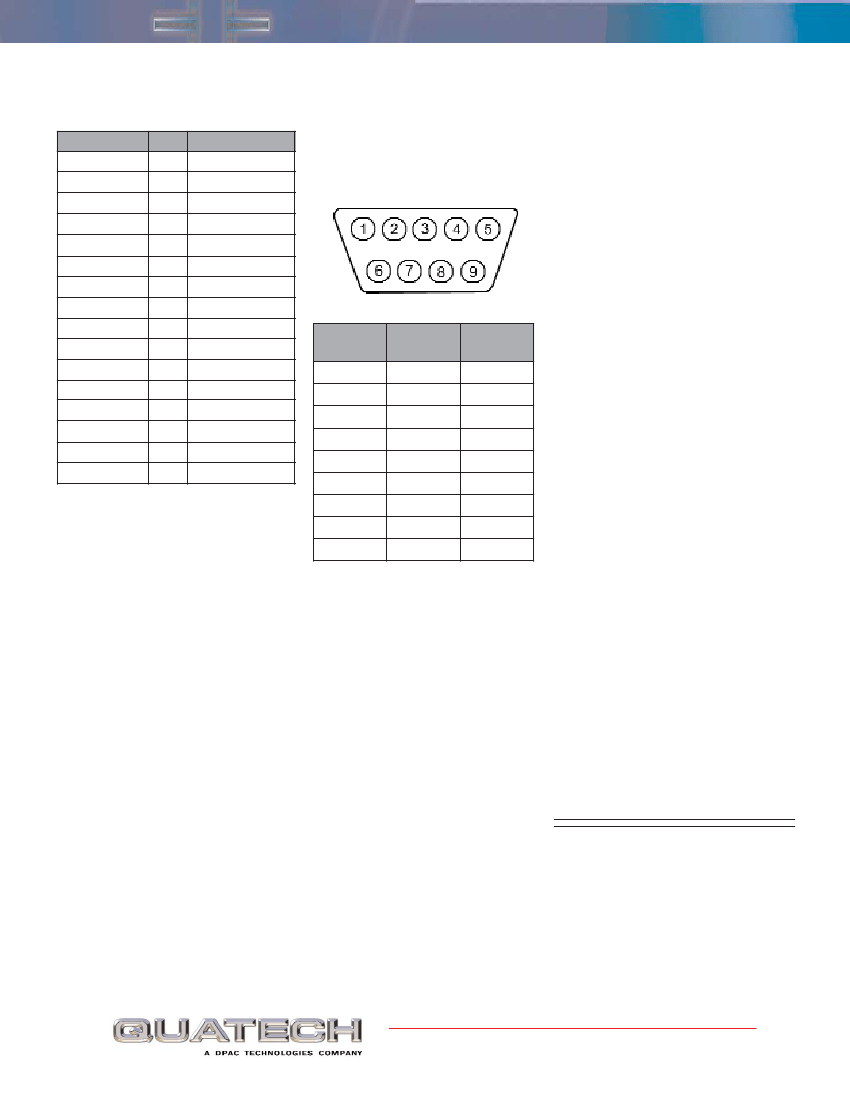

DEVICE SERVER SPECIFICATIONS
Ordering Information
Model
SSE-100D
SSE-100D-EMB
SSE-100D-5V
SSE-400D
DSE-100D
DSE-100D-5V
DSE-100D-EMB
DSE-400D
QSE-100D
QSE-100M
QSE-400D
QSE-400M
ESE-100D
ESE-100M
ESE-400D
ESE-400M
Ports
1
1
1
1
2
2
2
2
4
4
4
4
8
8
8
8
Connector
DB-9 Male
DB-9 Male
DB-9 Male
DB-9 Male
DB-9 Male
DB-9 Male
DB-9 Male
DB-9 Male
DB-9 Male
RJ-45 Female
DB-9 Male
RJ-45 Female
DB-9 Male
RJ-45 Female
DB-9 Male
RJ-45 Female
DCD
RxD
TxD
DTR
GND
DSR
RTS
CTS
RI
Signal Information
RS-232
DB-9
Pin #
1
2
3
4
5
6
7
8
9
RS-422/485
4 wire mode
Auxln-
RxD+
TxD+
AuxOut-
GND
RxD-
AuxOut+
Auxln+
TxD-
Power Supply
+5V, 2A (10 W) max DC, with auto-sensing
AC adapter provided for 100VAC–240VAC,
50Hz–60Hz operation
Typical power consumption:
+5V, 0.8A(4W)
Environment
Operating:
0° C to 70° C
Storage:
–40° C to 70° C
Relative Humidity:
10% to 90% non-condensing
Dimensions
SSE/DSE
Height: 1.18” (2.99 cm)
Width: 3.33” (8.46 cm)
Depth: 4.69” (11.91 cm)
SSE-100D-EMB
Height: .61” (1.54 cm)
Width: 3.50” (8.89 cm)
Depth: 4.50” (11.43 cm)
QSE
Height: 1.50” (3.40 cm)
Width: 9.96” (25.30 cm)
Depth: 4.69” (11.91 cm)
ESE
Height: 1.96” (4.97 cm)
Width: 9.96” (25.30 cm)
Depth: 5.40” (13.72 cm)
Certifications
FCC, CE
Serial Protocols
xxx-100 series: RS-232
xxx-400 series: software selectable
RS-232/422/485
DB-9 Male, External View
Hardware
Processor:
Freescale™ PowerPC®
SDRAM:
8 MB
FLASH Memory:
2 MB
Firmware stored in FLASH may be upgraded
via LAN interface
LAN Interface
10/100 Base T (IEEE 802.3) auto-negotiation,
auto MDI/MDIX and RJ-45 Ethernet connector
Receiver inputs (RS-232)
Input Voltage Rating: -15V to +15V
Receiver Skew: 120 ns (typ), 250 ns (max)
Receiver inputs (RS-422/485)
Input Voltage Rating: -15V to +15V Common
Mode Input Voltage
Receiver Skew: 13 ns (typ)
Transmitter Outputs (RS-232)
High Level Output: +5V (min), +5.4V (typ)
Low Level Output: -5V (min), -5.4V (typ)
Transmitter Skew: 50 ns (typ), 200 ns (max)
Protocols and software
Management:
UDP, TCP/IP, HTTP, DHCP,
ARP, ICMP, SNMP (MIB II)
Initial IP address configuration:
DHCP, static
IP set within the Installation Wizard) or a
custom UDP datagram utility (with command
line interface) for unattended installations
Quatech provides several ways to manage,
monitor and configure wireless device servers
Transmitter Outputs (RS-422/485)
after installation:
Transmitter Outputs: 2V (min) for 100 ohms load - Windows® Device Manager (Quatech Device
Transmitter Skew: 5 ns (typ), 10 ns (max)
Manager in Windows NT)
Distance: 4000 feet
- On-board HTML pages accessible from a
standard web browser
Parity, Stop Bits:
- Simple Network Management Protocol(SNMP)
Parity configurable as: None, Even, Odd
- Intellisock™ TCP socket services
Data bits configurable as: 5, 6, 7, 8
Stop bits configurable as: 1, 1.5, 2
Communication modes:
Normal, Tunneling,
Raw TCP, Auto TCP, Raw UDP or Intellisock
Speed:
TCP advanced socket services
Each serial port supports data transfer speeds
of up to 921.6 Kbps, depending on flow control
OS support
protocols used, cable length and condition,
Device drivers provided for Windows NT,
and other factors
Windows 2000, Windows XP, and Linux
Raw TCP, Raw UDP, Tunneling, AutoTCP and
Surge Suppression (SS) Option:
Intellisock
TM
modes are O/S independent
Surge suppression is capable of sustaining up
Please check Quatech’s website for the latest
to 40-A peak, 8x20 Joules transient surges, a
O/S driver support information
clamping voltage of 30V (RS-232) or 15.5V
(RS-422/485), and a peak energy dissipation of
0.1 Joules
Accessories
Surge Suppression
DB-9 to RJ-45 Adapters
DB-9 to Screw Terminal Adapters
International Power Cords
DIN Rail Mounting Kit
Freescale and the Freescale Enabled logo are
trademarks of Freescale Semiconductor Inc.
PowerPC is a registered trademark of IBM Corporation
and is used under license.
Microsoft, Windows and the Windows logo are
registered trademarks of Microsoft Corporation.
Prism is a trademark of Conexant Systems, Inc.
Intellisock is a trademark of Quatech, Inc.
5675 Hudson Industrial Parkway
Rev 1.0
10.06
Hudson, OH 44236
www.quatech.com
1.800.553.1170
+1 330.655.9000
