CTHF2826-253M1R2: Descriptioncommon mode chokes - radial; File Size173KB，1 Pages; ManufacturerCentral Semiconductor

Download Datasheet View All

CTHF2826-253M1R2 Overview

common mode chokes - radial

Preview

Download Datasheet

View All

Common Mode Chokes - Radial

ctparts.com

CTHF2826 Series

From 1.8 mH to 35 mH

Part

Number

Not shown at actual size.

SPECIFICATIONS

* Indicates the inductance difference between the coil L1 and L2.

Inductance

(Min.)

(mH)

8.0

5.6

4.7

3.3

1.8

Inductance

Difference*

(µH Max.)

650

500

400

300

200

150

100

DCR

Max.

(W)

0.78

0.56

0.41

0.27

0.18

0.13

0.10

0.088

0.05

Rated Iac

Current (Max.)

(A)

0.4

0.5

0.6

0.8

1.0

1.2

1.5

1.8

2.0

CTHF2826-353M1R0

CTHF2826-253M1R2

CTHF2826-203M1R5

CTHF2826-123M1R8

CTHF2826-802M2R0

CTHF2826-562M2R5

CTHF2826-427M2R8

CTHF2826-332M3R0

CTHF2826-182M4R0

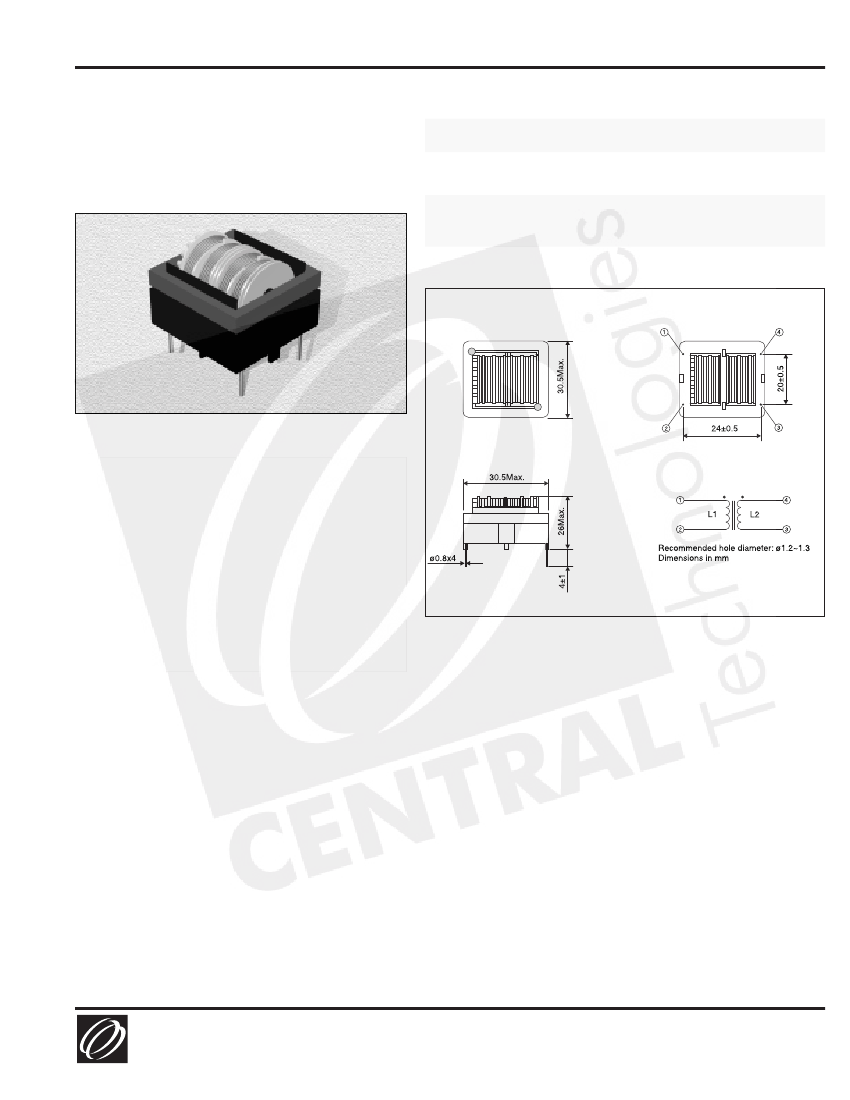

PHYSICAL DIMENSIONS

CHARACTERISTICS

Description:

Common mode choke coils.

Applications:

For AC power supply/compact, separable bobbin.

Rated Voltage:

250Vac

Operating Temperature:

-20°C to +105°C (including self

temperature rise).

Temperature Rise:

45°C maximum each line.

Dielectric Withstanding Voltage:

2000Vac between each

winding for 1 minute.

Insulation Resistance:

100Mohm minimum between each

winding for 1 minute.

Additional Information:

Additional electrical & physical

information available upon request. Different inductance and

current products are available as well.

Samples available. See website for ordering information.

05.09.02

Technologies

Manufacturer of Inductors, Chokes, Coils, Beads, Transformers & Toroids

800-684-5322

Inside US

949-453-1811

Outside US

CT Magnetics reserves the right to make improvements or change specifications without notice
