GD2030741MAW datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> capacitor> GD2030741MAW

GD2030741MAW: DescriptionCeramic Capacitor, Ceramic, 25V, 20% +Tol, 20% -Tol, 15% TC, 0.00074uF, Surface Mount, 0202, CHIP, ROHS COMPLIANT; CategoryPassive components capacitor; File Size94KB，1 Pages; ManufacturerAVX; Environmental Compliance

Download Datasheet Parametric Compare View All

GD2030741MAW Overview

Ceramic Capacitor, Ceramic, 25V, 20% +Tol, 20% -Tol, 15% TC, 0.00074uF, Surface Mount, 0202, CHIP, ROHS COMPLIANT

GD2030741MAW Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	AVX
package instruction	, 0202
Reach Compliance Code	compliant
ECCN code	EAR99
capacitance	0.00074 µF
Capacitor type	CERAMIC CAPACITOR
dielectric materials	CERAMIC
JESD-609 code	e4
Installation features	SURFACE MOUNT
multi-layer	No
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package shape	RECTANGULAR PACKAGE
method of packing	WAFFLE PACK
positive tolerance	20%
Rated (DC) voltage (URdc)	25 V
size code	0202
surface mount	YES
Temperature Coefficient	15% ppm/°C
Terminal surface	Gold (Au)
Terminal shape	ONE SURFACE
Base Number Matches	1

Preview

Download Datasheet

View All

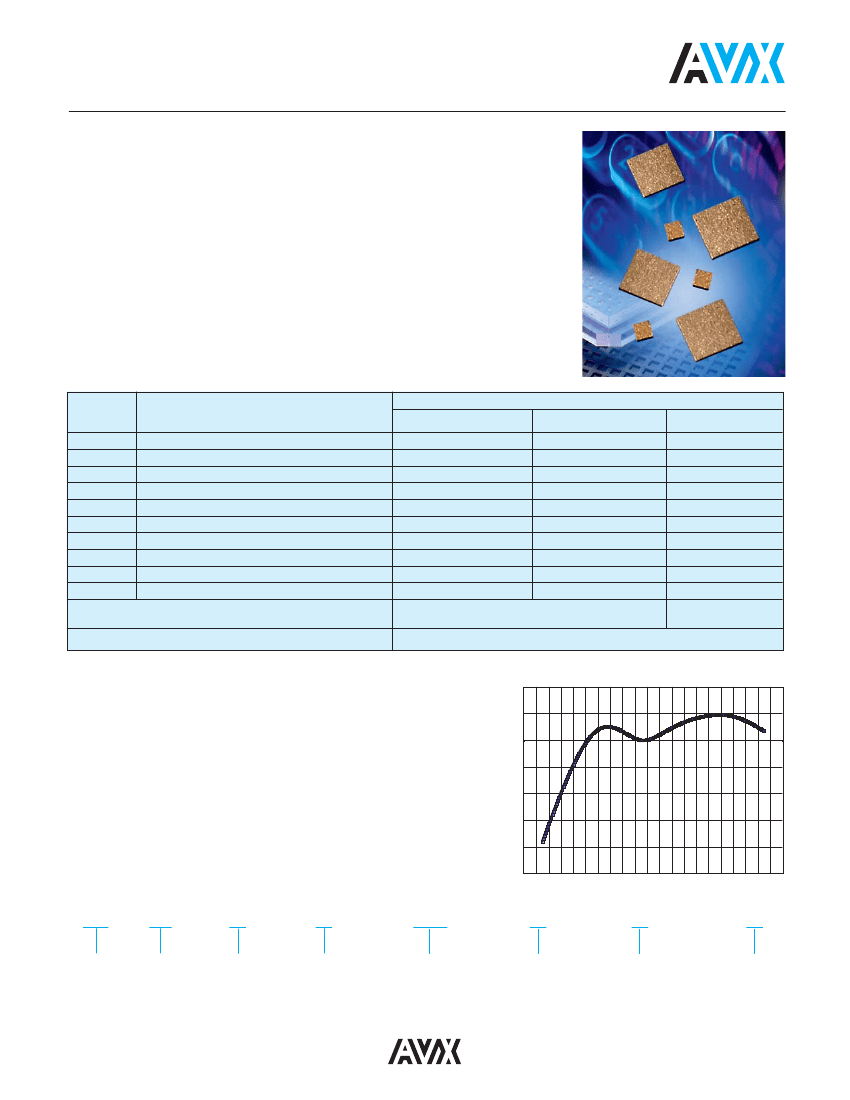

Microwave SLCs

ULTRA MAXI Series

The Ultra Maxi Series is the latest addition to the AVX family of proprietary high k, inter-

granular barrier layer dielectric systems. This series is similar to our Maxi and Maxi+

product offerings, but with the notable difference that the dielectric constant has been

increased to 60,000 – double the previous high for our industry leading GBBL

formulations.

These new Single Layer Ceramic Capacitors – available in voltage ratings of 6.3, 16 and

25 VDC – set a new standard for circuit miniaturization. On average, the required board

mounting area will be reduced by approximately two-thirds when compared to an

equivalent capacitance value in our Maxi+ series. The Ultra Maxi Series offers an ideal solu-

tion for broadband bypass applications where high performance and the smallest foot-

print are the primary considerations.

The Ultra Maxi Series is RoHS compliant – as are all AVX SLC products. Terminations

(Au over Ti/W) provide an excellent wire bonding surface and are compatible with

conductive epoxy or Au/Sn eutectic solder attach.

Samples and custom configurations are available on request.

Length x Width

millimeters (inches)

.254 x .254 (.010 x .010)

.381 x .381 (.015 x .015)

.508 x .508 (.020 x .020)

.635 x .635 (.025 x .025)

.762 x .762 (.030 x .030)

.889 x .889 (.035 x .035)

1.016 x 1.016 (.040 x .040)

1.143 x 1.143 (.045 x .045)

1.270 x 1.270 (.050 x .050)

1.397 x 1.397 (.055 x .055)

Style

GD10

GD15

GD20

GD25

GD30

GD35

GD40

GD45

GD50

GD55

Thickness:

L & W Tolerance:

Capacitance (pF)

6.3 VDC

300

650

1200

1800

2700

3600

4800

6000

7500

10000

.102 - .140

(.0040 - .0055)

±.051 (±.002)

Capacitance change with Temperature

16 VDC

220

500

900

1400

2000

2700

3700

4600

5700

7500

25 VDC

180

400

740

1200

1600

2200

3000

3800

4700

6200

.127 - .152

(.005 - .006)

ELECTRICAL CHARACTERISTICS

Dielectric Withstanding Voltage:

IR @ Rated Voltage @ 25°C:

IR @ Rated Voltage @ 125°C:

Dissipation Factor @ 1 KHz:

Temperature Coefficient:

2.5 x Rated Voltage

10,000 Megohms

500 Megohms

2.5% Max

±15% from -55° to +125°C

Average Delta Cap (%)

-2

-4

-6

NOTE: All GD styles packaged 400 pieces per

except GD15 which is packaged 484 per

-8

HOW TO ORDER

Style

-10

-70

-60

-50

-40

-30

-20

-10

100 110 120 130 140

Temperature (°C)

L/W (mils)

Voltage

6.3V = 6

16V = Y

25V = 3

Dielectric

0 = Ultra Maxi

182

Capacitance

Code

(pF)

Capacitance

Tolerance

M = ±20%

Z = +80%,-20%

Termination

(Sputtered)

Au (100 µ-in)

over

Ti/W (1000Å)

Packaging

Code

Antistatic

Waffle Pack

GD2030741MAW Related Products

	GD2030741MAW	GD2030741ZAW	GD1530401MAW	GD1530401ZAW	GD1560651ZAW	GD2560182MAW	GD2560182ZAW	GD2530122MAW	GD5030472MAW
Description	Ceramic Capacitor, Ceramic, 25V, 20% +Tol, 20% -Tol, 15% TC, 0.00074uF, Surface Mount, 0202, CHIP, ROHS COMPLIANT	Ceramic Capacitor, Ceramic, 25V, 80% +Tol, 20% -Tol, 15% TC, 0.00074uF, Surface Mount, 0202, CHIP, ROHS COMPLIANT	Ceramic Capacitor, Ceramic, 25V, 20% +Tol, 20% -Tol, 15% TC, 0.0004uF, Surface Mount, 0202, CHIP, ROHS COMPLIANT	Ceramic Capacitor, Ceramic, 25V, 80% +Tol, 20% -Tol, 15% TC, 0.0004uF, Surface Mount, 0202, CHIP, ROHS COMPLIANT	Ceramic Capacitor, Ceramic, 6.3V, 80% +Tol, 20% -Tol, 15% TC, 0.00065uF, Surface Mount, 0202, CHIP, ROHS COMPLIANT	Ceramic Capacitor, Ceramic, 6.3V, 20% +Tol, 20% -Tol, 15% TC, 0.0018uF, Surface Mount, 0303, CHIP, ROHS COMPLIANT	Ceramic Capacitor, Ceramic, 6.3V, 80% +Tol, 20% -Tol, 15% TC, 0.0018uF, Surface Mount, 0303, CHIP, ROHS COMPLIANT	Ceramic Capacitor, Ceramic, 25V, 20% +Tol, 20% -Tol, X7R, 15% TC, 0.0012uF, Surface Mount, 0303, CHIP, ROHS COMPLIANT	Ceramic Capacitor, Ceramic, 25V, 20% +Tol, 20% -Tol, X7R, 15% TC, 0.0047uF, Surface Mount, 0505, CHIP, ROHS COMPLIANT
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
package instruction	, 0202	, 0202	, 0202	, 0202	, 0202	, 0303	, 0303	, 0303	, 0505
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compli	compli	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
capacitance	0.00074 µF	0.00074 µF	0.0004 µF	0.0004 µF	0.00065 µF	0.0018 µF	0.0018 µF	0.0012 µF	0.0047 µF
Capacitor type	CERAMIC CAPACITOR	CERAMIC CAPACITOR	CERAMIC CAPACITOR	CERAMIC CAPACITOR	CERAMIC CAPACITOR	CERAMIC CAPACITOR	CERAMIC CAPACITOR	CERAMIC CAPACITOR	CERAMIC CAPACITOR
dielectric materials	CERAMIC	CERAMIC	CERAMIC	CERAMIC	CERAMIC	CERAMIC	CERAMIC	CERAMIC	CERAMIC
Installation features	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
multi-layer	No	No	No	No	No	N	N	No	No
negative tolerance	20%	20%	20%	20%	20%	20%	20%	20%	20%
Number of terminals	2	2	2	2	2	2	2	2	2
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Package shape	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE
method of packing	WAFFLE PACK	WAFFLE PACK	WAFFLE PACK	WAFFLE PACK	WAFFLE PACK	WAFFLE PACK	WAFFLE PACK	WAFFLE PACK	WAFFLE PACK
positive tolerance	20%	80%	20%	80%	80%	20%	80%	20%	20%
Rated (DC) voltage (URdc)	25 V	25 V	25 V	25 V	6.3 V	6.3 V	6.3 V	25 V	25 V
size code	0202	0202	0202	0202	0202	0303	0303	0303	0505
surface mount	YES	YES	YES	YES	YES	YES	YES	YES	YES
Temperature Coefficient	15% ppm/°C	15% ppm/°C	15% ppm/°C	15% ppm/°C	15% ppm/°C	15% ppm/°C	15% ppm/°C	15% ppm/°C	15% ppm/°C
Terminal surface	Gold (Au)	Gold (Au)	Gold (Au)	Gold (Au)	Gold (Au)	Gold (Au)	Gold (Au)	Gold (Au) over Titanium/Tungsten (Ti/W)	Gold (Au) over Titanium/Tungsten (Ti/W)
Terminal shape	ONE SURFACE	ONE SURFACE	ONE SURFACE	ONE SURFACE	ONE SURFACE	ONE SURFACE	ONE SURFACE	ONE SURFACE	ONE SURFACE
Maker	AVX	AVX	-	-	AVX	AVX	AVX	AVX	-
JESD-609 code	e4	e4	e4	e4	e4	e4	e4	-	-
