3305100571

Description
Dry Reed Relay, SPST, Momentary, 0.005A (Coil), 5VDC (Coil), 25mW (Coil), 0.5A (Contact), 200VDC (Contact), DC Input, AC/DC Output, Through Hole-Straight Mount, ROHS AND REACH COMPLIANT
CategoryMechanical and electronic products    relay

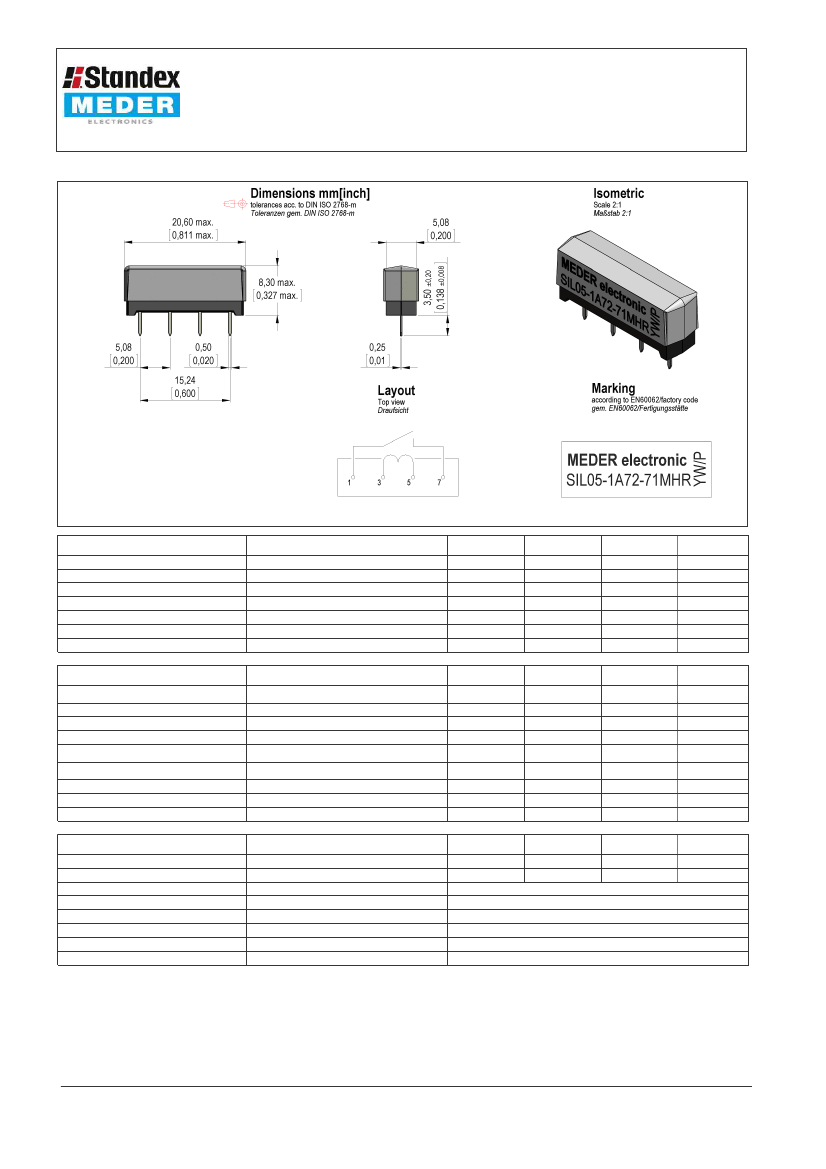

File Size139KB,2 Pages
ManufacturerStandex
Download Datasheet Parametric View All

3305100571 Overview

Dry Reed Relay, SPST, Momentary, 0.005A (Coil), 5VDC (Coil), 25mW (Coil), 0.5A (Contact), 200VDC (Contact), DC Input, AC/DC Output, Through Hole-Straight Mount, ROHS AND REACH COMPLIANT

3305100571 Parametric

Parameter NameAttribute value
package instructionROHS AND REACH COMPLIANT
Reach Compliance Codeunknown
ECCN codeEAR99
body width5.8 mm
body height8.1 mm
Body length or diameter20.5 mm
Maximum coil current (DC)0.005 A
Coil operating voltage (DC)3.5 V
Coil power25 mW
Coil release voltage (DC)0.75 V
Coil resistance1100 Ω
Maximum coil voltage (DC)5 V
Coil/Input Power TypeDC
Contact (AC) maximum rated R load.5A@200VAC
Maximum contact current (AC)0.5 A
Maximum contact current (DC)0.5 A
Contact (DC) maximum rated R load.5A@200VDC
Maximum contact voltage (AC)200 V
Maximum contact voltage (DC)200 V
Contact/Output Power TypeAC/DC
JESD-609 codee3
Manufacturer's serial number3305100571
Installation featuresTHROUGH HOLE-STRAIGHT MOUNT
operating hours0.7 ms
Maximum operating temperature70 °C
Minimum operating temperature-20 °C
method of packingTUBE
physical size20.5mm x 5.8mm x 8.1mm
Relay actionMOMENTARY
Relay functionSPST
Relay typeDRY REED RELAY
release time0.05 ms
sealWATER PROOF
surface mountNO
Terminal surfaceTIN
Termination typeSOLDER
Base Number Matches1
&
$
%
%
"#
!
'
"
' (
)
*
& +
'
"
,-
"
. /"(
)
