ISL6520
Data Sheet
April 3, 2007
FN9009.6
Single Synchronous Buck Pulse-Width
Modulation (PWM) Controller
The ISL6520 makes simple work out of implementing a
complete control and protection scheme for a DC/DC
stepdown converter. Designed to drive N-Channel
MOSFETs in a synchronous buck topology, the ISL6520
integrates the control, output adjustment, monitoring and
protection functions into a single 8 Lead package.
The ISL6520 provides simple, single feedback loop, voltage-
mode control with fast transient response. The output
voltage can be precisely regulated to as low as 0.8V, with a
maximum tolerance of
±1.5%
over-temperature and line
voltage variations. A fixed frequency oscillator reduces
design complexity, while balancing typical application cost
and efficiency.
The error amplifier features a 15MHz gain-bandwidth
product and 8V/μs slew rate which enables high converter
bandwidth for fast transient performance. The resulting
PWM duty cycles range from 0% to 100%.
Protection from over-current conditions is provided by
monitoring the r
DS(ON)
of the upper MOSFET to inhibit PWM
operation appropriately. This approach simplifies the
implementation and improves efficiency by eliminating the
need for a current sense resistor.
Features
• Operates from +5V Input
• 0.8V to V
IN
Output Range
- 0.8V Internal Reference
- ±1.5% Over Line Voltage and Temperature
• Drives N-Channel MOSFETs
• Simple Single-Loop Control Design
- Voltage-Mode PWM Control
• Fast Transient Response
- High-Bandwidth Error Amplifier
- Full 0% to 100% Duty Cycle
• Lossless, Programmable Over-Current Protection
- Uses Upper MOSFET’s r
DS(on)
• Small Converter Size
- 300kHz Fixed Frequency Oscillator
- Internal Soft Start
- 8 Ld SOIC or 16Ld 4mmx4mm QFN
• QFN Package:
- Compliant to JEDEC PUB95 MO-220 QFN - Quad Flat
No Leads - Package Outline
- Near Chip Scale Package footprint, which improves
PCB efficiency and has a thinner profile
• Pb-Free Plus Anneal Available (RoHS Compliant)
Ordering Information
PART
NUMBER
ISL6520CB*
PART
TEMP.
MARKING RANGE (°C)
6520CB
0 to 70
0 to 70
-40 to 85
-40 to 85
0 to 70
0 to 70
-40 to 85
-40 to 85
PACKAGE
8 Ld SOIC
8 Ld SOIC
(Pb-free)
8 Ld SOIC
8 Ld SOIC
(Pb-free)
PKG.
DWG. #
M8.15
M8.15
M8.15
M8.15
Applications
• Power Supplies for Microprocessors
- PCs
- Embedded Controllers
• Subsystem Power Supplies
- PCI/AGP/GTL+ Buses
- ACPI Power Control
• Cable Modems, Set Top Boxes, and DSL Modems
• DSP and Core Communications Processor Supplies
• Memory Supplies
• Personal Computer Peripherals
• Industrial Power Supplies
• 5V-Input DC/DC Regulators
• Low-Voltage Distributed Power Supplies
ISL6520CBZ* 6520 CBZ
(Note)
ISL6520IB*
ISL6520IBZ*
(Note)
ISL6520CR*
6520IB
6520 IBZ
ISL
6520CR
16 Ld 4x4mm QFN L16.4x4
16 Ld 4x4mm QFN L16.4x4
(Pb-free)
16 Ld 4x4mm QFN L16.4x4
16 Ld 4x4mm QFN L16.4x4
(Pb-free)
ISL6520CRZ* 65 20CRZ
(Note)
ISL6520IR*
ISL6520IRZ*
(Note)
ISL 6520IR
65 20IRZ
ISL6520EVAL1
Evaluation Board
* Add “-T” suffix for tape and reel.
NOTE: Intersil Pb-free plus anneal products employ special Pb-free
material sets; molding compounds/die attach materials and 100% matte
tin plate termination finish, which are RoHS compliant and compatible
with both SnPb and Pb-free soldering operations. Intersil Pb-free
products are MSL classified at Pb-free peak reflow temperatures that
meet or exceed the Pb-free requirements of IPC/JEDEC J STD-020.
1
CAUTION: These devices are sensitive to electrostatic discharge; follow proper IC Handling Procedures.
1-888-INTERSIL or 1-888-468-3774
|
Intersil (and design) is a registered trademark of Intersil Americas Inc.
Copyright © Intersil Americas Inc. 2003, 2005, 2006, 2007. All Rights Reserved
All other trademarks mentioned are the property of their respective owners.
ISL6520
Pinouts
ISL6520
(8 LD SOIC)
TOP VIEW
BOOT 1
UGATE 2
GND 3
LGATE 4
8 PHASE
7 COMP/SD
6 FB
5 VCC
BOOT 1
UGATE 2
GND 3
NC 4
5
LGATE
6
NC
7
VCC
8
NC
BOOT
UGATE
PHASE
+
0.8V
-
FB
COMP/OCSET
20
μA
OSCILLATOR
FIXED 300kHz
GND
LGATE
ERROR
AMP
+
-
PWM
COMPARATOR
+
-
INHIBIT
GND
ISL6520
(16 LD QFN)
TOP VIEW
PHASE
NC
NC
NC
12 NC
11 COMP/OCSET
10 NC
9 FB
16 15 14 13

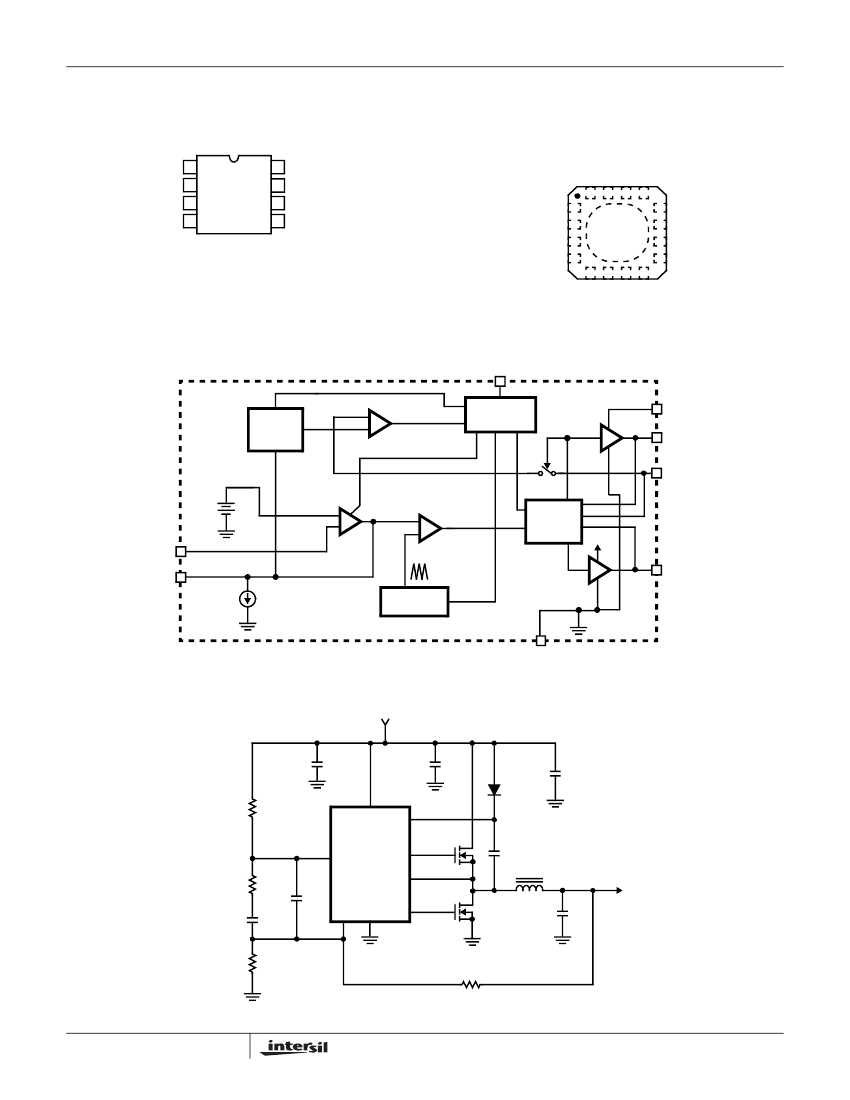

Block Diagram
VCC
SAMPLE
AND
HOLD
OC
COMPARATOR
+
-
POR AND
SOFTSTART
GATE
CONTROL
PWM LOGIC
VCC
Typical Application
V
CC
C
DCPL
VCC
R
OCSET
5
ISL6520
COMP/OCSET
7
R
F
C
I
C
F
FB
R
OFFSET
6
3
GND
C
BULK
D
BOOT
1
BOOT
C
BOOT
L
OUT
C
HF
2
8
4
UGATE
PHASE
LGATE
+V
O
C
OUT
R
S
2
FN9009.6
April 3, 2007
ISL6520
Absolute Maximum Ratings
Supply Voltage, V
CC
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . +6.0V
Absolute Boot Voltage, V
BOOT
. . . . . . . . . . . . . . . . . . . . . . . +15.0V
Upper Driver Supply Voltage, V
BOOT
- V
PHASE
. . . . . . . . 7.0V (DC)
8.0V (<10ns Pulse Width, 10μJ)
Input, Output or I/O Voltage . . . . . . . . . . . GND -0.3V to VCC +0.3V
ESD Classification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Class 2
Thermal Information
Thermal Resistance
θ
JA
(°C/W)
θ
JC
(°C/W)
SOIC Package (Note 1) . . . . . . . . . . . . . .
95
N/A
QFN Package (Notes 2, 3). . . . . . . . . . . . .
45
7
Maximum Junction Temperature
(Plastic Package) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . +150°C
Maximum Storage Temperature Range . . . . . . . -65°C to +150°C
Maximum Lead Temperature
(Soldering 10s) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . +300°C
(SOIC - Lead Tips Only)
Recommended Operating Conditions
Supply Voltage, VCC . . . . . . . . . . . . . . . . . . . . . . . . . . . . +5V ±10%
Ambient Temperature Range - ISL6520C . . . . . . . . . . 0°C to +70°C
Ambient Temperature Range - ISL6520I . . . . . . . . . .-40°C to +85°C
Junction Temperature Range. . . . . . . . . . . . . . . . . .-40°C to +125°C
