HV5622
32-Channel Serial to Parallel Converter
With Open Drain Outputs
Features
►
►
►
►
►
►
►
Processed with HVCMOS
®
technology
Sink current minimum 100mA
Shift register speed 8.0MHz
Polarity and Blanking inputs
CMOS compatible inputs
Forward and reverse shifting options
Diode to VPP allows efficient power recovery
General Description
The HV5622 is a low-voltage serial to high-voltage parallel
converter with open drain outputs. This device has been designed
for use as a driver for AC-electroluminescent displays. It can
also be used in any application requiring multiple output high
voltage current sinking capabilities such as driving inkjet and
electrostatic print heads, plasma panels, vacuum fluorescent, or
large matrix LCD displays.
This device consists of a 32-bit shift register, 32 latches, and
control logic to perform the polarity select and blanking of the
outputs. Data is shifted through the shift register on the high to
low transition of the clock. The HV5622 shifts in the clockwise
direction when viewed from the top of the package. A data output
buffer is provided for cascading devices. This output reflects the
current status of the last bit of the shift register. Operation of
the shift register is not affected by the LE (latch enable), BL
(blanking), or the POL (polarity) inputs. Transfer of data from the
shift register to the latch occurs when the LE (latch enable) input
is high. The data in the latch is stored when LE is low.
Functional Block Diagram
Polarity
Blanking
Latch Enable
HV
OUT
1
Data Input
Clock
Latch
32-Bit
Shift
Register
(Outputs 3 to 30
not shown)
Latch
HV
OUT
2
HV
OUT
31
Latch
HV
OUT
32
Data Out
Latch
HV5622
Ordering Information
Package Options
Device
44-Lead Quad
Plastic Gullwing
44-Lead Quad
Plastic Chip Carrier
.690x.690in body
.180in height (max)
.050in pitch
10.00x10.00mm body
2.45mm height (max)
0.80mm pitch
HV5622
HV5622PG-G
HV5622PJ-G
-G indicates package is RoHS compliant (‘Green’)
Absolute Maximum Ratings
Parameter
Supply voltage, V
DD
1
Output voltage, V
PP
1
Logic input levels
1
Ground current
2
Continuous total power dissipation
3
Operating temperature range
Storage temperature range
Lead temperature
4
Value
-0.5V to +15V
-0.5V to +230V
-0.5V to V
DD
+0.5V
1.5A
1200mW
-40
O
C to +85
O
C
-65
O
C to +150
O
C
260
O
C

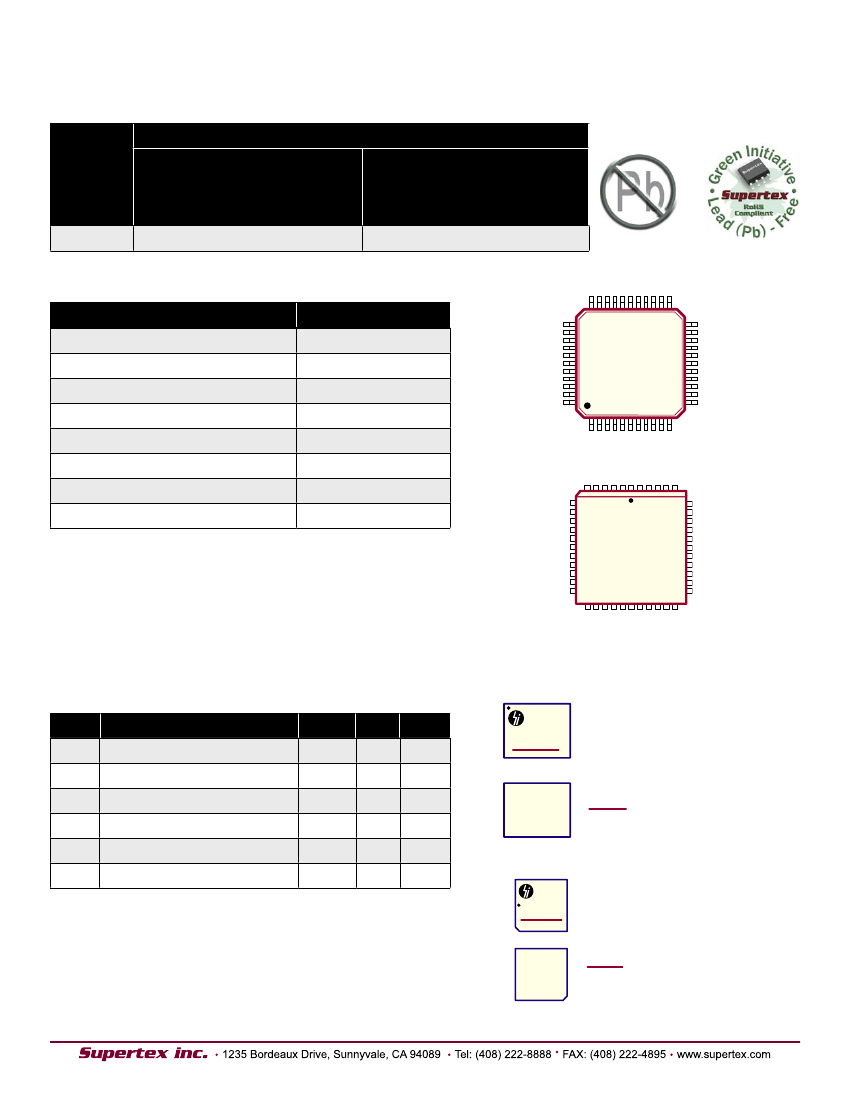

Pin Configurations
44
1
44-Lead PQFP (PG)
(top view)
1 44
6
40
Absolute Maximum Ratings are those values beyond which damage to the device may occur.
Functional operation under these conditions is not implied. Continuous operation of the device
at the absolute rating level may affect device reliability. All voltages are referenced to device
ground.
Notes:
1. All voltages are referenced to V
SS
2. Duty cycle is limited by the total power dissipated in the package
3. For operation above 25°C ambient derate linearly to maximum operating
temperature at 20mW/°C
4. 1.6mm (1/16inch) from case for 10 seconds
44-Lead PLCC (PJ)
(top view)
Recommended Operating Conditions
Sym
V
DD
V
IH
V
IL
f
CLK
T
A
Parameter
Logic voltage supply
Input high voltage
Input low voltage
Clock frequency
Operating free-air temperature
Min
10.8
-0.3
V
DD
-2.0
0
-
-40
Max
13.2
+220
V
DD
2.0
8.0
+85
Units
V
V
V
V
MHz
O
Product Marking
Top Marking
Y YW W
HV5622PG
LLLLLLLLL
HV
OUT
High voltage output
Bottom Marking
CCCCCCCC
AAA
YY = Year Sealed
WW = Week Sealed
L = Lot Number
C = Country of Origin*
A = Assembler ID*
= “Green” Packaging
*May be part of top marking
44-Lead PQFP (PG)
YY = Year Sealed
WW = Week Sealed
HV5622PJ
LLLLLLLLLL
L = Lot Number
C = Country of Origin*
Bottom Marking
A = Assembler ID*
= “Green” Packaging
CCCCCCCCCCC
YYWW
C
Top Marking
Power-Up Sequence
Power-up sequence should be the following:
1. Connect ground
2. Apply V
DD
3. Set all inputs to a known state
Power-down sequence should be the reverse of the above.
2
AAA
*May be part of top marking
44-Lead PLCC (PJ)
HV5622
Electrical Characteristics
(over recommended operating conditions unless otherwise noted)
DC Characteristics
Sym
I
DD
I
DDQ
I
O(OFF)
I
IH
I
IL
V
OH
V
OL
V
OC
Parameter
V
DD
supply current
V
DD
supply current (quiescent)
Off state output current
High-level logic input current
Low-level logic input current
High-level output data out
Low-level output voltage
HV
OUT
clamp voltage
(V
DD
= 12V, T
C
= 25
O
C)
Min
-
-
-
-
-
V
DD
-1.0V
HV
OUT
Data out
-
-
-
Max
15
100
10
1.0
-1.0
-
15
1.0
-1.5
Units
mA
µA
µA
µA
µA
V
V
V
V
Conditions
f
CLK
= 8.0MHz, F
DATA
= 4.0MHz
V
IN
= 0V
All outputs high, all SWS parallel
V
IH
= V
DD
V
IL
= 0V
I
DOUT
= -100µA
I
HVOUT
= +100mA
I
DOUT
= +100µA
I
OL
= -100mA
AC Characteristics
Sym
f
CLK
t
W
t
SU
t
H
t
ON
t
DHL
t
DLH
t
DLE
t
WLE
t
SLE
Parameter
Min
-
62
25
10
-
-
-
50
50
50
Max
8.0
-
-
-
500
100
100
-
-
-
Units
MHz
ns
ns
ns
ns
ns
ns
ns
ns
ns
Conditions
---
---
---
---
R
L
= 2.0KΩ to V
PP
max.
C
L
= 15pF
C
L
= 15pF
---
---
---
Clock frequency
Clock width, high or low
Data set-up time before CLK falls
Data hold time after CLK falls
Turn-on time, HV
OUT
from enable
Delay time clock to data high to low
Delay time clock to data low to high
Delay time clock to LE low to high
Width of LE pulse
LE setup time before clock falls
Input and Output Equivalent Circuits
VDD
VDD
HVOUT
Input
Data Out
HVIN
VSS
VSS
Logic Inputs
VSS
Logic Data Output
High Voltage Outputs
3
HV5622
Switching Waveforms
V IH
Data Input
50%
t
SU
Clock
50%
t
WH
50%
t
WL
50%
Data Out
t
DLH
50%
t
DHL
50%
t
DLE
t
WLE
50%
t
SLE
V OH
10%
t
ON
V OL
V OH
V OL
Data Valid
t
H
V IH
50%
50%
V IL
V OH
V OL
50%
V IL
V IH
V IL
Latch Enable
HV OUT
w/ S/R HIGH
Functional Table
Inputs
Function
All on
All off
Invert mode
Load S/R
Load latches
Transparent latch
mode
Notes:
H = high level, L = low level, X = irrelevant, ↓ = high-to-low transition, ↑ = low-to-high transistion.
* dependent on previous stage’s state before the last CLK ↓ or last LE high.
Outputs
BL
L
L
H
H
H
H
H
H
POL
L
H
L
H
H
L
H
H
Shift Reg
1
*
*
*
H or L
*
*
L
H
2...32
*...*
*...*
*...*
*...*
*...*
*...*
*...*
*...*
HV Outputs
1
On
Off
*
*
*
*
Off
On
2...32
On...On
Off...Off
*...*
*...*
*...*
*...*
*...*
*...*
Data Out
*
*
*
*
*
*
*
*
*
Data
X
X
X
H or L
X
X
L
H
CLK
X
X
X
↓
H or L
H or L
↓
↓
LE
X
X
L
L
↑
↑
H
H
4
44-Lead PQFP Pin Assignment (PG)
Pin #
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
Function
HV
OUT
22
HV
OUT
21
HV
OUT
20
HV
OUT
19
HV
OUT
18
HV
OUT
17
HV
OUT
16
HV
OUT
15
HV
OUT
14
HV
OUT
13
HV
OUT
12
HV
OUT
11
HV
OUT
10
HV
OUT
9
HV
OUT
8
HV
OUT
7
HV
OUT
6
HV
OUT
5
HV
OUT
4
HV
OUT
3
HV
OUT
2
HV
OUT
1
Data Out
N/C
N/C
N/C
POL
CLK
VSS
VDD
LE
Data In
Blanking
N/C
HV
OUT
32
HV
OUT
31
HV
OUT
30
HV
OUT
29
HV
OUT
28
HV
OUT
27
HV
OUT
26
HV
OUT
25
HV
OUT
24
HV
OUT
23
High voltage outputs.
Inverts the polarity of the HV
OUT
pins
Clock pin, shift registers shifts data on falling edge of input clock.
Reference voltage, usually ground.
Logic supply voltage.
No internal connection.
Data output pin.
High voltage outputs.
Description
HV5622
Latch enable pin, data is shifted from shift register to latches on logic input high.
Data input pin.
Blanking pin sets all HV
OUT
pins low or high depending upon state of polarity.
See function table.
No internal connection.
5
