ZZW-R-1024-57S07D: DescriptionMIL Series Connector,; CategoryThe connector The connector; File Size115KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric View All

ZZW-R-1024-57S07D Overview

MIL Series Connector,

ZZW-R-1024-57S07D Parametric

Parameter Name	Attribute value
Objectid	8299469627
Reach Compliance Code	unknown
ECCN code	EAR99
Back shell type	SOLID
Connector type	MIL SERIES CONNECTOR

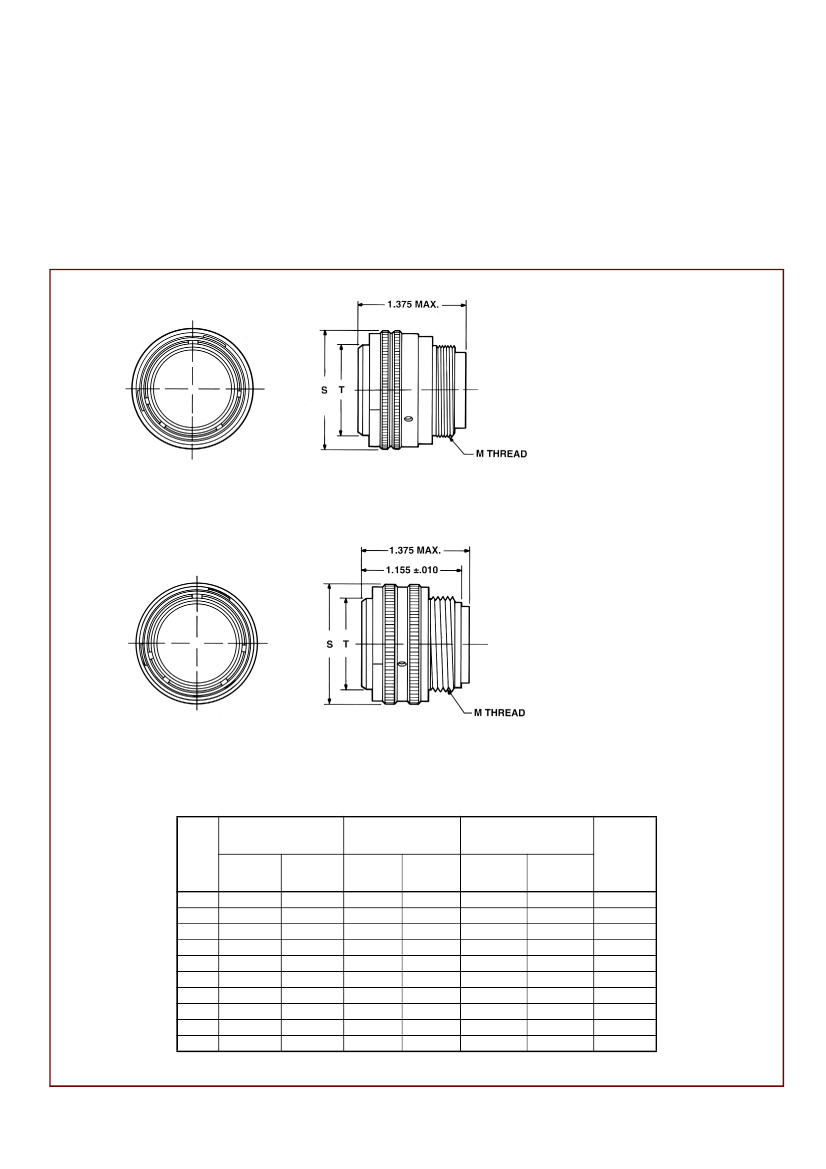

ZZW-R-1024-57S07D Preview

Straight Plug

aluminum/stainless steel

bayonet coupling

STAINLESS STEEL

Pyle ZZW-RC-10XX* Series

MS24266EXXBXX*

Military Class E

ALUMINUM

Pyle ZZW-AC-10XX* Series

MS24266RXXBXX*

Military Class R

* To complete order number,

see how to order, page 7.

Cable Support

Thread M

Shell

Size

Steel

NS-2A

Alum.

UNEF-2A

Modified

Aluminum Connector

Weight (lbs.) max

including Contacts

Insert

Socket

Insert

Coupling Nut

Dia

S Max.

Steel

Alum.

Shell Dia.

T

+.000

–.005

08**

10

12

14

16

18

20

22

24

28

NA

.563-36

.733-36

.803-36

.930-36

1.036-36

1.161-36

1.286-36

1.411-36

NA

.437-28

.562-24

.750-20

.812-20

.937-20

1.062-18

1.187-18

1.312-18

1.437-18

NA

.030

.044

.063

.074

.091

.110

.133

.154

.184

NA

.031

.045

.064

.076

.094

.112

.136

.160

.188

NA

.848

1.018

1.087

1.214

1.320

1.445

1.570

1.695

NA

.762

.904

1.076

1.122

1.264

1.373

1.503

1.623

1.752

NA

.424

.526

.696

.765

.892

.998

1.123

1.248

1.373

NA

NA designates not available. ** Not available in Stainless Steel.

All dimensions for reference only.

14
