5225554-6 datasheet, PDF - EEWORLD Datasheet

5225554-6: DescriptionTNC RT ANG PLUG DUAL; CategoryThe connector The connector; File Size94KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric Compare View All

5225554-6 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	5225554-6	-	-	View	Buy Now

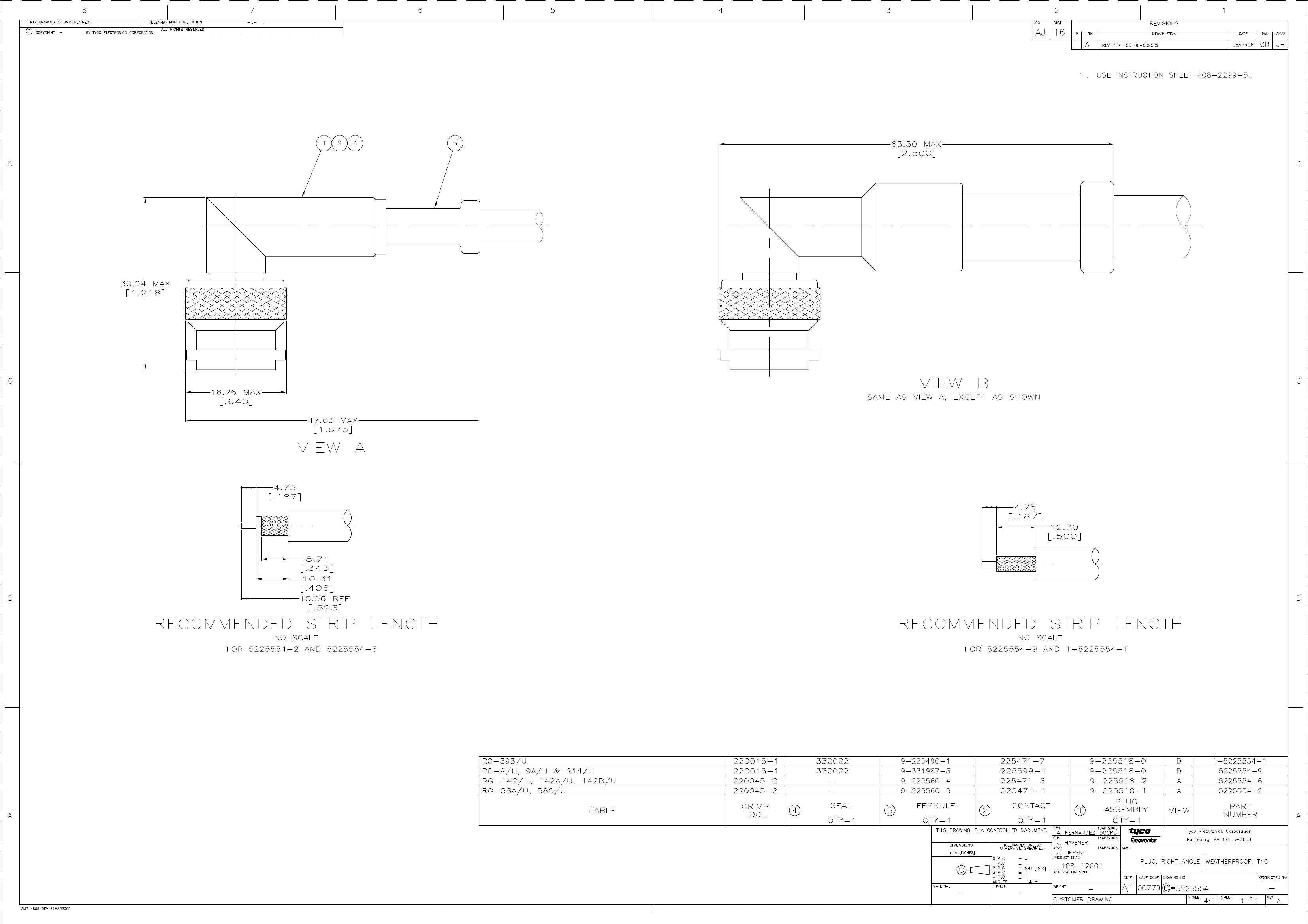

TNC RT ANG PLUG DUAL

Parameter Name	Attribute value
Brand Name	TE Connectivity
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	7 weeks
subject depth	1.218 inch
Body diameter	0.64 inch
Body/casing type	PLUG
Cable type	RG-142/U
Characteristic impedance	50 Ω
Connector type	RF TNC CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
Contact resistance	2 mΩ
Contact style	COAX
Dielectric withstand voltage	2100VAC V
Durability	500 Cycles
maximum insertion force	8.896 N
Insulation resistance	5000000000 Ω
insulator material	POLYTETRAFLUOROETHYLENE
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	CABLE
Number of ports	1
Maximum operating frequency	11 GHz
Maximum operating temperature	165 °C
Minimum operating temperature	-65 °C
polarization key	POLARIZED HOUSING
reliability	COMMERCIAL
Shell surface	SILVER
Termination type	CRIMP
Total number of contacts	1
voltage standing wave ratio	1.3
Evacuation force-minimum value	.556 N
Base Number Matches	1

	5225554-6	5225554-2	FM3DF71P3659MLF
Description	TNC RT ANG PLUG DUAL	RF TNC Connector, 1 Contact(s), Male, Panel Mount, Crimp Terminal, Locking, Plug	Cable Assembly,
Is it Rohs certified?	conform to	conform to	conform to
Reach Compliance Code	compliant	compliant	compliant
Maximum operating temperature	165 °C	85 °C	70 °C
Minimum operating temperature	-65 °C	-55 °C	-20 °C
subject depth	1.218 inch	1.218 inch	-
Body diameter	0.64 inch	0.64 inch	-
Body/casing type	PLUG	PLUG	-
Cable type	RG-142/U	RG 58C, RG 58A	-
Characteristic impedance	50 Ω	50 Ω	-
Connector type	RF TNC CONNECTOR	RF TNC CONNECTOR	-
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED	-
Contact point gender	MALE	MALE	-
Contact material	NOT SPECIFIED	NOT SPECIFIED	-
Contact resistance	2 mΩ	2 mΩ	-
Contact style	COAX	COAX	-
Durability	500 Cycles	500 Cycles	-
maximum insertion force	8.896 N	8.896 N	-
Insulation resistance	5000000000 Ω	5000000000 Ω	-
insulator material	POLYTETRAFLUOROETHYLENE	FLUOROPOLYMER	-
Installation option 1	LOCKING	LOCKING	-
Installation method	RIGHT ANGLE	RIGHT ANGLE	-
Installation type	CABLE	PANEL	-
Number of ports	1	1	-
Maximum operating frequency	11 GHz	11 GHz	-
polarization key	POLARIZED HOUSING	POLARIZED HOUSING	-
Shell surface	SILVER	SILVER	-
Termination type	CRIMP	CRIMP	-
Total number of contacts	1	1	-
voltage standing wave ratio	1.3	1.3	-
Evacuation force-minimum value	.556 N	.556 N	-
Objectid	-	1389694519	7159815287
