8GB to 32GB
CompactFlash Card
Preliminary
www.stec-inc.com
SLCFxGM4U(I)(-M)
Solid-State Memory Card
(No Moving Parts)
Capacity: 8GB - 32GB
CFA 4.1 and ATA-7 Compatible
ATA Transfer modes:
UDMA 0-6, MWDMA 0-4,
PIO 0-6 (SLC Flash Type)
UDMA 0-6, MWDMA 0-2,
PIO 0-4 (MLC Flash Type)
General Description
STEC’s MACH4 CompactFlash (CF) card is an extremely high-performance,
multi-channel solution available in capacities from 8GB to 16GB using SLC
NAND flash and 8GB to 32GB using MLC NAND flash. The standard
CompactFlash interface provides designers with a true plug-n-play storage
device, allowing for short design cycles and fast time to market, while the
extreme performance enables hard disk drive performance in a much smaller
and more reliable design.
CompactFlash cards have quickly become the product of choice for
applications requiring high reliability and high tolerance to shock, vibration,
humidity, altitude, and temperature. Because the MACH4 CompactFlash uses
NAND flash technology (e.g. no moving parts), it is more reliable and has
much lower latency compared to a traditional hard disk drive and consumes far
less power (approximately 1 watt compared to 12 watts for a standard
7200rpm ATA disk drive). With its small footprint, high capacity, and
throughput up to 90 megabytes per second*, the MACH4 CompactFlash is an
ideal hard disk drive replacement or alternate storage solution in space-
constrained applications or those requiring less capacity than available hard
disk drives offer including blade servers and embedded PCs.
STEC’s MACH4 CF Card is available in a CompactFlash Type I package and
adheres to the latest industry compliance and regulatory standards including
UL, FCC, RoHS, and the Compact Flash Association (CFA). Because the
MACH 4 CF incorporates a proprietary state-of-the-art flash memory controller,
it that provides the greatest flexibility to customer-specific applications while
supporting key flash management features resulting in the industry’s highest
reliability and endurance. Key features include:
Full datapath protection with built-in 8-bit BCH ECC engine to detect and
correct up to 8-bit errors per 512 Bytes of data
Sophisticated bad block management and wear leveling algorithms
dramatically enhance flash memory endurance
Power-down data protection ensures data integrity in case of power loss
Lifecycle management feature allows users to monitor the card's lifetime by
monitoring the card's remaining spare blocks
STEC’s MACH 4 CF card offers the highest reliability and tolerance to shock,
vibration, humidity, altitude, ESD, and temperature. The rugged industrial
design combined with temperature testing and adherence to rigid JEDEC
JESD22 standards ensures flawless execution in the harshest environments.
In addition to custom hardware and firmware designs, STEC also offers value-
added services including:
Custom labeling and packaging
Custom software imaging and ID strings
Full BOM control and product change notification
Total supply-chain management to ensure continuity of supply
In-field application engineering to help customers through product design-ins
* Actual throughput may vary depending on hosts system and configuration; all
performance numbers are based on card being configured in TrueIDE mode
with UDMA-6 supported.
Supports TrueIDE and PC Card
Memory and I/O Modes
Form Factors:
CompactFlash Type I
CompactFlash Adapter
Advanced Wear-Leveling for
Greater Flash Endurance
Card Information Structure (CIS)
Programmed into Internal Memory
PC Card and Socket Services
Release 2.1 or later compatible
5V or 3.3V Power Supply
Commercial and Industrial
Operating Temperature Ranges
Available
Full Data-Path Protection with
built-in ECC Engine
10 Year Data Retention
RoHS-6 Compliant
SLCFxGM4U(I)(-M)
Preliminary Datasheet
Table of Contents
CompactFlash Card
1.0 Ordering Information ........................................................................................................ 3
2.0 Product Specifications ..................................................................................................... 4
2.1 Labeling ........................................................................................................................................ 4
2.2 Package Dimensions and Pin Locations ...................................................................................... 6
2.3 Pin Assignments ........................................................................................................................... 7
2.4 Signal Description ......................................................................................................................... 8
2.5 Performance ............................................................................................................................... 13
2.6 CHS Parameters ........................................................................................................................ 13
2.7 Standards Compliance ............................................................................................................... 14
2.7.1 CE and FCC Class B & D ....................................................................................................... 14
2.7.2 RoHS ....................................................................................................................................... 14
3.0 Environmental Specifications .........................................................................................15
3.1 Recommended Operating Conditions ........................................................................................ 15
3.2 Reliability .................................................................................................................................... 15
3.3 Shock, Vibration, and Humidity .................................................................................................. 15
4.0 Electrical Specifications .................................................................................................16
4.1 Absolute Maximum Ratings ........................................................................................................ 16
4.2 DC Characteristics...................................................................................................................... 16
4.3 AC Characteristics ...................................................................................................................... 17
4.3.1 PC Card Memory Mode Attribute Memory Read .................................................................... 17
4.3.2 PC Card Memory Mode Attribute Memory Write .................................................................... 18
4.3.3 PC Card Memory Mode Common Memory Read ................................................................... 19
4.3.4 PC Card Memory Mode Common Memory Write ................................................................... 20
4.3.5 PC Card I/O Mode Read AC Characteristics .......................................................................... 21
4.3.6 PC Card I/O Mode Write AC Characteristics .......................................................................... 22
4.3.7 True IDE Mode Register Access ............................................................................................. 23
4.3.8 True IDE Mode PIO Access .................................................................................................... 24
4.3.9 True IDE Mode Multiword DMA .............................................................................................. 26
4.3.10 Ultra DMA AC Characteristics ................................................................................................. 27
5.0 Host Access Specification ..............................................................................................36
5.1
5.2
5.3
5.4
Task File Register and Byte/Word/Odd-Byte Mode Mappings ................................................... 36
Host Access Interface Modes ..................................................................................................... 36
Card Information Structure (CIS) ................................................................................................ 37
Identify Drive Parameter ............................................................................................................. 41
6.0 Registers ..........................................................................................................................43
6.1 Configuration Registers .............................................................................................................. 43
6.2 Task File Registers ..................................................................................................................... 44
7.0 Supported ATA Commands ............................................................................................45
8.0 SMART Feature Set..........................................................................................................48
8.1 SMART Support and Identify Command .................................................................................... 48
8.2 SMART Commands ................................................................................................................... 48
8.3 SMART Attributes ....................................................................................................................... 49
9.0 Appendix: CompactFlash Adapter .................................................................................50
9.1
9.2
9.3
9.4
CF Adapter Ordering Information ............................................................................................... 50
CF Adapter Specifications .......................................................................................................... 50
CF Adapter Package Dimensions and Pin Locations ................................................................. 51
CF Adapter Pin Assignment ....................................................................................................... 52
10.0 Revision History ..............................................................................................................53
61000-05339-105, June 2008
2
SLCFxGM4U(I)(-M)
Preliminary Datasheet
1.0
Ordering Information
CompactFlash Card
Table 1 lists the ordering part number for standard STEC MACH4 CompactFlash cards.
Note:
STEC MACH4 CF cards automatically configure themselves as a fixed device when used as an IDE
device. When used as a CF card, the cards are removable.
Table 1: Ordering Information
Part Number
SLCF8GM4U(I)
SLCF16GM4U(I)
SLCF8GM4U-M
SLCF16GM4U-M
SLCF32GM4U-M
Legend:
SLCF =
STEC standard CompactFlash card part number prefix.
G =
proceeding capacity (x) is in Gigabytes.
M4 =
MACH4 controller.
U =
RoHS-6 compliant lead-free.
Part numbers without “I” =
Commercial temperature range (0ºC to 70ºC).
Example: SLCFxGM4U, SLCFxGM4U-M
I =
Industrial temperature range (-40ºC to +85 ºC).
Example: SLCFxGM4UI
Part numbers without “-M” =
Single Level Cell (SLC) flash type.
Example: SLCFxGM4U(I)
M =
Multi Level Cell (MLC) flash type.
Example: SLCFxGM4U(I)-M
Flash Type
SLC
SLC
MLC
MLC
MLC
CF Form Factor
Type I
Type I
Type I
Type I
Type I
Capacity
8 GBytes
16 GBytes
8 GBytes
16 GBytes
32 GBytes
61000-05339-105, June 2008
3
SLCFxGM4U(I)(-M)
Preliminary Datasheet
2.0
2.1
CompactFlash Card
Product Specifications
Labeling
STEC CF Cards can be manufactured with standard labeling, or customer-specific, custom labeling.
Standard front labeling is shown in Figure 1. STEC offers a choice of standard back labeling or RoHS
back labeling as shown in Figure 2.

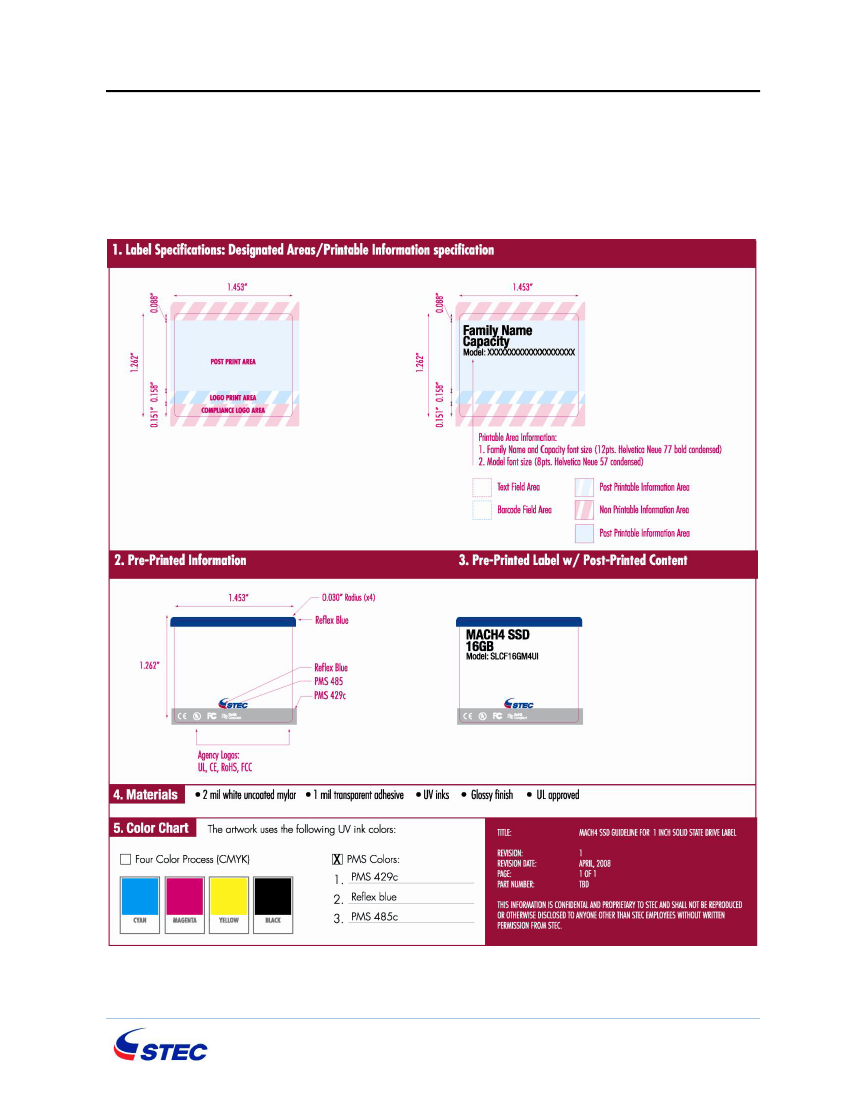

Figure 1: Standard Front Labeling
61000-05339-105, June 2008
4
SLCFxGM4U(I)(-M)
Preliminary Datasheet
CompactFlash Card

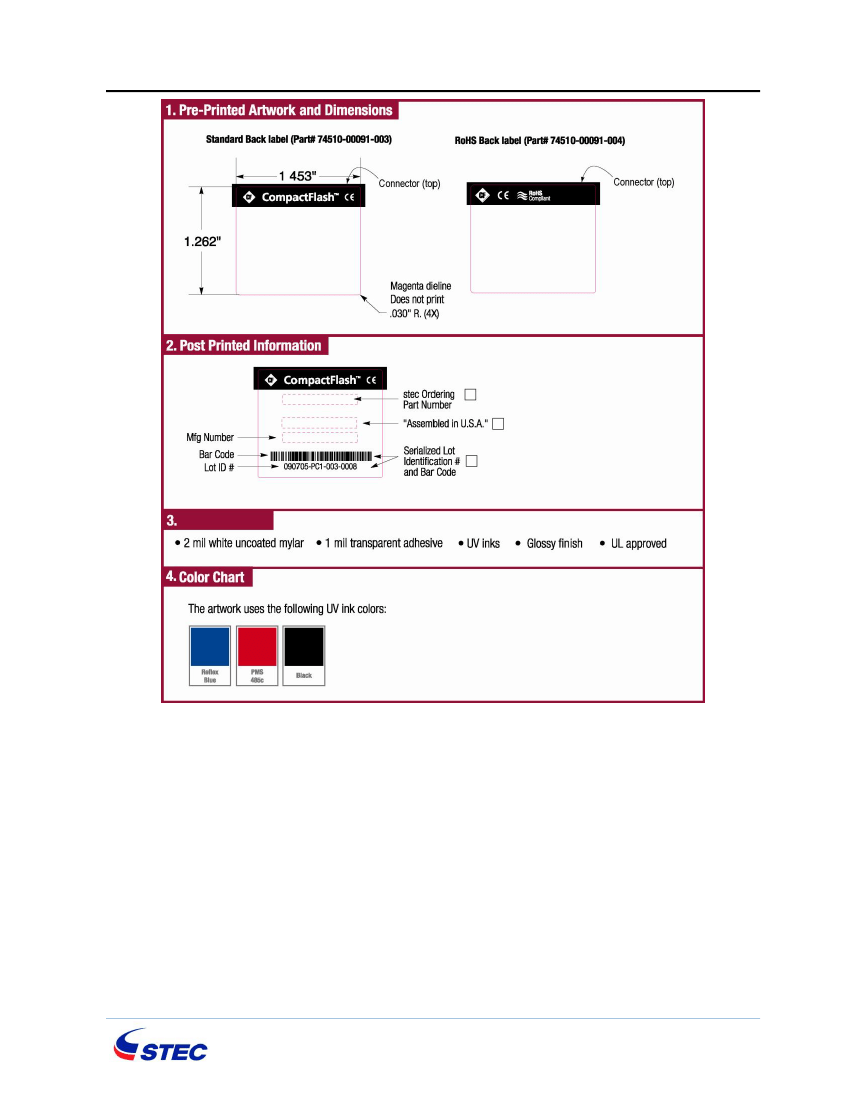

Figure 2: Standard and RoHS Back Labeling
61000-05339-105, June 2008
5
