9008-429-301 datasheet, PDF - EEWORLD Datasheet

9008-429-301: DescriptionBoard Connector, 58 Contact(s), 2 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Black Insulator, Plug; CategoryThe connector The connector; File Size124KB，1 Pages; ManufacturerMethode Electronics Inc.

Download Datasheet Parametric View All

9008-429-301 Overview

Board Connector, 58 Contact(s), 2 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Black Insulator, Plug

Parameter Name	Attribute value
Maker	Methode Electronics Inc.
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	WITH STANDOFF, LOW PROFILE
body width	0.198 inch
subject depth	0.25 inch
body length	2.9 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	TIN/LEAD OVER NICKEL
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	10 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	1500VAC V
maximum insertion force	2.78 N
Insulation resistance	5000000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED POLYCARBONATE
Manufacturer's serial number	9000
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	3.81 mm
Plating thickness	30u inch
polarization key	POLAR PIN POSITION
Rated current (signal)	3 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.12 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	58
Evacuation force-minimum value	.556 N
Base Number Matches	1

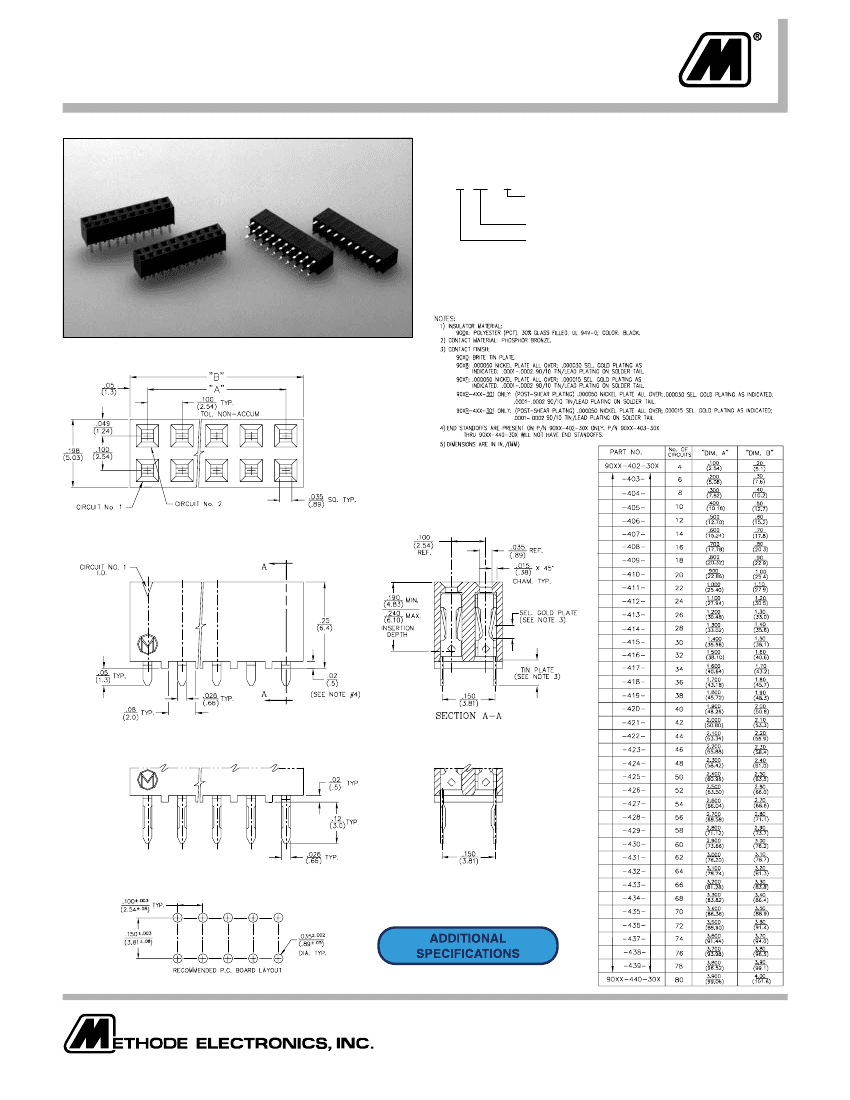

.100” (2.54mm) Low Profile Vertical Through

Hole Dual Row Connectors

(.100” x .150” Tails)

9000 SERIES “POST/BOXE”

PART NUMBER LEGEND

900X-4XX-30X

TAIL CONFIGURATION

1 = .12 (3.05)

5 = .05 (1.37)

NUMBER OF POSITIONS PER ROW

2-40

0 = TIN

CONTACT FINISH

8 = .000030 SELECTIVE GOLD

F = .000015 SELECTIVE GOLD

MATING HEADERS: 9100 SERIES

PART NO. 90XX-4XX-305

PART NO. 90XX-4XX-301

Connector Products

1700 Hicks Road • Rolling Meadows, IL 60008 USA

Telephone: 847.392.3500 • Fax: 847.392.9404

email: mcpsales@methode.com • Web Page: www.methode.com
