57-30140-D48 datasheet, PDF - EEWORLD Datasheet

57-30140-D48: DescriptionD Type Connector, 14 Contact(s), Male, Solder Lug Terminal, M2.6x0.45, Receptacle; CategoryThe connector The connector; File Size187KB，3 Pages; ManufacturerDDK; Websitehttp://www.ddknet.co.jp/English/index.html

Download Datasheet Parametric View All

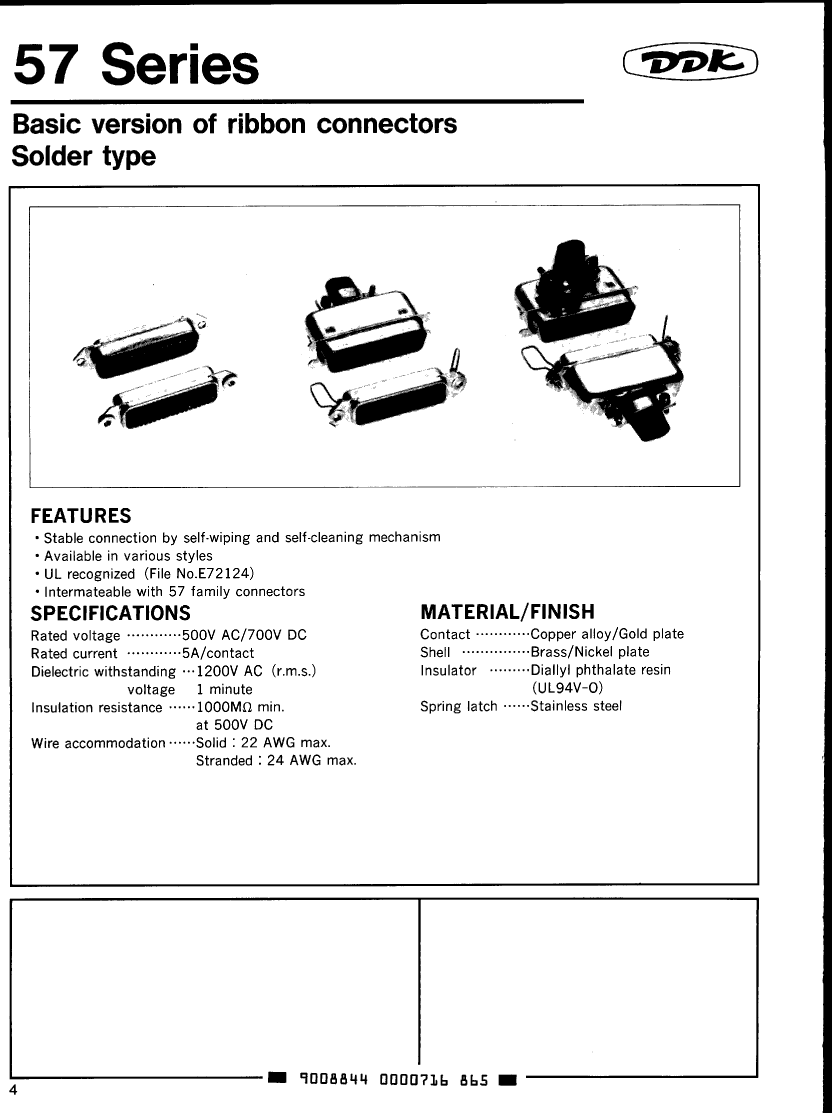

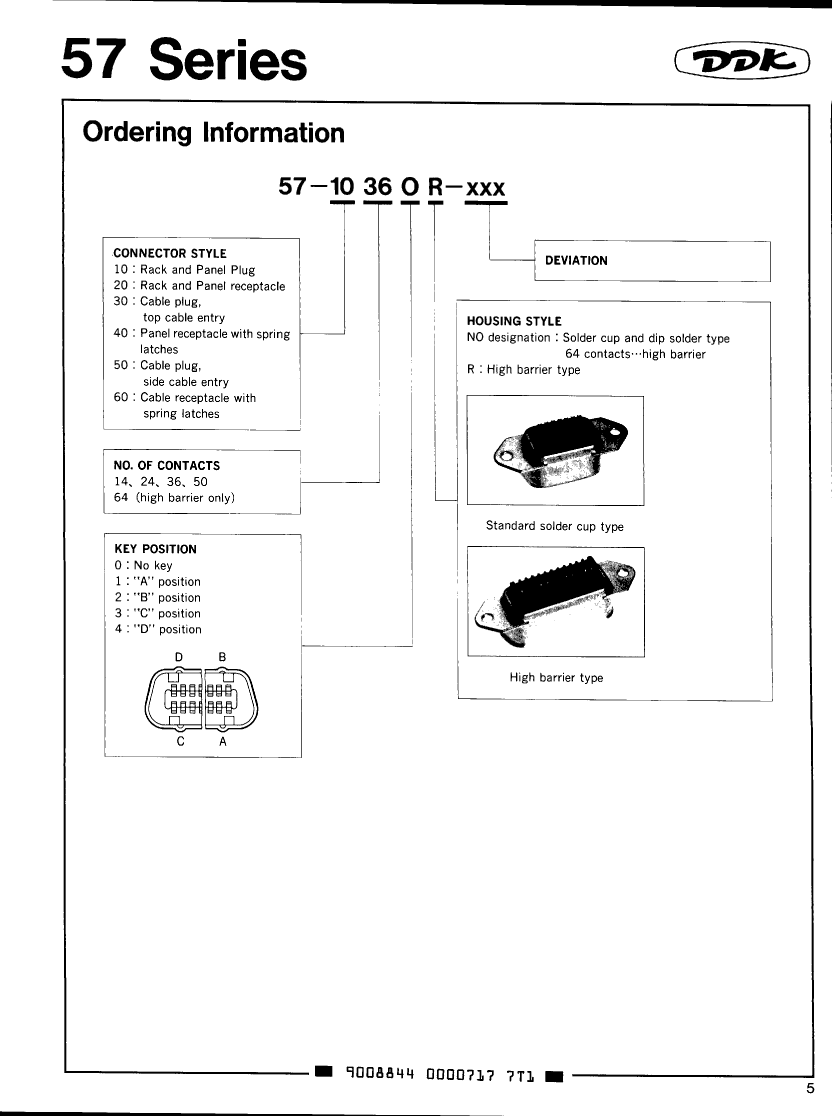

57-30140-D48 Overview

D Type Connector, 14 Contact(s), Male, Solder Lug Terminal, M2.6x0.45, Receptacle

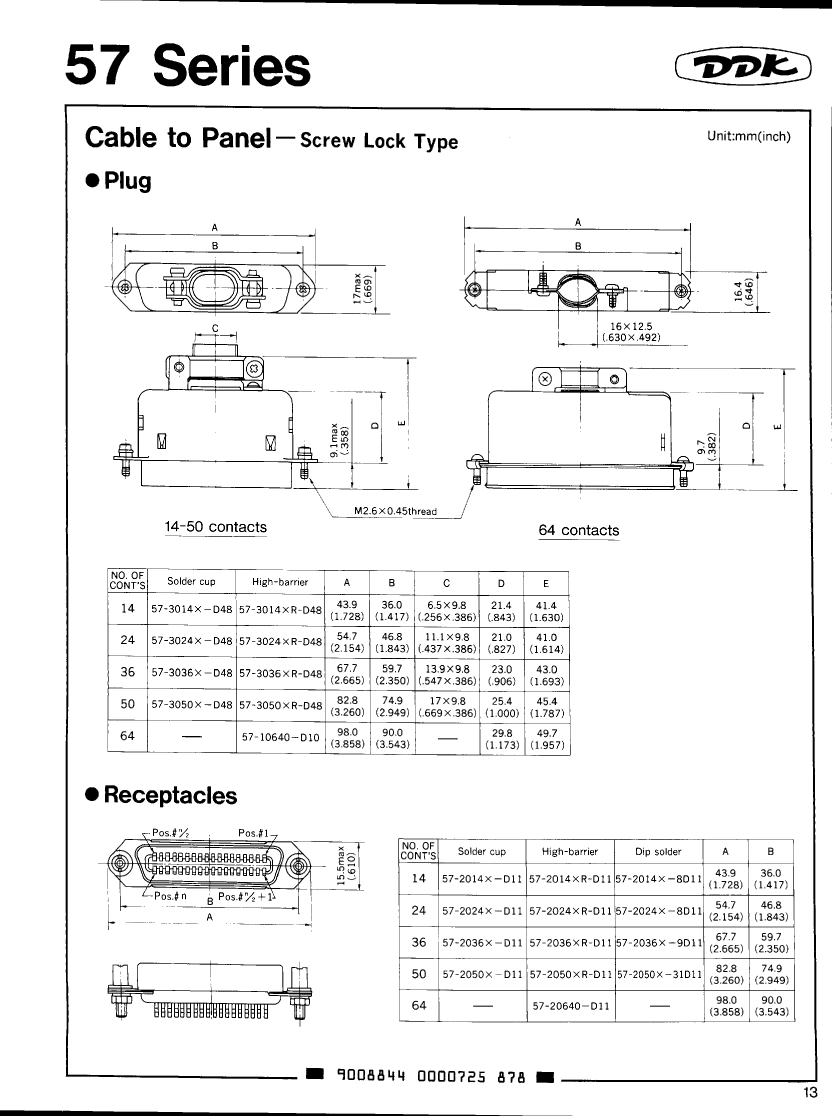

Parameter Name	Attribute value
Maker	DDK
Reach Compliance Code	unknown
body width	0.669 inch
subject depth	1.272 inch
body length	1.728 inch
Body/casing type	RECEPTACLE
Contactor design	PREASSEM CONN
Contact to complete cooperation	AU
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Dielectric withstand voltage	1200VAC V
Insulation resistance	1000000000 Ω
insulator material	DIALLYL PHTHALATE
Manufacturer's serial number	57
Installation option 1	M2.6X0.45
Installation option 2	SCREWLOCKS
Installation type	PANEL
Number of rows loaded	2
Rated current (signal)	5 A
Guideline	UL
reliability	COMMERCIAL
Shell surface	NICKEL
Shell material	BRASS
Termination type	SOLDER LUG
Total number of contacts	14
Maximum wire diameter	24 AWG
Minimum wire diameter	24 AWG
Base Number Matches	1
