Engine Compartment Connectors
Fuel tank connectors

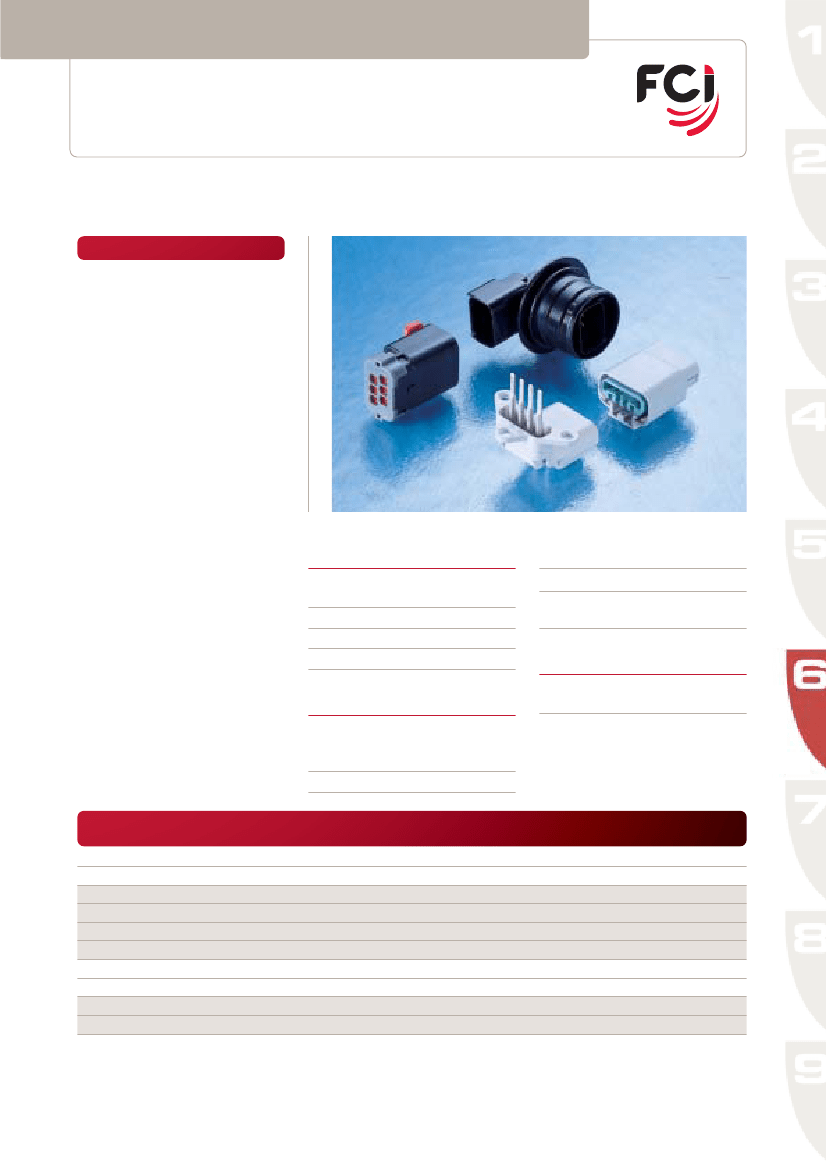

Apex
4 & 6 way sealed connector system for 2.8 mm terminals
Features
4 & 6 female housing:
•
Waterproof application with grommet
•
Single row 5.25 mm pitch for
4 position female housing
•
Double row 5.25 x 6.40 mm pitch
for 6 position female housing
•
Terminal position assurance (T.P.A.)
•
Connector position assurance (C.P.A.)
•
Colour codings available
4 & 6 position through flange
male connector:
•
Single row 5.25 mm pitch for
4 position male housing
•
Double row 5.25 x 6.40 mm pitch
for 6 position male housing
•
Waterproof application with O-ring
or grommet (for 4 position male
housing only)
•
Colour codings available
4 position low permeation male
connector:
•
Moulded-in 2.8 mm male terminals
•
Single row 5.25 mm pitch
•
Colour codings available
Performance characteristics
•
Temperature range:
from -40°C to +85°C
•
Rear grommet seal:
•
Tab material and plating:
> 90 N
< 30 N
< 75 N
CuFePMg/Sn
Silicone
•
Contact retention force:
•
Contact insertion force:
•
Connector mating force:
Connector compatibility
•
Usable terminals:
Apex 2.8 mm female terminals
Construction
•
Housing material:
- Polyamide for female housing
- POM for fuel male connector
•
O-ring seal:
Part Numbers
54200410
54200402
54200417
54200418
54200419
54200420
54200609
54200601
54200618
54200619
No.
of Position
4
4
4
4
4
4
6
6
6
6
Terminal
size
2.8 mm
2.8 mm
2.8 mm
2.8 mm
2.8 mm
2.8 mm
2.8 mm
2.8 mm
2.8 mm
2.8 mm
Waterproof
Yes
No
Yes (with grommet)
Yes (with grommet)
Yes (with O-ring))
Yes (press-fit)
Yes
No
Yes (with O-ring)
Yes (with O-ring)
Silicone
Type
Female housing
Female housing
Through flange male connector
Through flange male connector
Through flange male connector
Female housing
Female housing
Male fuel connector
Male fuel connector
Colour
Light grey
Light grey
Light grey
Natural
Black
Light grey
Light grey
Black
Light grey
Low permeation male connector Light grey
6.62
Engine Compartment Connectors
Fuel tank connectors
Apex
4 & 6 way sealed connector system for 2.8 mm terminals

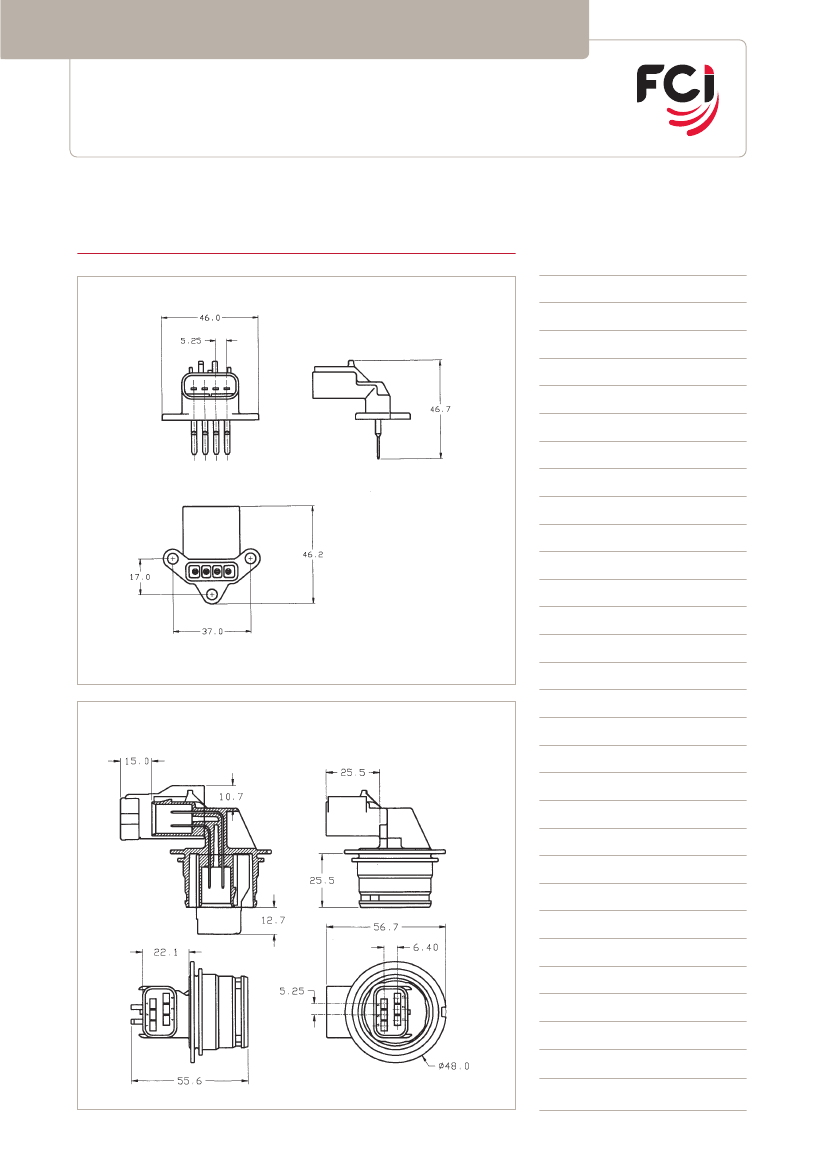

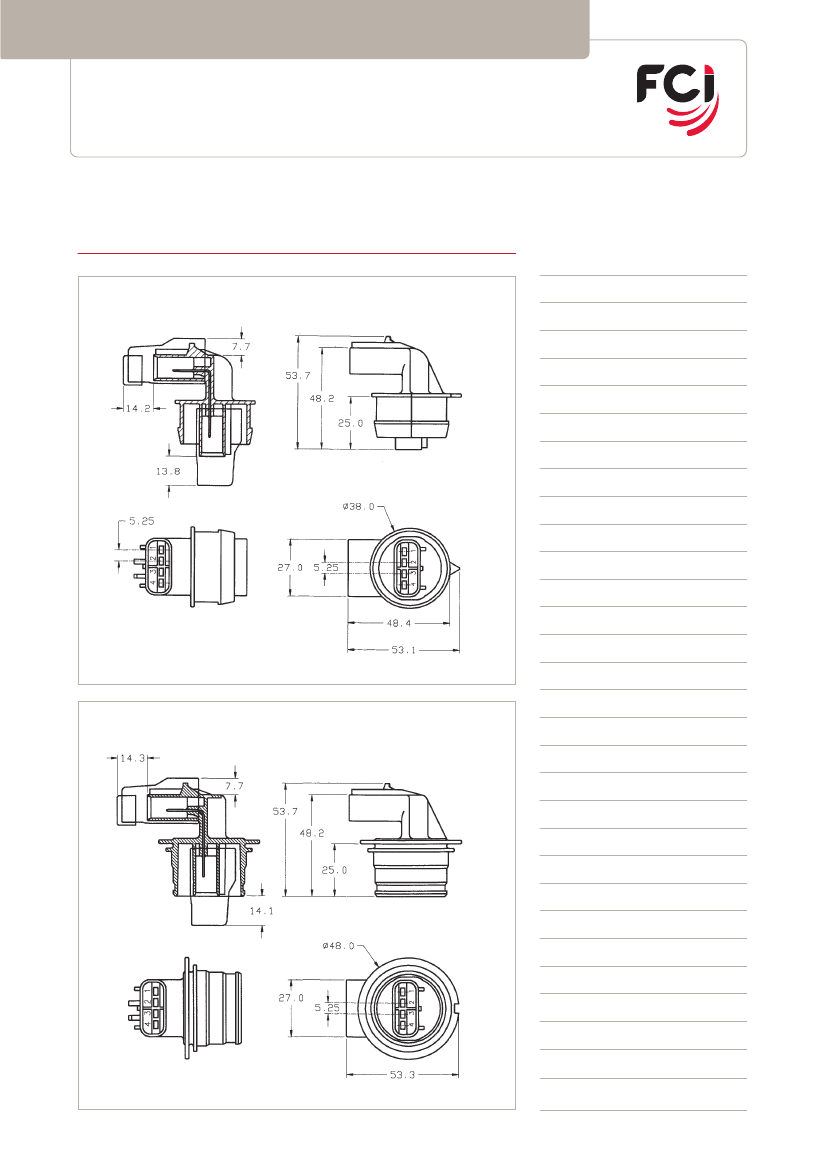

Dimensional characteristics
Notes:
4 way low permeation
6 way fuel tank connectors
6.63
Engine Compartment Connectors
Fuel tank connectors
Apex
4 & 6 way sealed connector system for 2.8 mm terminals
Dimensional characteristics
Notes:
4 way fuel tank connectors (grommet design)
4 way fuel tank connectors (O-ring design)
6.64
Power technology
