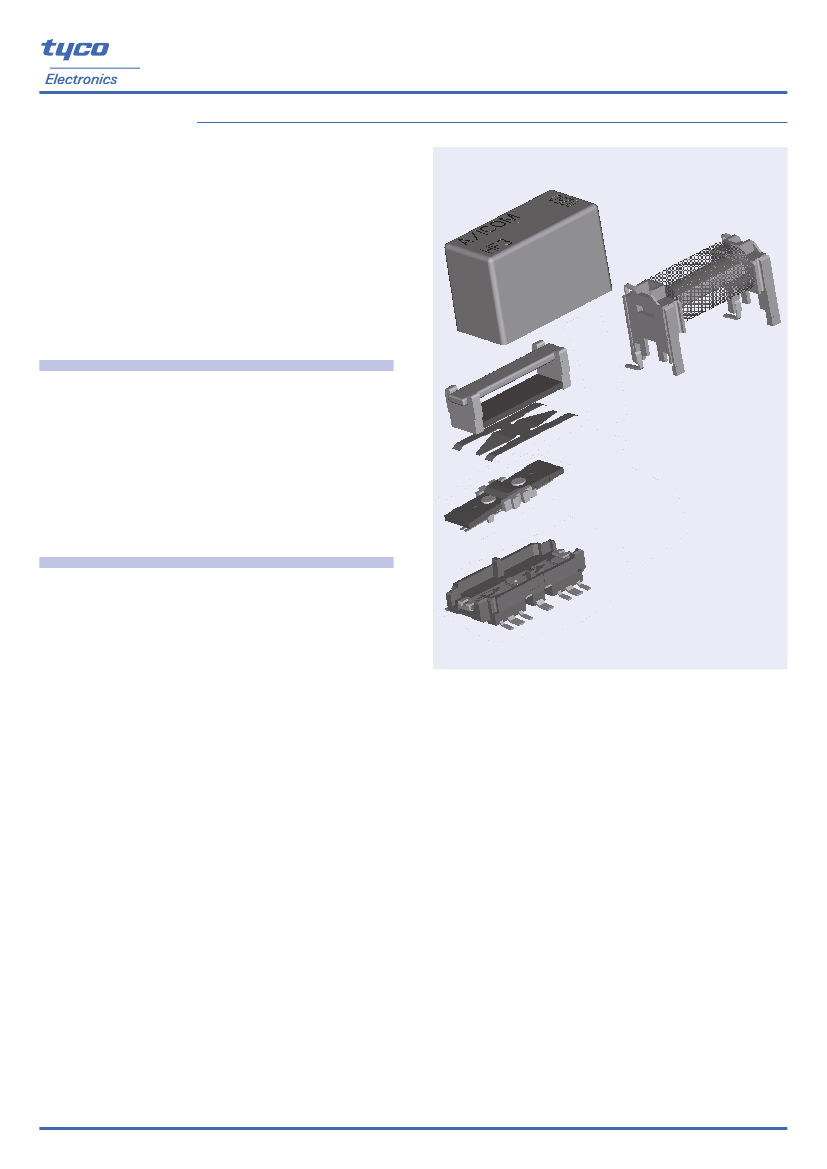

High performance low cost plastic sealed high frequency
relay for 50 and 75 Ohm systems, 1 pole, polarized coil
Surface Mount Technology (SMT)
Relay types:
non latching
latching 1 coil
latching 2 coils
ROHS compliant (Directive 2002/95/EC) all date codes.
Features
•
•
•
•
•
•
•
Y-Design
Frequency range DC to 3 GHz
Impendance 50
Ω
or 75
Ω
Small dimensions (14.6 mm x 7.2 mm x 10 mm)
1 change over contact (1 form C / SPDT)
Immersion cleanable
Low power consumption (≤140 mW)
Typical applications
•
•
•
•
•
Cable modems and linecards/ CATV
TAP's
Measurement and test equipment ATE
Satellite / audio / video tuners
Wireless base stations and antennas
All specifications subject to change. Consult Tyco Electronics for latest specifications.
3 of 1
AXICOM
HF3 Relay

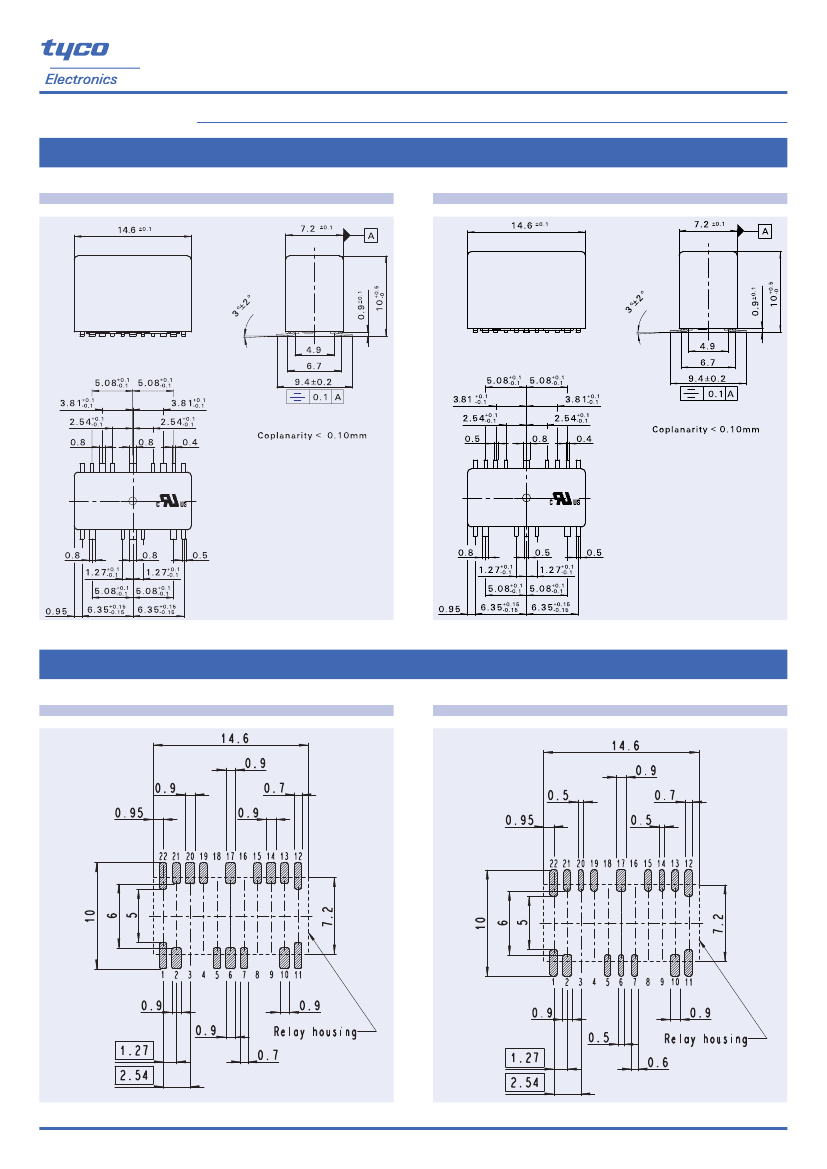

Dimensions
50 Ohm Version
Telecom-, Signal and RF Relays
108-98000 Rev. C
Dimensions in mm
75 Ohm Version
AXICOM
CZECH
HF3 27
24V DC 10640
AXICOM
CZECH
HF3 27
24V DC 10640
Solder pad layout
View onto the component side of the PCB (Top view)
50 Ohm Version
75 Ohm Version
Dimensions in mm
All specifications subject to change. Consult Tyco Electronics for latest specifications.
of 1
AXICOM
HF3 Relay

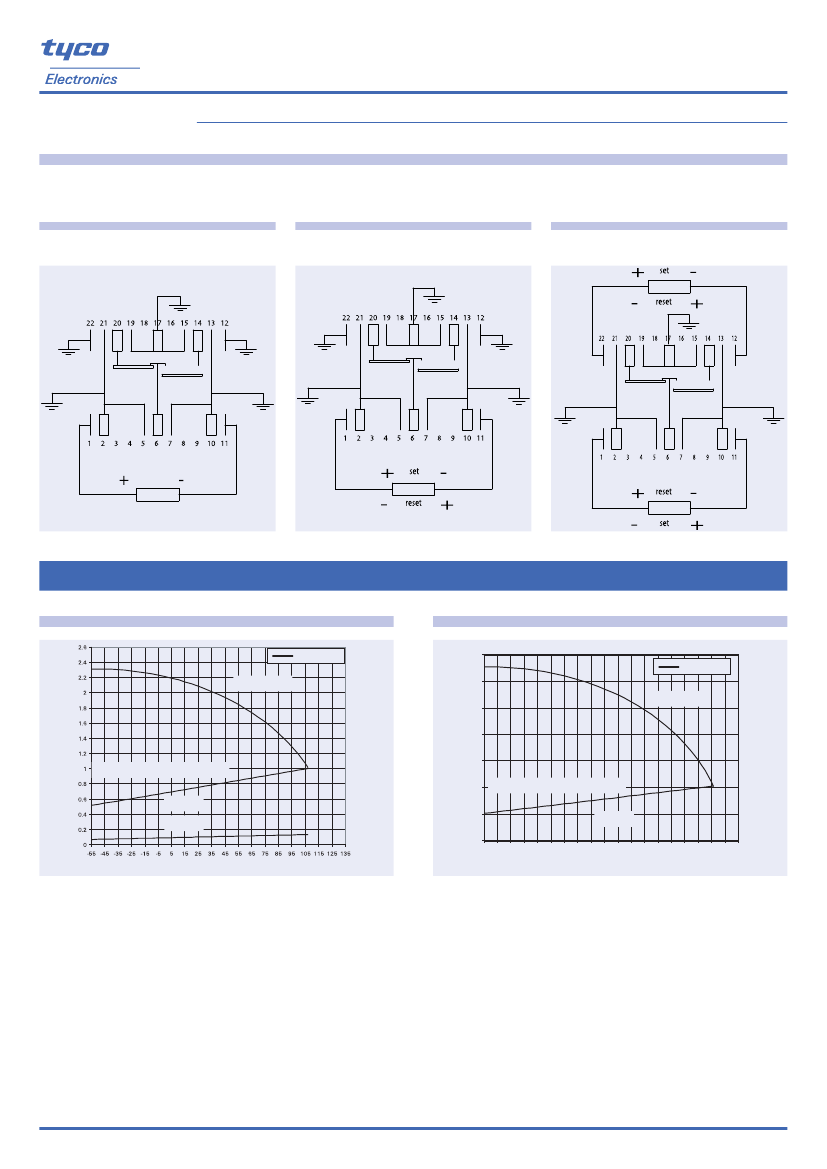

Terminal assignment
Relay top view
Non-latching type,
not energized condition
Telecom-, Signal and RF Relays
108-98000 Rev. C
Latching type, 1 coil
rest condition
Latching type, 2 coils
reset condition
Coil Operating Range
140 mW
140 mW
Coil Voltage [U/U
nom
]
U
max.
at 0 A
Coil Voltage [U/U
nom
]
70 mW
3.5
70 mW
3
2.5
U
max.
at 0 A
2
U
nom.
nominal coil voltage
U
op. min.
U
rel. min.
1.5
1
U
nom.
nominal coil voltage
U
op. min.
-55 -45 -35 -25 -15
-5
5
15 25 35
45 55 65 75 85 95 105 115 125 135
0.5
0
Ambient Temperature [°C]
Ambient Temperature [°C]
U
nom
=
U
max.
=
Nominal coil voltage
Upper limit of the operative range of
the coil voltage (limiting voltage)
U
op. min.
= Lower limit of the operative range of
the coil voltage (reliable operate voltage)
For latching relays U
set min.
resp. U
reset
min.
U
rel. min.
= Lower limit of the operative range of
the coil voltage (reliable release voltage)
All specifications subject to change. Consult Tyco Electronics for latest specifications.
