521204-6 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 521204-6

521204-6: DescriptionCombination Line Connector, 2 Contact(s), Female, Crimp Terminal, Receptacle; CategoryThe connector The connector; File Size69KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric Compare View All

521204-6 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	521204-6	-	-	View	Buy Now

521204-6 Overview

Combination Line Connector, 2 Contact(s), Female, Crimp Terminal, Receptacle

521204-6 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	1747176513
Reach Compliance Code	compliant
Samacsys Description	RAST 5,HSG,2P,POSILOCK MKIII
Samacsys Manufacturer	TE Connectivity
Samacsys Modified On	2020-10-11 10:54:34
body width	0.362 inch
subject depth	0.48 inch
body length	0.362 inch
Body/casing type	RECEPTACLE
Connector type	COMBINATION LINE CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	NOT APPLICABLE
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
DIN compliance	NO
Electromagnetic interference shielding	NO
empty shell	YES
Filter function	NO
IEC compliance	NO
Insulator color	BLUE
insulator material	POLYAMIDE66
MIL compliance	NO
Power Connector Ratings	115/230VAC
Match contact row spacing	0.197 inch
Mixed contacts	NO
Installation option 2	LATCHING
Installation type	CABLE
Number of connectors	ONE
Number of ports	1
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
Panel mounting	NO
polarization key	POLARIZED
Guideline	UL
Terminal pitch	5 mm
Termination type	CRIMP
Total number of contacts	2
UL Flammability Code	94V-0

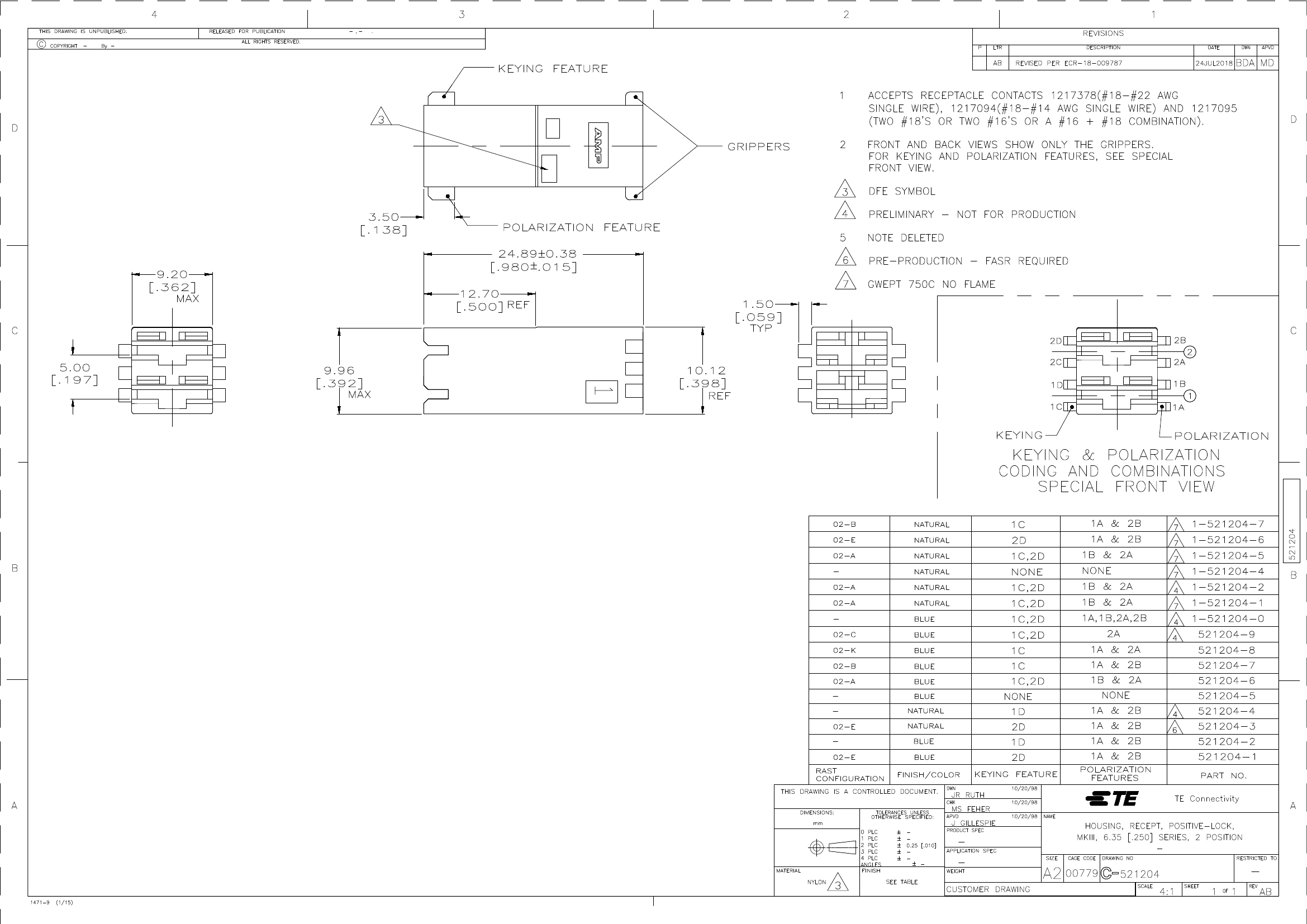

Preview

Download Datasheet

View All

521204-6 Related Products

	521204-6	521204-2	521204-1	1-521204-1
Description	Combination Line Connector, 2 Contact(s), Female, Crimp Terminal, Receptacle	HSG RCPT POSI MK 111 250 2POS	POSI-LOK HSG.250-2 POS RAST5	Combination Line Connector, 2 Contact(s), Female, Crimp Terminal, Receptacle
Is it Rohs certified?	conform to	conform to	conform to	conform to
Objectid	1747176513	1747176509	1747176508	1747176471
Reach Compliance Code	compliant	compliant	compliant	compliant
Samacsys Description	RAST 5,HSG,2P,POSILOCK MKIII	HSG RCPT POSI MK 111 250 2POS	POSI-LOK HSG.250-2 POS RAST5	RAST 5,HSG,2P,GWT POSILOCK MKI
Samacsys Manufacturer	TE Connectivity	TE Connectivity	TE Connectivity	TE Connectivity
Samacsys Modified On	2020-10-11 10:54:34	2020-10-11 10:54:44	2020-10-11 10:54:34	2020-10-11 10:54:34
body width	0.362 inch	0.362 inch	0.362 inch	0.362 inch
subject depth	0.48 inch	0.48 inch	0.48 inch	0.48 inch
body length	0.362 inch	0.362 inch	0.362 inch	0.362 inch
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	COMBINATION LINE CONNECTOR	COMBINATION LINE CONNECTOR	COMBINATION LINE CONNECTOR	COMBINATION LINE CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Contact completed and terminated	NOT APPLICABLE	NOT APPLICABLE	NOT APPLICABLE	NOT APPLICABLE
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE
Contact material	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
DIN compliance	NO	NO	NO	NO
Electromagnetic interference shielding	NO	NO	NO	NO
empty shell	YES	YES	YES	YES
Filter function	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO
Insulator color	BLUE	BLUE	BLUE	NATURAL
insulator material	POLYAMIDE66	POLYAMIDE66	POLYAMIDE66	POLYAMIDE6
MIL compliance	NO	NO	NO	NO
Power Connector Ratings	115/230VAC	115/230VAC	115/230VAC	115/230VAC
Match contact row spacing	0.197 inch	0.197 inch	0.197 inch	0.197 inch
Mixed contacts	NO	NO	NO	NO
Installation option 2	LATCHING	LATCHING	LATCHING	LATCHING
Installation type	CABLE	CABLE	CABLE	CABLE
Number of connectors	ONE	ONE	ONE	ONE
Number of ports	1	1	1	1
Number of rows loaded	1	1	1	1
Maximum operating temperature	105 °C	105 °C	105 °C	105 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Panel mounting	NO	NO	NO	NO
polarization key	POLARIZED	POLARIZED	POLARIZED	POLARIZED
Guideline	UL	UL	UL	UL
Terminal pitch	5 mm	5 mm	5 mm	5 mm
Termination type	CRIMP	CRIMP	CRIMP	CRIMP
Total number of contacts	2	2	2	2
UL Flammability Code	94V-0	94V-0	94V-0	94V-2
