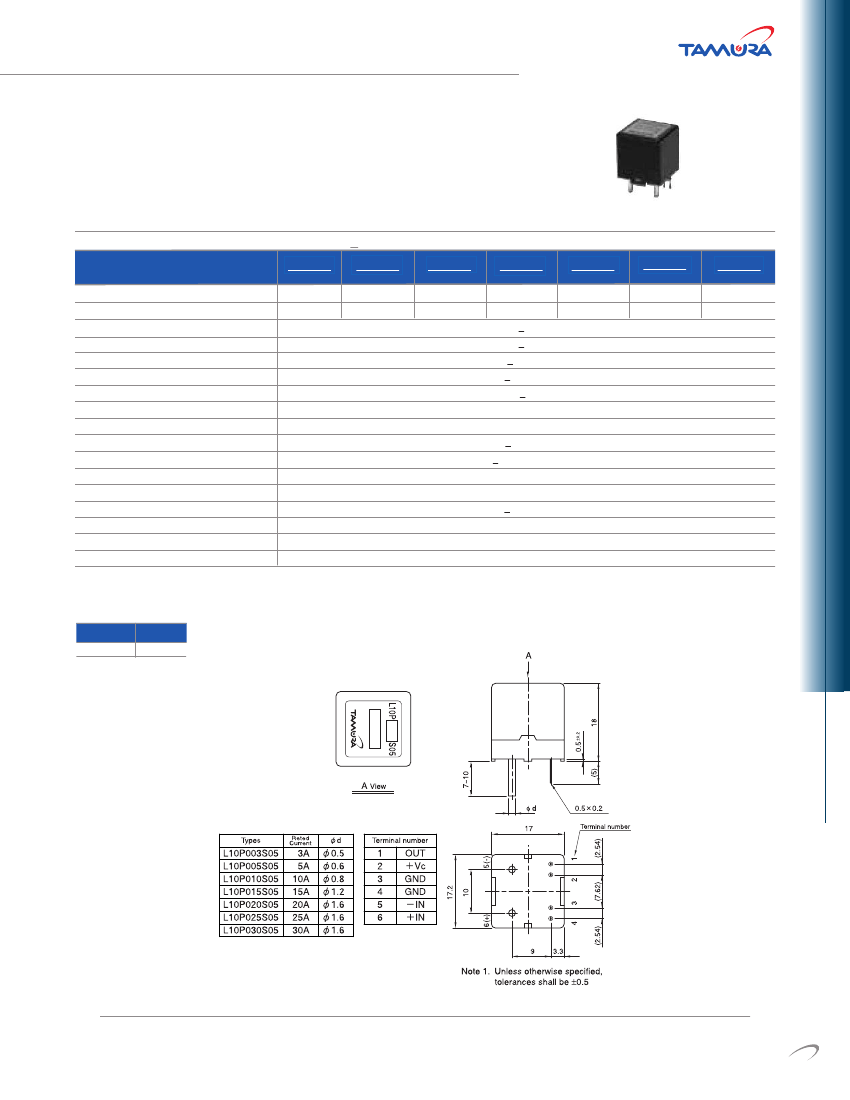

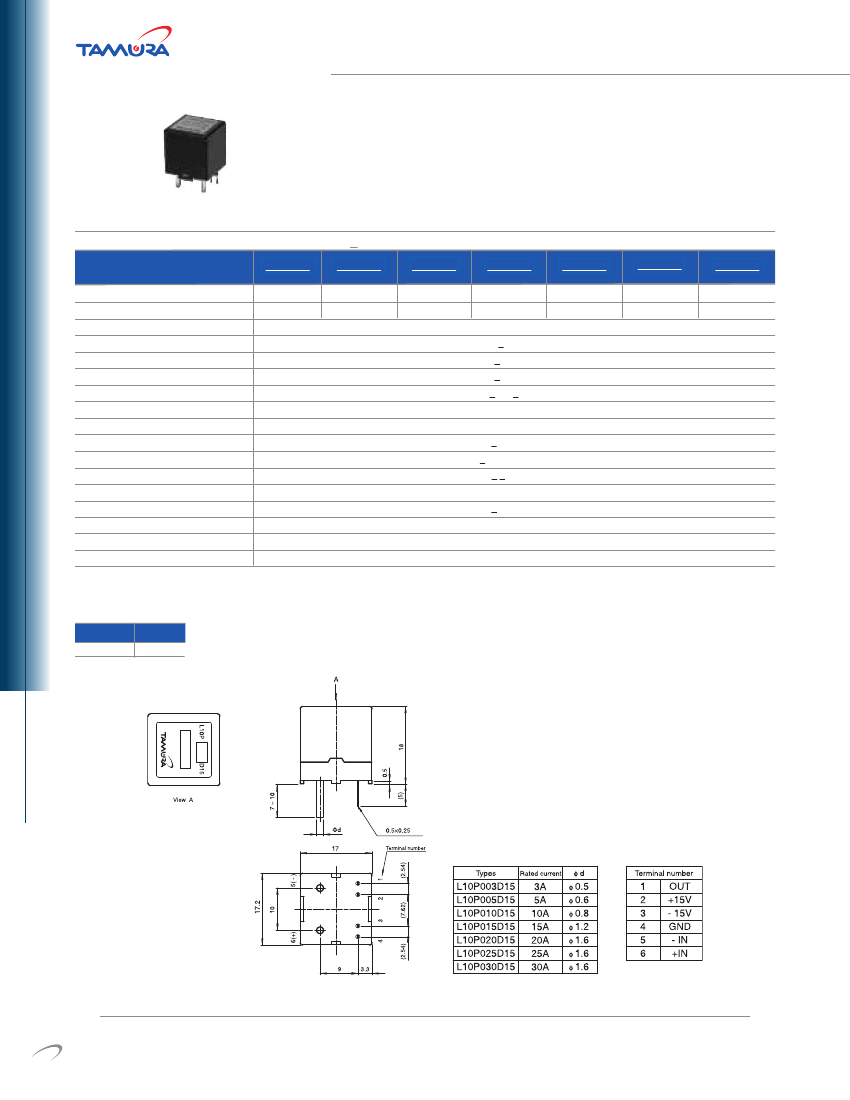

Hall Effect Current Sensors
3 to 30 Amp Applications –– Open Loop
• Compact PCB Mount Design
• Voltage Output type
• Withstanding Voltage of 2500 Vrms
• Very High Linearity
• ±15V Supply Voltage
• CE EN50178 (pending)
Specifications Measured at 25˚C, RL-10K
,
Vcc=+15V
Specification
Nominal Primary DC Current
Maximum Current
Output Voltage @ If
Offset Voltage
Accuracy @ If
2
Output Linearity
2
(O..If Max)
Power Supply
Response Time
Current Consumption
Output Temperature Characteristic
Offset Temperature Characteristic
Hysteresis Allowance @ If=O
Withstand Voltage (50/60Hz)
Insulation Resistance @ 500VDC
Operating Bandwidth
1
(-3dB)
Operating Temperature
Storage Temperature
1
2
L10P003D15
(If)
If
(max)
V
OUT
V
OE
X
E
L
Vcc
T
r
Ic
TCE
G
V
OT
V
OH
V
d
R
IS
f
T
A
T
S
3A
9A
L10P005D15
5A
15A
L10P010D15
10A
30A
L10P015D15
15A
45A
4V
<+ 40mV
<+ 1% of If
<+ 1% of If
+ 15V +5%
<5µs
12mA typ
<+ 0.1% / ˚C
+ 1.2mV / ˚C typ
< + 25mV
L10P020D15
20A
60A
L10P025D15
25A
75A
L10P030D15
30A
90A
2,000VACrms for 1 minute (Sensing Current 0.5mA)
> 500M
DC - 50kHz
-10 - +80˚C
-20 - +85˚C
Small signal only; derating needed to avoid excessive core heating at high frequency
Without offset
Package & Weight Information
QTY/Box
100
Weight/each(g)
10
Current Sense Products
TA M U R A C O R P O R AT I O N
43352 Business Park Drive. |
P.O. Box 892230 Temecula, CA 92589-2230 | www.tamuracorp.com
United Kingdom
Tel: 44 (0) 1380 731 700
Fax: 44 (0) 1380 731 702
Hong Kong
Tel: 852-2389-4321
Fax: 852-2341-9689
USA
Tel: 800-872-6624
Fax: 909-676-9482
Japan
Tel: 81 (0)3 3978-2111
Fax: 81 (0)3 3923-0230
77
Hall Effect Current Sensors
3 to 30 Amp Applications –– Open Loop
• Compact PCB Mount Design
• Voltage Output type
• Withstanding Voltage of 2500 Vrms
• Very High Linearity
• 5V Supply Voltage
• CE EN50178 (pending)
Specifications Measured at 25˚C, RL-10K
,
Vcc=+5V Vref = Vcc/2
Specification
Nominal Primary DC Current
Maximum Current
Output Voltage @ If
Offset Voltage
Accuracy @ If
2
Output Linearity
2
(0..If MAX)
Power Supply
Response Time
Current Consumption
Output Temperature Characteristic
Offset Temperature Characteristic
Hysteresis Allowance @ If=O
Withstand Voltage (50/60Hz)
Insulation Resistance @ 500VDC
Operating Bandwidth
1
(-3dB)
Operating Temperature
Storage Temperature
1
w w w. t a m u r a c o r p . c o m
L10P003S05
(If)
If
(max)
V
OUT
V
OE
X
E
L
Vcc
t
r
Ic
TCE
G
V
OT
V
OH
V
d
R
IS
f
T
A
T
S
3A
3.75A
L10P005S05
5A
6.25A
L10P010S05
10A
12.5A
L10P015S05
15A
18.75A
Vref + 1.5V
2.5V +35mV
<+ 1% of If
+ 1% of If
5V +2%
<5µs
15mA typ
<+ 2mV / ˚C
+ 1.2mV / ˚C typ
8mV Max
L10P020S05
20A
25A
L10P025S05
25A
31.25A
L10P030S05
30A
37.5A
2,000VACrms for 1 minute (Sensing Current 0.5mA)
> 500M
DC - 50kHz
-10 - +80˚C
-15 - +85˚C
Small signal only;
derating needed to avoid excessive core heating at high frequency
Without offset
2
Package & Weight Information
QTY/Box
100
Weight/each(g)
10
Current Sense Products
TA M U R A C O R P O R AT I O N
43352 Business Park Drive. |
USA
Tel: 800-872-6624
Fax: 909-676-9482
P.O. Box 892230 Temecula, CA 92589-2230 | www.tamuracorp.com
United Kingdom
Tel: 44 (0) 1380 731 700
Fax: 44 (0) 1380 731 702
Hong Kong
Tel: 852-2389-4321
Fax: 852-2341-9689
Japan
Tel: 81 (0)3 3978-2111
Fax: 81 (0)3 3923-0230
78

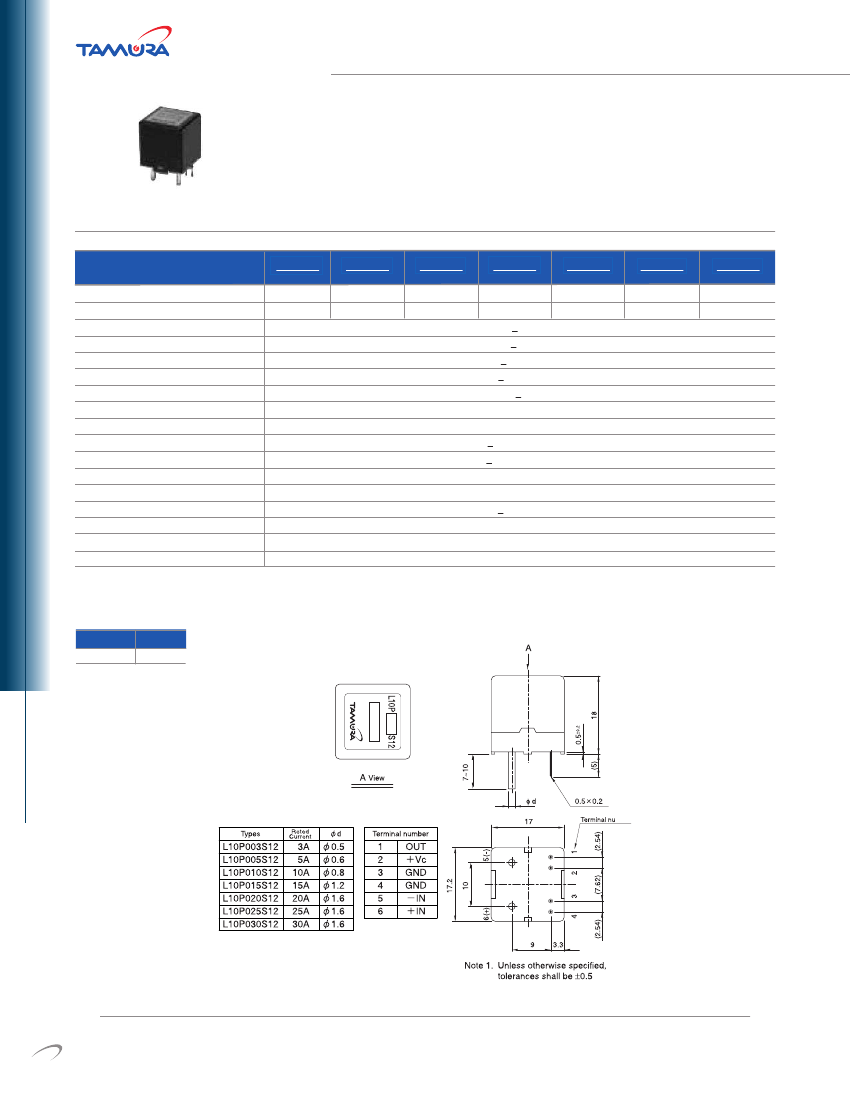

w w w. t a m u r a c o r p . c o m
Hall Effect Current Sensors
3 to 30 Amp Applications –– Open Loop
• Compact PCB Mount Design
• Voltage Output type
• Withstanding Voltage of 2500 Vrms
• Very High Linearity
• 12V Supply Voltage
• CE EN50178 (pending)
Specifications Measured at 25˚C, RL-10K
,
Vcc=+12V Vref = 2.5V
Specification
Nominal Primary DC Current
Maximum Current
Output Voltage @ If
Offset Voltage
Accuracy @ If
2
Output Linearity
2
(0..If MAX)
Power Supply
Response Time
Current Consumption
Output Temperature Characteristic
Offset Temperature Characteristic
Hysteresis Allowance @ If=O
Withstand Voltage (50/60Hz)
Insulation Resistance @ 500VDC
Operating Bandwidth
1
(-3dB)
Operating Temperature
Storage Temperature
1
L10P003S12
(If)
If
(max)
V
OUT
V
OE
X
E
L
Vcc
t
r
Ic
TCE
G
V
OT
V
OH
V
d
R
IS
f
T
A
T
s
3A
3.75A
L10P005S12
5A
6.25A
L10P010S12
10A
12.5A
L10P015S12
15A
18.75A
Vref + 1.5V
2.5V + 35mV
<+ 1% of If
+ 1% of If
12V +5%
<5µs
<20mA
+ 2mV / ˚C max
+ 1.2mV / ˚C typ
8mV max
L10P020S12
20A
25A
L10P025S12
25A
31.25A
L10P030S12
30A
37.5A
2,000VACrms for 1 minute (faradic current 0.5mA)
> 500M
DC - 50kHz
-10 - +80˚C
-15- +85˚C
Small signal only;
derating needed to avoid excessive core heating at high frequency
Without offset
2
Package & Weight Information
QTY/Box
100
Weight/each(g)
10
Current Sense Products
TA M U R A C O R P O R AT I O N
43352 Business Park Drive. |
P.O. Box 892230 Temecula, CA 92589-2230 | www.tamuracorp.com
United Kingdom
Tel: 44 (0) 1380 731 700
Fax: 44 (0) 1380 731 702
Hong Kong
Tel: 852-2389-4321
Fax: 852-2341-9689
USA
Tel: 800-872-6624
Fax: 909-676-9482
Japan
Tel: 81 (0)3 3978-2111
Fax: 81 (0)3 3923-0230
79

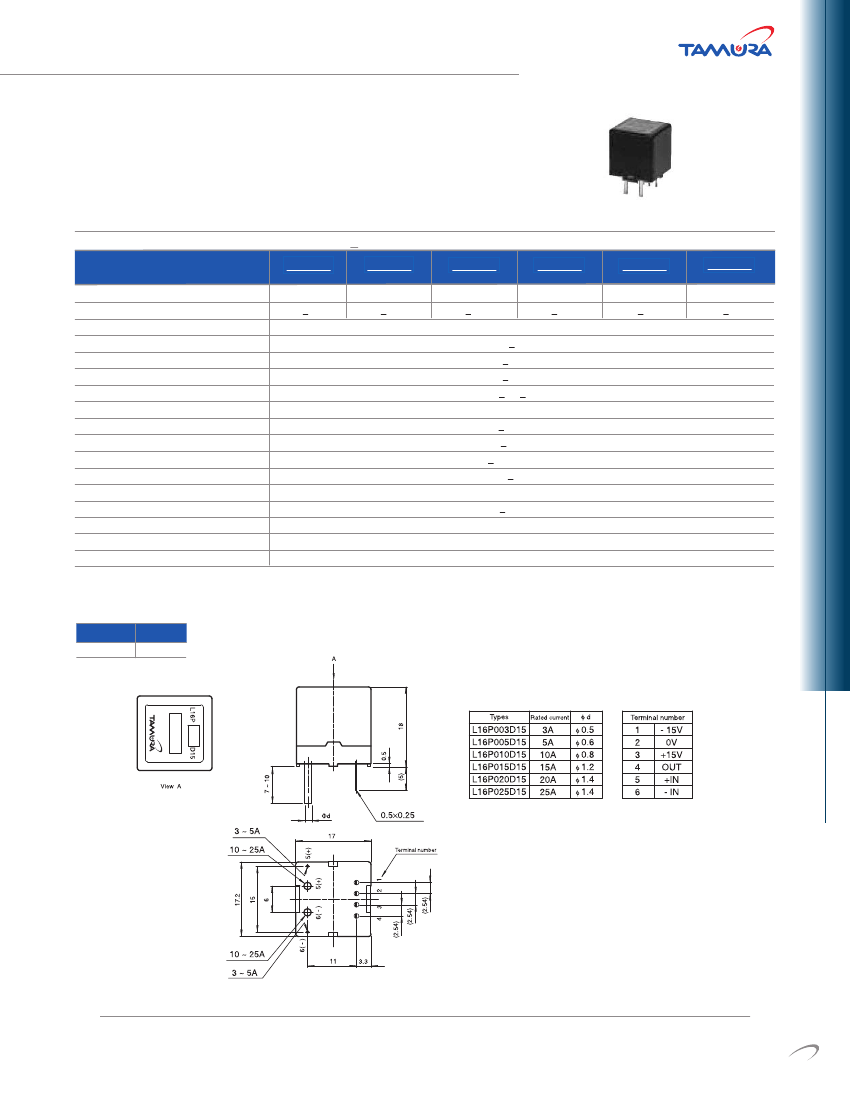

Hall Effect Current Sensors
3 to 25 Amp Applications –– Open Loop
• Compact PCB Mount Design
• Voltage Output type
• Very High Linearity
• 15V Supply Voltage
• CE EN50178 (pending)
Specifications Measured at 25˚C, RL-10K
,
Vcc=+15V
Specification
Nominal Primary DC Current
Maximum Current
Output Voltage @ If
Offset Voltage
Accuracy @ If
2
Output Linearity
2
(0..If MAX)
Power Supply
Response Time
Current Consumption
Output Temperature Characteristic
Offset Temperature Characteristic
Hysteresis Allowance @ If=O
Withstand Voltage (50/60Hz)
Insulation Resistance @ 500VDC
Operating Bandwidth
1
(-3dB)
Operating Temperature
Storage Temperature
1
w w w. t a m u r a c o r p . c o m
L16P003D15
(If)
If
(max)
V
OUT
V
OE
X
E
L
Vcc
t
r
Ic
TCE
G
V
OT
V
OH
V
d
R
IS
f
T
A
T
s
3A
+9
L16P005D15
5A
+15
L16P010D15
10A
+30
4V
< +40mV
L16P015D15
15A
+45
L16P020D15
20A
+60
L16P025D15
25A
+75
<+ 1% of If
<+ 1% of If
+15V +5%
<5µs
+12mA typ
<+0.1% / ˚C
+ 1.2mV / ˚C typ
<+25mV
2,000VACrms for 1 minute (Sensing Current 0.5mA)
> 500M
DC - 35kHz
-10 - +80˚C
-20 - +85˚C
Small signal only;
derating needed to avoid excessive core heating at high frequency
Without offset
2
Package & Weight Information
QTY/Box
100
Weight/each(g)
10
Current Sense Products
TA M U R A C O R P O R AT I O N
43352 Business Park Drive. |
USA
Tel: 800-872-6624
Fax: 909-676-9482
P.O. Box 892230 Temecula, CA 92589-2230 | www.tamuracorp.com
United Kingdom
Tel: 44 (0) 1380 731 700
Fax: 44 (0) 1380 731 702
Hong Kong
Tel: 852-2389-4321
Fax: 852-2341-9689
Japan
Tel: 81 (0)3 3978-2111
Fax: 81 (0)3 3923-0230
80
w w w. t a m u r a c o r p . c o m

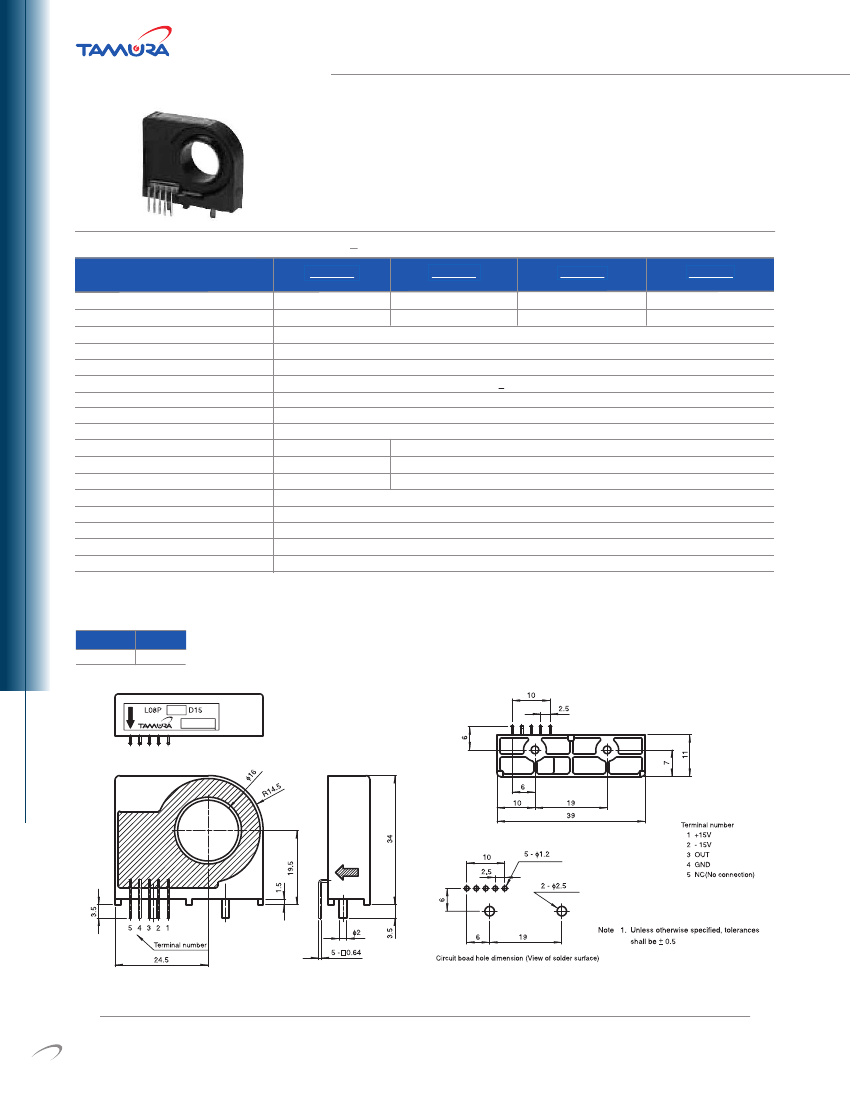

Hall Effect Current Sensors
50 to 200 Amp Applications –– Open Loop
• Compact PCB Mount Design
• Voltage Output type
• CE EN50178 (pending)
Specifications Measured at 25˚C, RL-10K
,
Vcc=+15V
Specification
Nominal Primary DC Current
Maximum Current
Output Voltage @ If
Offset Voltage
Accuracy @
If
2
Output Linearity
2
(0..If MAX)
Power Supply
Response Time
Current Consumption
Output Temperature Characteristic
Offset Temperature Characteristic
Hysteresis Allowance @ If=O
Withstand Voltage (50/60Hz)
Insulation Resistance @ 500VDC
Operating Bandwidth (-3dB)
1
L08P050D15
(If)
If
(max)
V
OUT
V
OE
X
E
L
Vcc
t
r
Ic
TCE
G
V
OT
V
OH
V
d
R
IS
f
T
A
T
s
<±0.1% / °C
<±2mV / °C
< ±30mV
50AT
±150AT
L08P100D15
100AT
±300AT
4V
<±40mV
±1% of If
<±1% of If
±15V±5%
<10µ Sec
12mA typ
<±0.05% / °C
<±1mV / °C
<± 20mV
L08P150D15
150AT
±350AT
L08P200D15
200AT
±350AT
2,500VACrms for 1 minute (Sensing Current 0.5mA)
≥500M
DC - 50kHz
-10 - +80˚C
-20 - +85°C
Operating Temperature
Storage Temperature
1
Small signal only;
derating needed to avoid excessive core heating at high frequency
Without offset
2
Package & Weight Information
QTY/Box
50
Weight/each(g)
25
Current Sense Products
TA M U R A C O R P O R AT I O N
43352 Business Park Drive. |
P.O. Box 892230 Temecula, CA 92589-2230 | www.tamuracorp.com
United Kingdom
Tel: 44 (0) 1380 731 700
Fax: 44 (0) 1380 731 702
Hong Kong
Tel: 852-2389-4321
Fax: 852-2341-9689
USA
Tel: 800-872-6624
Fax: 909-676-9482
Japan
Tel: 81 (0)3 3978-2111
Fax: 81 (0)3 3923-0230
