Datasheet> All Categories > logic> logic> DV74HCT86N

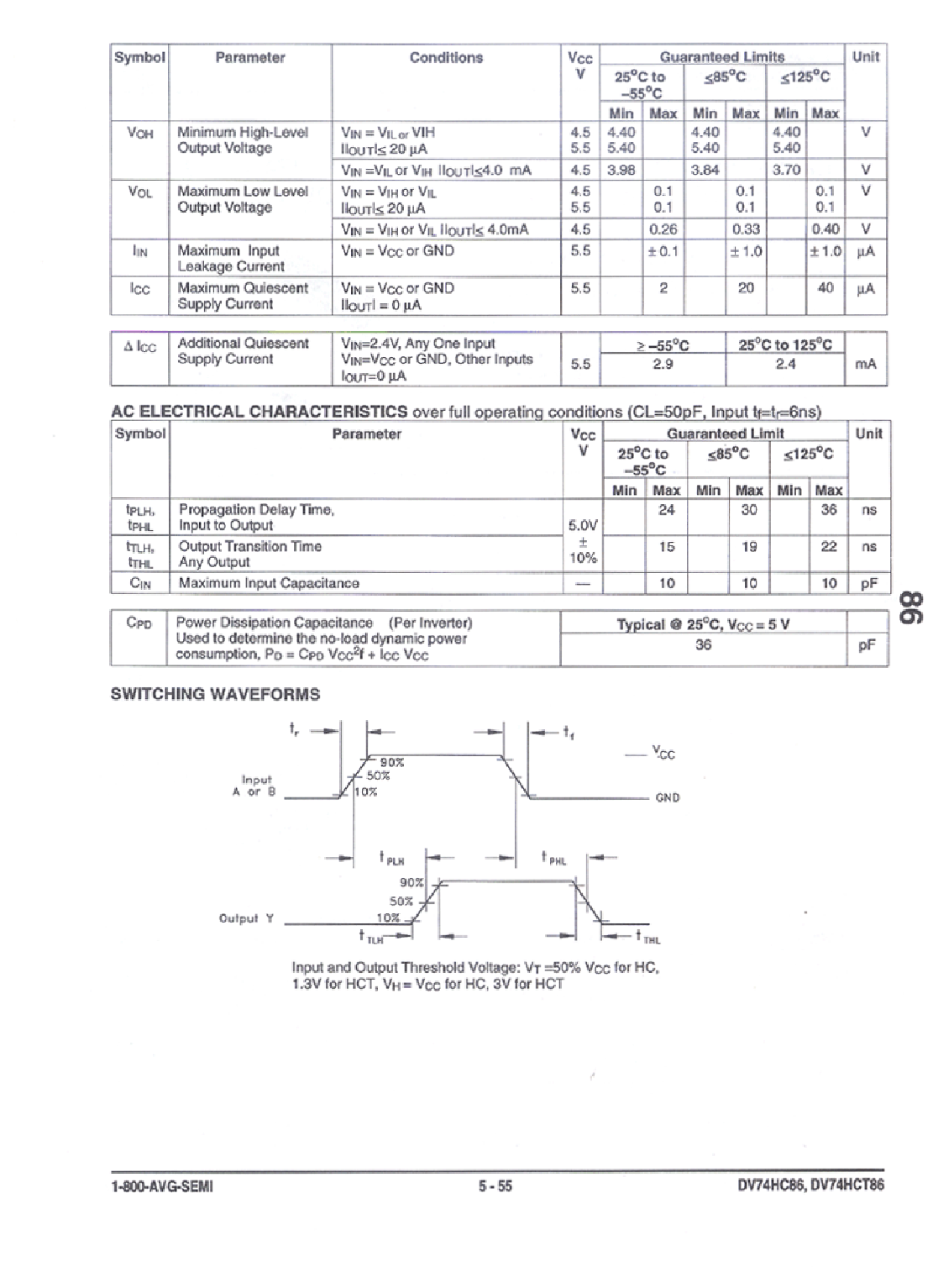

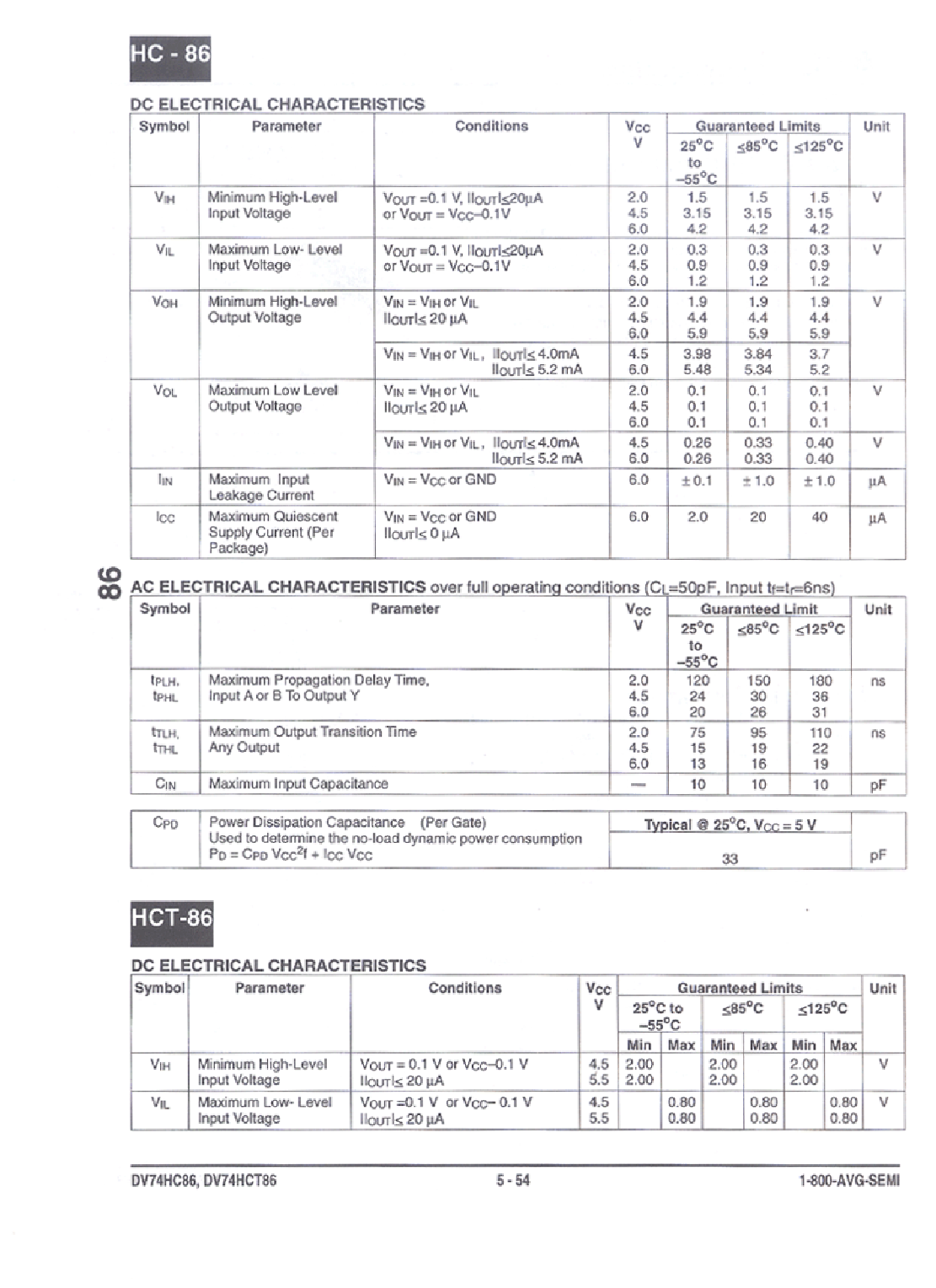

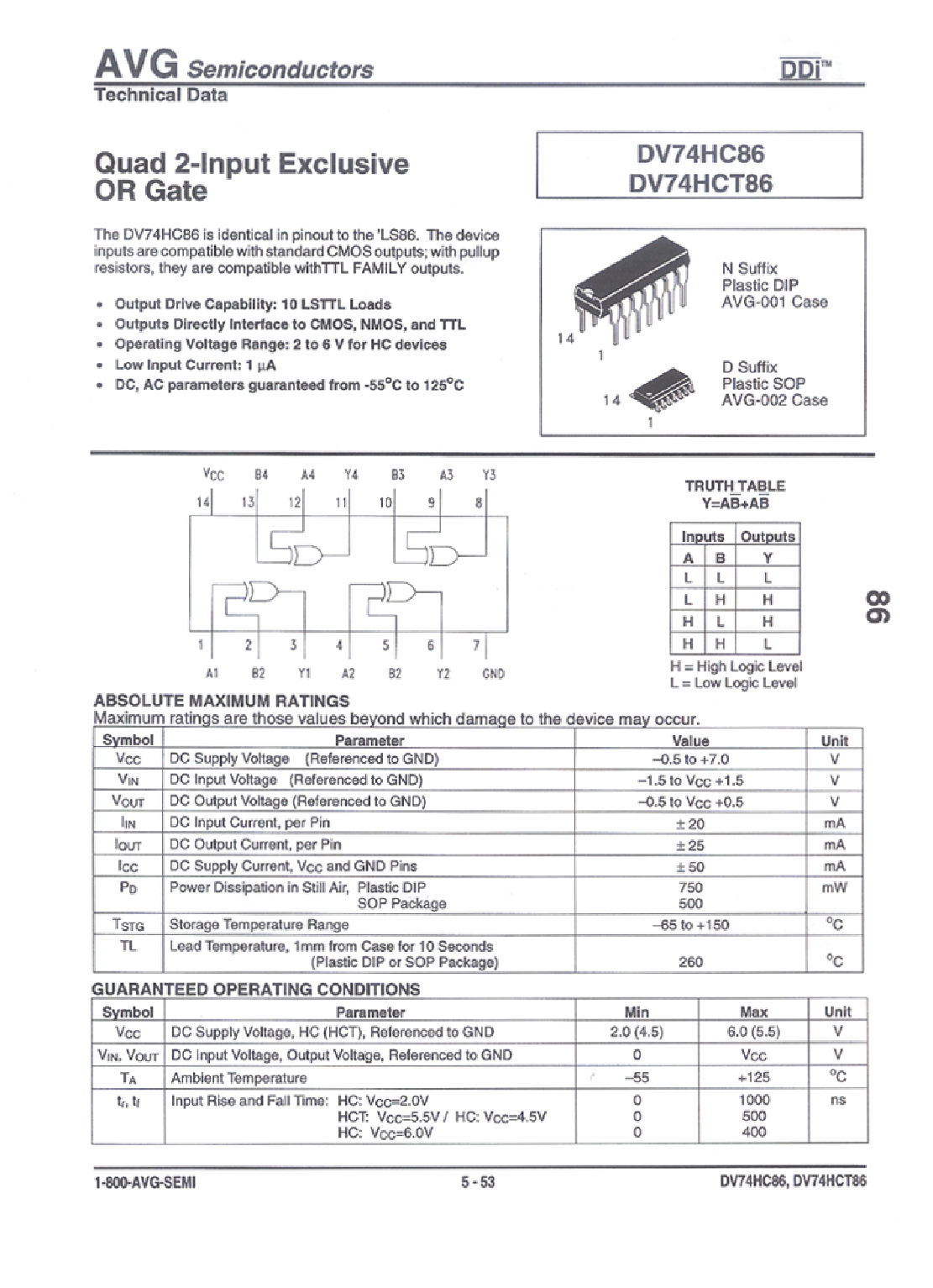

Preview

DV74HCT86N: DescriptionXOR Gate, HCT Series, 4-Func, 2-Input, CMOS, PDIP14, PLASTIC, DIP-14; Categorylogic logic; File Size497KB，3 Pages; ManufacturerAVG [AVG Semiconductors(HITEK)]

Download Datasheet Parametric Compare View All

DV74HCT86N Overview

XOR Gate, HCT Series, 4-Func, 2-Input, CMOS, PDIP14, PLASTIC, DIP-14

DV74HCT86N Parametric

Parameter Name	Attribute value
Maker	AVG [AVG Semiconductors(HITEK)]
Parts packaging code	DIP
package instruction	DIP, DIP14(UNSPEC)
Contacts	14
Reach Compliance Code	unknown
series	HCT
JESD-30 code	R-PDIP-T14
length	18.86 mm
Load capacitance (CL)	50 pF
Logic integrated circuit type	XOR GATE
MaximumI(ol)	0.004 A
Number of functions	4
Number of entries	2
Number of terminals	14
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP14(UNSPEC)
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	5 V
Prop。Delay @ Nom-Sup	36 ns
propagation delay (tpd)	36 ns
Certification status	Not Qualified
Schmitt trigger	NO
Maximum seat height	4.69 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
width	7.62 mm
Base Number Matches	1

Preview

Download Datasheet

View All

DV74HCT86N Related Products

	DV74HCT86N	DV74HCT86D	DV74HC86D	DV74HC86N
Description	XOR Gate, HCT Series, 4-Func, 2-Input, CMOS, PDIP14, PLASTIC, DIP-14	XOR Gate, HCT Series, 4-Func, 2-Input, CMOS, PDSO14, PLASTIC, SOP-14	XOR Gate, HC/UH Series, 4-Func, 2-Input, CMOS, PDSO14, PLASTIC, SOP-14	XOR Gate, HC/UH Series, 4-Func, 2-Input, CMOS, PDIP14, PLASTIC, DIP-14
Parts packaging code	DIP	SOIC	SOIC	DIP
package instruction	DIP, DIP14(UNSPEC)	SOP, SOP14(UNSPEC)	SOP, SOP14(UNSPEC)	DIP, DIP14(UNSPEC)
Contacts	14	14	14	14
Reach Compliance Code	unknown	unknown	unknown	unknown
Maker	AVG [AVG Semiconductors(HITEK)]	AVG [AVG Semiconductors(HITEK)]	-	AVG [AVG Semiconductors(HITEK)]
series	HCT	-	HC/UH	HC/UH
JESD-30 code	R-PDIP-T14	-	R-PDSO-G14	R-PDIP-T14
length	18.86 mm	-	8.65 mm	18.86 mm
Load capacitance (CL)	50 pF	-	50 pF	50 pF
Logic integrated circuit type	XOR GATE	-	XOR GATE	XOR GATE
MaximumI(ol)	0.004 A	-	0.004 A	0.004 A
Number of functions	4	-	4	4
Number of entries	2	-	2	2
Number of terminals	14	-	14	14
Maximum operating temperature	125 °C	-	125 °C	125 °C
Minimum operating temperature	-55 °C	-	-55 °C	-55 °C
Package body material	PLASTIC/EPOXY	-	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	-	SOP	DIP
Encapsulate equivalent code	DIP14(UNSPEC)	-	SOP14(UNSPEC)	DIP14(UNSPEC)
Package shape	RECTANGULAR	-	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	-	SMALL OUTLINE	IN-LINE
power supply	5 V	-	2/6 V	2/6 V
Prop。Delay @ Nom-Sup	36 ns	-	36 ns	36 ns
propagation delay (tpd)	36 ns	-	180 ns	180 ns
Certification status	Not Qualified	-	Not Qualified	Not Qualified
Schmitt trigger	NO	-	NO	NO
Maximum seat height	4.69 mm	-	1.75 mm	4.69 mm
Maximum supply voltage (Vsup)	5.5 V	-	6 V	6 V
Minimum supply voltage (Vsup)	4.5 V	-	2 V	2 V
Nominal supply voltage (Vsup)	5 V	-	4.5 V	4.5 V
surface mount	NO	-	YES	NO
technology	CMOS	-	CMOS	CMOS
Temperature level	MILITARY	-	MILITARY	MILITARY
Terminal form	THROUGH-HOLE	-	GULL WING	THROUGH-HOLE
Terminal pitch	2.54 mm	-	1.27 mm	2.54 mm
Terminal location	DUAL	-	DUAL	DUAL
width	7.62 mm	-	3.9 mm	7.62 mm
Base Number Matches	1	1	1	-
