5SDD33L5000 datasheet, PDF - EEWORLD Datasheet

5SDD33L5000: DescriptionRectifier Diode, 1 Phase, 1 Element, 3300A, 4000V V(RRM), Silicon, L, 2 PIN; CategoryDiscrete semiconductor diode; File Size357KB，4 Pages; ManufacturerABB; Websitehttp://www.abb.com/

Download Datasheet Parametric Compare View All

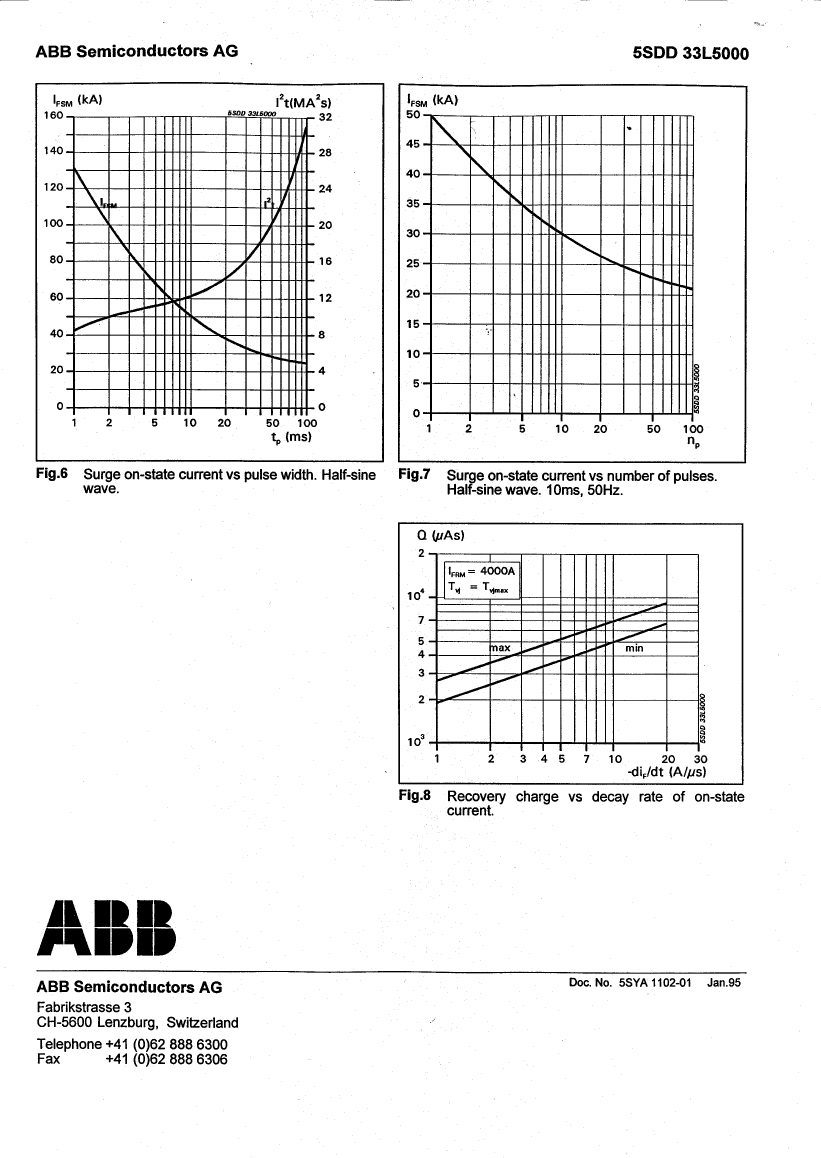

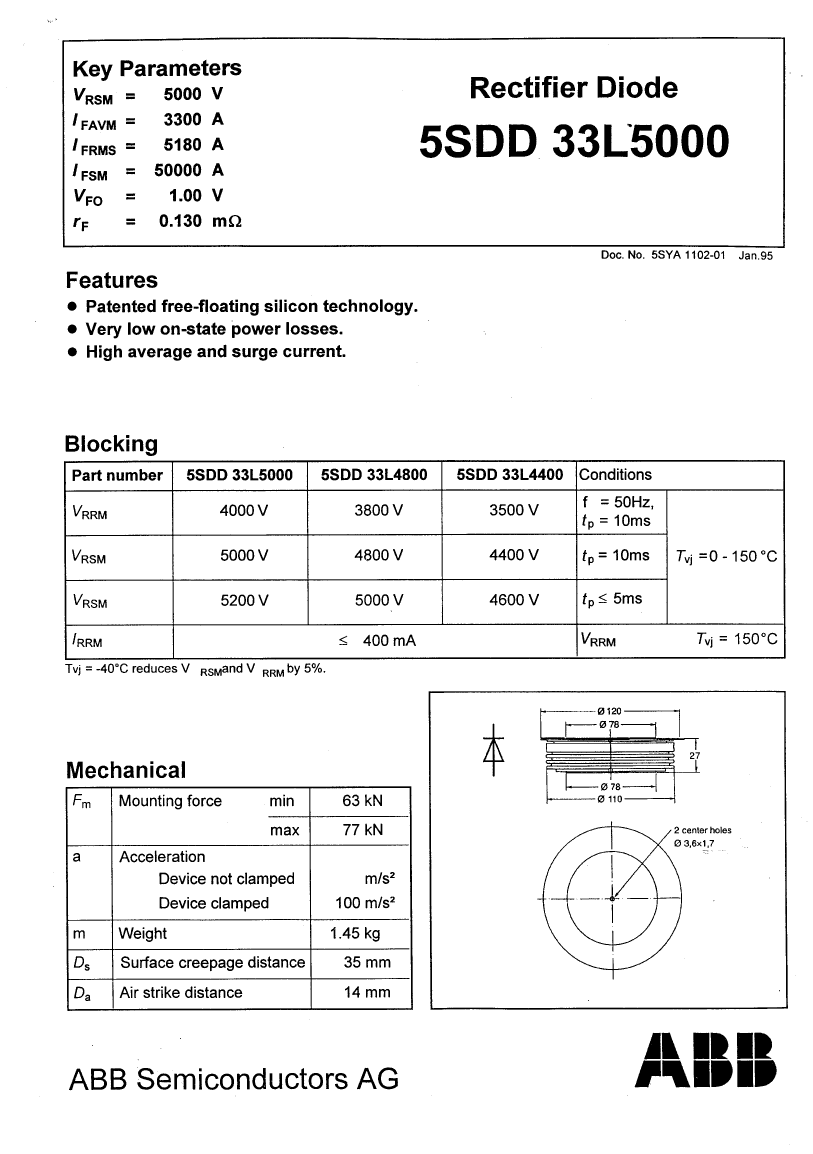

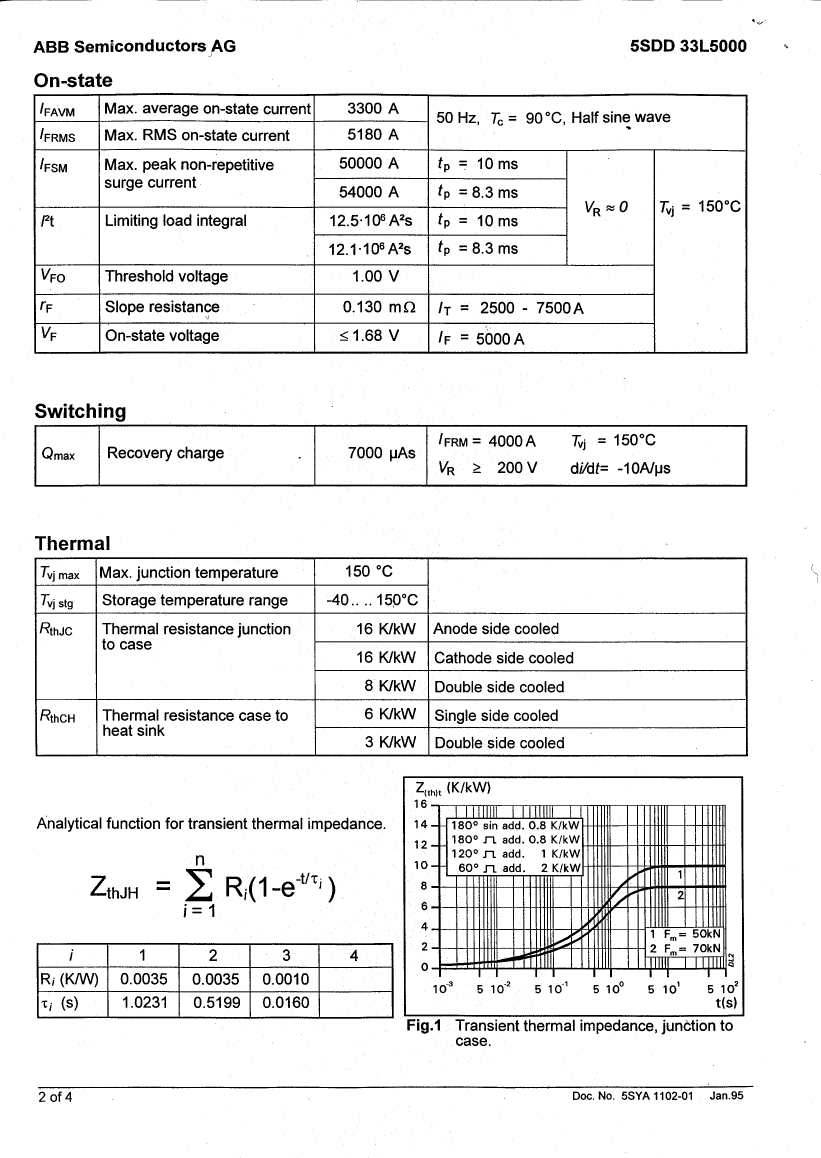

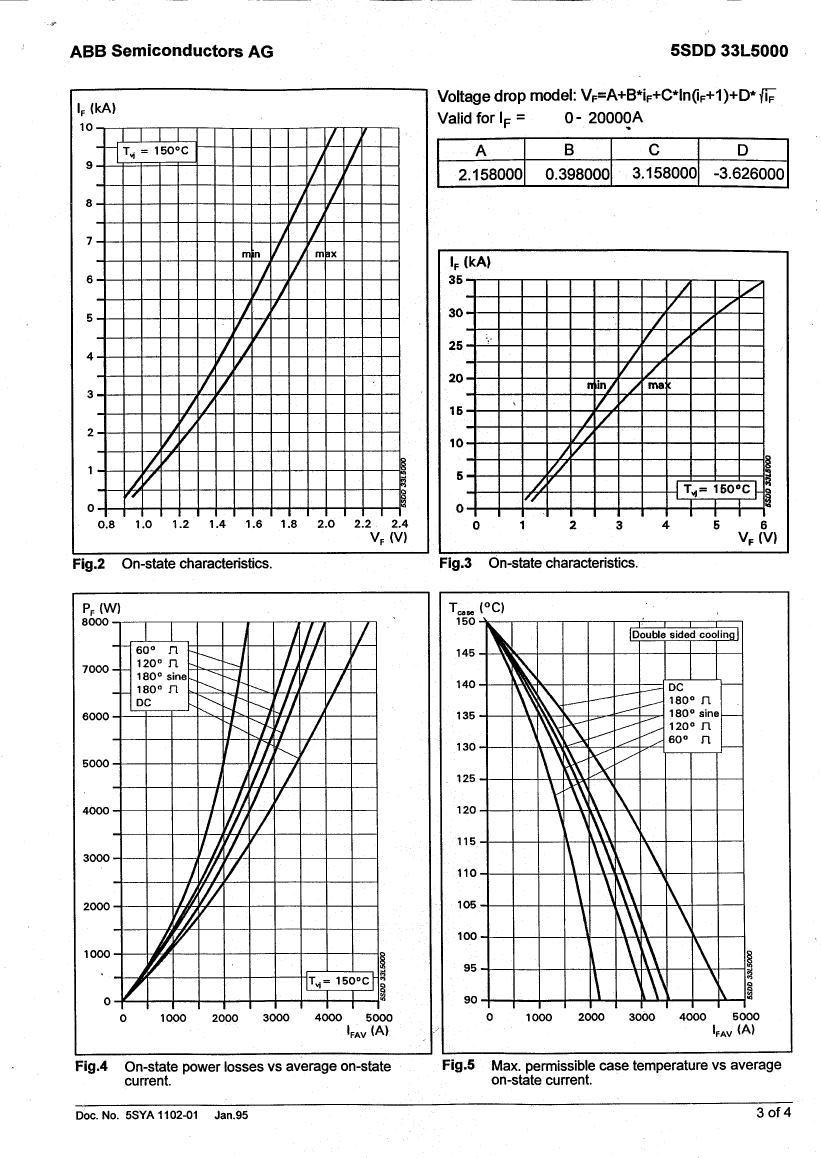

5SDD33L5000 Overview

Rectifier Diode, 1 Phase, 1 Element, 3300A, 4000V V(RRM), Silicon, L, 2 PIN

Parameter Name	Attribute value
Maker	ABB
package instruction	L, 2 PIN
Contacts	2
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	LOW POWER LOSS
application	GENERAL PURPOSE
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	1 V
JESD-30 code	O-CEDB-N2
Maximum non-repetitive peak forward current	54000 A
Number of components	1
Phase	1
Number of terminals	2
Maximum output current	3300 A
Package body material	CERAMIC, METAL-SEALED COFIRED
Package shape	ROUND
Package form	DISK BUTTON
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	4000 V
surface mount	YES
Terminal form	NO LEAD
Terminal location	END
Base Number Matches	1

	5SDD33L5000	5SDD33L4800	5SDD33L4400
Description	Rectifier Diode, 1 Phase, 1 Element, 3300A, 4000V V(RRM), Silicon, L, 2 PIN	Rectifier Diode, 1 Phase, 1 Element, 3300A, 3800V V(RRM), Silicon, L, 2 PIN	Rectifier Diode, 1 Phase, 1 Element, 3300A, 3600V V(RRM), Silicon, L, 2 PIN
Maker	ABB	ABB	ABB
package instruction	L, 2 PIN	L, 2 PIN	L, 2 PIN
Contacts	2	2	2
Reach Compliance Code	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99
Other features	LOW POWER LOSS	LOW POWER LOSS	LOW POWER LOSS
application	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Configuration	SINGLE	SINGLE	SINGLE
Diode component materials	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
Maximum forward voltage (VF)	1 V	1 V	1 V
JESD-30 code	O-CEDB-N2	O-CEDB-N2	O-CEDB-N2
Maximum non-repetitive peak forward current	54000 A	54000 A	54000 A
Number of components	1	1	1
Phase	1	1	1
Number of terminals	2	2	2
Maximum output current	3300 A	3300 A	3300 A
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
Package shape	ROUND	ROUND	ROUND
Package form	DISK BUTTON	DISK BUTTON	DISK BUTTON
Certification status	Not Qualified	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	4000 V	3800 V	3600 V
surface mount	YES	YES	YES
Terminal form	NO LEAD	NO LEAD	NO LEAD
Terminal location	END	END	END
Base Number Matches	1	1	1
