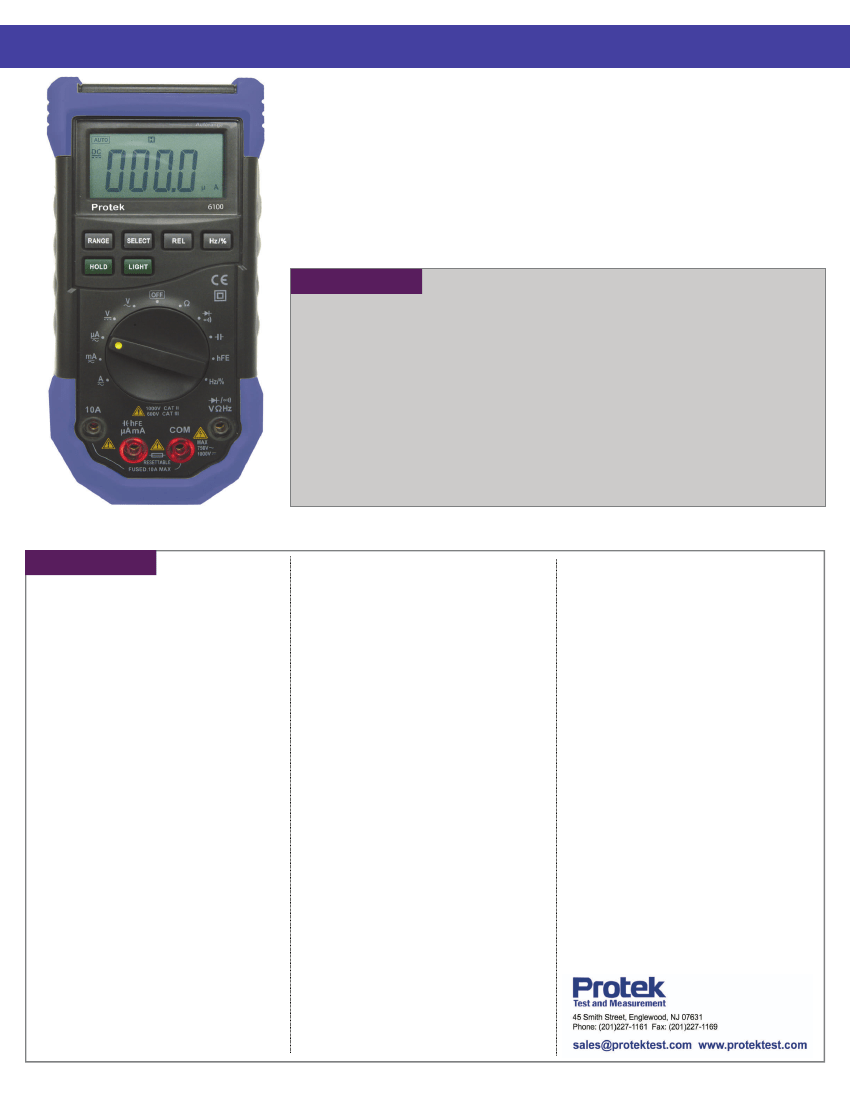

Model 6100 - 3 ¾ Auto ranging , Economy priced, DMM

With Diode, Capacitance, Duty Cycle, Conti-

nuity and Frequency functions.

Features

• 3 ¾ digit and 4000 count

• Back lit display

• Appropriate Input jacks light up when measurement function is selected

• CATII 1000V and CAT III 600V input and test leads

• Measures Capacitance, Frequency and duty cycle

▪

Buzzer and flashing light warning when leads are connected to wrong input or over

load

• Relative measurement and data hold

• Resetable current overload fuses, no need

to open the meter to replace the blown fuse

• Auto and manual Ranging

Specifications

DC Volts:

Ranges: 400mV, 4V, 40V, 400V, 1000V

Best Resolution: 100µV

Accuracy: ± (0.7% +2d);

± (0.8% +2d) 1000V range

Input Impedance: 10MΩ

Maximum Input volts: 1000V DC

Resistance:

Ranges: 400.0Ω, 4.000KΩ, 40.00KΩ, 400.0KΩ,

4.000MΩ, 40.00MΩ

Best resolution: 0.1Ω

Accuracy: ± (1.2% +2d)

± (2.0% +5d) 40MΩ range

Open circuit voltage: approx. 250mV

Overload Protection: 250VDC or RMS

Diode:

Open Circuit Voltage: 1.5V DC

Test Current: 1mA

Overload Protection: 250V DC or RMS

Transistor test:

HFE range: 0 to 1000

Base Current: 10μA

Open circuit Vce: 2.8V

Capacitance:

AC Volts:

Ranges: 400mV, 4V,40V, 400V, 1000V

Best Resolution: 100µV

Accuracy: ± (0.8% +3d); all other range

± (3.0% +3d) 400mv range

± (1.0% +3d) 1000V range

Input Impedance: 10MΩ

Maximum Input volts: 750V AC

Ranges: 4nF, 40nF, 400nF, 4µF, 40µF, 200µF

Best Resolution: 1pF

Accuracy: ± (3.0% +5d)

± (5.0% +5d) 4nF range

Overload protection: 400mA/250V resettable fuse

General Specifications:

Operating Temperature:

0 to 40˚C (32˚F to 122˚F) with < 70% humidity

Dimensions: 7.7” (H) x 3.6”(W) x 2.2” (D)

195 x 92 x 55 mm

Weight: 14.3 oz

Power: 3x 1.5V AAA Batteries

Accessories: Test Leads, Operator’s manual and

batteries

Frequency:

Ranges: 9.999Hz, 99,.99Hz, 999.9Hz, 9.999Khz,

99.99KHz, 199,9KHz

Best Resolution: 0.001Hz.

Accuracy: ± (3.0% +5d)

Unspecified greater than 200 KHz

Overload Protection: 250V DC or RMS

Sensitivity: 0.6V to 3V rms.

DC Current:

Ranges: 400µA, 4000µA, 40mA, 400ma, 10A

Best Resolution: 100pA

Accuracy: ± (1.2% +3d)

± (2.0% +3d) 10A range

Overload Protection: 500mA /250V resettable fuse

and 10A/ 250V fuse

Duty Cycle:

Range: 0.1% to 99.9%

Resolution: 0.1%

Accuracy: ± 3.0%

AC Current:

Ranges: 400µA, 4000µA, 40mA, 400ma, 10A

Best Resolution: 100pA

Accuracy: ± (1.5% +5d)

Continuity Buzzer

± (3.0% +7d) 10A range

Overload Protection: 500mA /250V resettable fuse

Open circuit V: 0.5V

Buzzer will sound at < 50Ω resistance

and 10A/ 250V fuse
