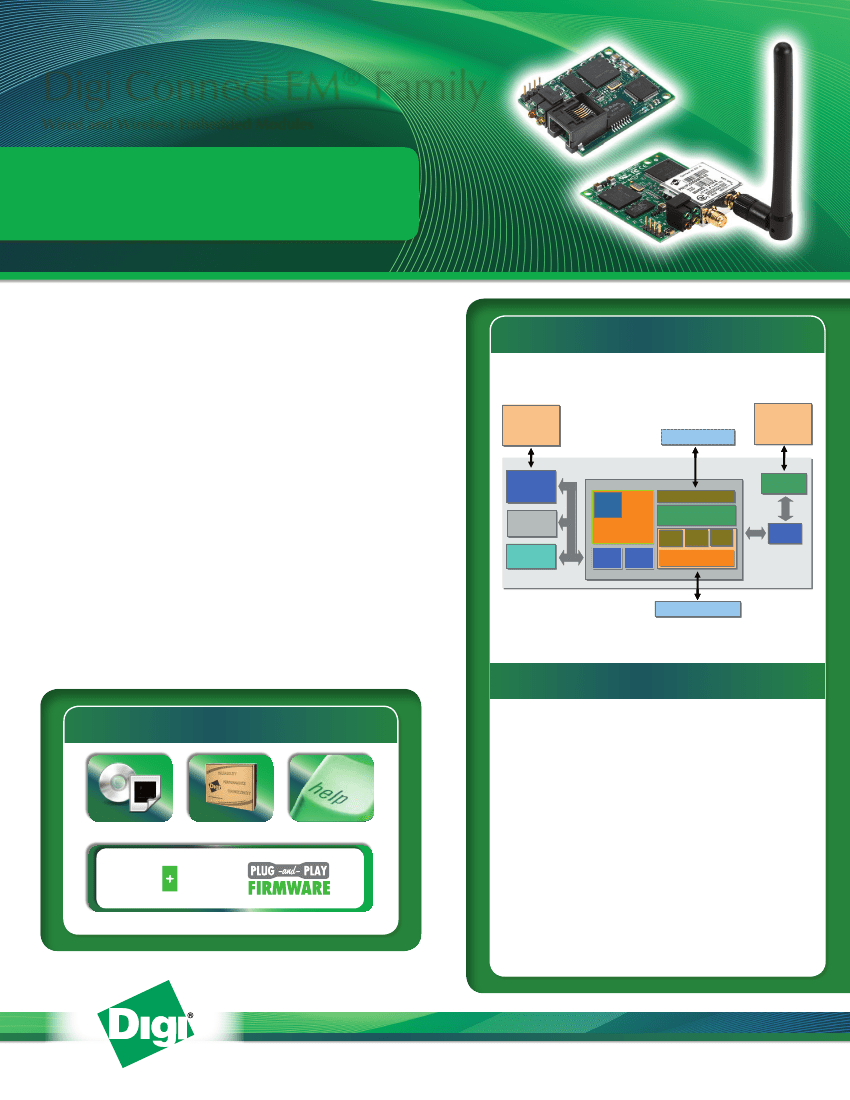

Digi Connect EM Family
®
Wired and Wireless Embedded Modules
The industry’s first interchangeable secure device server
module, delivering wired and wireless Ethernet network
connectivity that is cost-effective and easy to implement.
Overview
Based on a common platform design approach, the
Digi Connect EM and Digi Connect
®
Wi-EM offer complete
drop-in integration combined with true long-term product
availability. This allows you to build future-proof products
based on single design by simply selecting between the 10/100
wired and 802.11b module. The Digi Connect EM family
makes this possible without the traditional complexities of
hardware and software integration work, and at a fraction of
the time and cost required to create custom solutions.
Built on Digi’s leading 32-bit NET+ARM processor technology,
the Digi Connect EM family offers two-port serial-to-Ethernet
functionality through Digi’s plug-and-play firmware, and the
freedom and flexibility of professional embedded software
development provided by the easy-to-use, cost-effective and
complete Digi JumpStart Kits
®
for NET+OS
®
.
Block Diagram
Digi Connect Wi-EM
RP-SMA
Antenna
Connector(s)
Digi Connect EM
RJ-45
JTAG Connector
802.11b
WLAN
Radio
4 MB
Flash
8 MB
SDRAM
ARM
55 MHz
Mem
Ctrlr
Magnetics
JTAG
10 / 100
Ethernet MAC
UART
Ext Bus
I/F
UART
GPIO
SPI
ARM7TDMI
PHY
12-Pin Connector
UART
Features/Benefits
Platforms and Services
• Compact and secure 32-bit device server modules
• Family of low-profile and pin-compatible modules
• 10/100 Ethernet interface or 802.11b WLAN interface
• 2 UART ports and integrated SPI option
• Strong WPA2/802.11i security (PSK and Enterprise)
Design Services
Accessory Kits
Support
• Proven low-emission design (FCC Class B)
• Extended/industrial operating temperature
NET OS
Supported Software Platforms
• Digi processor and WLAN technology for true
long-term availability
• Seamless migration path to NET+ARM chip design
www.digi.com
Integration Kits / Development Kits

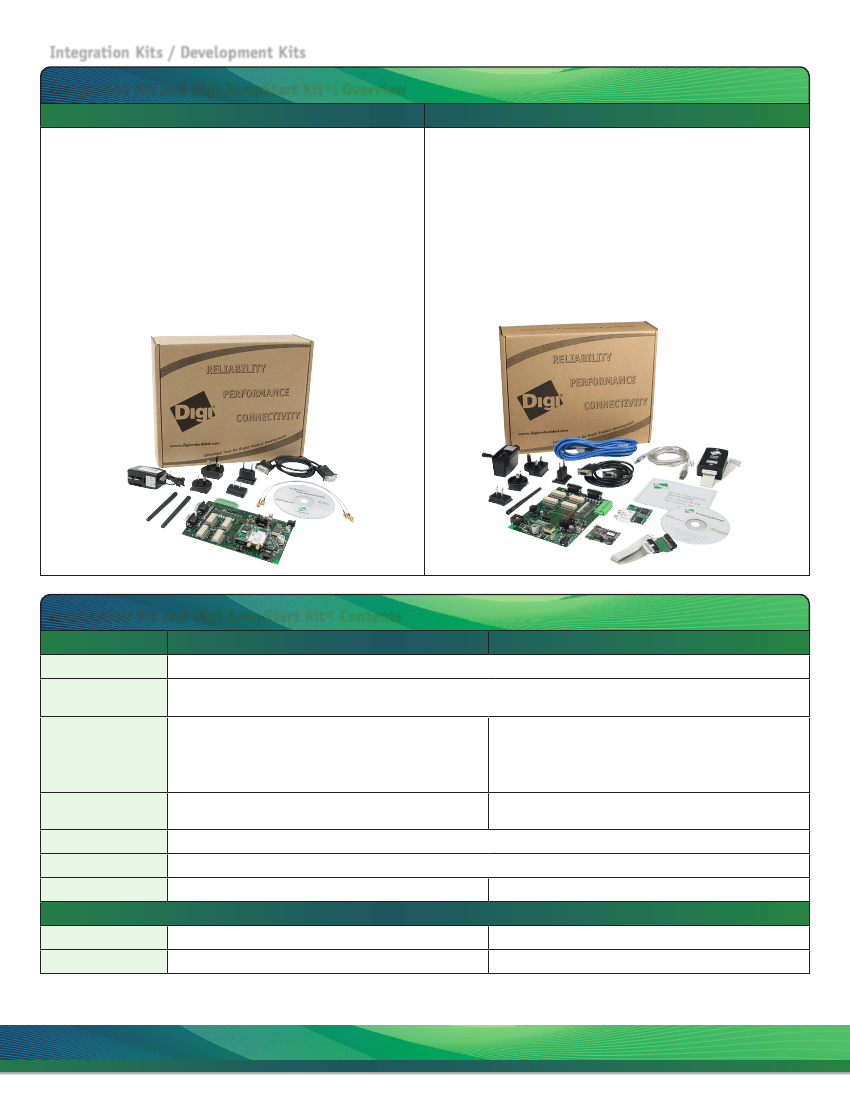

Integration Kit and Digi JumpStart Kit®: Overview
Plug-and-Play Integration Kit
Digi Integration Kits provide everything needed for evaluation, rapid prototyping and
integration of Digi Connect device server modules using the feature-rich Digi plug-and-play
device server firmware. They deliver fully transparent wired and wireless serial-to-network
functionality and allow you to quickly network-enable your existing and new product designs.
Digi plug-and-play firmware offers industry-leading features such as a robust IPv6-ready
TCP/IP stack, fully-featured serial tunneling, Modbus/TCP, web user interface with private
labeling/branding options, user management, file system, SSL/TLS, SSH, Modbus/TCP,
intelligent device management via SNMP, configurable e-mail alarms, and patented RealPort®
COM/TTY port redirection.
•
•
•
•
Complete kit for product evaluation, rapid prototyping, and integration
Digi plug-and-play firmware eliminates embedded software development
Transparent wired and wireless device server functionality
Full private-labeling/branding supported out-of-the-box
Digi JumpStart Kit® for NET+OS®
This royalty-free turnkey solution for embedded software development is based on the ThreadX
Real-Time Operating System (RTOS), one of the most reliable and field-proven RTOS solutions
available. In addition to ThreadX, NET+OS provides the integrated building blocks needed
to create product solutions with leading network security using Digi embedded modules and
microprocessors.
For professional NET+OS software development, the Microsoft Windows based Digi ESP™
Integrated Development Environment (IDE), with graphical user interface and a high-speed
USB 2.0 hardware debugger, is provided out-of-the-box.
•
•
•
•
Royalty-free turnkey solution for embedded software development
Built on field-proven and compact ThreadX RTOS
Fully integrated support for secure, IPv4/IPv6 networking applications
Professional software development using Windows-based Digi ESP IDE
Application Kit and Digi JumpStart Kit® Contents
Software Platform
Module
Development Board
Plug-and-Play Firmware
NET+OS®
Digi Connect EM or Digi Connect Wi-EM module w/ 4 MB Flash, 8 MB SDRAM, 2 dBi dipole antenna (Digi Connect Wi-EM)
2 RS-232 serial ports, GPIO configuration/test switches (hi/lo), Screw terminal for GPIO signals, Status LEDs (serial, GPIO, power), Logic signal header,
Test points, Reset button, 9-30VDC power supply w/Power-over-Ethernet support (mid-span), SPI header, JTAG header (JTAG modules)
Digi Connect Integration Kit CD:
Device discovery tool w/source code, Device configuration wizard
w/source code, RCI library, Device discovery (ADDP) library,
Java applet sample source code, C/C++ sample source code (TCP, UDP, SSL)
Getting started, Hardware reference manual, Development board schematics
Digi Connect user’s guide, Command line reference, RCI specification
CD/DVD
Digi NET+OS CD:
NET+OS 7, Digi ESP IDE, BSP source code, Sample code, Green
Hills MULTI IDE support files, User documentation
Documentation
Power Supply
Accessories
Other
Kit Part Numbers
Ethernet Only
802.11b WLAN + Ethernet
Quick start guide, Getting started guide, Hardware reference manual,
Development board schematics
External wall power supply (110/240VAC to 12VDC @ 850 mA) with interchangeable outlet adapters (North America, EU, UK, and Australia)
Crossover serial cable, Ethernet cable or 2 dBi dipole antenna
–
DC-EM-KT
DC-WEM-KT
Digi JTAG link USB 2.0 hardware debugger
DC-EM-NET
DC-WEM-NET
Please refer to the feature specs on our website for detailed information about the specific software platform capabilities.
Platform
Hardware
Processor Type
ARM Core
Processor Speed
Memory Base Population
Population Options
Pins/Form Factor
Digi Connect EM®
32-bit Digi NS7520 processor
ARM7TDMI
55 MHz
4 MB NOR flash
8 MB SDRAM
Digi Connect® Wi-EM
LED array, LED pin header, Ethernet (RJ-45) connector, Ethernet pin header, Antenna connectors
PCB-style module with 12-pin main pin header
2 with up to 230 Kbps data rate
High-Speed TTL Serial Interface
First port with full signal support for TXD, RXD, RTS, CTS, DTR, DSR and DCD, including hardware/software flow control
Second port RXD/TXD only
9 shared
Master mode
(Available through NET+OS development kit only)
•
NET+OS development modules only (P/N DC-EM-02T-JT, DC-WEM-02T-JT)

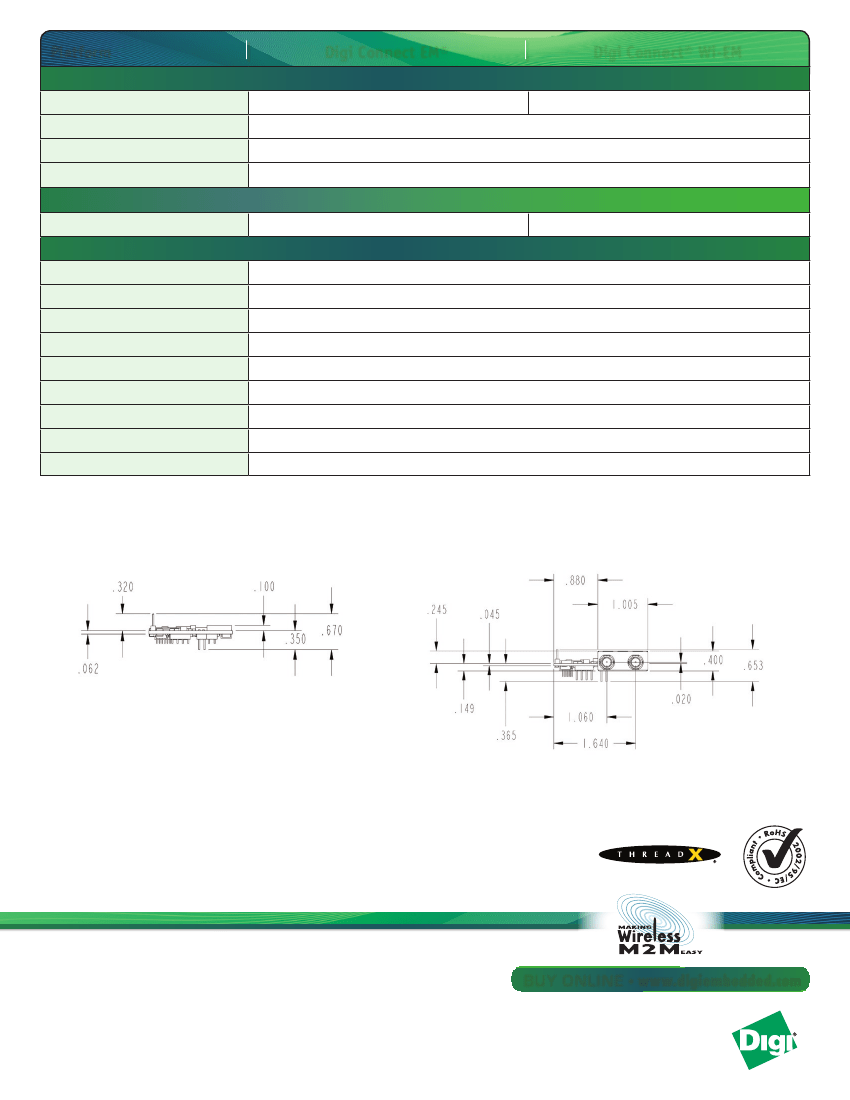

1.935 in (49.149 mm) x 1.575 in (40.005 mm) x 0.670 in
(17.018 mm)
Height and width (overhang) varies depending on connector
population. See hardware reference manual for additional
information.
1.935 in (49.149 mm) x 1.855” (47.117 mm) x 0.0653”
(16.586 mm)
Height and width (overhang) varies depending on connector
population. See hardware reference manual for additional
information.
GPIO
SPI
On-Board Power Supervisor
JTAG Interface
Dimensions (L x W x H)
Network Interface - Wired
Standard
Physical Layer
Data Rate
Mode
Connector
Integrated Ethernet MAC/PHY
Network Interface – Wireless LAN
Standard
Frequency
Data Rate
Modulation
Typical Transmit Power
Receive Sensitivity
Connector
WLAN Security
WEP (Wired Equivalent Privacy)
–
64/128-bit encryption (RC4)
128-bit TKIP/CCMP (AES) encryption
WPA/WPA2/802.11i
–
Enterprise mode (802.1X); LEAP (WEP only), PEAP, TTLS, TLS;
GTC, MD5, OTP, PAP, CHAP, MSCHAP, MSCHAPv2,TTLS; MSCHAPv2
•● Module Feature
–
–
–
–
–
–
–
IEEE 802.11b
2.4 GHz
Up to 11 Mbps with fallback
DBPSK (1 Mbps), DQPSK (2 Mbps), CCK (11,5.5 Mbps)
16 dBm
-82 dBm @ 11 Mbps
1/2 x RP-SMA
IEEE 802.3
10/100Base-T
10/100 Mbps (auto-sensing)
Full- or half-duplex (auto-sensing)
RJ-45 or Pin Header
•
–
–
–
–
–
–
Platform
Environmental
Operating Temperature
Storage Temperature
Relative Humidity
Altitude
Power Requirements @3.3VDC
Maximum
Regulatory Approvals
FCC Part 15 Class B, EN 55022 Class B
EN 61000-3-2 and EN 61000-3-3
ICES-003 Class B, VCCI Class II, AS 3548
FCC Part 15 Sub C Section 15.247
IC RSS-210 Issue 5 Section 6.2.2(o)
EN 300 328, EN 301 489-17
UL 60950-1, EN 60950 (EU)
CSA C22.2, No. 60950
EN 55024
Digi Connect EM®
-40° C to +85° C (-40° F to +185° F)
Digi Connect® Wi-EM
-30° C to +85° C (-22° F to +185° F)
-50° C to +125° C (-58° F to +257° F)
5% to 90% (non-condensing)
12,000 feet (3,658 meters)
270 mA (891 mW)
400 mA (1.32 W)
•
•
•
•
•
•
•
•
•
•● Module Feature
Digi Connect EM
®
- Front
Digi Connect
®
Wi-EM - Front
Visit www.digiembedded.com for part numbers.
