Last Update:
4-20-05

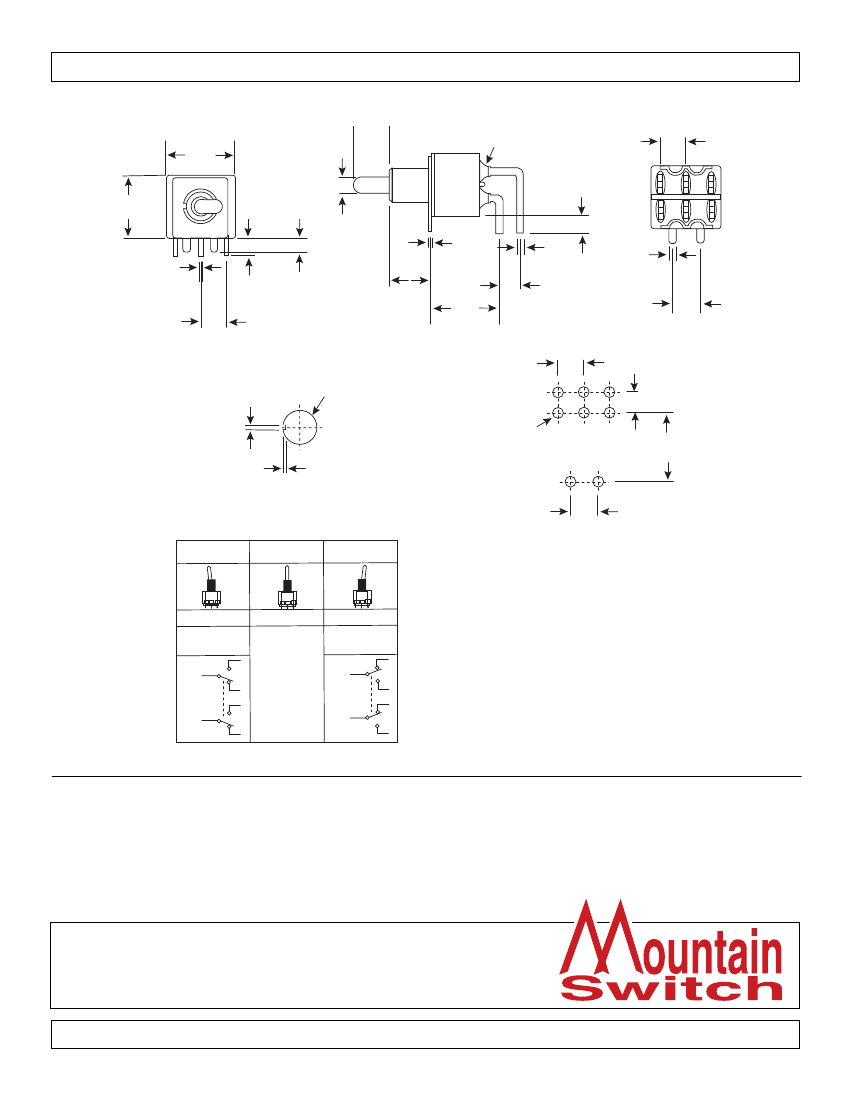

Dimensions: mm (In.)
6.40
(.252)
EPOXY SEAL
3.17
(.126)
ø2.92
(ø.115)
Ref. #:
MS-100268
12.7 (.50)
4.70
(.185)
11.43
(.45)
2.69
(.106)
.50
(.02)
.76
(.03)
4.70
(.185)
1.27
(.05)
3.81
(.15)
1.22
(.048)
5.08
(.20)
3.17
(.125)
7.36
(.29)
12.7 (.50)
4.70
(.185)
ø6.35 (ø.25)
ø1.85
(ø.073)
.85 (.033)
.55 (.022)
PANEL MOUNTING
5.08
(.20)
3.81
(.15)
12.7
(.50)
POS.1
POS.2
POS.3
P.C. MOUNTING
ON
2-3,5-6
1
2 Comm.
NONE
ON
2-1,5-4
1
2 Comm.
3
OPEN
5 Comm.
3
4
5 Comm.
6
6
4
SWITCH FUNCTION
Electrical Specifications:
•
Electrical Life: 40,000 make-and-break cycles at full load
•
Contact Resistance: 10mΩ max. initial @ 2-4VDC 100mA
•
Insulation Resistance: 1,000MΩ min.
•
Dielectric Strength: 1,000 V RMS@ sea level.
•
Rating: 2A / 250 VAC; 5A / 120 VAC or 28 VDC
Mechanical Specifications:
•
Operating Temperature: -30° C to +85° C.
Materials:
•
Case: Diallyl phthalate (DAP) (UL94v-0)
•
Acutuator: Brass, chrome plated.
•
Bushing: Brass, nickel plated.
•
Housing: Stainless steel.
•
Terminal/Contact: Silver or Gold plated.
Toggle Switch
108-1MD1T2B4M6QE
Available from Mouser Electronics
www.mouser.com
1-800-346-6873
Specifications are subject to change without notice. No liability or warranty implied by this information. Environmental compliance based on producer documentation.
