D7510M
D7510C

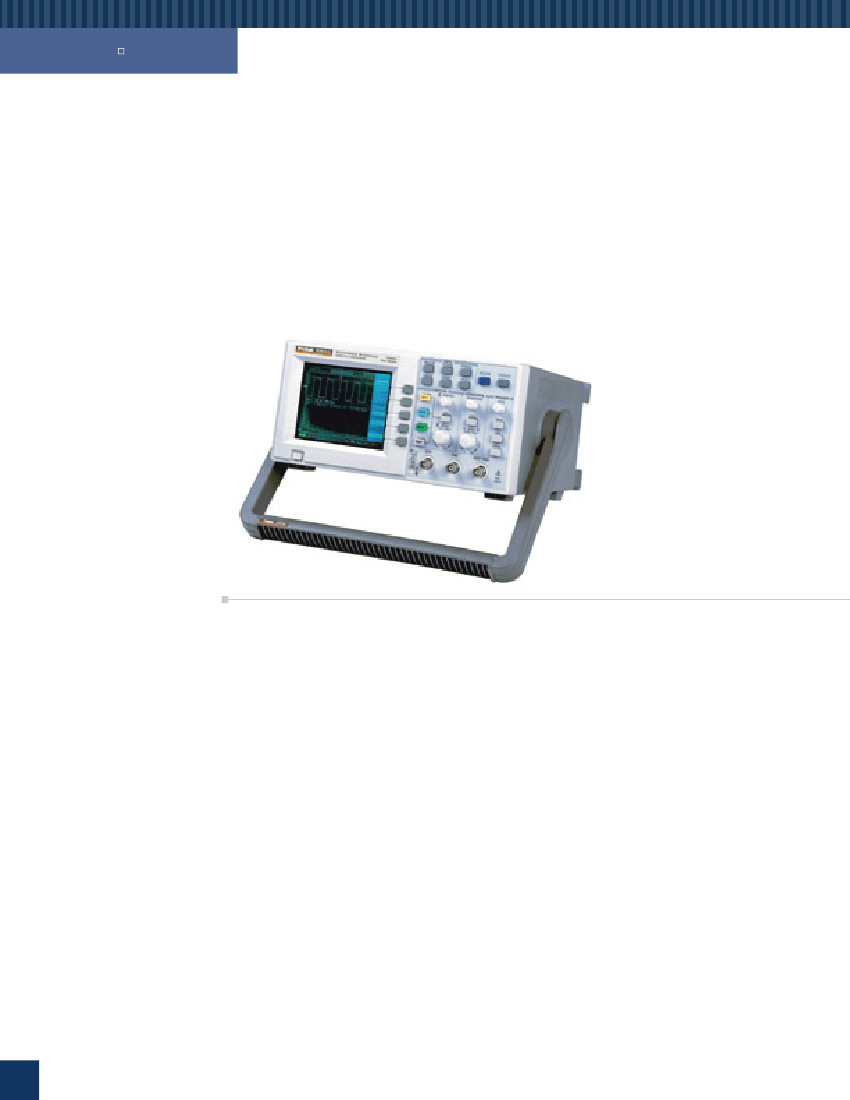

100MS/s Digital Storage Oscilloscope
100 MHz Analog bandwidth
100Ms/S real time sampling rate and 10GS/s Equivalent time sampling
16K record length for each channel
Ultra zoom for viewing waveform details
FFT function
High resolution 320 x 240 Pixel Monochrome LCD display
Optional 256 Color VGA LCD display
(D7510C)
Optional extension module for RS232 and GPIB interfaces with ultra zoom software
Automatic waveform measurements
Auto-setup and auto calibration
5 waveforms and setups may be stored in memory
D7510C
SPECIFICATIONS
Vertical
No. of Inputs:
2
Analog Bandwidth:
DC to 100MHz
Selectable Bandwidth Limit:
20MHz
Rise Time:
< 3.5 ns
Sensitivity:
2mV/Div to 5V/Div
Resolution:
8 Bits
Coupling:
AC/DC/Gnd
Accuracy:
±3%
Input Impedance:
1MΩ and 15pf capacitance
Maximum Input Voltage:
400V DC
Probe Attenuation Factors:
X1, X10, X100, X1000
Horizontal
Sweep Rates:5ns/Div
to 5s/Div in a In a 1-2-5 sequence (to
2.5ns with Ultra zoom)
Accuracy:
±100 ppm
Resolution:
100ps
XY Plot
Bandwidth:
100 MHzPhase
Difference:
3°
Acquisition System
Sample rates:
Real time: 10S/s to 100MS/s
Equivalent Time: 10GS/s
Record Length:
16K (Fast trigger off), 2K (Fast trigger on)
Single Shot Bandwidth:
20MHz
Waveform Interpolation:
(sin x)/x
Averages:
N averages where N = 2,4,8,16,32,64,128
Trigger
Sensitivity:
Internal:
1Div (DC to 10MHz)
External:100mV (DC to 10MHz), 200mV (10MHz to 100MHz)
External/5: 500mV (DC to 100MHz)
Video Trigger Sensitivity:
Int: 2 Div P-P
Ext: ± (0.3 Div + 40mV)
Ext/5: 2V
Trigger Level Range:
Int: ±8 Div from center of the screen
Ext: ±1.6 Div
Ext/5: ±8 Div
Set Level: 50%
Modes:
Auto, Normal, Video, Single
Source:
CH 1, CH 2, Ext, Ext/5, AC line
Coupling:
AC or DC
Measurements
Auto Measurement:
Vp-p, Vrms, Vmax, Vmin, Vtop, Vbase,
Vavg, Freq, Period, + or – Width, Rise and fall time, Delay
Cursor:
V, T, T, V and 1/ T
Math Operations
Type:
(CH1 + CH2), (CH1 – CH2), (CH1 x CH2), (CH1/CH2),
FFT
Memory
Memory:
5 waveforms and 5 setups may be save and recalled
for each channel
FFT
Frequency Points:
1024
Weighting:
Hanning, Hamming, Blackman-Harris, Rectangular
Display
Size:
5.7" (Diagonal LCD)
Resolution:
320 x 240 Pixels
Type:
VGA Monochrome or 256 Color VGA LCD
Extension Module
RS232:
Baud Rates: 300, 2400, 4800, 9600, 19200, 38400
GPIB:
IEEE 488.2
General Specifications
Power Requirements:
100V to 240V, 45Hz to 450Hz
Power Consumption:
< 50W
Operating Temperature:
10 to 40°C (50 to 104°F) at a relative
humidity of 90%
Size:
11.3” H x 14.0” W x 5.6” D
Weight:
10 lbs.
Supplied Accessories:
Manual, Line cord, (2) X1/X10 probes
Optional Accessories:
GPIB and RS-232 module, Ulta-zoom
software CD
6
Protek Test & Measurement
40 Boroline Road, Allendale, NJ 07401 Tel: 201-760-9898 Fax: 201-760-9888
Website: www.protektest.com E-Mail: sales@protektest.com
