499923-6 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 499923-6

499923-6: Description026 UNIV HDR SP 4S 15DP STD L1; CategoryThe connector The connector; File Size197KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

499923-6 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	499923-6	-	-	View	Buy Now

499923-6 Overview

026 UNIV HDR SP 4S 15DP STD L1

499923-6 Parametric

Parameter Name	Attribute value
Brand Name	AMP
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	TE Connectivity
Reach Compliance Code	not_compliant
ECCN code	EAR99
Factory Lead Time	7 weeks
Other features	AMP-LATCH, LATCHED
Board mount options	HOLE .099-.111
body width	0.336 inch
subject depth	0.549 inch
body length	2.06 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	TIN LEAD
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1000VAC V
Filter function	NO
IEC compliance	NO
Insulation resistance	1000000000 Ω
JESD-609 code	e0
MIL compliance	NO
Manufacturer's serial number	499923
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	LATCH & EJECT
Installation option 2	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-65 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Plating thickness	15u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.155 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	26
UL Flammability Code	94V-0
Base Number Matches	1

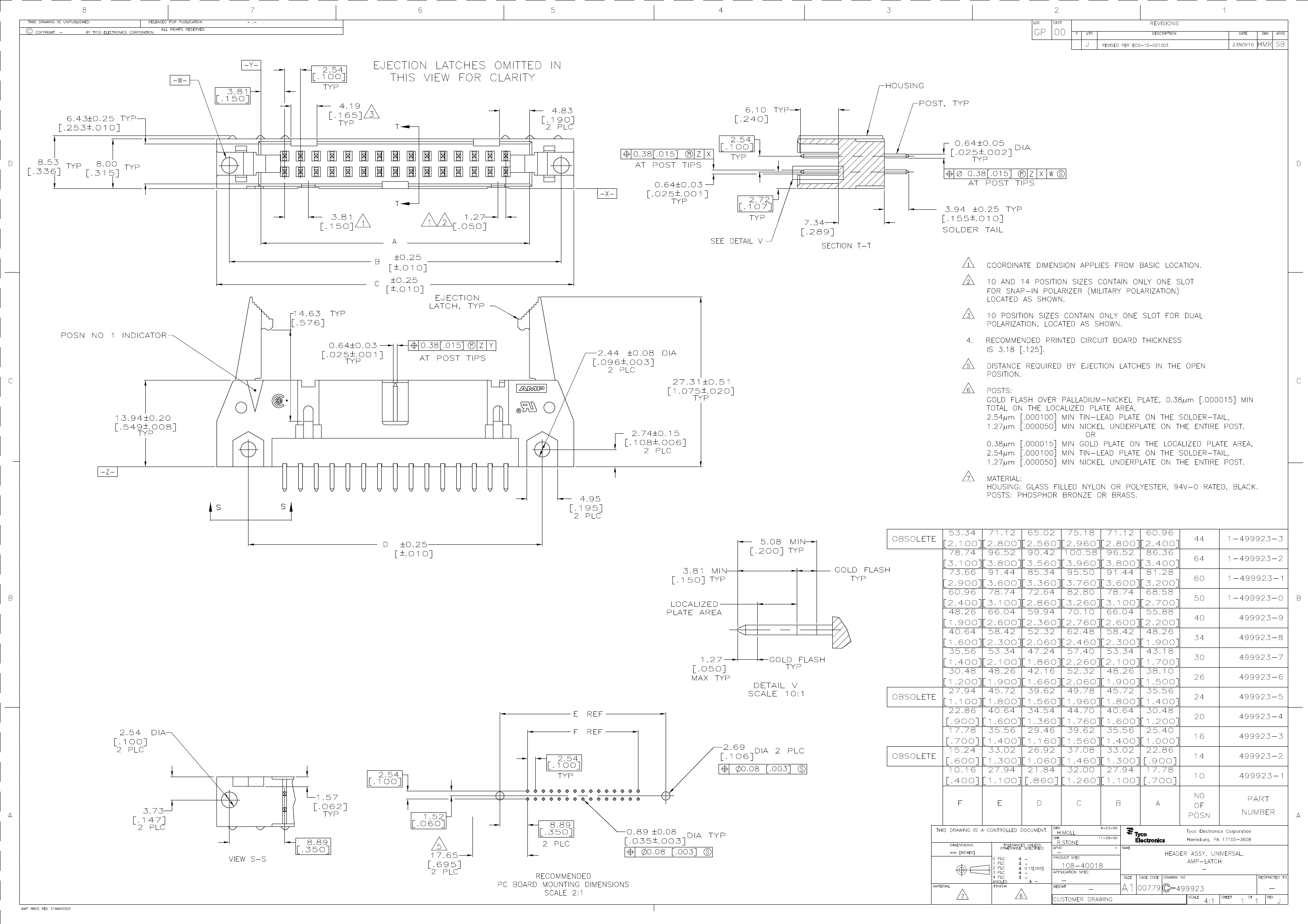

Preview

Download Datasheet

View All

499923-6 Related Products

	499923-6	499923-9	499923-3	499923-8	10118615-729012CLF	499923-4	ZPEDJ-20-686SN
Description	026 UNIV HDR SP 4S 15DP STD L1	040 UNIV HDR SP 4S 15DP STD L1	016 UNIV HDR SP 4S 15DP STD L1	034 UNIV HDR SP 4S 15DP STD L1	Board Connector, 29 Contact(s), 1 Row(s), Male, Straight, Solder Terminal,	020 UNIV HDR SP 4S 15DP STD L1	Circular Connector, 37 Contact(s), Aluminum Alloy, Female, Crimp Terminal, Plug,
Reach Compliance Code	not_compliant	compliant	compli	not_compliant	compliant	_compli	unknown
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	CIRCULAR CONNECTOR
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE	FEMALE
DIN compliance	NO	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO
MIL compliance	NO	NO	NO	NO	NO	NO	NO
Mixed contacts	NO	NO	NO	NO	NO	NO	NO
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	CABLE
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	CRIMP
Total number of contacts	26	40	16	34	29	20	37
Brand Name	AMP	AMP	AMP	AMP	-	AMP	-
Is it lead-free?	Contains lead	Contains lead	Contains lead	Contains lead	-	Contains lead	-
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	conform to	incompatible	-
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	-
Other features	AMP-LATCH, LATCHED	AMP-LATCH, LATCHED	AMP-LATCH, LATCHED	AMP-LATCH, LATCHED	-	AMP-LATCH, LATCHED	LOW PROFILE
Board mount options	HOLE .099-.111	HOLE .099-.111	HOLE .099-.111	HOLE .099-.111	-	HOLE .099-.111	-
body width	0.336 inch	0.336 inch	0.336 inch	0.336 inch	-	0.336 inch	-
subject depth	0.549 inch	0.549 inch	0.549 inch	0.549 inch	-	0.549 inch	-
body length	2.06 inch	2.76 inch	1.56 inch	2.46 inch	-	1.76 inch	-
Body/casing type	PLUG	RECEPTACLE	PLUG	PLUG	-	PLUG	PLUG
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	GOLD FLASH OVER PALLADIUM NICKEL (15)	NOT SPECIFIED	-
Contact completed and terminated	TIN LEAD	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Gold Flash (Au) - with Palladium/Nickel (Pd/Ni) barrier	Tin/Lead (Sn/Pb)	-
Contact material	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	COPPER ALLOY	NOT SPECIFIED	-
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	-	RECTANGULAR	-
Contact style	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	-	SQ PIN-SKT	-
Dielectric withstand voltage	1000VAC V	1000VAC V	1000VAC V	1000VAC V	-	1000VAC V	-
Insulation resistance	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	-	1000000000 Ω	-
JESD-609 code	e0	e0	e0	e0	-	e0	-
Plug contact pitch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	-	0.1 inch	-
Match contact row spacing	0.1 inch	0.1 inch	0.1 inch	0.1 inch	-	0.1 inch	-
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	-	MULTIPLE MATING PARTS AVAILABLE	-
Installation option 1	LATCH & EJECT	LATCH & EJECT	LATCH & EJECT	LATCH & EJECT	-	LATCH & EJECT	-
Installation option 2	LOCKING	LOCKING	LOCKING	LOCKING	-	LOCKING	-
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	-
Number of connectors	ONE	ONE	ONE	ONE	-	ONE	-
PCB row number	2	2	2	2	-	2	-
Number of rows loaded	2	2	2	2	1	2	-
Maximum operating temperature	105 °C	105 °C	105 °C	105 °C	-	105 °C	-
Minimum operating temperature	-65 °C	-65 °C	-65 °C	-65 °C	-	-65 °C	-
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	-	RECTANGULAR	-
PCB contact row spacing	2.54 mm	2.54 mm	2.54 mm	2.54 mm	-	2.54 mm	-
Plating thickness	15u inch	15u inch	15u inch	15u inch	-	15u inch	-
polarization key	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	-	POLARIZED HOUSING	-
Rated current (signal)	1 A	1 A	1 A	1 A	-	1 A	-
Guideline	UL	UL	UL	UL	-	UL	-
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	-	COMMERCIAL	-
Terminal length	0.155 inch	0.155 inch	0.155 inch	0.155 inch	-	0.155 inch	-
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	-
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	-	94V-0	-
Base Number Matches	1	1	1	1	-	1	-
