SWT-NS106-2-060-KEY datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Mechanical and electronic products> switch> SWT-NS106-2-060-KEY

Preview

SWT-NS106-2-060-KEY: DescriptionKeylock Switch, 2 Positions, Off-on, Solder Lug Terminal, Keylock Actuator, Panel Mount; CategoryMechanical and electronic products switch; File Size206KB，1 Pages; ManufacturerCentral Semiconductor

Download Datasheet Parametric View All

SWT-NS106-2-060-KEY Overview

Keylock Switch, 2 Positions, Off-on, Solder Lug Terminal, Keylock Actuator, Panel Mount

SWT-NS106-2-060-KEY Parametric

Parameter Name	Attribute value
Objectid	1294439239
Reach Compliance Code	unknown
ECCN code	EAR99
Executor completed	CHROME
Actuator length	0.157 inch
Actuator type	KEYLOCK
Other features	ROHS COMPLIANT
body height	21.0058 mm
Body length or diameter	15.0114 mm
Center contact plating	SILVER
Contact function	OFF-ON
End contact plating	SILVER
Shell material	ZINC ALLOY
Graduation angle	90 deg
Installation features	PANEL MOUNT
Number of positions	2
surface mount	NO
Switch type	KEYLOCK SWITCH
Terminal length	0.236 inch
Termination type	SOLDER LUG

Preview

Download Datasheet

View All

1

2

3

4

5

6

7

8

9

A

B

C

D

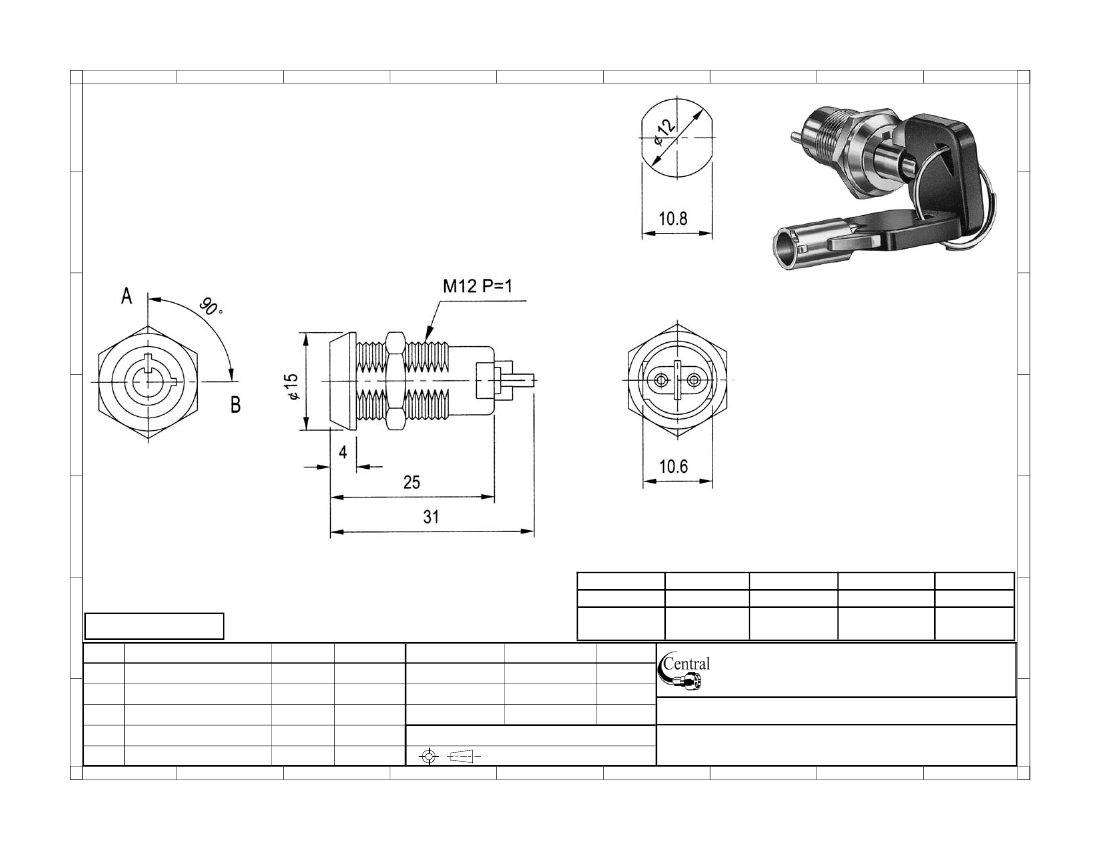

SPECIFICATIONS

•

Zinc alloy die cast housing and cylinder

•

Bright chrome plated

•

4 pin tumbler mechanism

•

Key withdrawal in one or both positions

•

Zinc alloy tubular keys, chrome plated

•

Silver plated contacts and terminals

•

2 position (off-on) 2 terminals

•

Hex nut mounted

•

200 key combinations available

D

E

F

RoHS compliant

Rev.

Description

Date

Approved

Drawing

Name

Approved Howard

Checked Lizzy

Drawn Tina

0.0 ± 0.35

1

2

3

4

Series

Style

Key Withdrawal Key Combination

Options

SWT

NS106

X

XXX

KEY

Key lock switch 12mm cylinder 1=Off position 001 to 200

Key=With key

2=Off and on

Date

08/10/02

08/10/02 Part No.:

F

Central Components Manufacturing

440 Lincoln Blvd., Middlesex, New Jersey 08846

Phone 732 469-5720 888 288-5152 Fax 732 469-1919

G

SWT-NS106-X-XXX-KEY

7

8

9

0.00 ± 0.20 Angles ± 3’

UNIT: mm

5

6

Description: Key lock switch, 12mm diameter
