GN series
1x RS232, 1x RS485 (optional)
TFT display, 256k colors
2x LAN 10/100/1000 Base-T
CF memory card slot
2x USB rear, 1x USB front (except GN07)
Microsoft Windows CE 6.0
1
Product lineup
GN07
Display size
(W x H in mm)
Display type
Brightness
Resolution (W x H)
Processor
RAM
User memory
RS232
RS485 (422)
LAN
USB
Fieldbus*
*planned 2010
2x 10/100/1000 Base-T
2x rear
-
7“
152.4 x 91.44
TFT, 256k color
330 cd/m²
800x480 dots
GN10
10.4“
211.2 x 158.4
TFT, 256k color
230 cd/m²
800x600 dots
GN12
12.1“
246.0 x 184.5
TFT, 256k color
400 cd/m²
800x600 dots
GN15
15“
304.1 x 228.1
TFT, 16.2M color
350 cd/m²
1024x768 dots
Intel® Atom™ N270 1.6 GHz
512 MB
Depends on size of CF card
Optional
2x 10/100/1000 Base-T
2x rear,
1x front
Optional
2x 10/100/1000 Base-T
2x rear,
1x front
2x 10/100/1000 Base-T
2x rear,
1x front
2
GN series
Features
■
Extreme vividness
Embedded in an elegant black frame, the TFT screens offer a brilliant, vivid and life-
like display in 262,144 colors. The GN series boasts an IP65 degree of protection
from the front, and its analog resistance screen responds flawlessly to the touch.
With a resolution of up to 1024x768 pixels and a brightness of 400cd/m
2
(max.), you
will never be left in the dark.
■
Alarm management
The powerful alarm management guarantees max-
imum precision in managing events. Alarm man-
agement supports the 4 standard operating states
(ON, OFF, ACK, RST) according to the ISA S-18
standard, but they can be easily changed individu-
ally according to your needs (events, colors, repre-
sentations) and give custom help and be set by
defined conditions.
■
Installed Movicon CE Runtime
Panels are ready to use with a preinstalled and activated Runtime.
■
Data logging and recipe
By using the same recording techniques, recipes and data loggers are stored in text files (.dat, .xml or encrypted files) with IMDB
technology (InMemory DB). By using objects and wizards, the handling of recipe objects is much easier than with traditional meth-
ods.
■
Broad spectrum of applications
The GN series lends itself to a broad spectrum of applica-
tions. In addition to the basic features for recipe manage-
ment, alarm management and multi-language, the GN series
also provides all necessary hardware to support logging
data.
If your application requires an HMI between
7” and 15”, Panasonic‘s GN series is the right
answer.
3
■
Myriad communication interfaces
The GN series was designed to leave no wish unfulfilled. In addition to the wide range of standard interfaces, optional networking
interfaces are available.
Standard interfaces:
1x R232
2x USB rear, 1x USB front (except GN07)
2x LAN 10/100/1000 Base-T
Optional interfaces:
1x RS485
Fieldbus interfaces
(planned: PROFIBUS, CANopen)

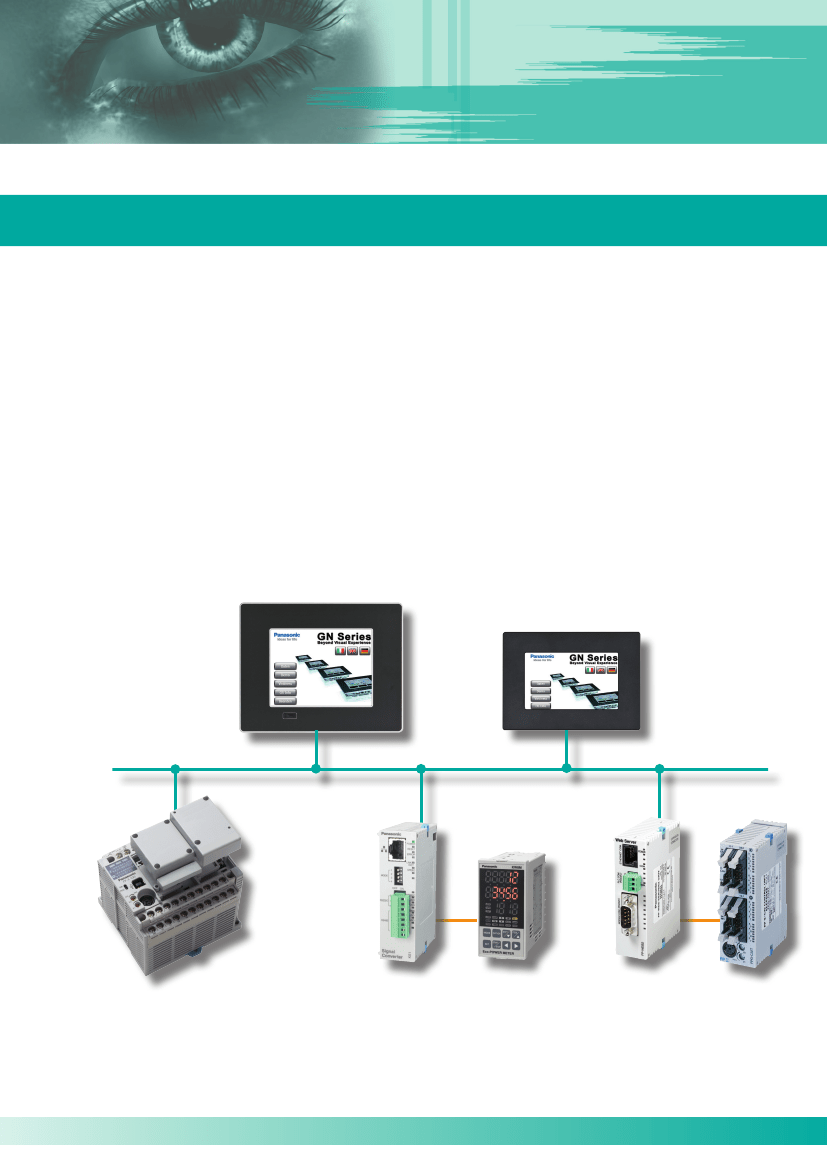

As Ethernet becomes more and more popular in factory automation worldwide, the GN series comes equipped with 2 Ethernet
ports, allowing you to take advantage of the IT world.
•
•
•
•
Use existing networks, save wiring
Reach almost every point of the world via Internet
Standard software tools already existing on your PC
Remote control, monitoring and programming
TCP/IP
Ethernet
RS232/
RS422
RS232/
RS422
4
GN07
Compact
239
45.7
3
95.8
168
146.2
157
215
235
10
1.6
in mm
■

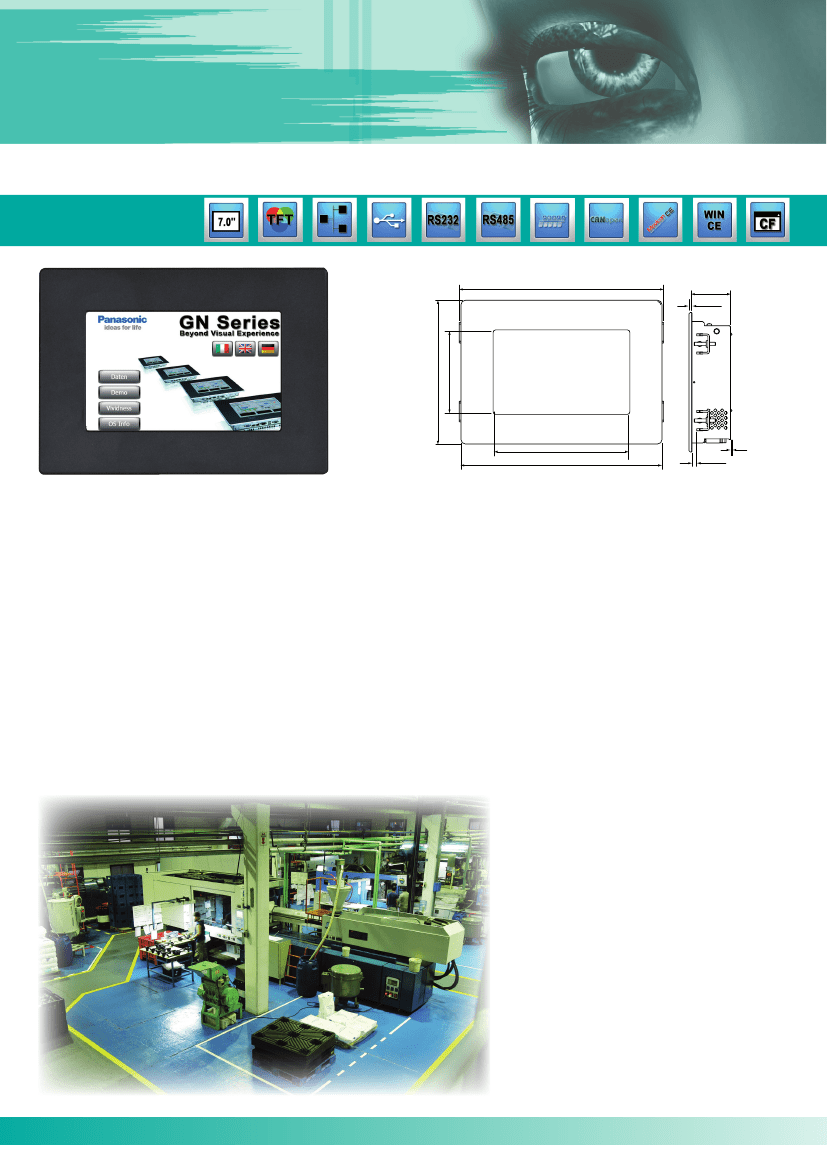

Compact and powerful
The GN series is available in 4 sizes, from 7” to 15”. The smallest member of this series is the GN07. Due to its compact size,
this panel can be used in places where little space is available but where emphasis is nevertheless placed on performance.
Regarding performance capability, the GN07 boasts the same works as its big brothers and can do everything they can.
•
7.0” TFT display
•
256k colors
•
Resolution: 800x480 pixels
•
installed Movicon CE Runtime
■
For tight fits
Sometimes there’s simply not enough
space for a large HMI. There can be many
reasons for this. Nevertheless, the applica-
tion may require a powerful and flexible
HMI. With the same inner works as the
other models in the GN series, the GN07 is
the perfect solution for such cases.
Its many interfaces provide for flexibility,
all included in a compact housing that al-
low it to score under such circumstances.
5
