REVISIONS
REV.
A
ECO. NO
2399
DESCRIPTION
INITIAL RELEASE
DATE
07/18/2011
BY
GC
F
F
B
E
.021 0.54
.100 2.54
.100 2.54
A
E
D
.154 3.90 REF
.197 [5.00]
D
.335 8.50
.051 1.30
2X
C
OPTIONAL
.344 8.75
.004 [0.10]
.039±.004 [1.00 0.10]
C
.264 6.70
.010 0.25
C
(NOT REQ'D FOR USE
AS TOP ENTRY)
.039 [1.00]
A
.100 2.54
.039 [1.00]
.075 1.90
.100 2.54
B
.303 7.70
B
A
NOTES:
1. INSULATOR MATERIAL: NYLON 6T, UL 94V-0, BLACK.
2. CONTACT MATERIAL: PHOSPHOR BRONZE.
3. CONTACT PLATING: .000030" ~ .000050"NICKEL UNDERPLATE,
GOLD FLASH OVERALL.
4. CURRENT RATING: 3 AMPS PER CONTACT.
5. INSULATOR RESISTANCE: 5000 MEGOHMS MIN.
6. CONTACT RESISTANCE: 20 MILLIOHMS MAX.
7. DIELECTRIC WITHSTANDING: 1000 V AC.
8. OPERATING TEMPERATURE: -40° C TO +105° C.
9. PROCESSING TEMP.: 230° C FOR 60 SECONDS MAX.
(260° C FOR 10 SECONDS)
(INDICATED TEMPERATURE AND TIME IS FOR COMPONENT INSULATOR.
HIGHER PROCESSING TEMPERATURES MAY BE USED, PROVIDED HEAT IS
APPLIED FROM BACK SIDE OF PCB, AND INSULATOR DOES NOT EXCEED
INDICATED TEMPERATURE AND TIME.)
10. FOR TOP/BOTTOM ENTRY.
11. CONSULT FACTORY FOR THE MATE IF BEING USED AS BOTTOM ENTRY.
8
7
6
5
2X
.047±.004 1.20±0.10
C
RECOMMENDED PCB LAYOUT
DRAWN
DATE
07/18/11
NAME
GC
TITLE
Pb
R
oHS COMPLIANT
4
UNLESS OTHERWISE SPECIFIED:
DIMENSIONS ARE IN INCHES [MM]
TOLERANCES:
.XX= .012 [0.30]
.XXX= .008 [0.20]
.XXXX= .0040 [0.100]
INTERPRET DIMENSIONS AND
TOLERANCING
PER: ASME Y14.5M-2009
3
THE INFORMATION HEREIN CONTAINS
PROPIETARY INFORMATION OF
SULLINS ELECTRONICS AND IS NOT
TO BE REPRODUCED, USED OR
DISCLOSED TO OTHERS FOR ANY
PURPOSE EXCEPT AS SPECIFICALLY
AUTHORIZED IN WRITING BY AN
OFFICER OF SULLINS ELECTRONICS.
PART NUMBER
SIZE

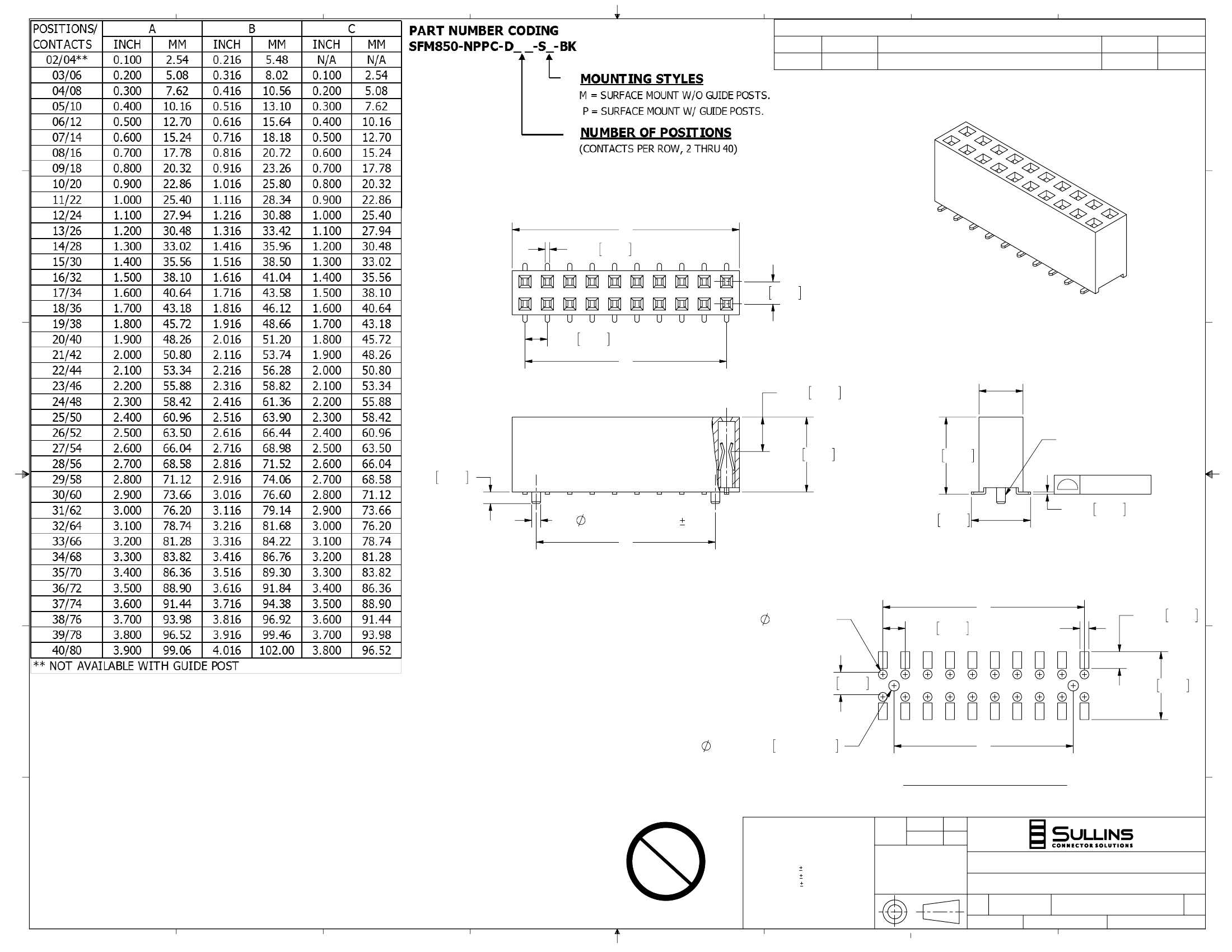

HEADER FEMALE, .100 CC, T/B ENTRY
C
CAGE CODE
A
SFM850-NPPC-D_ _-S_-BK
DWG. NO.
SCALE: 4:1
2
54453
11811
REV
SHEET 1 OF 1
1
A
FILE NAME: 11811, SFM850-NPPC-D_ _-S_-BK
