2-1375820-3 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 2-1375820-3

2-1375820-3: DescriptionCST-100 II HOUSING 23 POS; CategoryThe connector The connector; File Size176KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric View All

2-1375820-3 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	2-1375820-3	-	-	View	Buy Now

2-1375820-3 Overview

CST-100 II HOUSING 23 POS

2-1375820-3 Parametric

Parameter Name	Attribute value
Brand Name	AMP
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	TE Connectivity
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	10 weeks 3 days
Is Samacsys	N
Other features	COMPATIBLE CONTACTS: 1375819-1; 1445336-1; 1445336-2, POLARIZATION AVAILABLE
body width	0.26 inch
subject depth	0.51 inch
body length	2.32 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	10 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1000VAC V
Durability	15 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	8.896 N
Insulation resistance	100000000 Ω
Insulator color	WHITE
insulator material	POLYMER
MIL compliance	NO
Plug contact pitch	0.1 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	LOCKING
Installation type	CABLE
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
polarization key	POLARIZED HOUSING
Guideline	UL
reliability	COMMERCIAL
Termination type	CRIMP
Total number of contacts	23
UL Flammability Code	94V-0
Maximum wire diameter	22 AWG
Minimum wire diameter	26 AWG
Evacuation force-minimum value	3.614 N
Base Number Matches	1

Preview

Download Datasheet

View All

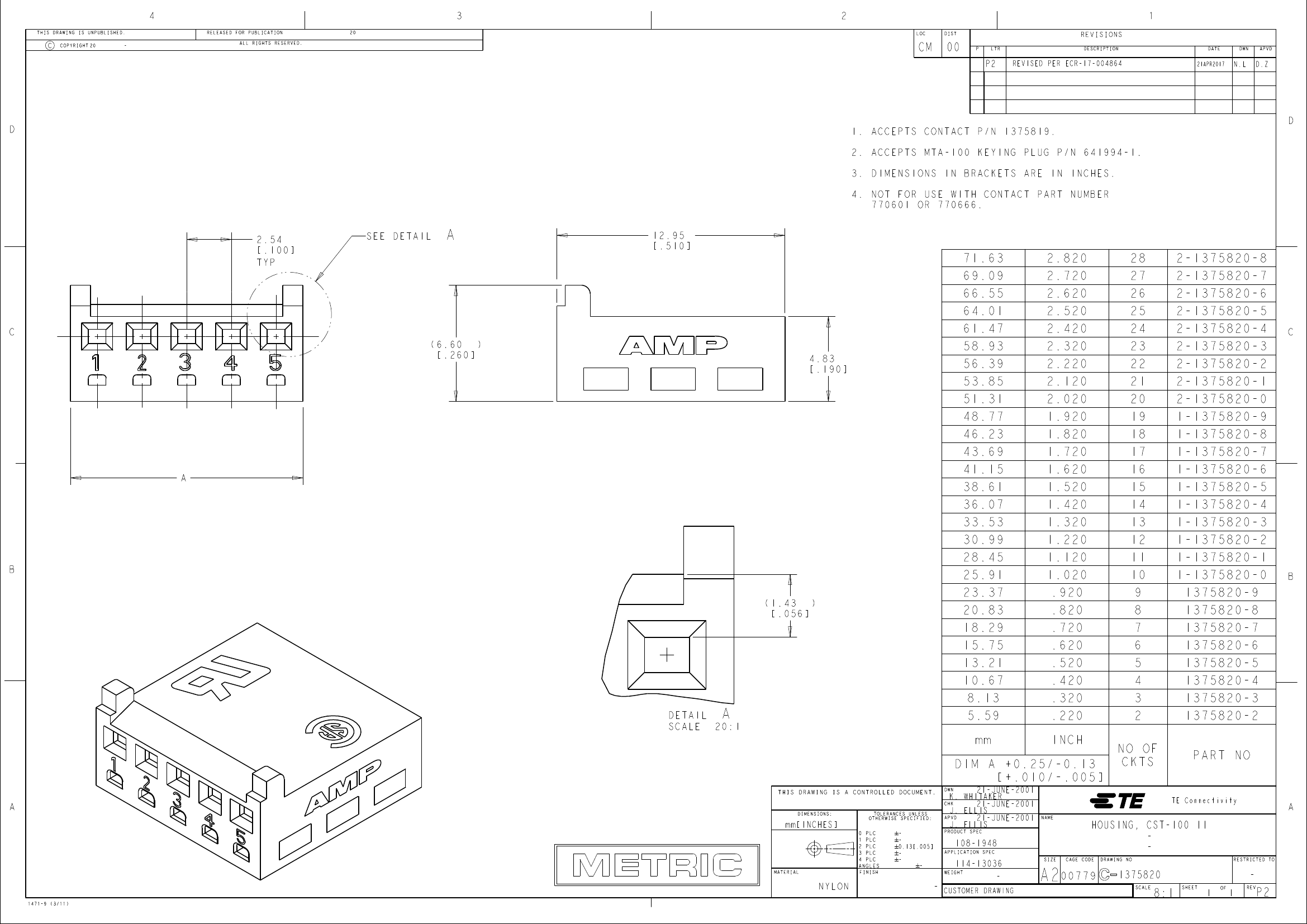

THIS DRAWING IS UNPUBLISHED.

RELEASED FOR PUBLICATION

LOC

DIST

REVISIONS

LTR

DESCRIPTION

DATE

DWN

APVD

REVISED PER ECR-17-004864

21APR2017

N.L

D.Z

1. ACCEPTS CONTACT P/N 1375819.

2. ACCEPTS MTA-100 KEYING PLUG P/N 641994-1.

3. DIMENSIONS IN BRACKETS ARE IN INCHES.

4. NOT FOR USE WITH CONTACT PART NUMBER

770601 OR 770666.

2.54

[ .100 ]

TYP

SEE DETAIL

12.95

[ .510 ]

71.63

69.09

66.55

64.01

2.820

2.720

2.620

2.520

2.420

2.320

2.220

2.120

2.020

1.920

1.820

1.720

1.620

1.520

1.420

1.320

1.220

1.120

1.020

.920

.820

.720

.620

.520

.420

.320

.220

INCH

NO OF

CKTS

2- 1375820 -8

2- 1375820 -7

2- 1375820 -6

2- 1375820 -4

2- 1375820 -3

2- 1375820 -2

2- 1375820 -1

2- 1375820 -0

1- 1375820 -9

1- 1375820 -8

1- 1375820 -7

1- 1375820 -6

1- 1375820 -5

1- 1375820 -4

1- 1375820 -3

1- 1375820 -2

1- 1375820 -1

1- 1375820 -0

1375820 -9

1375820 -8

1375820 -7

1375820 -6

1375820 -5

1375820 -4

1375820 -3

1375820 -2

PART NO

( 6.60

)

[ .260 ]

4.83

[ .190 ]

58.93

56.39

53.85

51.31

48.77

46.23

43.69

61.47

2- 1375820 -5

41.15

38.61

36.07

33.53

30.99

28.45

25.91

( 1.43

)

[ .056 ]

23.37

20.83

18.29

15.75

13.21

10.67

8.13

DETAIL

SCALE

20:1

5.59

THIS DRAWING IS A CONTROLLED DOCUMENT.

DIMENSIONS:

mm[INCHES]

TOLERANCES UNLESS

OTHERWISE SPECIFIED:

MATERIAL

0 PLC

1 PLC

2 PLC

3 PLC

4 PLC

ANGLES

FINISH

0.13[.005]

21-JUNE-2001

K. WHITAKER

CHK

21-JUNE-2001

J. ELLIS

APVD

21-JUNE-2001

J. ELLIS

DWN

PRODUCT SPEC

APPLICATION SPEC

DIM A +0.25/-0.13

[+.010/-.005]

NAME

TE Connectivity

108-1948

114-13036

WEIGHT

NYLON

1471-9 (3/11)

CUSTOMER DRAWING

00779

SIZE

CAGE CODE

HOUSING, CST-100 II

DRAWING NO

RESTRICTED TO

1375820

SCALE

8:1

SHEET

REV
