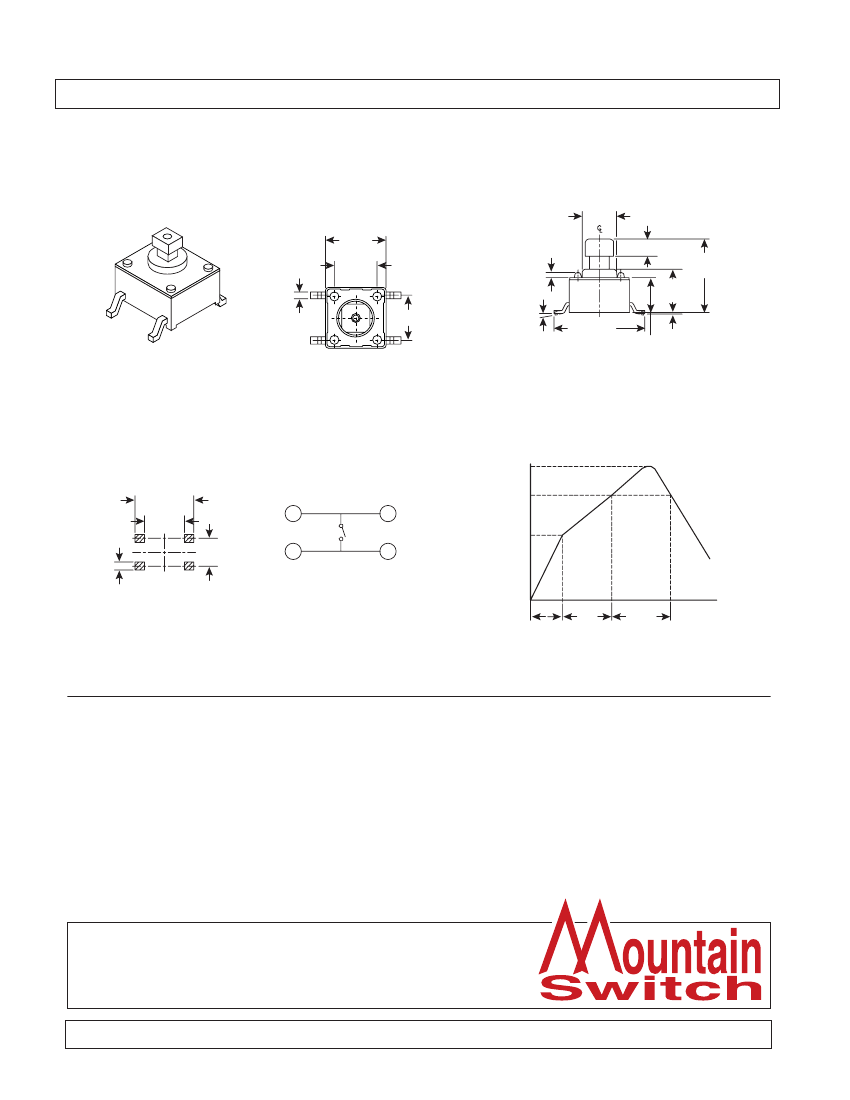

Last Update:
12/1/05
Dimensions: mm (In)
Ref. #:
MS-100076
3.50
(.138)
6.20
(.244)
4.30
(.169)
C
L
.70
(.028)
C 4.50 (.177)
L
.60 max.
(.0236)
1.70 (.067)
7.30
(.287)
4.30
(.17)
0°~10°
9 (.354)
.20±.10
(.008±.004)
3.50
(.138)
Reflow Temperature Profile
PCB Layout
Temperature (°C)
240°C max.
Circuit Diagram
9.50 (.374)
6.40
(.252)
4.50
(.177)
1.30
(.051)
T1
T3
T2
T4
180°C
120°C
Room
Temperature
30 max.
30~40 80~90
TIME (sec.)
Mechanical Specifications:
•
Operation Force: 160±50gf Brown (N)
•
Stroke: (6x6) 0.25+0.2/-0.1mm, (12x12) 0.35±0.1mm
•
Operation Temperature Range: -25°C to +70°C
•
Storage Temperature Range: -30°C to +80°C
Electrical Specifications:
•
Electrical Life: 300,000 cycles for 320gf, 520gf; 500,000
•
•
•
•
•
cycles for 260gf; 1,000,000 cycles for 100gf, 160gf
Rating: 50mA/12VDC
Contact Resistance: 100mΩ max.
Insulation Resistance: 100MΩ min. @ 500VDC
Dielectric Strength: 250VAC for 1 minute
Contact Arrangement: SPST
Materials:
•
Cover: Steel, tin plated
•
Base: UL94V-0 Nylon thermoplastic, black
•
Stem: UL94V-0 Nylon thermoplastic
•
Contact Disc: Phosphor bronze with silver cladding
•
Terminal: Brass with silver cladding
•
Cap: Thermoplastic ABS
Soldering Processes:
•
Hand: Use a soldering iron of 30 watts, controlled at 608°F (320°C).
•
Reflow: When applying reflow soldering, the peak temperature or the reflow
over should be set to 240°C max.
Tactile Switch
TS6324T1605BC
Available from Mouser Electronics
www.mouser.com
1-800-346-6873
Specifications are subject to change without notice. No liability or warranty implied by this information. Environmental compliance based on producer documentation.
