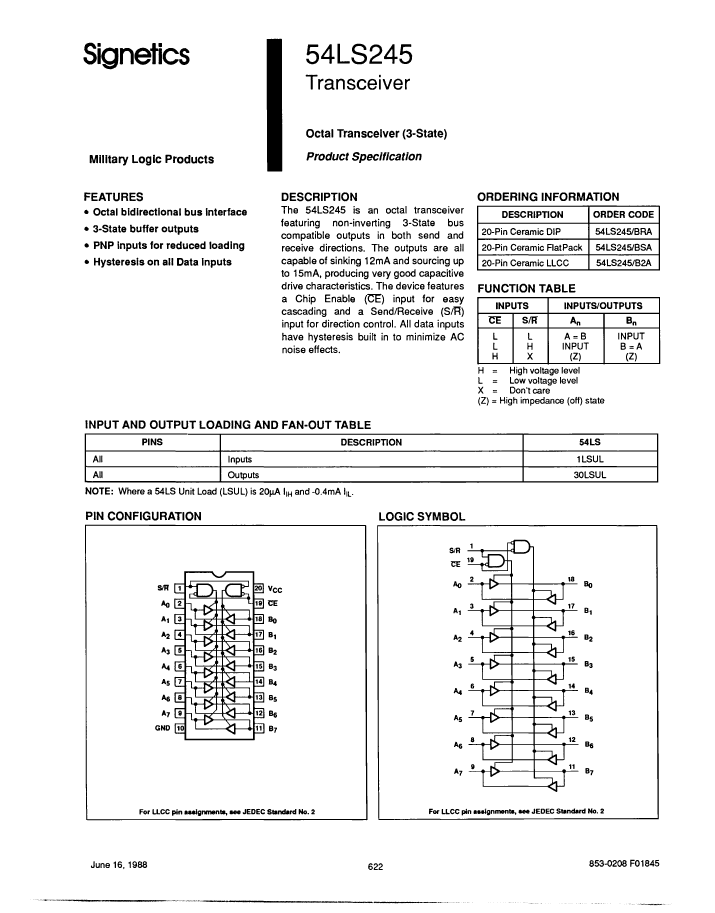

Bus Transceiver, LS Series, 1-Func, 8-Bit, True Output, TTL, CDFP20,
| Parameter Name | Attribute value |
| package instruction | , |
| Reach Compliance Code | unknown |
| Other features | WITH DIRECTION CONTROL |
| series | LS |
| JESD-30 code | R-CDFP-F20 |
| Load capacitance (CL) | 50 pF |
| Logic integrated circuit type | BUS TRANSCEIVER |
| Number of digits | 8 |
| Number of functions | 1 |
| Number of ports | 2 |
| Number of terminals | 20 |
| Maximum operating temperature | 125 °C |
| Minimum operating temperature | -55 °C |
| Output characteristics | 3-STATE |
| Output polarity | TRUE |
| Package body material | CERAMIC, METAL-SEALED COFIRED |
| Package shape | RECTANGULAR |
| Package form | FLATPACK |

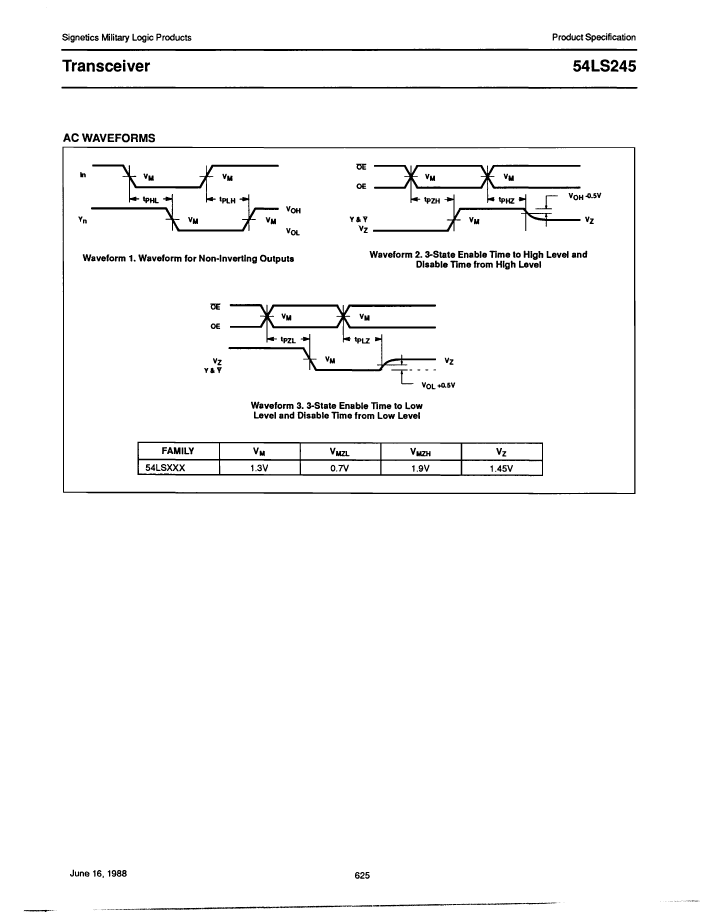

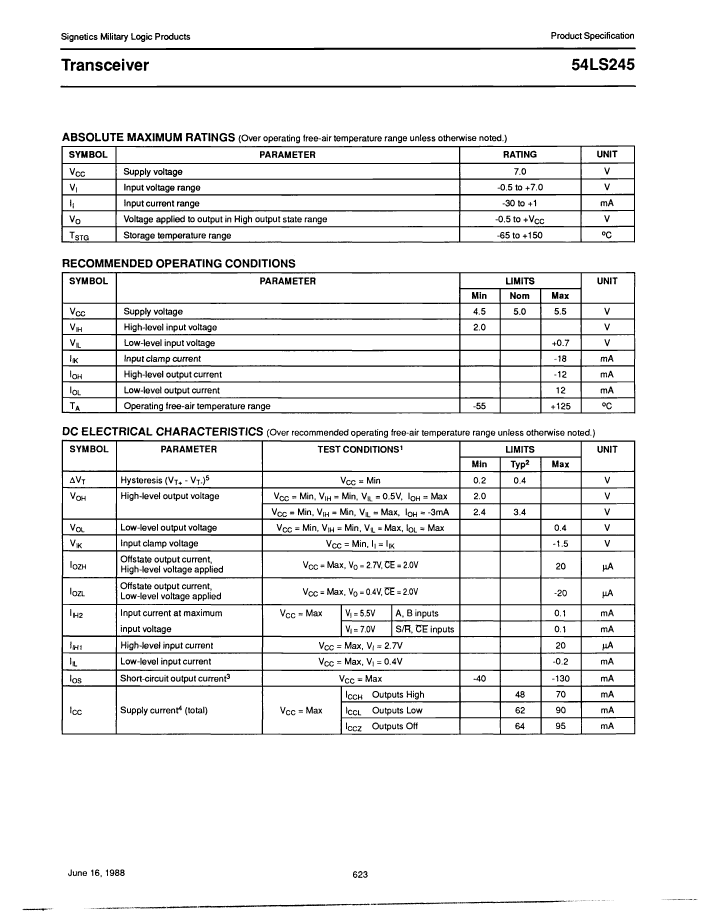

| Maximum supply current (ICC) | 90 mA |

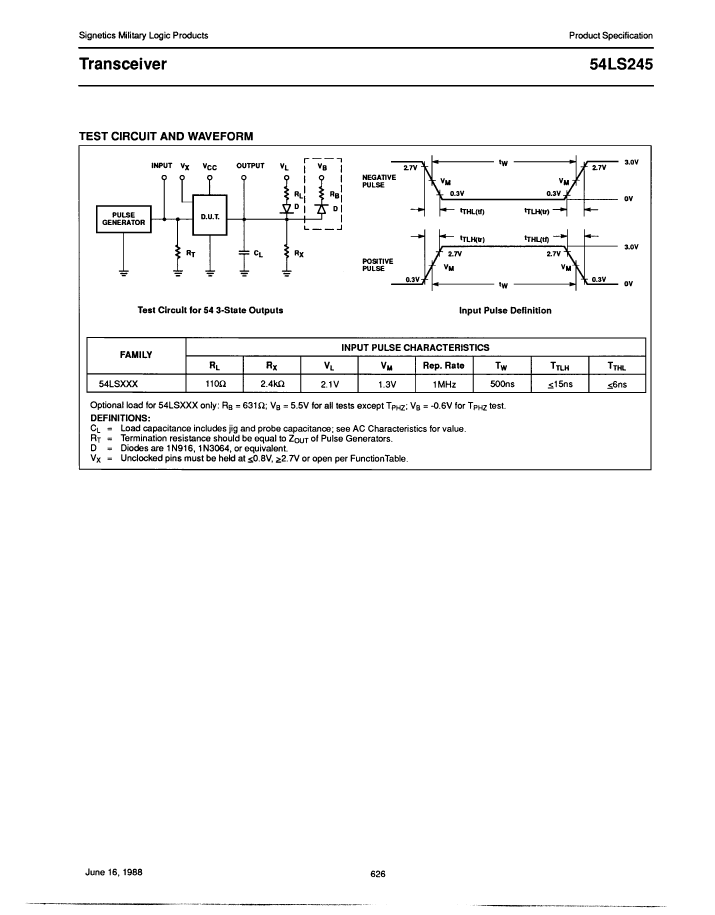

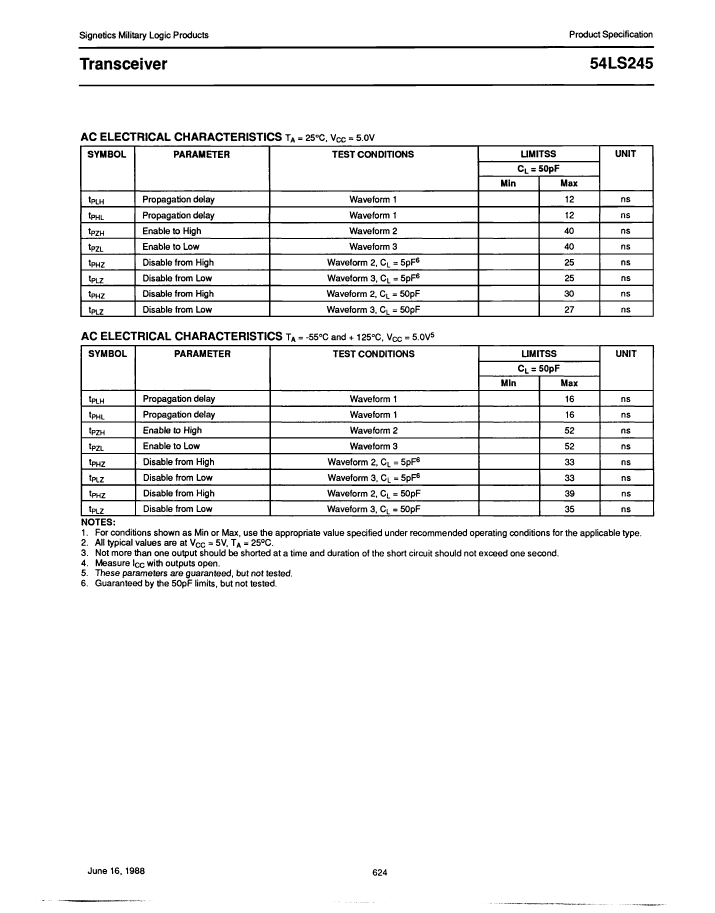

| propagation delay (tpd) | 16 ns |
| Certification status | Not Qualified |
| Maximum supply voltage (Vsup) | 5.5 V |
| Minimum supply voltage (Vsup) | 4.5 V |
| Nominal supply voltage (Vsup) | 5 V |
| surface mount | YES |
| technology | TTL |
| Temperature level | MILITARY |
| Terminal form | FLAT |
| Terminal location | DUAL |
| Base Number Matches | 1 |
| 54LS245/BSA | TMM-129-01-F-S-SM | 54LS245/B2A | |
|---|---|---|---|
| Description | Bus Transceiver, LS Series, 1-Func, 8-Bit, True Output, TTL, CDFP20, | Board Connector, 29 Contact(s), 1 Row(s), Male, Straight, 0.079 inch Pitch, Surface Mount Terminal, Black Insulator, Receptacle, | Bus Transceiver, LS Series, 1-Func, 8-Bit, True Output, TTL, CQCC20 |
| Reach Compliance Code | unknown | compliant | unknown |
| Other features | WITH DIRECTION CONTROL | LOW PROFILE, STAGGERED CONFIGURATION | WITH DIRECTION CONTROL |
| Maximum operating temperature | 125 °C | 125 °C | 125 °C |
| Minimum operating temperature | -55 °C | -55 °C | -55 °C |
| series | LS | - | LS |
| JESD-30 code | R-CDFP-F20 | - | S-CQCC-N20 |
| Load capacitance (CL) | 50 pF | - | 50 pF |
| Logic integrated circuit type | BUS TRANSCEIVER | - | BUS TRANSCEIVER |
| Number of digits | 8 | - | 8 |
| Number of functions | 1 | - | 1 |
| Number of ports | 2 | - | 2 |
| Number of terminals | 20 | - | 20 |
| Output characteristics | 3-STATE | - | 3-STATE |
| Output polarity | TRUE | - | TRUE |
| Package body material | CERAMIC, METAL-SEALED COFIRED | - | CERAMIC, METAL-SEALED COFIRED |
| Package shape | RECTANGULAR | - | SQUARE |
| Package form | FLATPACK | - | CHIP CARRIER |
| Maximum supply current (ICC) | 90 mA | - | 90 mA |
| propagation delay (tpd) | 16 ns | - | 16 ns |
| Certification status | Not Qualified | - | Not Qualified |
| Maximum supply voltage (Vsup) | 5.5 V | - | 5.5 V |
| Minimum supply voltage (Vsup) | 4.5 V | - | 4.5 V |
| Nominal supply voltage (Vsup) | 5 V | - | 5 V |
| surface mount | YES | - | YES |
| technology | TTL | - | TTL |
| Temperature level | MILITARY | - | MILITARY |
| Terminal form | FLAT | - | NO LEAD |
| Terminal location | DUAL | - | QUAD |
| Base Number Matches | 1 | - | 1 |
