Part Number

Search

881623-1

Description
FASTON 187 REC 0.5-1.0 MM2 .032X13.97 BR
CategoryThe connector
File Size164KB,1 Pages
ManufacturerTE Connectivity
Websitehttp://www.te.com
Environmental Compliance
Download Datasheet Parametric Compare View All

881623-1 Online Shopping

Suppliers Part Number Price MOQ In stock
881623-1 - - View Buy Now

881623-1 Overview

FASTON 187 REC 0.5-1.0 MM2 .032X13.97 BR

881623-1 Parametric

Parameter NameAttribute value
terminated toCable
insertion forceordinary
InsulatedNo
Cable typeSeparate conductor
wire stop pointno
Completely insulatedno
Plating materialsNo coating
Terminal and connector typesReceptacle
Terminal directionStraight
Terminal base materialbrass
Crimp typeF type crimp
Barrel TypeOpen
Terminal typefemale end
with conductor insulationwith
Joint fixation typePits
Female terminal blank thickness.3 mm [ .012 in ]
Wire Size (AWG)20 – 17
Wire Size (mm²).51 – 1.03
Width of male end4.75 mm [ .187 in ]
Thickness of male end.81 mm [ .032 in ]
total length15.1 mm [ .594 in ]
Acceptable wire insulation diameter range2.01 – 3.3 mm [ .079 – .13 in ]
Working group temperature range90 °C [ 194 °F ]
UL ratingCertified
Encapsulation methodroll
Package quantity15000
4

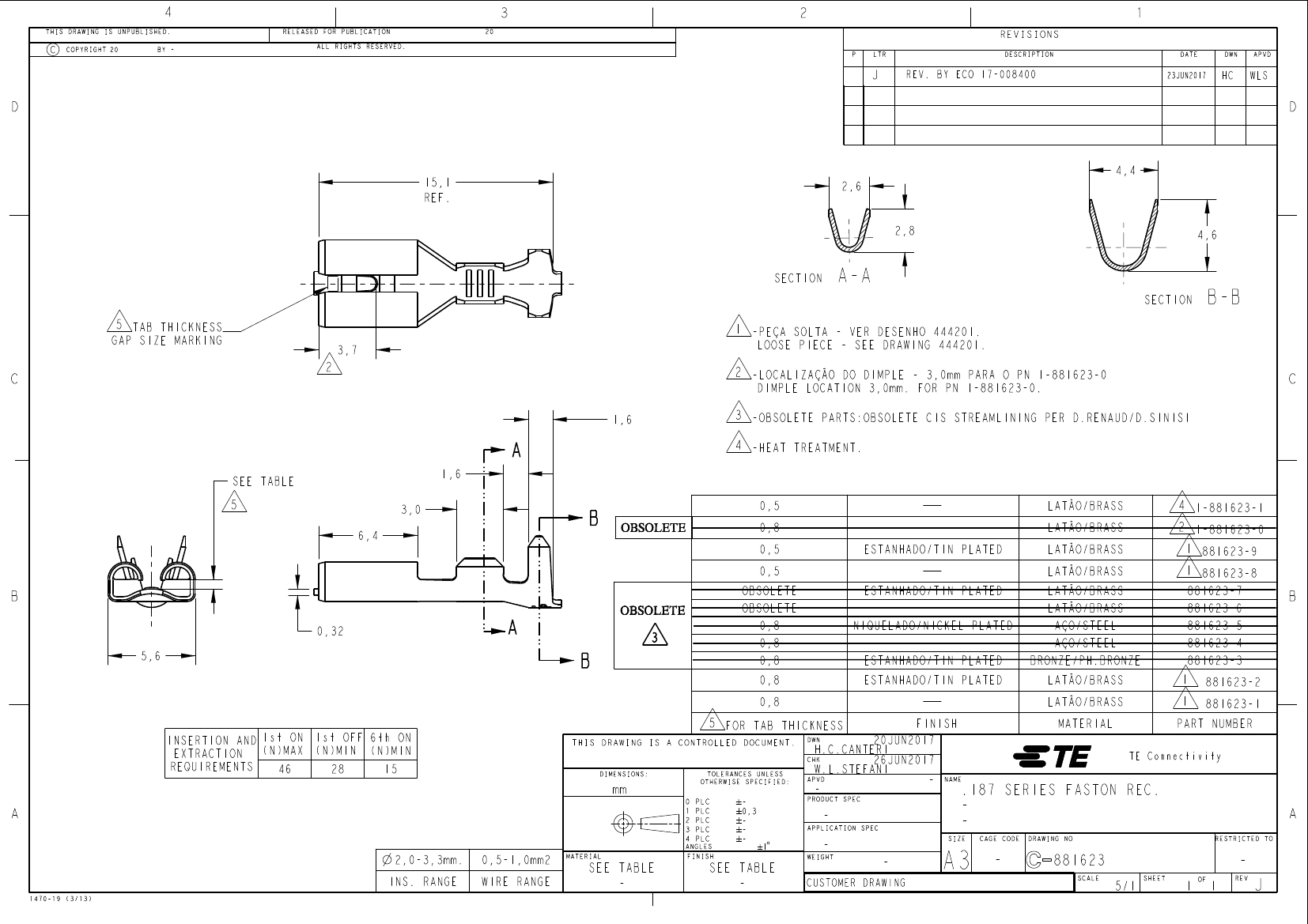

THIS DRAWING IS UNPUBLISHED.
RELEASED FOR PUBLICATION
ALL RIGHTS RESERVED.
20
3
2
REVISIONS
P
LTR
DESCRIPTION
1
DATE
DWN
APVD
C
COPYRIGHT 20
BY -
J
REV. BY ECO 17-008400
23JUN2017
HC
WLS
D
D
15,1
REF.
2,6
2,8
SECTION
4,4
4,6
A-A
SECTION
GAP SIZE MARKING
5
TAB THICKNESS
2
3,7
B-B
1
-PEÇA SOLTA - VER DESENHO 444201.
LOOSE PIECE - SEE DRAWING 444201.
DIMPLE LOCATION 3,0mm. FOR PN 1-881623-0.
C
2
-LOCALIZAÇÃO DO DIMPLE - 3,0mm PARA O PN 1-881623-0
1,6
C
3
-OBSOLETE PARTS:OBSOLETE CIS STREAMLINING PER D.RENAUD/D.SINISI
4
-HEAT TREATMENT.
SEE TABLE
1,6
3,0
6,4
0,5
LATÃO/BRASS
LATÃO/BRASS
ESTANHADO/TIN PLATED
ESTANHADO/TIN PLATED
NIQUELADO/NICKEL PLATED
ESTANHADO/TIN PLATED
ESTANHADO/TIN PLATED
FINISH
DWN
20JUN2017
H.C.CANTERI
CHK
26JUN2017
W.L.STEFANI
APVD
-
NAME
-
.187
PRODUCT SPEC
APPLICATION SPEC
5
4
1-881623-1
2
1-881623-0
1
881623-9
1
881623-8
881623-7
881623-6
OBSOLETE
0,8
0,5
0,5
OBSOLETE
0,8
LATÃO/BRASS
LATÃO/BRASS
LATÃO/BRASS
LATÃO/BRASS
AÇO/STEEL
AÇO/STEEL
B
0,32
5,6
OBSOLETE
3
OBSOLETE
0,8
B
881623-5
881623-4
881623-3
0,8
0,8
0,8
INSERTION AND 1st ON
(N)MAX
EXTRACTION
REQUIREMENTS
46
1st OFF 6th ON
(N)MIN (N)MIN
28
15
BRONZE/PH.BRONZE
LATÃO/BRASS
LATÃO/BRASS
MATERIAL
1
1
881623-2
881623-1
5
FOR TAB THICKNESS
THIS DRAWING IS A CONTROLLED DOCUMENT.
PART NUMBER
TE Connectivity
DIMENSIONS:
mm
TOLERANCES UNLESS
OTHERWISE SPECIFIED:
A
0,5-1,0mm2
INS. RANGE
1470-19 (3/13)
MATERIAL
0
1
2
3
4
ANGLES
PLC
PLC
PLC
PLC
PLC
-
0,3
-
-
-
-
WIRE RANGE
SEE TABLE
-
FINISH
1 $
SEE TABLE
-
WEIGHT
-
-
CUSTOMER DRAWING
A3
SIZE
-
-
SERIES FASTON REC.
A
DRAWING NO
RESTRICTED TO
CAGE CODE
-
881623
SCALE
5/1
SHEET
1
OF
1
REV
-
J
