3-1478987-1 datasheet, PDF - EEWORLD Datasheet

3-1478987-1: DescriptionSMA CONNECTOR, JACK; CategoryThe connector The connector; File Size83KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

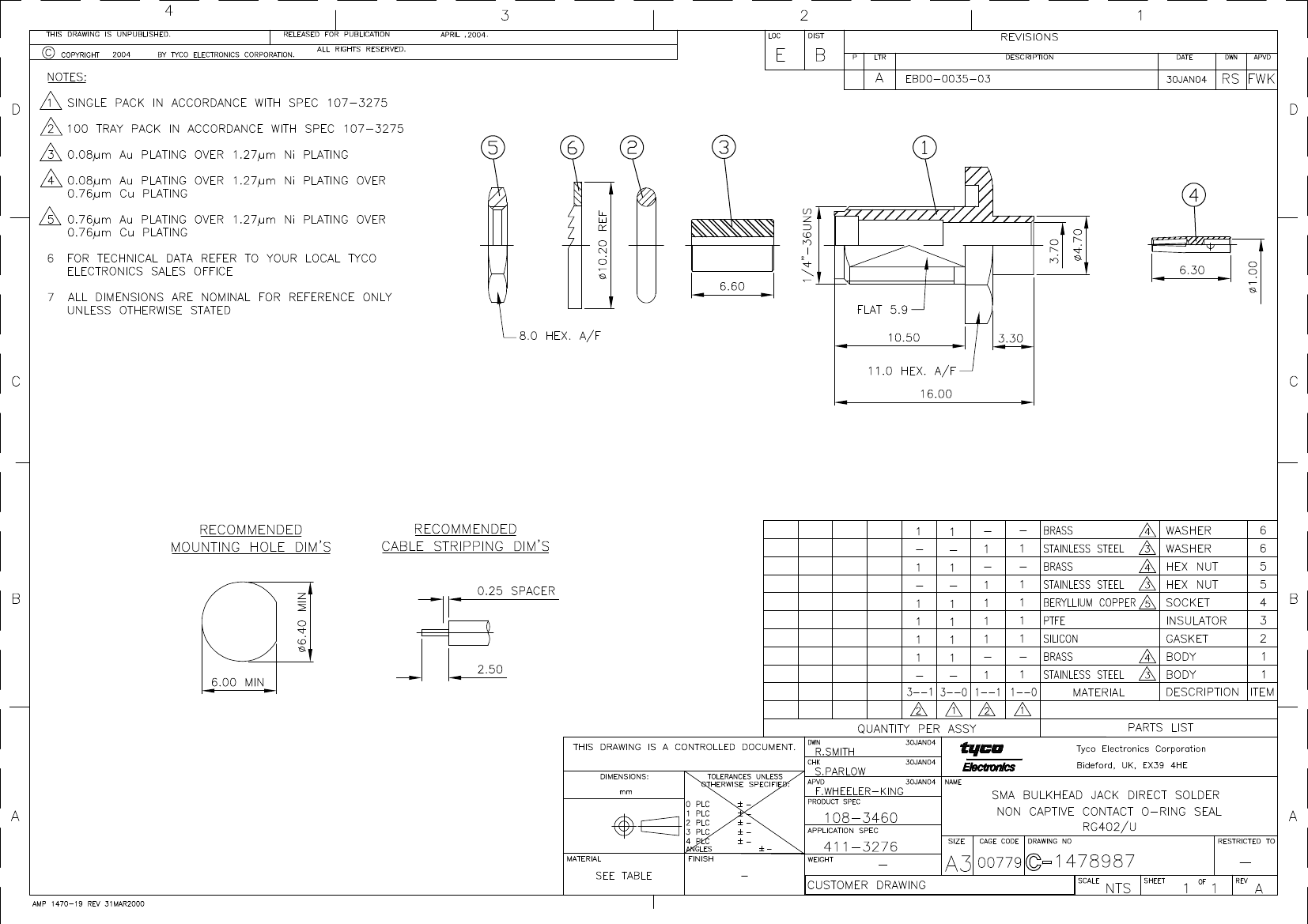

3-1478987-1 Overview

SMA CONNECTOR, JACK

Parameter Name	Attribute value
Reach Compliance Code	unknown
ECCN code	EAR99
subject depth	0.63 inch
Body/casing type	JACK
Cable type	RG-402/U
Characteristic impedance	50 Ω
Connector type	RF SMA CONNECTOR
Contact to complete cooperation	GOLD (30) OVER NICKEL
Contact completed and terminated	GOLD (30) OVER NICKEL
Contact point gender	FEMALE
Contact style	COAX
DIN compliance	NO
IEC compliance	NO
insulator material	POLYTETRAFLUOROETHYLENE
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	1478987
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	PANEL
Number of ports	1
Maximum operating temperature	165 °C
Options	GENERAL PURPOSE
reliability	COMMERCIAL
Termination type	SOLDER LUG
Total number of contacts	1
Base Number Matches	1

	3-1478987-1	1-1478987-1	1-1478987-0
Description	SMA CONNECTOR, JACK	SMA CONNECTOR, JACK	SMA B/HD JK DS RG402 GSS
Cable type	RG-402/U	RG-402/U	RG 402
Reach Compliance Code	unknown	unknow	-
subject depth	0.63 inch	0.63 inch	-
Body/casing type	JACK	JACK	-
Characteristic impedance	50 Ω	50 Ω	-
Connector type	RF SMA CONNECTOR	RF SMA CONNECTOR	-
Contact to complete cooperation	GOLD (30) OVER NICKEL	GOLD (30) OVER NICKEL	-
Contact completed and terminated	GOLD (30) OVER NICKEL	GOLD (30) OVER NICKEL	-
Contact point gender	FEMALE	FEMALE	-
Contact style	COAX	COAX	-
DIN compliance	NO	NO	-
IEC compliance	NO	NO	-
insulator material	POLYTETRAFLUOROETHYLENE	POLYTETRAFLUOROETHYLENE	-
JESD-609 code	e4	e4	-
MIL compliance	NO	NO	-
Manufacturer's serial number	1478987	1478987	-
Installation option 1	LOCKING	LOCKING	-
Installation method	STRAIGHT	STRAIGHT	-
Installation type	PANEL	PANEL	-
Number of ports	1	1	-
Maximum operating temperature	165 °C	165 °C	-
Options	GENERAL PURPOSE	GENERAL PURPOSE	-
reliability	COMMERCIAL	COMMERCIAL	-
Termination type	SOLDER LUG	SOLDER LUG	-
Total number of contacts	1	1	-
Base Number Matches	1	1	-
