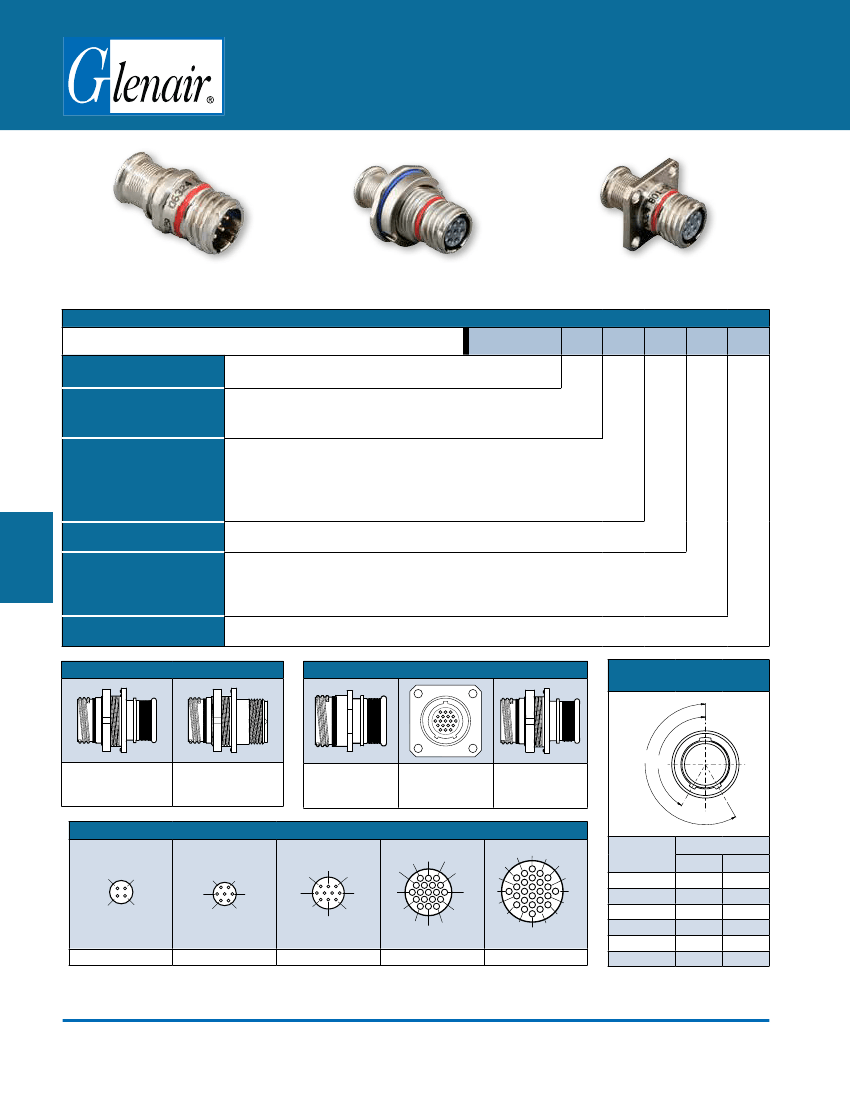

Series 801 Mighty Mouse
High-Speed
Connectors
Crimp Receptacle Connector with Double-Start ACME Threads
801-037 and 801-040 Ordering Information
P
Series 801
High-Speed
In-Line
Shell Style 01
Rear Panel Jam Nut Mount
Shell Style 07
How To Order
Square Flange Mount
Shell Style 02
Sample Part Number
Series (See Table I)
Shell Style
(See Table II)
801-037
= Plug with Banding Platform
801-040
= Plug with Accessory Thread
-01
= In-Line For Free-Hanging Cables
-02
= Square Flange For Front or Rear Mounting
-07
= Jam Nut For Rear Panel Mounting
M
= Aluminum / Electroless Nickel RoHS Compliant
NF
= Aluminum / Cadmium with Olive Drab Chromate
ZNU
= Aluminum / Zinc-Nickel with Black Chromate
MT
= Aluminum / Nickel-PTFE RoHS Compliant
Z1
= Stainless Steel / Passivated RoHS Compliant
801-037
-02
Z1
6-4
S
A
Shell Material and Finish
Shell Size - Insert Arrangement
6-4, 6-7, 7-10, 9-19, 10-26
(See Table III)
Contact Type
Shell Key Positions
(See Table IV)
Connector supplied
with contacts
P
= Pin
S
= Socket
A
= Normal
Connector supplied
without contacts
A
= Pin Connector
B
= Socket Connector
B
= Pos. B
C
= Pos. C
D
= Pos. D
E
= Pos. E
Connector Supplied
with 30 AWG Crimp Barrel
G
= Pin
H
= Socket
F
= Pos. F
Table I: Series
Table II: Shell Style
Table IV: Shell Key
Positions
801-037
Receptacle with
Banding Platform
801-040
Receptacle with
Accessory Thread
-01
In-Line
-02
Square Flange
-07
Jam Nut for Rear
Panel Mounting
B° A°
Table III: Shell Size – Insert Arrangement
1
4
2
6
3
5
1
7
2
3
4
7
3
10
2
1
4
8
7
12
16
3
2
1
4
8
13
6
11
15
18
23
3
1
2
4
9
12
16
21
Key Position
Normal (A)
B
C
D
E
F
Key Rotation
A°
150°
75°
95°
140°
75°
95°
B°
210°
210°
230°
275°
275°
210°
9
7-10
19 18 17
25
26
24
6-4
6-7
9-19
10-26
Dimensions in Inches (millimeters) are subject to change without notice.
© 2014 Glenair, Inc.
Series 80 Mighty Mouse
U.S. CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
P-6
E-Mail: sales@glenair.com
Crimp Receptacle Connector with Double-Start ACME Threads
801-037 and 801-040 Ordering Information
In–line receptacle - shell style 01
MASTER
KEYWAY
3
7
12
16
19
1
4
8
13
17
.900 (22.9)
MAX
øA
.060 (1.5)
.430 (10.9)
MAX
øD
B FLAT
C THREAD
RED FULL MATE
INDICATOR STRIPE
E THREAD
Integral Band Platform
801-037-01
Dimensions
Shell
Size
6
7
9
10
ØA
In.
.415
.480
.605
.655
mm.
10.54
12.19
15.37
16.64
B Flat
In.
mm.
.385
9.78
.445
11.30
.575
14.61
.635
16.13
C
Thread
.375-.05P-.1L-2A
.4375-.05P-1L-2A
.5625-.05P-1L-2A
.6250-.05P-1L-2A
ØD
In.
.290
.390
.500
.560
Accessory Thread
801-040-01
mm.
7.37
9.91
12.70
14.22
E Thread
UNEF-2A
.3125-32
.4375-28
.5625-24
.6250-24
With Grommet Removed
High Speed Performance
Impedance
VSWR
1 GHz
2 GHz
3 GHz
4 GHz
5 GHz
100 Ω ±7 Ω
at 100-Picosecond
<1.4 up to 4-GHz
Insertion Loss
.51 dB
.53 dB
.57 dB
1.2 dB
1.25 dB
With Grommet Intact
High Speed Performance
Impedance
VSWR
1 GHz
100 Ω ±15 Ω
at 100-Picosecond
<1.5 up to 3-GHz
Insertion Loss
.73 dB
2 GHz
.76 dB
3 GHz
.85 dB
In order to achieve high speed performance,
this connector must be mated to another high
speed Mighty Mouse connector.
Material and Finish
•
•
•
•
Plug Barrel, Coupling Nut: Aluminum Alloy or Stainless Steel
Insulator: PFA
Interfacial Seal, Grommet Seal: Fluorosilicone
Contact: Copper Alloy, 50 Microinch Gold Plated per ATSM B 488, Type II, Code C, Class
1.25 (.00005 Min THK), over a suitable underplate.
NOTES
Dimensions in Inches (millimeters) are subject to change without notice.
© 2014 Glenair, Inc.
Series 80 Mighty Mouse
U.S. CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
P-7
E-Mail: sales@glenair.com
Series 801
High-Speed
Series 801 Mighty Mouse
High-Speed
Connectors
