0469990353 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 0469990353

0469990353: Description.062 plug 4 ckt pre-bent ears; CategoryThe connector The connector; File Size32KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

0469990353 Overview

.062 plug 4 ckt pre-bent ears

0469990353 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Molex
Reach Compliance Code	compliant
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact arrangement	S0P4
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE/FEMALE
Contact material	NOT SPECIFIED
Contact style	RND PIN-SKT
Insulator color	NATURAL
insulator material	NYLON
Manufacturer's serial number	1625
Mixed contacts	YES
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	CABLE
Number of connectors	ONE
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Guideline	UL,CSA,TUV
reliability	COMMERCIAL
Termination type	CRIMP
Total number of contacts	4
Base Number Matches	1

Preview

Download Datasheet

View All

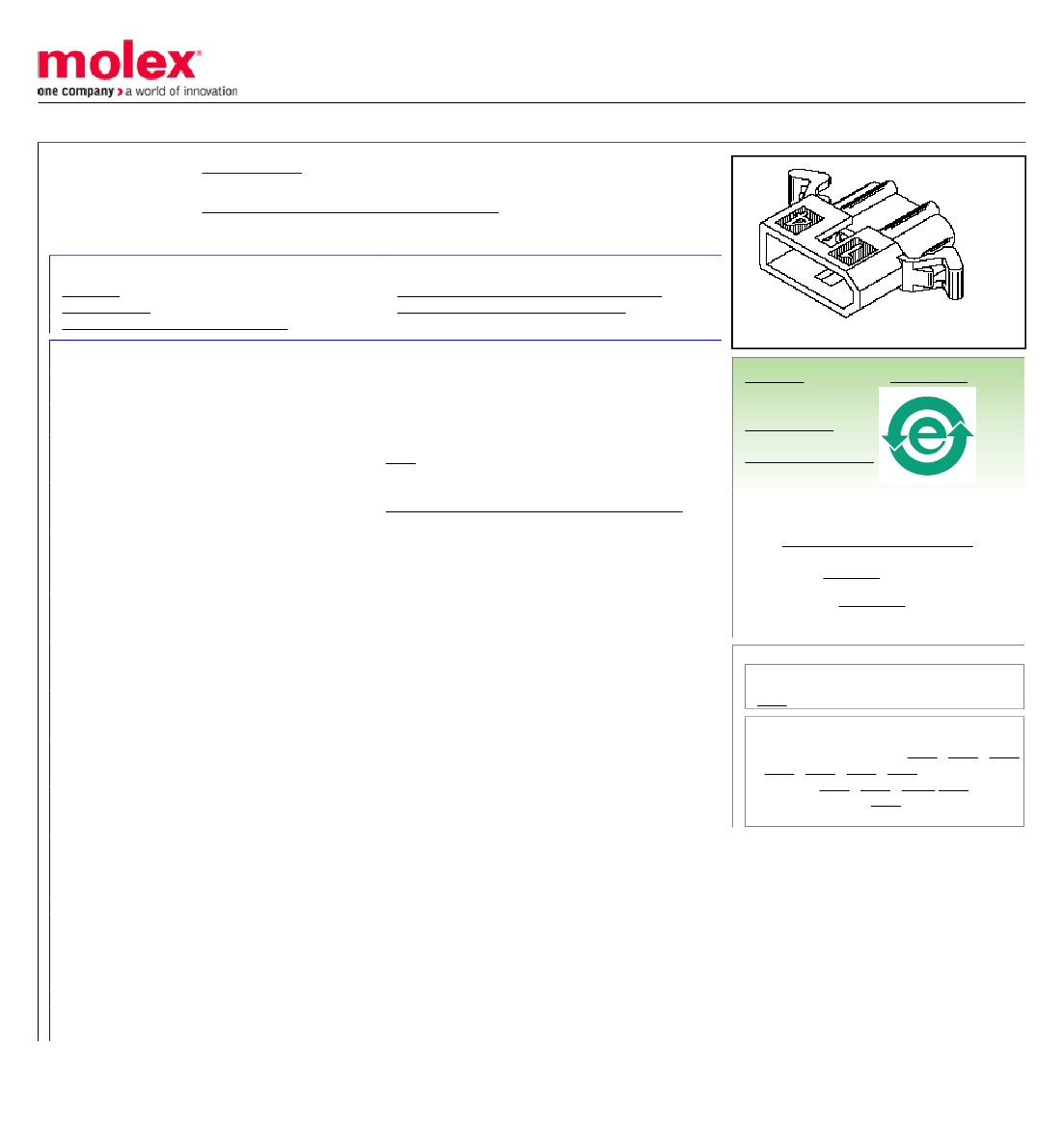

This document was generated on 08/08/2014

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

46999-0353

Active

Standard .062" Pin and Socket Power Connectors

1.57mm Diameter Standard .062" Pin and Socket Plug Housing, 4 Circuits, with Pre-

bent Mounting Ears, Glow Wire

Documents:

3D Model

Drawing (PDF)

Product Specification PS-02-06 (PDF)

Packaging Specification PK-1625-003 (PDF)

RoHS Certificate of Compliance (PDF)

Series

image - Reference only

Agency Certification

CSA

LR19980

E29179

EU RoHS

ELV and RoHS

Compliant

REACH SVHC

Contains SVHC: No

Low-Halogen Status

Not Low-Halogen

China RoHS

General

Product Family

Series

Application

MolexKits

Overview

Product Name

UPC

Crimp Housings

1625

Power, Wire-to-Wire

Yes

Standard .062" Pin and Socket Power Connectors

Standard .062"

800753615236

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

Physical

Circuits (maximum)

Circuits Detail

Color - Resin

Flammability

Gender

Glow-Wire Compliant

Keying to Mating Part

Lock to Mating Part

Material - Resin

Net Weight

Number of Rows

Packaging Type

Panel Mount

Pitch - Mating Interface

Pitch - Termination Interface

Polarized to Mating Part

Stackable

Temperature Range - Operating

1x4

Natural

94V-2

Plug

Yes

None

Yes

Nylon

1.173/g

Bag

Yes

3.68mm

Yes

-40°C to +105°C

Search Parts in this Series

1625Series

Use With

Female Crimp Terminals 1561 , 4559 , 4529

, 2190 , 2189 , 1787 , 1855 . Male Crimp

Terminals 1560 , 1786 , 1854. 1778 Male

PC Tail Terminals. 1779 Female PC Tail

Terminals

Electrical

Current - Maximum per Contact

Material Info

Old Part Number

1625-4P2-1

Reference - Drawing Numbers

Packaging Specification

Product Specification

Sales Drawing

PK-1625-003

PS-02-06

SD-1625-4*
