2SC1009AFA3-T2B-A

Description
Small Signal Bipolar Transistor, 0.05A I(C), 30V V(BR)CEO, 1-Element, NPN, Silicon, MINIMOLD, SC-59, 3 PIN
CategoryDiscrete semiconductor    The transistor
File Size194KB,4 Pages
ManufacturerNEC Electronics
Download Datasheet Parametric View All

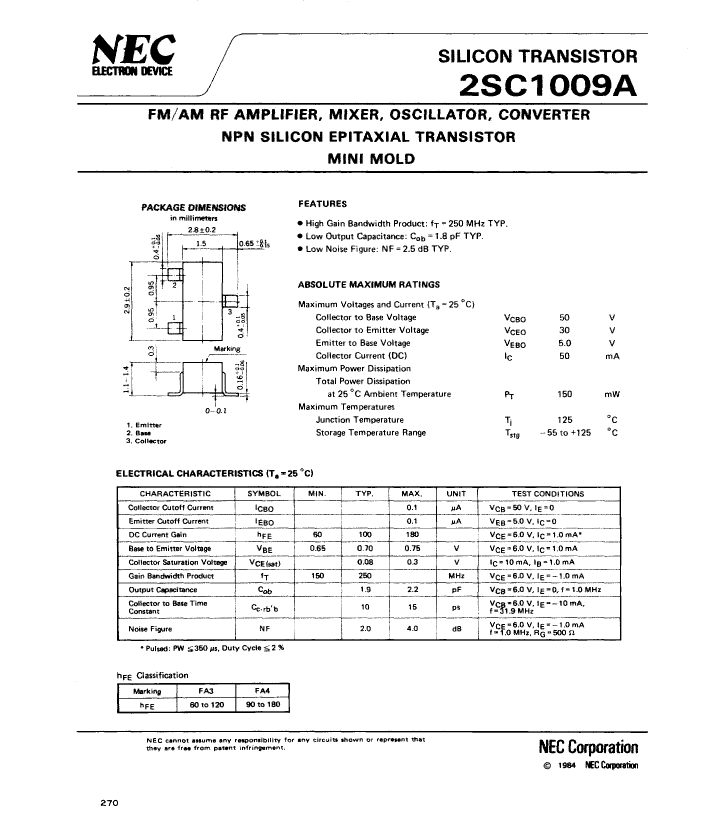

2SC1009AFA3-T2B-A Overview

Small Signal Bipolar Transistor, 0.05A I(C), 30V V(BR)CEO, 1-Element, NPN, Silicon, MINIMOLD, SC-59, 3 PIN

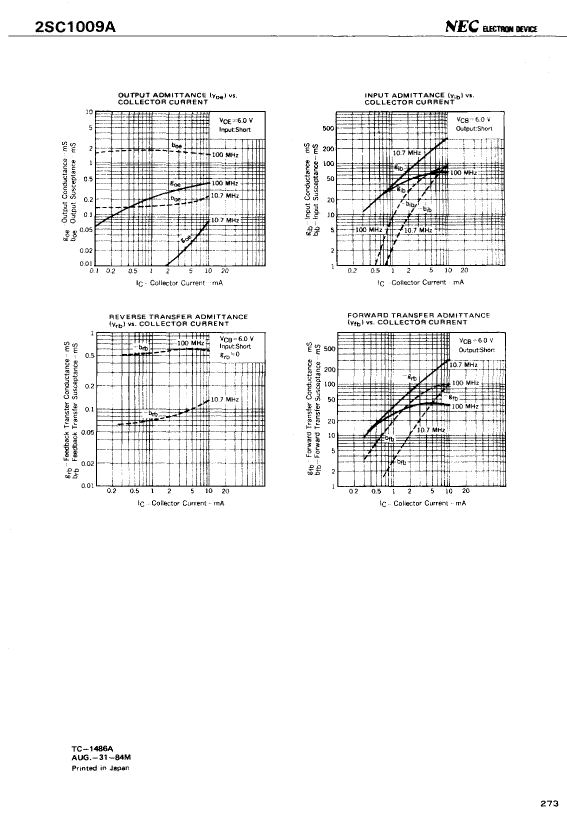

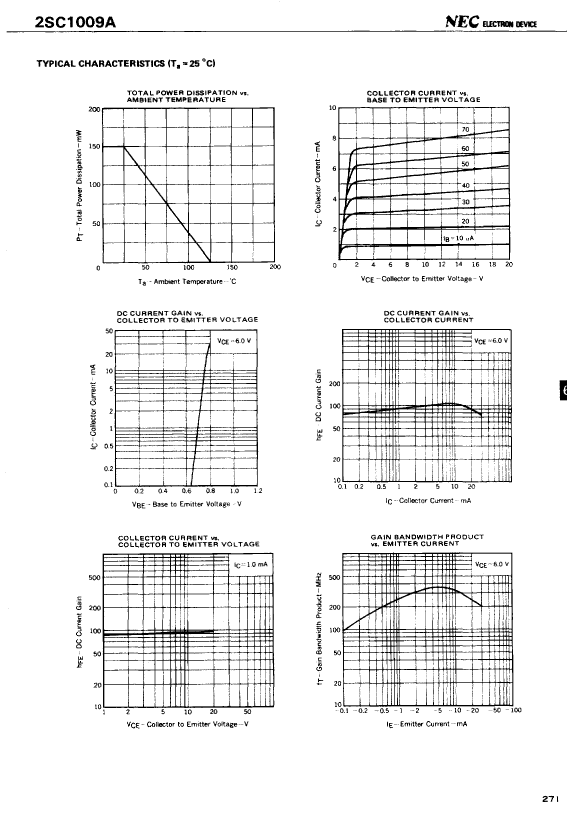

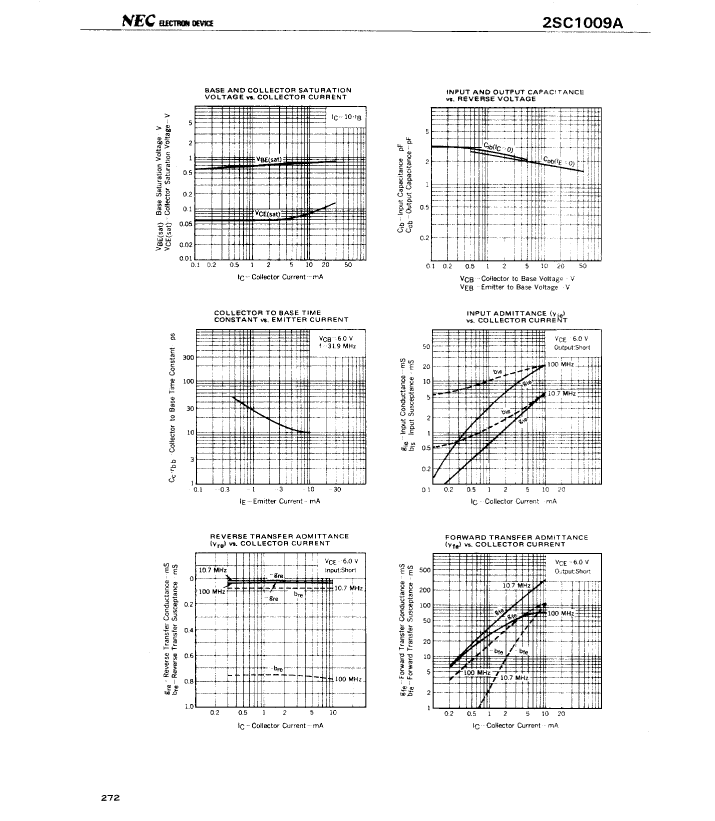

2SC1009AFA3-T2B-A Parametric

Parameter NameAttribute value
MakerNEC Electronics
Parts packaging codeSC-59
package instructionSMALL OUTLINE, R-PDSO-G3
Contacts3
Reach Compliance Codeunknown
ECCN codeEAR99
Maximum collector current (IC)0.05 A
Collector-emitter maximum voltage30 V
ConfigurationSINGLE
Minimum DC current gain (hFE)60
JESD-30 codeR-PDSO-G3
JESD-609 codee6
Number of components1
Number of terminals3
Package body materialPLASTIC/EPOXY
Package shapeRECTANGULAR
Package formSMALL OUTLINE
Peak Reflow Temperature (Celsius)NOT SPECIFIED
Polarity/channel typeNPN
Certification statusNot Qualified
surface mountYES
Terminal surfaceTIN BISMUTH
Terminal formGULL WING
Terminal locationDUAL
Maximum time at peak reflow temperatureNOT SPECIFIED
transistor applicationsAMPLIFIER
Transistor component materialsSILICON
Nominal transition frequency (fT)250 MHz
Base Number Matches1
