233-103-H7ZL21-35SN-01 datasheet, PDF

Datasheet> All Categories > The connector> The connector> 233-103-H7ZL21-35SN-01

233-103-H7ZL21-35SN-01: DescriptionCircular Connector Adapter, 79 Contact(s), Stainless Steel, Female-Female; CategoryThe connector The connector; File Size297KB，1 Pages; ManufacturerGlenair; Websitehttp://www.glenair.com/

Download Datasheet Parametric View All

233-103-H7ZL21-35SN-01 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	233-103-H7ZL21-35SN-01	-	-	View	Buy Now

233-103-H7ZL21-35SN-01 Overview

Circular Connector Adapter, 79 Contact(s), Stainless Steel, Female-Female

233-103-H7ZL21-35SN-01 Parametric

Parameter Name	Attribute value
Reach Compliance Code	compliant
Other features	STANDARD: MIL-DTL-38999, POLARIZED
Connector type	CIRCULAR CONNECTOR ADAPTER
Contact point gender	FEMALE-FEMALE
Coupling type	THREADED
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
MIL compliance	YES
Manufacturer's serial number	233-103-H7
Mixed contacts	NO
Installation type	PANEL
Options	HERMETIC
Shell material	STAINLESS STEEL
Total number of contacts	79
Base Number Matches	1

Preview

Download Datasheet

View All

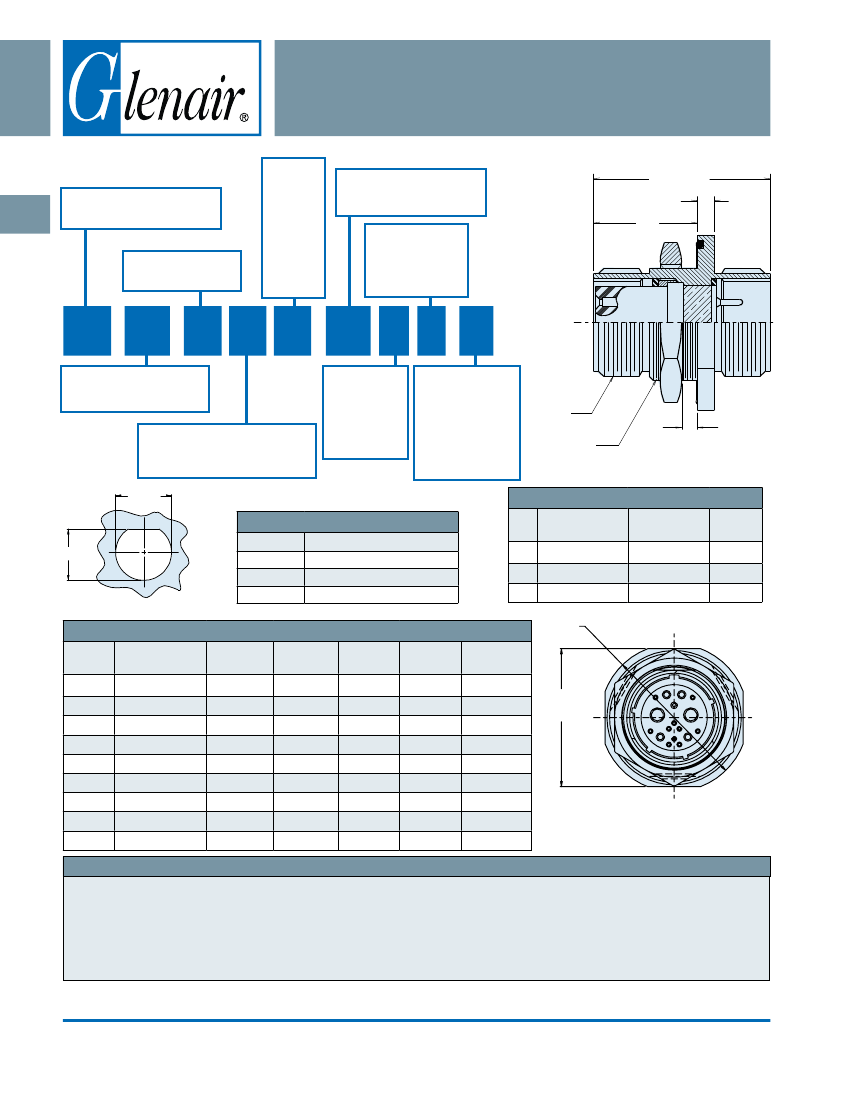

MIL-DTL-38999 Type

Hermetic Connectors

233-103-H7

Jam Nut Mount Hermetic Bulkhead Feed-Thru

MIL-DTL-38999 Series III Type

Connector Series

233

D38999 Series III Type

Shell Style

- Jam Nut Mount

Shell Size

Insert Arrangement

Per MIL-DTL-38999 Series III

MIL-STD-1560

.23

Max

Alternate Key

Position

A, B, C, D, E

(N = Normal)

233

103

H7 Z1 11

Connector Type

103

Hermetic Bulkhead

Feed-Thru

Connector Material and Finish

- CRES, Passivated

- CRES, Nickel Finish

P N

Panel

Accomodation

- .0625″ (Min)

.125″ (Max)

- .0625″ (Min)

.250″ (Max)

- .0625″ (Min)

.500″ (Max)

A Thread

F Thread

Contact

Termination

- Pin on

Jam Nut Side

- Socket on

Jam Nut Side

Panel

Accom.

D Dia

HERMETIC LEAK RATE MOD CODES

TABLE I: CONNECTOR DIMENSIONS

G Dim, OAL

-01

-02

-03

1.650 (41.91) Max

1.780 (45.21) Max

2.030 (51.56) Max

H Dim, Max

.889 (22.58)

1.090 (27.69)

1.340 (34.04)

Designator

–585A

–585B

–585C

Required Leak Rate

1 x 10

-10

cc Helium per second

1 x 10

-9

cc Helium per second

1 x 10

-8

cc Helium per second

J Dim,

Panel

.125 (3.18)

.062 (1.57)

.250 (6.35)

.062 (1.57)

.500 (12.7)

.062 (1.57)

Recommended Panel Cut-Out

TABLE II: CONNECTOR DIMENSIONS

SHELL

SIZE

A THREAD

0.1 P-0.3L-TS-2

.6250

.7500

.8750

1.0000

1.1875

1.2500

1.3750

1.5000

1.6250

DIA

1.189 (30.20)

1.375 (34.93)

1.500 (38.10)

1.626 (41.30)

1.752 (44.50)

1.937 (49.20)

2.063 (52.40)

2.189 (55.60)

2.311 (58.70)

1.063 (27.00)

1.252 (31.80)

1.374 (34.90)

1.500 (38.10)

1.626 (41.30)

1.811 (46.00)

1.937 (49.20)

2.063 (52.40)

2.189 (55.60)

DIA

.703 (17.86)

.693 (17.60)

.835 (21.21)

.825 (20.96)

1.020 (25.91)

1.010 (25.65)

1.145 (29.03)

1.135 (28.83)

1.270 (32.26)

1.260 (32.00)

1.395 (35.43)

1.385 (35.18)

1.520 (38.61)

1.510 (38.35)

1.645 (41.78)

1.635 (41.53)

1.769 (44.93)

1.759 (44.68)

ØB

F THREAD

METRIC

M17 x 1.0-6g

M20 x 1.0-6g

M25 x 1.0-6g

M28 x 1.0-6g

M32 x 1.0-6g

M35 x 1.0-6g

M38 x 1.0-6g

M41 x 1.0-6g

M44 x 1.0-6g

Insert Arrangement per

MIL-DTL-38999 Series III

MIL-STD-1560

DIM

.657 (16.69)

.655 (16.64)

.771 (19.58)

.769 (19.53)

.955 (24.26)

.953 (24.21)

1.085 (27.56)

1.083 (27.51)

1.210 (30.73)

1.208 (30.68)

1.335 (33.91)

1.333 (33.86)

1.460 (37.08)

1.458 (37.03)

1.585 (40.26)

1.583 (40.21)

1.710 (43.34)

1.708 (43.38)

A/F

APPLICATION NOTES

Power to a given contact on one end will result in power to contact directly

opposite, regardless of identification letter.

Hermeticity = less than 1 x 10

-7

cc/sec at one atmosphere. Not for use in liquid

atmosphere.

Material/finish:

Shell, nut –

CRES/passivated or CRES/nickel per QQ-N-290.

Contacts – Gold Plated. Pin: alloy 52; Skt.: copper alloy

Insulator, hermetic – fused vitreous glass/N.A.

Insulator, socket – rigid dielectric.

Seals – fluorosilicone rubber/N.A.

Metric dimensions (mm) are indicated in parentheses.

Dimensions in Inches (millimeters) are subject to change without notice.

U.S. CAGE Code 06324

Printed in U.S.A.

GLENAIR, INC.

•

1211 AIR WAY

•

GLENDALE, CA 91201-2497

•

818-247-6000

•

FAX 818-500-9912

www.glenair.com

B-56

E-Mail: sales@glenair.com
