451-30.000MHZ-EE datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> 451-30.000MHZ-EE

451-30.000MHZ-EE: DescriptionPECL 10KH Output Clock Oscillator, 30MHz Nom, DIP-14/4; CategoryPassive components oscillator; File Size85KB，1 Pages; ManufacturerFOX [Fox Electronics]

Download Datasheet Parametric View All

451-30.000MHZ-EE Overview

PECL 10KH Output Clock Oscillator, 30MHz Nom, DIP-14/4

451-30.000MHZ-EE Parametric

Parameter Name	Attribute value
Maker	FOX [Fox Electronics]
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	COMPLEMENTARY OUTPUT
maximum descent time	2 ns
Frequency Adjustment - Mechanical	NO
frequency stability	20%
Manufacturer's serial number	F8L-4G
Installation features	THROUGH HOLE MOUNT
Nominal operating frequency	30 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-10 °C
Oscillator type	PECL 10KH
Output load	50 OHM
physical size	20.8mm x 13.2mm x 7.24mm
longest rise time	2 ns
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	NO
maximum symmetry	60/40 %
Base Number Matches	1

Preview

Download Datasheet

View All

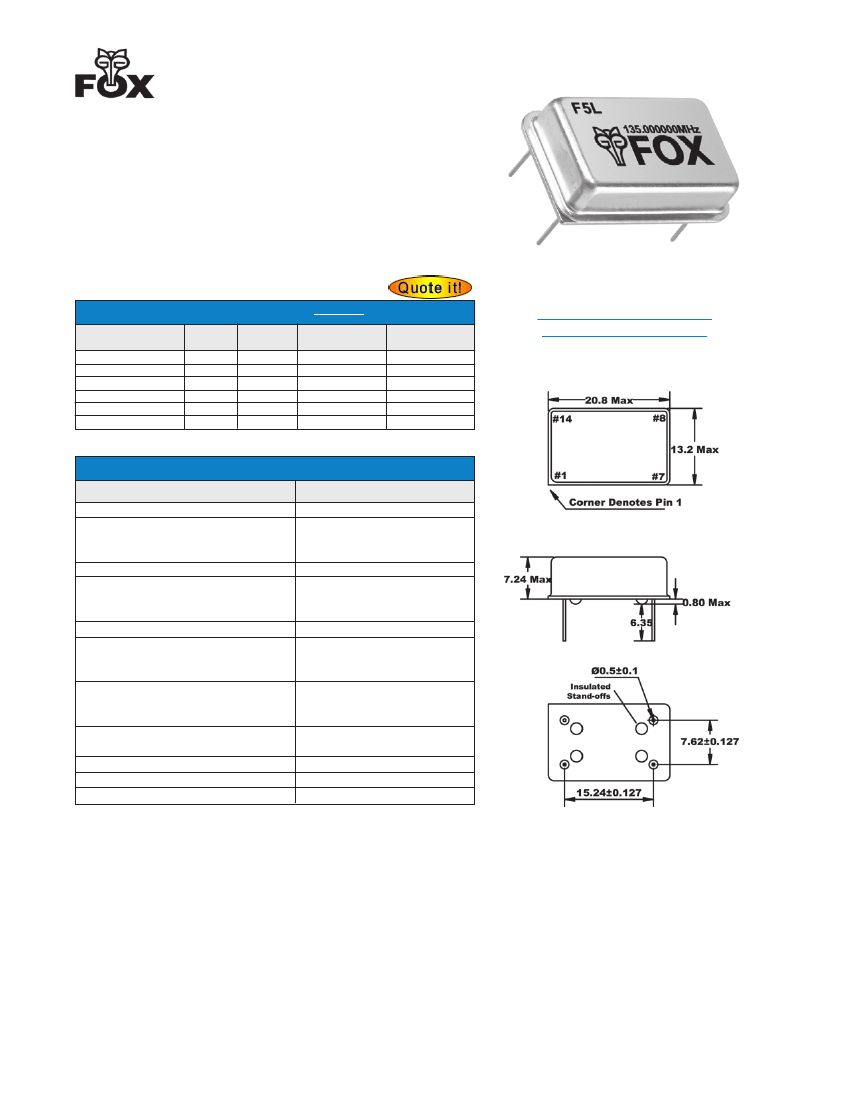

14-PIN DIP PECL OSCILLATOR

MODEL: F5L-4G

FEATURES

• 5.0V Operation

• PECL Output

• 10 KH Logic Output

• Complementary Output

OPTIONS

•

Single-Ended Output

Pullup/Down Internal Resistors

Various Pin Connections

-5.2V ECL Version

Discontinued

Learn More - Internet Required

• PART NUMBER SELECTION

Part Number

161-Frequency-xxxxx

162-Frequency-xxxxx

370-Frequency-xxxxx

189-Frequency-xxxxx

207-Frequency-xxxxx

451-Frequency-xxxxx

Model

Number

F5L-4G

F5L-4GR

F6L-4G

F6L-4GR

F7L-4G

F8L-4G

Frequency

Operating

Stability

Temperature (ºC)

±100PPM

-10 ~ +70

-40 ~ +85

±100PPM

-10 ~ +70

±50PPM

-40 ~ +85

±50PPM

±25PPM

-10 ~ +70

±20PPM

Frequency

Range (MHz)

30.000 ~ 200.000

Learn more about:

Part Marking Identification

Mechanical Specification

Internet required

• ELECTRICAL CHARACTERISTICS

PARAMETERS

Frequency Range (F

)

Temperature Range

Operating

OPR

)

Storage

STG

)

Supply Voltage

)

Input Current

)

30.000 ~ 170.000 MHz

170.000+ ~ 200.000 MHz

Output Symmetry (50% Vp-p Level)

Rise Time (20% ~ 80%Vp-p) (T

)

30.000 ~ 170.000 MHz

170.000+ ~ 200.000 MHz

Fall Time (80% ~ 20%Vp-p) (T

)

30.000 ~ 170.000 MHz

170.000+ ~ 200.000 MHz

Output Voltage

)

Output Load

Overlap Time

(50% Vp-p (Complementary Only))

Start-up Time

)

MAX

(unless otherwise noted)

30.000 ~ 200.000 MHz

-10ºC ~ +70ºC

-55ºC ~ +125ºC

5.0V ± 10%

50mA

60mA

40% ~ 60%

2.0nS

1.5nS

2.0nS

1.5nS

+3.05V ~ +3.42V

+4.00V ~ +4.45V

Ω

0.5nS

10mS

Inclusive of 25ºC tolerance, operating temperature range, input voltage change, load change, aging,

shock, and vibration.

All specifications subject to change without notice.

Rev. 6/1/04

Pin Connection

#1 Output 1

#7 GND

#8 Output 2

#14 +5.0V

All dimensions are in millimeters.

FOXElectronics

5570 Enterprise Parkway Fort Myers, Florida 33905 USA +1(239)693-0099 FAX +1(239)693-1554

http://www.foxonline.com
